AB229191

Anti-MLH1 antibody [EPR20741]

Be the first to review this product! Submit a review

|

(1 Publication)

Rabbit Recombinant Monoclonal MLH1 antibody. Suitable for ICC/IF, Flow Cyt (Intra), IHC-P and reacts with Human samples. Cited in 1 publication.

View Alternative Names

COCA2, MLH1, DNA mismatch repair protein Mlh1, MutL protein homolog 1

5 Images
Flow Cytometry (Intracellular) - Anti-MLH1 antibody [EPR20741] (AB229191)
  • Flow Cyt (Intra)

Supplier Data

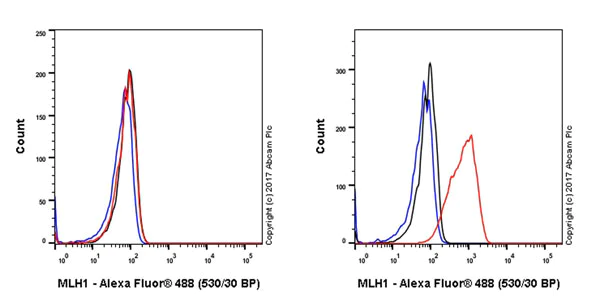

Flow Cytometry (Intracellular) - Anti-MLH1 antibody [EPR20741] (AB229191)

Intracellular flow cytometric analysis of HCT 116 (human colorectal carcinoma epithelial cell line, left) / SW480 (human colorectal adenocarcinoma cell line) cells labelling MLH1 with ab229191 at 1/60 dilution (red) comparedwitha Rabbit IgG, monoclonal [EPR25A] - Isotype Control (ab172730) (black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (blue). Goat Anti-Rabbit IgG H&L (Alexa Fluor� 488) (ab150077)was used as the secondary antibody at 1/2000 dilution.

Gated on total viable cells.

The HCT 116 (human colorectal carcinoma epithelial) cell line is a negative control for MLH1 (PMID : 23724141) (left panel).

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MLH1 antibody [EPR20741] (AB229191)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MLH1 antibody [EPR20741] (AB229191)

Immunohistochemical analysis of paraffin-embedded human breast cancer tissue labelling MLH1 with ab229191 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) ready to use. Nuclear staining in tumor cells of human breast cancer (PMID : 20215533) is observed. Counterstained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) ready to use.

Heat mediated antigen retrieval was performed with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Immunocytochemistry/ Immunofluorescence - Anti-MLH1 antibody [EPR20741] (AB229191)
  • ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-MLH1 antibody [EPR20741] (AB229191)

Immunofluorecent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized SW480 (human colorectal adenocarcinoma cell line) cells labelling MLH1 with ab229191 at 1/500 dilution, followed by AlexaFluor®488 Goat anti-Rabbit (ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing nuclear staining in SW480 cell line.

The nuclear counter stain is DAPI (blue). Tubulin is detected with Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) (ab195889) at 1/200 dilution (red).

Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) (ab195889).

The HCT 116 (human colorectal carcinoma epithelial) cell line is a negative control for MLH1 (PMID : 23724141).

Secondary antibody only control : Used PBS instead of ab229191, followed by AlexaFluor®488 Goat anti-Rabbit secondary antibody (ab150077) at 1/1000 dilution.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MLH1 antibody [EPR20741] (AB229191)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MLH1 antibody [EPR20741] (AB229191)

Immunohistochemical analysis of paraffin-embedded human colon tissue labelling MLH1 with ab229191 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) ready to use. Nuclear staining in human colon tissue is observed (PMID : 10535979). Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) ready to use.

Heat mediated antigen retrieval was performed with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MLH1 antibody [EPR20741] (AB229191)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MLH1 antibody [EPR20741] (AB229191)

Immnohistochemical analysis of paraffin-embedded human colon cancer tissue labelling MLH1 with ab229191 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) ready to use. Nuclear staining in tumor cells of human colon cancer is observed (PMID : 22608206). Counter stained with hematoxylin.

Secondary antibody only control : used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) ready to use.

Heat mediated antigen retrieval was performed with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR20741

Isotype

IgG

Carrier free

No

Reacts with

Human

Applications

IHC-P, Flow Cyt (Intra), ICC/IF

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Alternative Products

Primary Antibodies

AB14206

Anti-MLH1 antibody [G168-15]

Flow Cytometry - Anti-MLH1 antibody [G168-15] (AB14206)

  • 0
  • 0
Primary Antibodies

AB199494

Alexa Fluor® 647 Anti-MLH1 antibody [EPR3894]

RabMAb|Recombinant

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-MLH1 antibody [EPR3894] (AB199494)

  • 0
  • 0
Primary Antibodies

AB199237

Alexa Fluor® 488 Anti-MLH1 antibody [EPR3894]

RabMAb|Recombinant

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-MLH1 antibody [EPR3894] (AB199237)

  • 3
  • 1
Primary Antibodies

AB108622

Anti-MLH1 antibody [EPR3893]

RabMAb|Recombinant|KO Validated

Western blot - Anti-MLH1 antibody [EPR3893] (AB108622)

  • 5
  • 1
Primary Antibodies

AB92312

Anti-MLH1 antibody [EPR3894]

RabMAb|Recombinant|KO Validated|20ul selling size

Immunocytochemistry/ Immunofluorescence - Anti-MLH1 antibody [EPR3894] (AB92312)

  • 5
  • 4
Primary Antibodies

AB214441

Anti-MLH1 antibody [EPR3894] - BSA and Azide free

RabMAb|Recombinant|KO Validated

Immunocytochemistry/ Immunofluorescence - Anti-MLH1 antibody [EPR3894] - BSA and Azide free (AB214441)

  • 0
  • 0
Primary Antibodies

AB223844

Anti-MLH1 antibody [EPR20522]

BOND RX™ Validated|RabMAb|Recombinant|KO Validated

Immunocytochemistry/ Immunofluorescence - Anti-MLH1 antibody [EPR20522] (AB223844)

  • 0
  • 0
Primary Antibodies

AB215303

Alexa Fluor® 555 Anti-MLH1 antibody [EPR3894]

RabMAb|Recombinant

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 555 Anti-MLH1 antibody [EPR3894] (AB215303)

  • 0
  • 0

Complementary Products

Primary Antibodies

AB227941

Anti-MSH2 antibody [EPR21017-123]

RabMAb|Recombinant|KO Validated

Flow Cytometry (Intracellular) - Anti-MSH2 antibody [EPR21017-123] (AB227941)

  • 0
  • 0
Primary Antibodies

AB92471

Anti-MSH6 antibody [EPR3945]

BOND RX™ Validated|RabMAb|Recombinant|KO Validated|Trial Size

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MSH6 antibody [EPR3945] (AB92471)

  • 5
  • 5
Primary Antibodies

AB110638

Anti-PMS2 antibody [EPR3947]

BOND RX™ Validated|RabMAb|Recombinant|KO Validated|20ul selling size|Trial Size

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PMS2 antibody [EPR3947] (AB110638)

  • 4
  • 3
Primary Antibodies

AB226079

Anti-MSH3 antibody [EPR4334(2)] - BSA and Azide free

BOND RX™ Validated|RabMAb|Recombinant

Flow Cytometry (Intracellular) - Anti-MSH3 antibody [EPR4334(2)] - BSA and Azide free (AB226079)

  • 0
  • 0
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/500", "ICCIF-species-notes": "<p></p>", "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "1/60", "FlowCytIntra-species-notes": "<p></p>", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "1/500", "IHCP-species-notes": "<p></p> Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol." } } }
style
left-column

Product details

To see more of the key markers and tools you need to study the hallmarks of cancer, including genome instability and mutation, please visit the following page.

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Preservative: 0.01% Sodium azide Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

MLH1 also known as MutL homolog 1 is a protein involved in DNA mismatch repair an important mechanism for maintaining genetic stability. It has a molecular weight of approximately 87 kDa. This protein is expressed in various tissues but is most abundant in the colonic epithelium and endometrium. MLH1 acts mechanically by forming heterodimers with other proteins collaborating in correcting errors that occur during DNA replication.
Biological function summary

The function of MLH1 involves its role in the mismatch repair (MMR) system. It is part of a complex with PMS2 forming a heterodimer known as MutLα which is essential for the repair process. This complex scans newly synthesized DNA for mispaired bases and initiates repair preserving genomic integrity. The proper function of MLH1 and its interaction with PMS2 ensures that DNA replication errors do not accumulate and cause harmful mutations.

Pathways

MLH1 operates within the mismatch repair pathway and interacts closely with MLH3 and PMS2 proteins. It plays a critical role in the recognition and repair of mismatched bases that occur during DNA replication particularly in the G2 phase of the cell cycle. Through its involvement in the mismatch repair pathway MLH1 is connected to cell cycle regulation and the DNA damage response pathway.

MLH1 mutations are closely linked to Lynch syndrome and sporadic colorectal cancer. Lynch syndrome a hereditary condition significantly raises the risk of colorectal cancer and other cancers due to defective DNA mismatch repair. MLH1 mutations often lead to the loss of MLH1 protein expression particularly observed in MLH1 IHC staining. Additionally in colorectal cancer the MLH1 protein may interact with APC and TP53 playing a role in cancer progression and tumorigenesis.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Heterodimerizes with PMS2 to form MutL alpha, a component of the post-replicative DNA mismatch repair system (MMR). DNA repair is initiated by MutS alpha (MSH2-MSH6) or MutS beta (MSH2-MSH3) binding to a dsDNA mismatch, then MutL alpha is recruited to the heteroduplex. Assembly of the MutL-MutS-heteroduplex ternary complex in presence of RFC and PCNA is sufficient to activate endonuclease activity of PMS2. It introduces single-strand breaks near the mismatch and thus generates new entry points for the exonuclease EXO1 to degrade the strand containing the mismatch. DNA methylation would prevent cleavage and therefore assure that only the newly mutated DNA strand is going to be corrected. MutL alpha (MLH1-PMS2) interacts physically with the clamp loader subunits of DNA polymerase III, suggesting that it may play a role to recruit the DNA polymerase III to the site of the MMR. Also implicated in DNA damage signaling, a process which induces cell cycle arrest and can lead to apoptosis in case of major DNA damages. Heterodimerizes with MLH3 to form MutL gamma which plays a role in meiosis.
See full target information MLH1
style
left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

The FEBS journal 291:5214-5235 PubMed39434428

2024

TBK1 is involved in M-CSF-induced macrophage polarization through mediating the IRF5/IRF4 axis.

Applications

Unspecified application

Species

Unspecified reactive species

Yuanyuan Li,Le Ji,Chang Liu,Juanjuan Li,Di Wen,Zhongyao Li,Lishuang Yu,Moran Guo,Shaoran Zhang,Weisong Duan,Le Yi,Yue Bi,Hui Bu,Chunyan Li,Yakun Liu
