Anti-MMP9 antibody [EPR22140-154] - BSA and Azide free

• IHC-Fr

Supplier Data

Immunohistochemistry (Frozen sections) - Anti-MMP9 antibody [EPR22140-154] - BSA and Azide free (AB237782)

Immunohistochemical analysis of 4% paraformaldehyde-fixed, 0.2% Triton X-100 permeabilized frozen mouse lung tissue labeling MMP9 with ab228402  at 1/100 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1,000 dilution (green). Positive staining on sporadic cells (macrophage-like) in mouse lung tissue is observed.

The nuclear counterstain is DAPI (blue).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1,000 dilution.

Heat-mediated antigen retrieval using sodium citrate buffer (10 mM citrate pH 6.0 + 0.05% Tween-20).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab228402).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MMP9 antibody [EPR22140-154] - BSA and Azide free (AB237782)

Immunohistochemical analysis of paraffin-embedded mouse spleen tissue labeling MMP9 with ab228402 at 1/5000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Positive staining on polymorphonuclear leukocytes of mouse spleen (PMID : 28775117). Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Heat-mediated antigen retrieval using citrate buffer (pH 6.0).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab228402).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MMP9 antibody [EPR22140-154] - BSA and Azide free (AB237782)

Immunohistochemical analysis of paraffin-embedded mouse lung tissue labeling MMP9 with ab228402 at 1/5,000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Positive staining on polymorphonuclear leukocytes of mouse lung (PMID : 28775117). Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Heat-mediated antigen retrieval using citrate buffer (pH 6.0).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab228402).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MMP9 antibody [EPR22140-154] - BSA and Azide free (AB237782)

Immunohistochemical analysis of paraffin-embedded rat spleen tissue labeling MMP9 with ab228402 at 1/5,000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Positive staining on polymorphonuclear leukocytes of rat spleen (PMID : 28775117). Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Heat-mediated antigen retrieval using citrate buffer (pH 6.0).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab228402).

• IP

Supplier Data

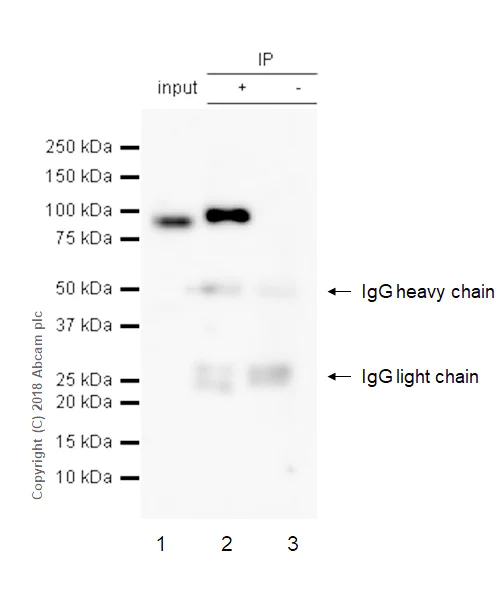

Immunoprecipitation - Anti-MMP9 antibody [EPR22140-154] - BSA and Azide free (AB237782)

MMP9 was immunoprecipitated from 0.35 mg of mouse brain lysate with ab228402 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab228402 at 1/1,000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/5,000 dilution.

Lane 1 : Mouse lung lysate 10 μg (Input).

Lane 2 : ab228402 IP in mouse lung lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab228402 in mouse lung lysate.

Blocking/Dilution buffer : 5% NFDM/TBST.

Exposure time : 20 seconds.

The blot was developed using a high sensitivity ECL.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab228402).

All lanes:

Immunoprecipitation - Anti-MMP9 antibody [EPR22140-154] (<a href='/en-us/products/primary-antibodies/mmp9-antibody-epr22140-154-ab228402'>ab228402</a>)

Predicted band size: 78 kDa

false

• WB

Lab

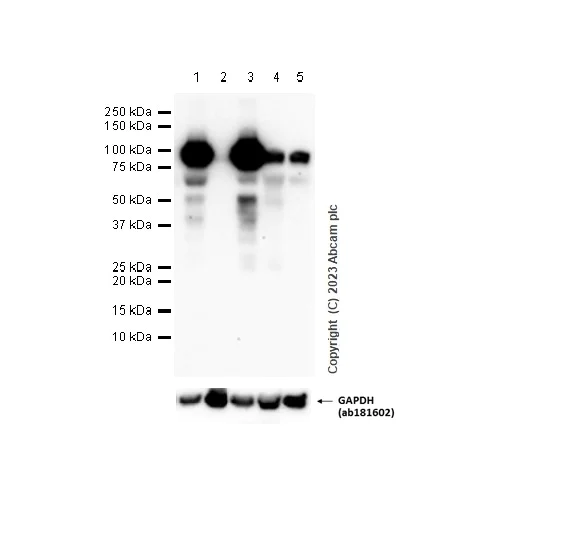

Western blot - Anti-MMP9 antibody [EPR22140-154] - BSA and Azide free (AB237782)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab228402). Blocking and diluting buffer and concentration : 5% NFDM/TBST. ab181602 was used as loading control for GAPDH. Although MMP9 has been studied in brain in some publications, ab228402 was unable to detect signal in normal brain tissue， this may because MMP9 expression level is low in normal brain and would be increased in abnormal conditions like injury (PMID : 31198417)

All lanes:

Western blot - Anti-MMP9 antibody [EPR22140-154] (<a href='/en-us/products/primary-antibodies/mmp9-antibody-epr22140-154-ab228402'>ab228402</a>) at 1/1000 dilution

Lane 1:

Rat lung tissue lysate at 20 µg

Lane 2:

Rat brain tissue lysate at 20 µg

Lane 3:

Rat spleen tissue lysate at 20 µg

Lane 4:

Rat kidney tissue lysate at 20 µg

Lane 5:

Rat lymph node tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 29 kDa

false

Exposure time: 3s
