Anti-Moesin antibody [EPR2429(2)] - BSA and Azide free

7 product images

•

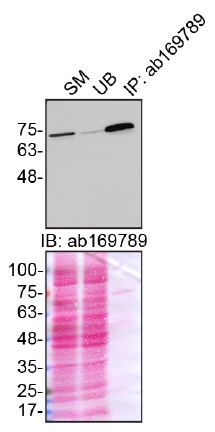

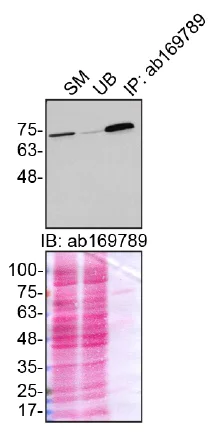

  Immunoprecipitation - Anti-Moesin antibody [EPR2429(2)] - BSA and Azide free (ab249530)

  This data was developed using the same antibody clone in a different buffer formulation (ab249530). Immunoprecipitation of MSN in HeLa cells. Lysates were prepared and immunoprecipitation was performed using 1.0 μg of Anti-Moesin antibody [EPR2429(2)] ab169789 pre-coupled to prot.A-Sepharose beads. Samples were washed and processed for western blot with Anti-Moesin antibody [EPR2429(2)] ab169789 at 1/10000. SM=10% starting material; UB=10% unbound fraction; IP=immunoprecipitate. These data were provided by YCharOS Inc., an open science company with the mission of characterizing commercially available antibody reagents for all human proteins. Abcam and YCharOS are working together to help address the reproducibility crisis by enabling the life science community to better evaluate commercially available antibodies.

  All lanes: Immunoprecipitation - Anti-Moesin antibody [EPR2429(2)] (Anti-Moesin antibody [EPR2429(2)] ab169789)

  Predicted band size: 68 kDa

•

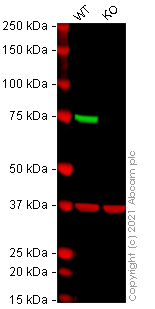

  Western blot - Anti-Moesin antibody [EPR2429(2)] - BSA and Azide free (ab249530)

  False colour image of Western blot: Anti-Moesin antibody [EPR2429(2)] staining at 1/500 dilution, shown in green; Mouse anti-GAPDH antibody [6C5] (Anti-GAPDH antibody [6C5] - Loading Control ab8245) loading control staining at 1/20000 dilution, shown in red. In Western blot, Anti-Moesin antibody [EPR2429(2)] ab169789 was shown to bind specifically to Moesin. A band was observed at 75 kDa in wild-type HeLa cell lysates with no signal observed at this size in MSN knockout cell line Human MSN (Moesin) knockout HeLa cell line ab265020 (knockout cell lysate Human MSN (Moesin) knockout HeLa cell lysate ab257542). To generate this image, wild-type and MSN knockout HeLa cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween^® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) at 1/20000 dilution.


  This data was developed using Anti-Moesin antibody [EPR2429(2)] ab169789, the same antibody clone in a different buffer formulation.

  All lanes: Western blot - Anti-Moesin antibody [EPR2429(2)] (Anti-Moesin antibody [EPR2429(2)] ab169789) at 1/500 dilution

  Lane 1: Wild-type HeLa cell lysate at 20 µg

  Lane 2: MSN knockout HeLa cell lysate at 20 µg

  Lane 2: Western blot - Human MSN (Moesin) knockout HeLa cell line (Human MSN (Moesin) knockout HeLa cell line ab265020)

  Performed under reducing conditions.

  Predicted band size: 68 kDa

  Observed band size: 75 kDa

•

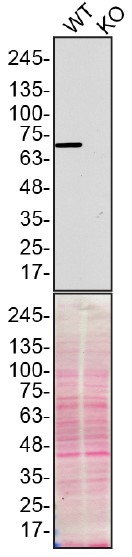

  Western blot - Anti-Moesin antibody [EPR2429(2)] - BSA and Azide free (ab249530)

  This data was developed using the same antibody in a different buffer formulation (Anti-Moesin antibody [EPR2429(2)] ab169789).


  Anti-Moesin antibody [EPR2429(2)] ab169789 was shown to react with MSN in wild-type HeLa cells in Western blot with loss of signal observed in MSN knockout cell line Human MSN (Moesin) knockout HeLa cell line ab265020 (MSN knockout cell lysate Human MSN (Moesin) knockout HeLa cell lysate ab257542). Wild-type HeLa and MSN knockout cell lysates were subjected to SDS-PAGE. Membranes were blocked in 5% milk in TBST for 1 hr before incubation with Anti-Moesin antibody [EPR2429(2)] ab169789 overnight at 4 °C at a 1/10000 dilution. Blots were incubated with goat anti-rabbit HRP secondary antibodies at 0.2ug/mL before imaging. These data were provided by YCharOS Inc., an open science company with the mission of characterizing commercially available antibody reagents for all human proteins. Abcam and YCharOS are working together to help address the reproducibility crisis by enabling the life science community to better evaluate commercially available antibodies.

  All lanes: Western blot - Anti-Moesin antibody [EPR2429(2)] (Anti-Moesin antibody [EPR2429(2)] ab169789) at 1/10000 dilution

  Lane 1: Wild-type HeLa cell lysate at 20 µg

  Lane 2: MSN knockout HeLa cell lysate at 20 µg

  Lane 2: Western blot - Human MSN (Moesin) knockout HeLa cell line (Human MSN (Moesin) knockout HeLa cell line ab265020)

  Performed under reducing conditions.

  Predicted band size: 68 kDa

•

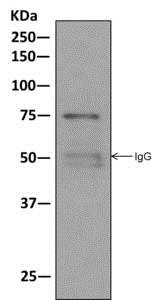

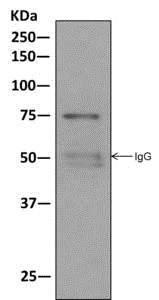

  Immunoprecipitation - Anti-Moesin antibody [EPR2429(2)] - BSA and Azide free (ab249530)

  This data was developed using Anti-Moesin antibody [EPR2429(2)] ab169789, the same antibody clone in a different buffer formulation.Immunoprecipitation analysis of pellet from HeLa cell lysate, using anti-Moesin Anti-Moesin antibody [EPR2429(2)] ab169789 at a 1/10 dilution.

  All lanes: Immunoprecipitation - Anti-Moesin antibody [EPR2429(2)] - BSA and Azide free (ab249530)

  Predicted band size: 68 kDa

•

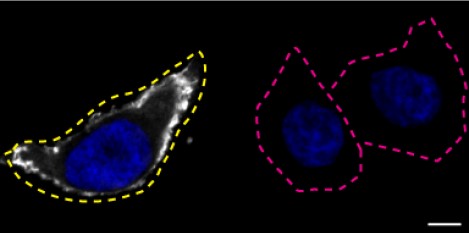

  Immunocytochemistry/ Immunofluorescence - Anti-Moesin antibody [EPR2429(2)] - BSA and Azide free (ab249530)

  This data was developed using the same antibody clone in a different buffer formulation (Anti-Moesin antibody [EPR2429(2)] ab169789). Anti-Moesin antibody [EPR2429(2)] ab169789 was shown to react with MSN in wild-type HeLa cells in Immunocytochemistry with loss of signal observed in MSN knockout cell line Human MSN (Moesin) knockout HeLa cell line ab265020. Wild-type and knockout cells were mixed and pelleted at a 1:1 ratio on coverslips. The cells were fixed with 4% paraformaldehyde (15 min) then permeabilized with 0.1% Triton X-100 (10min) and then blocked with 1/10000. The cells were then incubated with Anti-Moesin antibody [EPR2429(2)] ab169789 at 1/100 dilution overnight at 4°C followed by a further incubation at room temperature for 1h with a goat anti-rabbit secondary antibody to (Alexa Fluor^® 555) at 0.5 μg/ml. Acquisition of the green (wild-type), red (antibody staining) and far-red (knockout) channels was performed. Representative grayscale images of the red channel are shown. Wild-type and knockout cells are outlined with yellow and magenta dashed line, respectively. Schematic representation of the mosaic strategy used is shown on the bottom-right panel. Image was acquired with a Zeiss(LSM-880). These data were provided by YCharOS Inc., an open science company with the mission of characterizing commercially available antibody reagents for all human proteins. Abcam and YCharOS are working together to help address the reproducibility crisis by enabling the life science community to better evaluate commercially available antibodies.

•

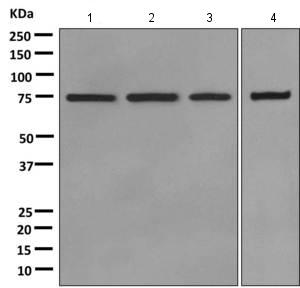

  Western blot - Anti-Moesin antibody [EPR2429(2)] - BSA and Azide free (ab249530)

  This data was developed using Anti-Moesin antibody [EPR2429(2)] ab169789, the same antibody clone in a different buffer formulation.

  All lanes: Western blot - Anti-Moesin antibody [EPR2429(2)] - BSA and Azide free (ab249530) at 1/10000 dilution

  Lane 1: HeLa cell lysate at 10 µg

  Lane 2: Raji cell lysate at 10 µg

  Lane 3: 293T cell lysate at 10 µg

  Lane 4: Jurkat cell lysate at 10 µg

  Secondary

  All lanes: Standard HRP labelled goat anti-rabbit at 1/2000 dilution

  Developed using the ECL technique.

  Predicted band size: 68 kDa

•

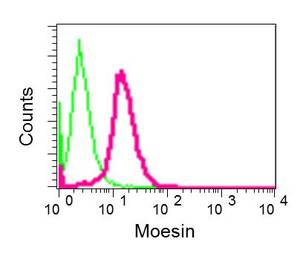

  Flow Cytometry (Intracellular) - Anti-Moesin antibody [EPR2429(2)] - BSA and Azide free (ab249530)

  This data was developed using Anti-Moesin antibody [EPR2429(2)] ab169789, the same antibody clone in a different buffer formulation.


  Intracellular flow cytometric analysis of permeabilized Raji cells labeling Anti-Moesin antibody [EPR2429(2)] ab169789 (red) at a 1/10 dilution, and negative control cells probed with a rabbit IgG (green).
