Mouse IgG2b monoclonal [R311-MouseIgG2b] - Isotype control

7 product images

•

  Flow Cytometry - Mouse IgG2b monoclonal [R311-MouseIgG2b] - Isotype control (ab281590)

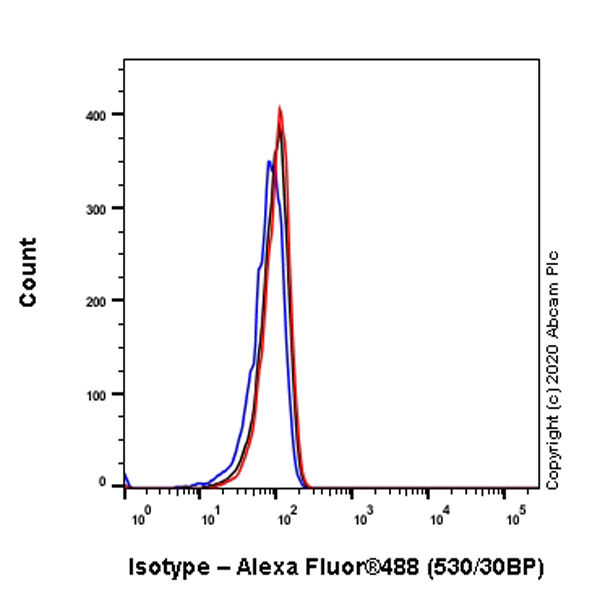

  Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized HeLa (Human cervix adenocarcinoma epithelial cell) cells labelling Mouse IgG2b with ab281590 at 1/500 dilution (0.1μg) (Red) compared with a Mouse (E7Q5L) mAb IgG2b Isotype Control (Black) and unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti mouse IgG (Alexa Fluor^® 488, Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) ab150113) at 1/2000 dilution was used as the secondary antibody.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Mouse IgG2b monoclonal [R311-MouseIgG2b] - Isotype control (ab281590)

  Immunohistochemical analysis of paraffin-embedded Human tonsil tissue labeling Mouse IgG2b with ab281590 at 1/200 dilution followed by a ready to use Goat Anti-Mouse IgG H&L (HRP polymer) (Goat Anti-Mouse IgG H&L (HRP polymer) ab214879). Negative control: No staining on human tonsil. Counterstained with Hematoxylin.


  Secondary antibody only control: Secondary antibody is ready to use Goat Anti-Mouse IgG H&L (HRP polymer) (Goat Anti-Mouse IgG H&L (HRP polymer) ab214879).

  Heat mediated antigen retrieval using Antigen Retrieval Buffer (100X Citrate Buffer) ab93678 (citrate buffer, pH 6.0).

•

  Immunocytochemistry/ Immunofluorescence - Mouse IgG2b monoclonal [R311-MouseIgG2b] - Isotype control (ab281590)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HeLa cells labelling Mouse IgG2b with ab281590 at 1/20 dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) ab150113 Goat Anti-Mouse IgG H&L (Alexa Fluor^® 488) antibody at 1/1000 dilution (Green). Anti-beta Tubulin antibody [EPR16774] ab179513 Anti-beta Tubulin rabbit monoclonal antibody was used to counterstain tubulin at 1/200 dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) ab150080 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 594) at 1/1000 dilution (Red). The nuclear counterstain was DAPI (Blue).


  Confocal image showing no staining in HeLa cells.

  Negative control 1: ab281590 at a 1/20 dilution followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) ab150113 at a 1/1000 dilution.

  Negative control 2: Anti-beta Tubulin antibody [EPR16774] ab179513 at a 1/200 dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) ab150080 at a 1/1000 dilution.

•

  Flow Cytometry - Mouse IgG2b monoclonal [R311-MouseIgG2b] - Isotype control (ab281590)

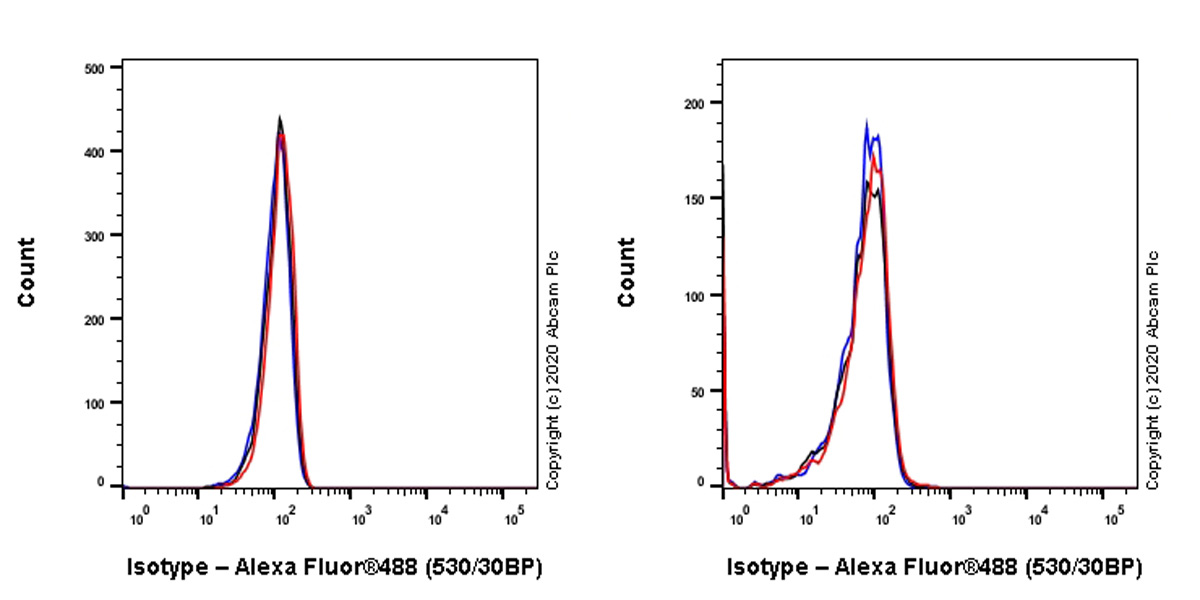

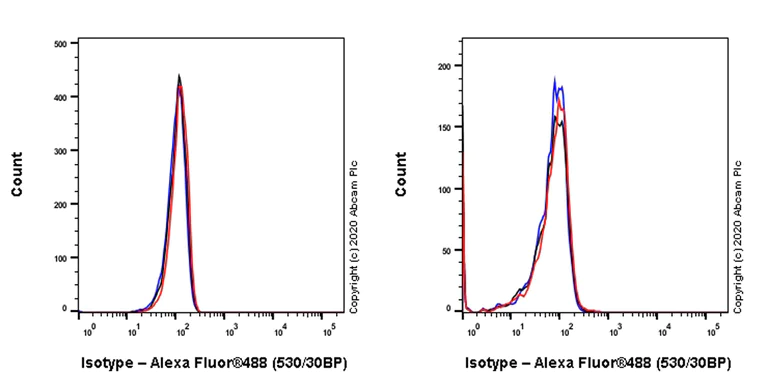

  Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized NIH/3T3 (Mouse embryonic fibroblast, Left) / PC-12 (Rat adrenal gland pheochromocytoma, Right) cells labelling Mouse IgG2b with ab281590 at 1/500 dilution (0.1μg) (Red) compared with a Mouse (E7Q5L) mAb IgG2b Isotype Control (Black) and unlabelled control (cells without incubation with primary antibody and secondary antibody)(Blue). A Goat anti mouse IgG (Alexa Fluor^® 488, Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) ab150113) at 1/2000 dilution was used as the secondary antibody.

•

  Immunocytochemistry/ Immunofluorescence - Mouse IgG2b monoclonal [R311-MouseIgG2b] - Isotype control (ab281590)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized NIH/3T3 cells labelling Mouse IgG2b with ab281590 at 1/20 dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) ab150113 Goat Anti-Mouse IgG H&L (Alexa Fluor^® 488) antibody at 1/1000 dilution (Green). Anti-beta Tubulin antibody [EPR16774] ab179513 Anti-beta Tubulin rabbit monoclonal antibody was used to counterstain tubulin at 1/200 dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) ab150080 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 594) at 1/1000 dilution (Red). The nuclear counterstain was DAPI (Blue).


  Confocal image showing no staining in NIH/3T3 cells.

  Negative control 1: ab281590 at a 1/20 dilution followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) ab150113 at a 1/1000 dilution.

  Negative control 2: Anti-beta Tubulin antibody [EPR16774] ab179513 at a 1/200 dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) ab150080 at a 1/1000 dilution.

•

  Immunocytochemistry/ Immunofluorescence - Mouse IgG2b monoclonal [R311-MouseIgG2b] - Isotype control (ab281590)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized PC-12 cells labelling Mouse IgG2b with ab281590 at 1/20 dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) ab150113 Goat Anti-Mouse IgG H&L (Alexa Fluor^® 488) antibody at 1/1000 dilution (Green). Anti-beta Tubulin antibody [EPR16774] ab179513 Anti-beta Tubulin rabbit monoclonal antibody was used to counterstain tubulin at 1/200 dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) ab150080 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 594) at 1/1000 dilution (Red). The nuclear counterstain was DAPI (Blue).


  Confocal image showing no staining in PC-12 cells.

  Negative control 1: ab281590 at a 1/20 dilution followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) ab150113 at a 1/1000 dilution.

  Negative control 2: Anti-beta Tubulin antibody [EPR16774] ab179513 at a 1/200 dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) ab150080 at a 1/1000 dilution.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Mouse IgG2b monoclonal [R311-MouseIgG2b] - Isotype control (ab281590)

  Immunohistochemical analysis of paraffin-embedded Rat spleen tissue labeling Mouse IgG2b with ab281590 at 1/200 dilution followed by a ready to use Goat Anti-Mouse IgG H&L (HRP polymer) (Goat Anti-Mouse IgG H&L (HRP polymer) ab214879). Negative control: No staining on rat spleen. Counterstained with Hematoxylin.


  Secondary antibody only control: Secondary antibody is ready to use Goat Anti-Mouse IgG H&L (HRP polymer) (Goat Anti-Mouse IgG H&L (HRP polymer) ab214879).

  Heat mediated antigen retrieval using Antigen Retrieval Buffer (100X Citrate Buffer) ab93678 (citrate buffer, pH 6.0).
