Mouse IgG2c monoclonal [R313-MouseIgG2c] - Isotype control - Low endotoxin, Azide free

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Mouse IgG2c monoclonal [R313-MouseIgG2c] - Isotype control - Low endotoxin, Azide free (AB280757)

This image was produced using ab280756, the same clone but in a different formulation.

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized NPC-12 cells labelling Mouse IgG2c with ab280756 at 1/80 dilution, followed by ab150113 Goat Anti-Mouse IgG H&L (Alexa Fluor^® 488) antibody at 1/1000 dilution (Green). ab179513 Anti-beta Tubulin rabbit monoclonal antibody was used to counterstain tubulin at 1/200 dilution followed by ab150080 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 594)at 1/500 dilution (Red). The nuclear counterstain was DAPI (Blue).

Confocal image showing no staining in PC-12 cells.

Negative control 1 : ab280756 at a 1/80 dilution followed by ab150080 at a 1/200 dilution.

Negative control 2 : ab179513 at a 1/200 dilution followed by ab150113 at a 1/1000 dilution.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Mouse IgG2c monoclonal [R313-MouseIgG2c] - Isotype control - Low endotoxin, Azide free (AB280757)

This image was produced using ab280756, the same clone but in a different formulation.

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized MOLT-4 cells labelling Mouse IgG2c with ab280756 at 1/80 dilution, followed by ab150113 Goat Anti-Mouse IgG H&L (Alexa Fluor^® 488) antibody at 1/1000 dilution (Green). ab179513 Anti-beta Tubulin rabbit monoclonal antibody was used to counterstain tubulin at 1/200 dilution followed by ab150080 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 594)at 1/500 dilution (Red). The nuclear counterstain was DAPI (Blue).

Confocal image showing no staining in MOLT-4 cells.

Negative control 1 : ab280756 at a 1/80 dilution followed by ab150080 at a 1/200 dilution.

Negative control 2 : ab179513 at a 1/200 dilution followed by ab150113 at a 1/1000 dilution.

• Flow Cyt (Intra)

Lab

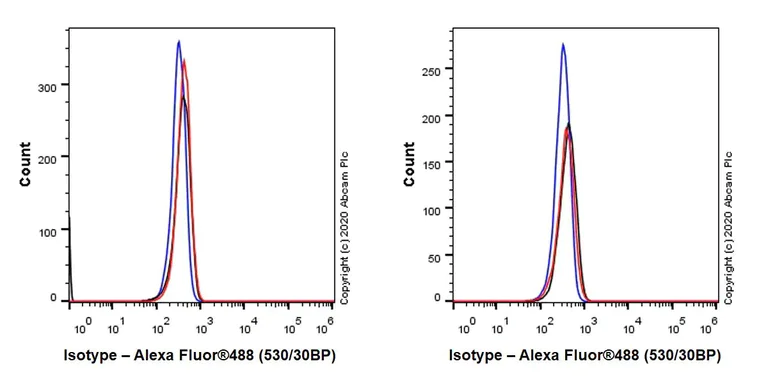

Flow Cytometry (Intracellular) - Mouse IgG2c monoclonal [R313-MouseIgG2c] - Isotype control - Low endotoxin, Azide free (AB280757)

This image was produced using ab280756, the same clone but in a different formulation.

Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized NIH/3T3 (Mouse embryonic fibroblast, Left) / PC-12 (Rat adrenal gland pheochromocytoma, Right) cells labelling Mouse IgG2c with ab280756 at 1/1000 dilution (0.1μg) (Red) compared with a Mouse IgG2c, kappa monoclonal [18C8BC7AD10] - Isotype Control (ab170191, Black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti mouse IgG (Alexa Fluor^® 488, ab150113) at 1/2000 dilution was used as the secondary antibody.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Mouse IgG2c monoclonal [R313-MouseIgG2c] - Isotype control - Low endotoxin, Azide free (AB280757)

This image was produced using ab280756, the same clone but in a different formulation.

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized NIH/3T3 cells labelling Mouse IgG2c with ab280756 at 1/80 dilution, followed by ab150113 Goat Anti-Mouse IgG H&L (Alexa Fluor^® 488) antibody at 1/1000 dilution (Green). ab179513 Anti-beta Tubulin rabbit monoclonal antibody was used to counterstain tubulin at 1/200 dilution followed by ab150080 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 594)at 1/500 dilution (Red). The nuclear counterstain was DAPI (Blue).

Confocal image showing no staining in NIH/3T3 cells.

Negative control 1 : ab280756 at a 1/80 dilution followed by ab150080 at a 1/200 dilution.

Negative control 2 : ab179513 at a 1/200 dilution followed by ab150113 at a 1/1000 dilution.

• Flow Cyt (Intra)

Lab

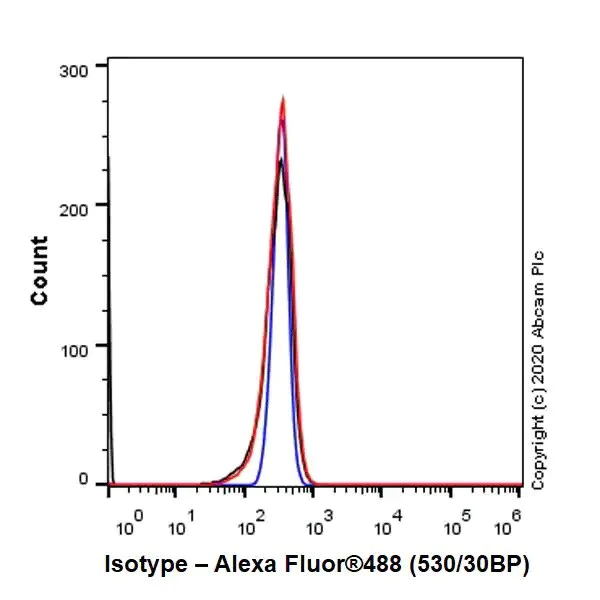

Flow Cytometry (Intracellular) - Mouse IgG2c monoclonal [R313-MouseIgG2c] - Isotype control - Low endotoxin, Azide free (AB280757)

This image was produced using ab280756, the same clone but in a different formulation.

Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized MOLT-4 (Human lymphoblastic leukemia T lymphoblast) cells labelling Mouse IgG2c with ab280756 at 1/1000 dilution (0.1μg) (Red) compared with a Mouse IgG2c, kappa monoclonal [18C8BC7AD10] - Isotype Control (ab170191, Black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).

A Goat anti mouse IgG (Alexa Fluor^® 488, ab150113) at 1/2000 dilution was used as the secondary antibody.
