Anti-MRP1 antibody [EPR21061] - BSA and Azide free

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MRP1 antibody [EPR21061] - BSA and Azide free (AB234104)

Immunohistochemical analysis of paraffin-embedded human esophagus cancer (B) and its adjacent noncancerous tissue (A) labeling MRP1 with ab230948 at 1/250 dilution, followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP). Strong membranous staining in human esophageal cancer tissue (B) with weak staining in its adjacent noncancerous tissue (A) (PMID : 26870278) is observed. Counter stained with Hematoxylin.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP). Perform heat mediated antigen retrieval using ab93684 (Tris/EDTA buffer, pH 9.0).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab230948).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MRP1 antibody [EPR21061] - BSA and Azide free (AB234104)

Immunohistochemical analysis of paraffin-embedded human lung cancer (B) and its adjacent noncancerous tissue (A) labeling MRP1 with ab230948 at 1/250 dilution, followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP). Strong membranous and cytoplasmic staining in human lung cancer tissue (B) with weak staining in its adjacent noncancerous tissue (A) (PMID : 23667609) is observed. Counter stained with Hematoxylin.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP).

Perform heat mediated antigen retrieval using ab93684 (Tris/EDTA buffer, pH 9.0).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab230948).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MRP1 antibody [EPR21061] - BSA and Azide free (AB234104)

Immunohistochemical analysis of paraffin-embedded human colon cancer (B) and its adjacent noncancerous tissue (A) labeling MRP1 with ab230948 at 1/250 dilution, followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP). Strong membranous and cytoplasmic staining in human colon cancer tissue (B) with weak staining in its adjacent noncancerous tissue (A) (PMID : 23667609) is observed. Counter stained with Hematoxylin.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP).

Perform heat mediated antigen retrieval using ab93684 (Tris/EDTA buffer, pH 9.0).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab230948).

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-MRP1 antibody [EPR21061] - BSA and Azide free (AB234104)

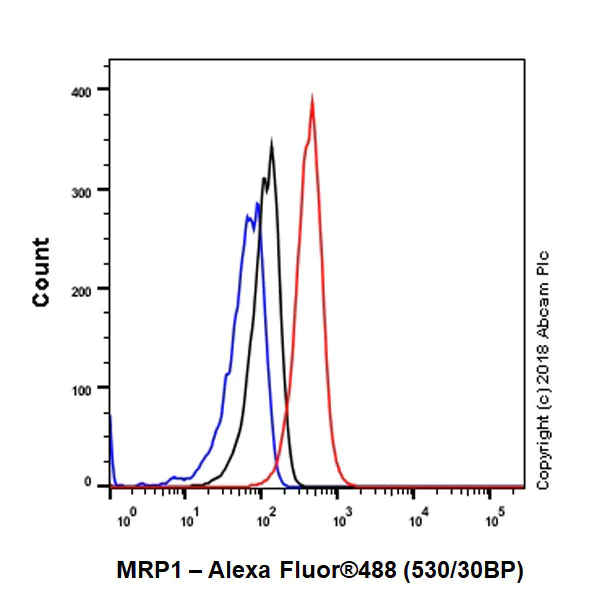

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed, 90% methanol permeabilized HeLa (human cervix adenocarcinoma epithelial cell) cell line labeling MRP1 with ab230948 at 1/50 (red) compared with a Rabbit monoclonal IgG (ab172730) (black) and an unlabeled control (cells incubated with secondary antibody only) (blue). Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077), at 1/2000 dilution was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab230948).

• WB

Lab

Western blot - Anti-MRP1 antibody [EPR21061] - BSA and Azide free (AB234104)

This data was developed using the same antibody clone in a different buffer formulation (ab230948).

Lanes 1 - 4 : Merged signal (red and green). Green - ab230948 observed at 170 kDa. Red - loading control ab7291 (Mouse anti-Alpha Tubulin [DM1A]) observed at 55 kDa.

ab230948 was shown to react with MRP1 in wild-type HeLa cells in Western blot with loss of signal observed in ABCC1 knockout cell line None (ABCC1 knockout cell lysate None). Wild-type HeLa and ABCC1 knockout cell lysates were subjected to SDS-PAGE. Membranes were blocked in 3 % milk in TBS-T (0.1 % Tween^®) before incubation with ab230948 and ab7291 (Mouse anti-Alpha Tubulin [DM1A]) overnight at 4 °C at a 1 in 1000 dilution and a 1 in 20000 dilution respectively. Blots were incubated with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 h at room temperature before imaging.

All lanes:

Western blot - Anti-MRP1 antibody [EPR21061] (<a href='/en-us/products/primary-antibodies/mrp1-antibody-epr21061-ab230948'>ab230948</a>) at 1/1000 dilution

Lane 1:

Wild-type A549 cell lysate at 20 µg

Lane 2:

ABCC1 knockout A549 cell lysate at 20 µg

Lane 3:

Wild-type HeLa cell lysate at 20 µg

Lane 4:

ABCC1 knockout HeLa cell lysate at 20 µg

Predicted band size: 171 kDa

Observed band size: 170 kDa

false

• WB

Lab

Western blot - Anti-MRP1 antibody [EPR21061] - BSA and Azide free (AB234104)

This data was developed using ab230948, the same antibody clone in a different buffer formulation.

Western blot : Rabbit Monoclonal [EPR21061] to MRP1 ab230948 staining at 1/1000 dilution, shown in green; Mouse anti alpha Tubulin (ab7291) loading control staining at 1/20,000 dilution, shown in magenta.

A band was observed at 172 kDa in Wild-type MCF7 cell lysates with no signal observed at this size in abCC1 knockout MCF7 cell line.

To generate this image, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3pc Milk in TBS-0.1 % Tween^® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged.

Secondary antibodies used were Goat anti-Rabbit 800CW & Goat anti-Mouse 680RD at 1/20,000 dilution.

All lanes:

Western blot - Anti-MRP1 antibody [EPR21061] (<a href='/en-us/products/primary-antibodies/mrp1-antibody-epr21061-ab230948'>ab230948</a>) at 1/1000 dilution

Lane 1:

Wild-type MCF7 at 20 µg

Lane 2:

ABCC1 knockout MCF7 at 20 µg

Lane 2:

Western blot - Human ABCC1 knockout MCF7 cell line (<a href='/en-us/products/cell-lines/human-abcc1-knockout-mcf7-cell-line-ab286378'>ab286378</a>) at 20 µg

Lane 3:

DU 145 at 20 µg

Lane 4:

Ramos at 20 µg

Secondary

All lanes:

Goat anti-Rabbit 800CW & Goat anti-Mouse 680RD at 1/20000 dilution

Predicted band size: 172 kDa

Observed band size: 172 kDa

false
