Anti-MSH6 antibody [EPR3945] - BSA and Azide free

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MSH6 antibody [EPR3945] - BSA and Azide free (AB214454)

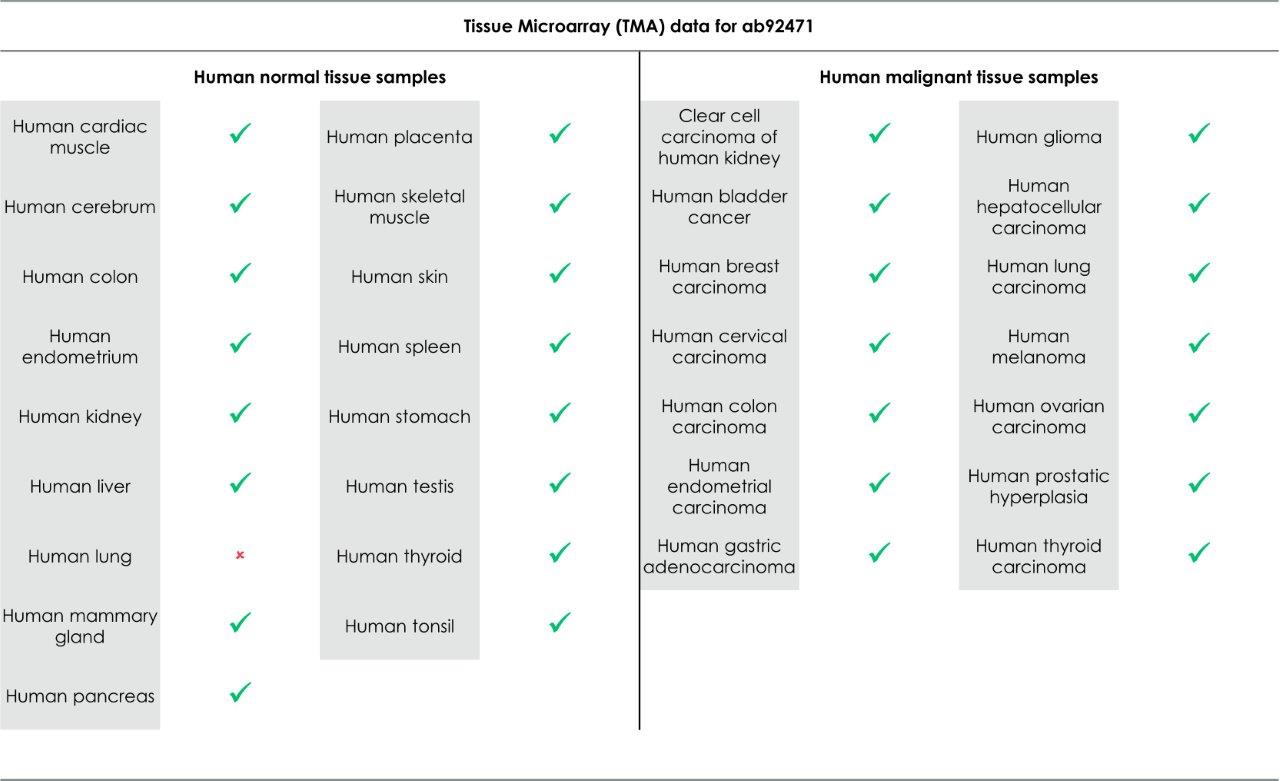

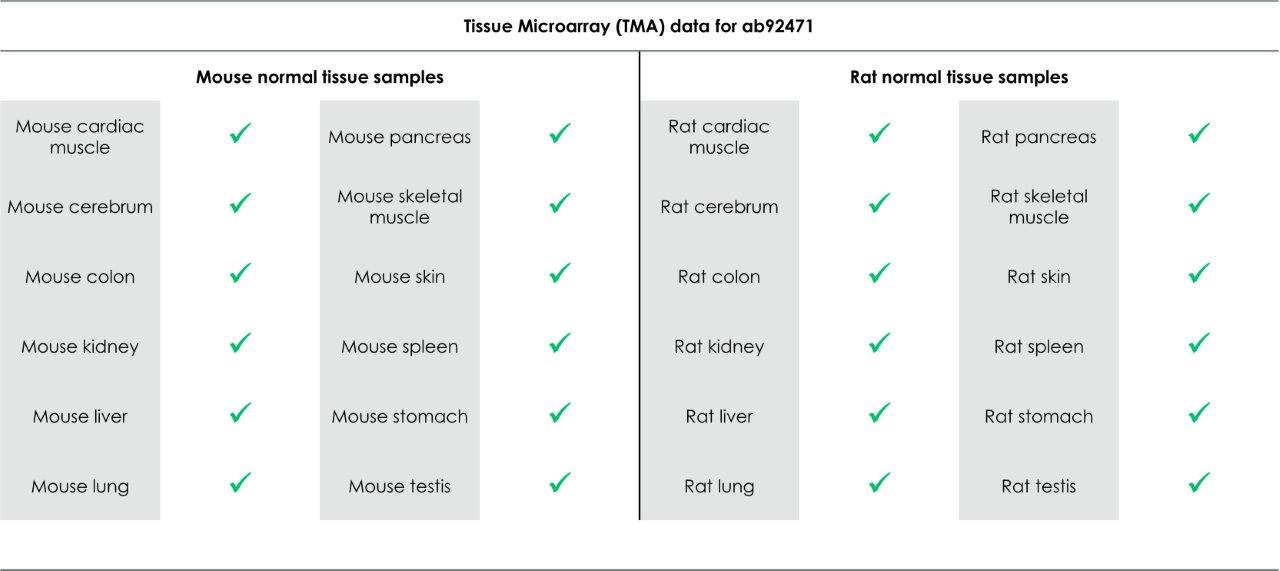

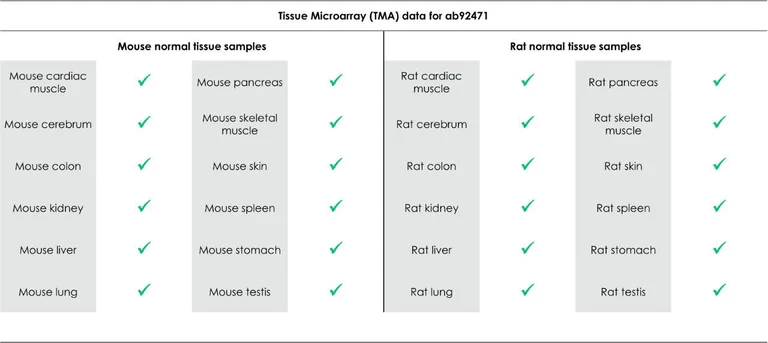

Tissue Microarrays stained for "Anti-MSH6 antibody [EPR3945]" using "ab92471"in immunohistochemical analysis. This table provides a detailed overview of positive (tick mark) and negative (cross mark) staining per sample type tested. The sections were pre-treated using Heat mediated antigen retrieval using Bond™ Epitope Retrieval Solution 2 (pH 9.0) for 20 minutes. The sections were incubated with ab92471 for 30 mins at room temperature followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MSH6 antibody [EPR3945] - BSA and Azide free (AB214454)

Tissue Microarrays stained for "Anti-MSH6 antibody [EPR3945]" using "ab92471"in immunohistochemical analysis. This table provides a detailed overview of positive (tick mark) and negative (cross mark) staining per sample type tested. The sections were pre-treated using Heat mediated antigen retrieval using Bond™ Epitope Retrieval Solution 2 (pH 9.0) for 20 minutes. The sections were incubated with ab92471 for 30 mins at room temperature followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MSH6 antibody [EPR3945] - BSA and Azide free (AB214454)

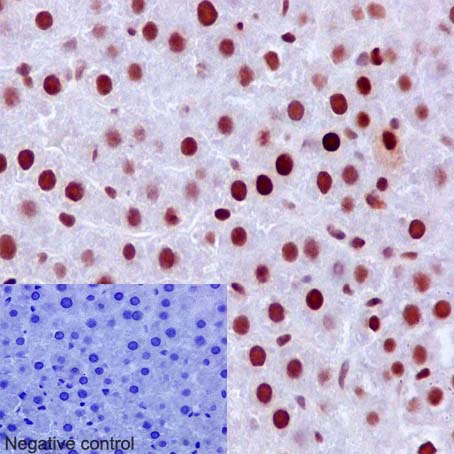

Immunohistochemical staining of paraffin embedded rat liver with purified ab92471 at a dilution of 1/500. A pre-diluted HRP polymer for rabbit/mouse IgG was used as the secondary antibody and the sample was counter-stained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0. PBS was used instead of the primary antibody as the negative control, and is shown in the inset.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab92471).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MSH6 antibody [EPR3945] - BSA and Azide free (AB214454)

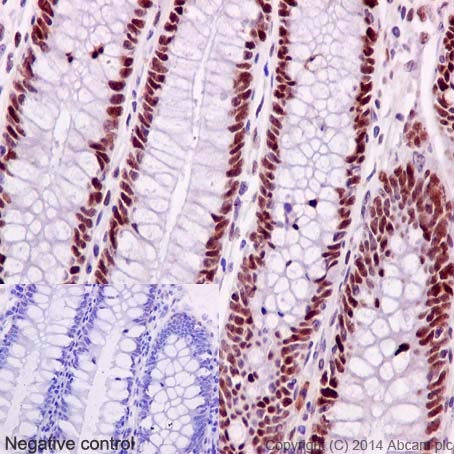

Immunohistochemical staining of paraffin embedded human colon with unpurified ab92471 at a dilution of 1/500. A pre-diluted HRP polymer for rabbit/mouse IgG was used as the secondary antibody and the sample was counter-stained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0. PBS was used instead of the primary antibody as the negative control, and is shown in the inset.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab92471).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MSH6 antibody [EPR3945] - BSA and Azide free (AB214454)

Unpurified ab92471, at a 1/100 dilution, detecting MSH6 in paraffin embedded Human colonic adenocarcinoma tissue by immunohistochemistry. Detection used HRP conjugated anti rabbit antibody.

Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab92471).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-MSH6 antibody [EPR3945] - BSA and Azide free (AB214454)

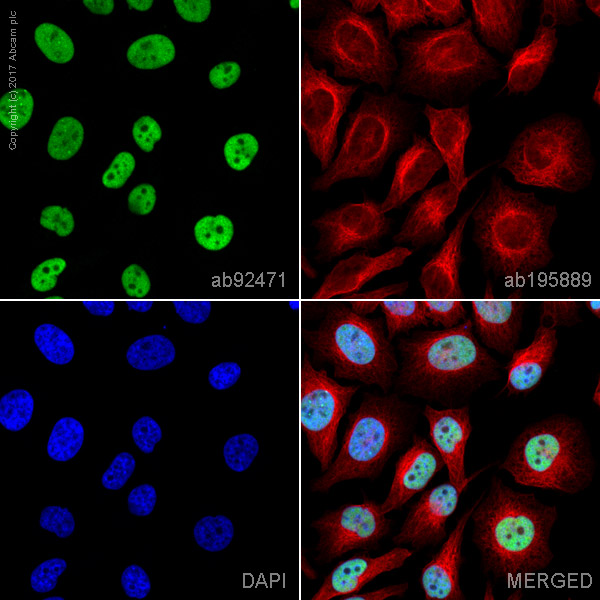

ab92471 staining MSH6 in HeLa cells. The cells were fixed with 4% formaldehyde (10min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab92471 at 1μg/ml and ab195889 at 1/250 dilution (shown in pseudocolour red) overnight at +4°C, followed by a further incubation at room temperature for 1h with a goat secondary antibody to Rabbit IgG (Alexa Fluor® 488) (ab150081) at 2 μg/ml (shown in green). Nuclear DNA was labelled in blue with DAPI.

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab92471).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-MSH6 antibody [EPR3945] - BSA and Azide free (AB214454)

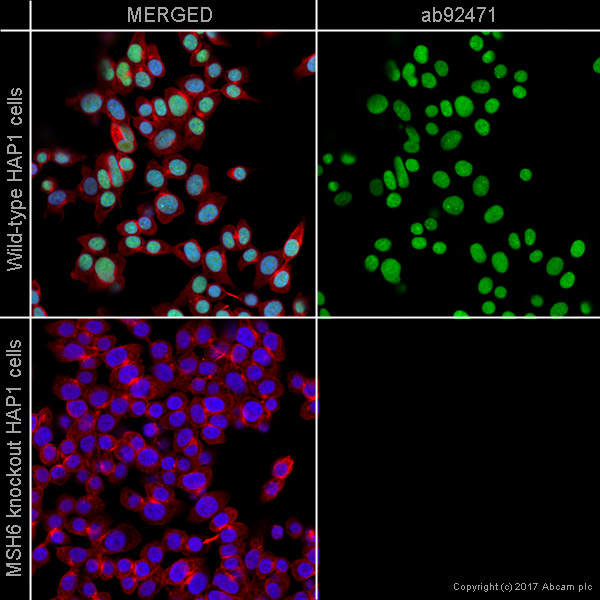

ab92471 staining MSH6 in wild-type HAP1 cells (top panel) and MSH6 knockout HAP1 cells (bottom panel). The cells were fixed with 4% formaldehyde (10min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab92471 at 1μg/ml and ab195889 at 1/250 dilution (shown in pseudocolour red) overnight at +4°C, followed by a further incubation at room temperature for 1h with a goat secondary antibody to Rabbit IgG (Alexa Fluor^® 488) (ab150081) at 2 μg/ml (shown in green). Nuclear DNA was labelled in blue with DAPI.

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab92471).

• ICC/IF

AbReview29265****

Immunocytochemistry/ Immunofluorescence - Anti-MSH6 antibody [EPR3945] - BSA and Azide free (AB214454)

Unpurified ab92471 (1/500) staining MSH6 in asynchronous HeLa cells (green). Cells were fixed in paraformaldehyde, permeabilised with 0.5% Triton X100/PBS and counterstained with DAPI in order to highlight the nucleus (red). For further experimental details please see abreview.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab92471).

Image courtesy of an abreview submitted by Dr. Kirk McManus, Univ. of Manitoba/Cancer Care MICB, Canada

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-MSH6 antibody [EPR3945] - BSA and Azide free (AB214454)

Clone EPR3945 (ab214454) has been successfully conjugated by Abcam. This image was generated using Anti-MSH6 antibody [EPR3945] (Alexa Fluor® 647). Please refer to ab198334 for protocol details.

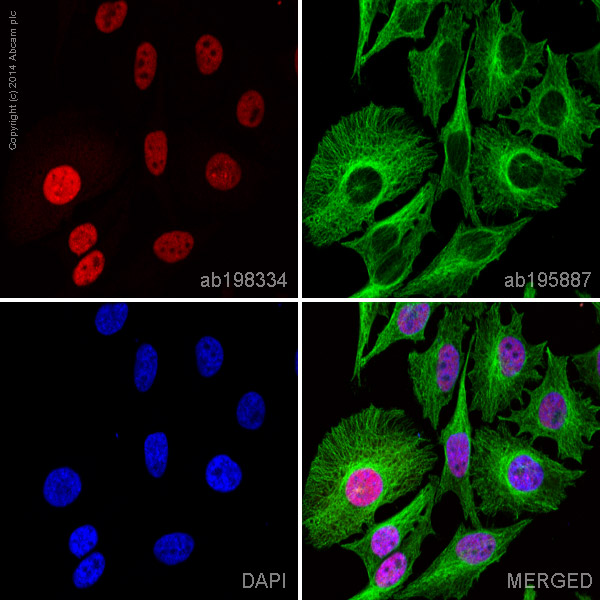

ab198334 staining MSH6 in HeLa cells. The cells were fixed with 4% formaldehyde (10 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab198334 at 1/100 dilution (shown in red) and ab195887, Mouse monoclonal to alpha Tubulin (Alexa Fluor^® 488), at 1/250 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue).

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

This product also gave a positive signal under the same testing conditions in HeLa cells fixed with 100% methanol (5min).

• WB

Lab

Western blot - Anti-MSH6 antibody [EPR3945] - BSA and Azide free (AB214454)

This data was developed using the same antibody clone in a different buffer formulation (ab92471).

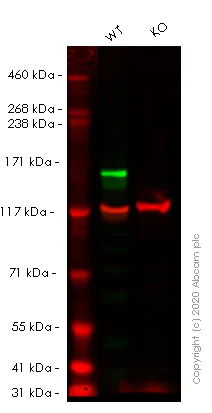

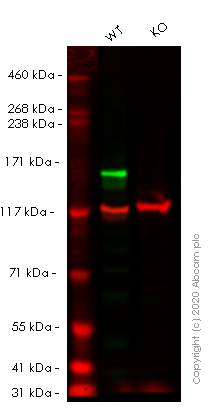

Lanes 1- 2 : Merged signal (red and green). Green - ab92471 observed at 160 kDa. Red - Anti-Vinculin antibody [VIN-54] observed at 124 kDa.

ab92471 was shown to react with MSH6 in wild-type HeLa cells in western blot. Loss of signal was observed when knockout cell line ab255410 (knockout cell lysate ab263763) was used. Wild-type HeLa and MSH6 knockout HeLa cell lysates were subjected to SDS-PAGE. Membrane was blocked for 1 hour at room temperature in 0.1% TBST with 3% non-fat dried milk. ab92471 and Anti-Vinculin antibody [VIN-54] overnight at 4°C at a 1 in 1000 dilution and a 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^®800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^®680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-MSH6 antibody [EPR3945] (<a href='/en-us/products/primary-antibodies/msh6-antibody-epr3945-ab92471'>ab92471</a>) at 1/1000 dilution

Lane 1:

Wild-type HeLa cell lysate at 20 µg

Lane 2:

MSH6 knockout HeLa cell lysate at 20 µg

Lane 2:

Western blot - Human MSH6 knockout HeLa cell line (<a href='/en-us/products/cell-lines/human-msh6-knockout-hela-cell-line-ab255410'>ab255410</a>)

Predicted band size: 153 kDa

Observed band size: 160 kDa

false

• WB

Lab

Western blot - Anti-MSH6 antibody [EPR3945] - BSA and Azide free (AB214454)

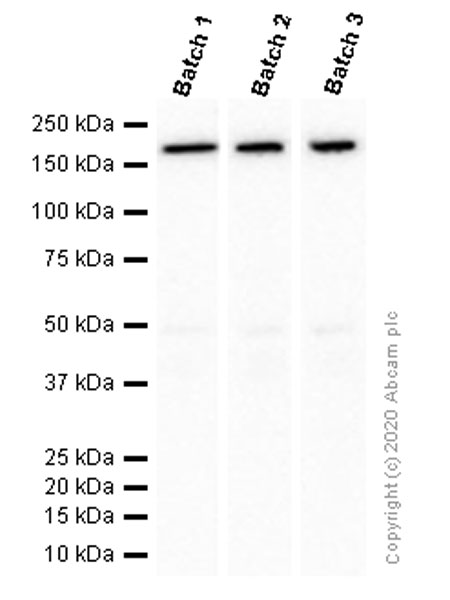

This data was developed using ab92471, the same antibody clone in a different buffer formulation. Different batches of ab92471 were tested on Rat brain lysate at 0.2 µg/ml. 15 µg of lysate was loaded in each lane. Bands observed at 160 kDa.

All lanes:

Western blot - Anti-MSH6 antibody [EPR3945] (<a href='/en-us/products/primary-antibodies/msh6-antibody-epr3945-ab92471'>ab92471</a>)

Predicted band size: 153 kDa

false

• OI-RD Scanning

Unknown

OI-RD Scanning - Anti-MSH6 antibody [EPR3945] - BSA and Azide free (AB214454)

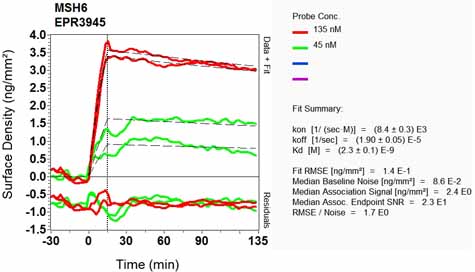

We have systematically measured KD (the equilibrium dissociation constant between the antibody and its antigen), of more than 840 recombinant antibodies to assess not only their individual KD values but also to see the average affinity of antibody. Based on the comparison with published literature values for mouse monoclonal antibodies, Recombinant antibodies appear to be on average 1-2 order of magnitude higher affinity.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MSH6 antibody [EPR3945] - BSA and Azide free (AB214454)

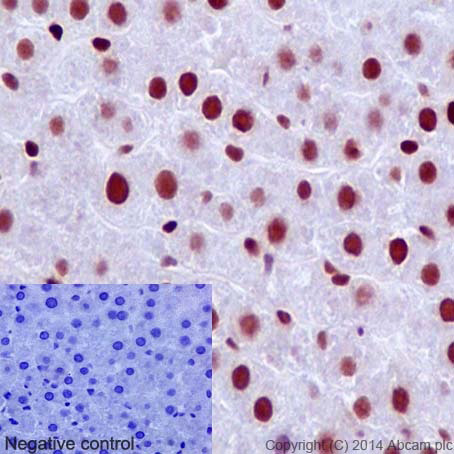

Immunohistochemical staining of paraffin embedded rat liver with unpurified ab92471 at a dilution of 1/150. A pre-diluted HRP polymer for rabbit/mouse IgG was used as the secondary antibody and the sample was counter-stained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0. PBS was used instead of the primary antibody as the negative control, and is shown in the inset.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab92471).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MSH6 antibody [EPR3945] - BSA and Azide free (AB214454)

Immunohistochemical staining of paraffin embedded human colon with unpurified ab92471 at a dilution of 1/150. A pre-diluted HRP polymer for rabbit/mouse IgG was used as the secondary antibody and the sample was counter-stained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0. PBS was used instead of the primary antibody as the negative control, and is shown in the inset.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab92471).
