AB273508

Anti-mtTFA antibody [EPR23548-120] - BSA and Azide free

Be the first to review this product! Submit a review

|

(0 Publication)

Rabbit Recombinant Monoclonal mtTFA antibody. Carrier free. Suitable for IP, WB, ICC/IF, Flow Cyt (Intra) and reacts with Mouse, Rat samples.

View Alternative Names

Hmgts, Tfam, mtTFA, Testis-specific high mobility group protein, TS-HMG

5 Images
Immunocytochemistry/ Immunofluorescence - Anti-mtTFA antibody [EPR23548-120] - BSA and Azide free (AB273508)
  • ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-mtTFA antibody [EPR23548-120] - BSA and Azide free (AB273508)

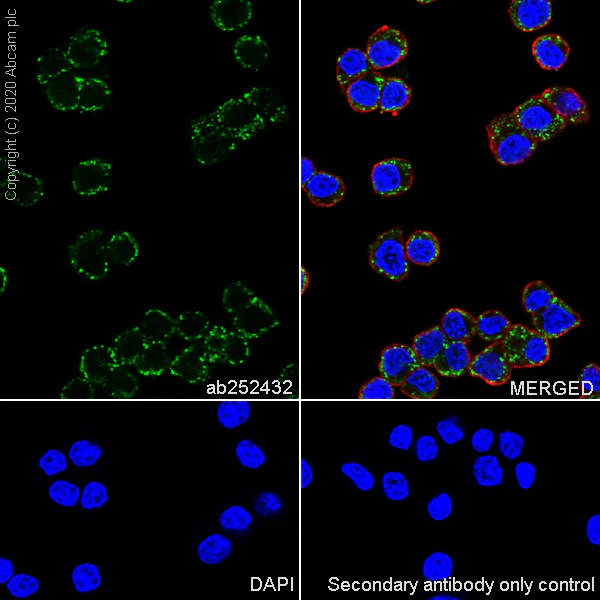

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized C2C12 cells labelling mtTFA with ab252432 at 1/500 dilution, followed by ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) antibody at 1/1000 2 ug/ml dilution (Green). Confocal image showing cytoplasmic staining in C2C12 cell line is observed. ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 2.5 dilution (Red). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) at 1/1000 2 ug/ml dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab252432).

Immunocytochemistry/ Immunofluorescence - Anti-mtTFA antibody [EPR23548-120] - BSA and Azide free (AB273508)
  • ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-mtTFA antibody [EPR23548-120] - BSA and Azide free (AB273508)

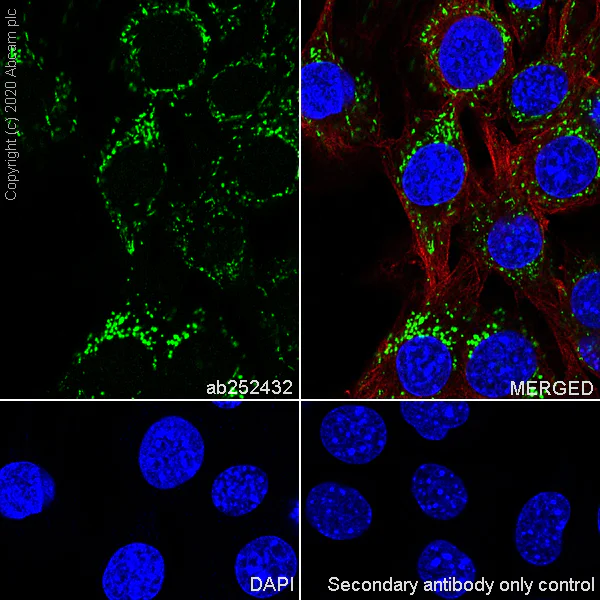

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized PC-12 cells labelling mtTFA with ab252432 at 1/500 dilution, followed by ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) antibody at 1/1000 2 ug/ml dilution (Green). Confocal image showing cytoplasmic staining in PC-12 cell line is observed. ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 dilution (Red). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) at 1/1000 2 ug/ml dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab252432).

Flow Cytometry (Intracellular) - Anti-mtTFA antibody [EPR23548-120] - BSA and Azide free (AB273508)
  • Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-mtTFA antibody [EPR23548-120] - BSA and Azide free (AB273508)

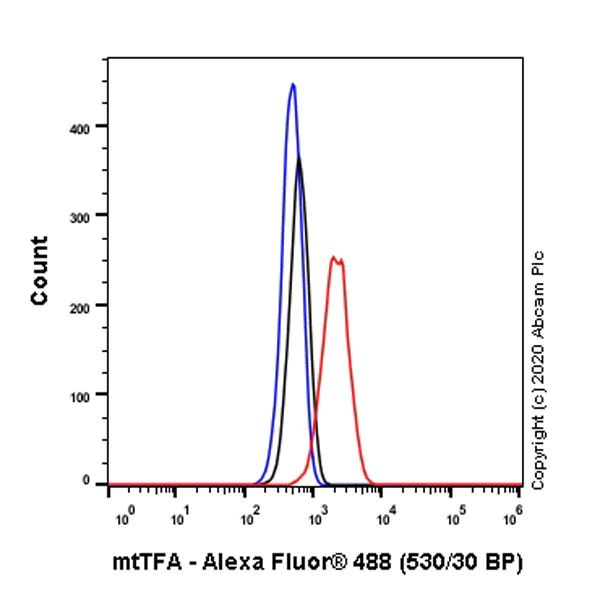

Intracellular flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized C2C12 (Mouse myoblasts myoblast) cells labelling mtTFA with ab252432 at 1/600 dilution (0.1ug) (Red) (Red) compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti rabbit IgG (Alexa Fluor® 488, ab150077) at 1/2000 dilution was used as the secondary antibody. This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab252432).

Immunoprecipitation - Anti-mtTFA antibody [EPR23548-120] - BSA and Azide free (AB273508)
  • IP

Supplier Data

Immunoprecipitation - Anti-mtTFA antibody [EPR23548-120] - BSA and Azide free (AB273508)

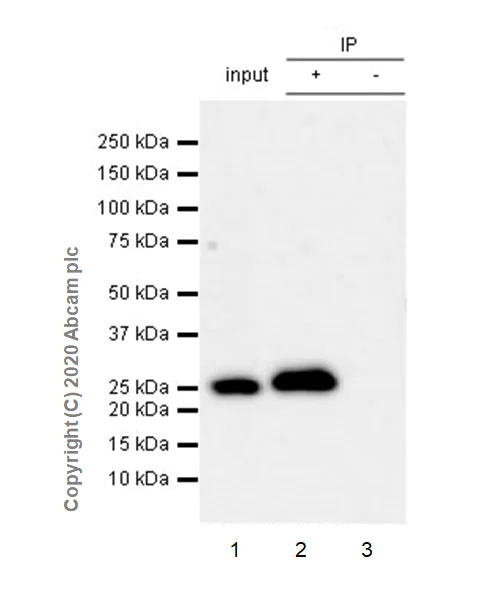

mtTFA was immunoprecipitated from 0.35 mg PC-12 (rat adrenal gland pheochromocytoma) whole cell lysate using ab252432 at 1/30 dilution. Western blot was performed on the immunoprecipitate using ab252432 at 1/500 dilution, followed by VeriBlot for IP Detection Reagent (HRP)(ab131366) at 1/1000 dilution.

Lane 1 : PC-12 whole cell lysate (Input)
Lane 2 : ab252432 IP in PC-12 cell lysate
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab252432 in PC-12 whole cell lysate

Blocking /Diluting buffer and concentration : 5% NFDM/TBST

Exposure time : 32 seconds

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab252432).

All lanes:

Immunoprecipitation - Anti-mtTFA antibody [EPR23548-120] - Mitochondrial Marker (<a href='/en-us/products/primary-antibodies/mttfa-antibody-epr23548-120-mitochondrial-marker-ab252432'>ab252432</a>)

Predicted band size: 29 kDa

false

Immunoprecipitation - Anti-mtTFA antibody [EPR23548-120] - BSA and Azide free (AB273508)
  • IP

Supplier Data

Immunoprecipitation - Anti-mtTFA antibody [EPR23548-120] - BSA and Azide free (AB273508)

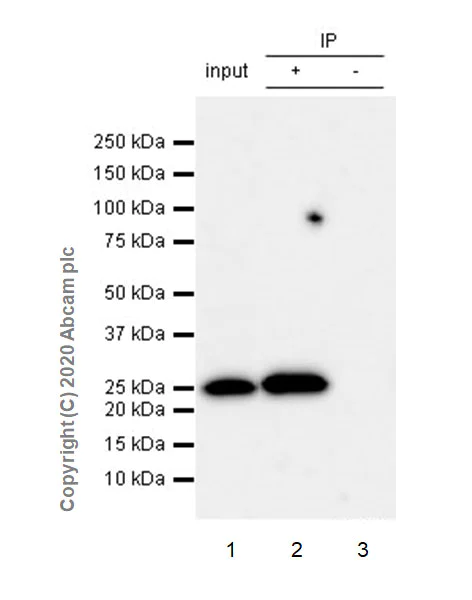

mtTFA was immunoprecipitated from 0.35 mg C2C12 (mouse myoblasts myoblast) whole cell lysate using ab252432 at 1/30 dilution. Western blot was performed on the immunoprecipitate using ab252432 at 1/500 dilution, followed by VeriBlot for IP Detection Reagent (HRP)(ab131366) at 1/1000 dilution.

Lane 1 : C2C12 whole cell lysate (Input)
Lane 2 : ab252432 IP in C2C12 cell lysate
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab252432 in C2C12 whole cell lysate

Blocking /Diluting buffer and concentration : 5% NFDM/TBST

Exposure time : 32 seconds

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab252432).

All lanes:

Immunoprecipitation - Anti-mtTFA antibody [EPR23548-120] - Mitochondrial Marker (<a href='/en-us/products/primary-antibodies/mttfa-antibody-epr23548-120-mitochondrial-marker-ab252432'>ab252432</a>)

Predicted band size: 29 kDa

false

  • Unconjugated

    Anti-mtTFA antibody [EPR23548-120] - Mitochondrial Marker

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR23548-120

Isotype

IgG

Carrier free

Yes

Reacts with

Mouse, Rat

Applications

IP, ICC/IF, Flow Cyt (Intra), WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Complementary Products

Assay Kits

AB109721

Complex I Enzyme Activity Microplate Assay Kit (Colorimetric)

Functional Studies - Complex I Enzyme Activity Microplate Assay Kit (Colorimetric) (AB109721)

  • 5
  • 4
Primary Antibodies

AB72230

Anti-PGC1 alpha + beta antibody

Immunocytochemistry/ Immunofluorescence - Anti-PGC1 alpha + beta antibody (AB72230)

  • 4
  • 2
Primary Antibodies

AB184247

Anti-DRP1 antibody [EPR19274]

20ul selling size|RabMAb|Recombinant

Western blot - Anti-DRP1 antibody [EPR19274] (AB184247)

  • 5
  • 5
Primary Antibodies

AB186735

Anti-TOMM20 antibody [EPR15581-54] - Mitochondrial Marker

RabMAb|Recombinant|Lab Essentials|20ul selling size

Western blot - Anti-TOMM20 antibody [EPR15581-54] - Mitochondrial Marker (AB186735)

  • 5
  • 12
Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>", "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCytIntra-species-checked": "notRecommended", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "" }, "Mouse": { "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>", "WB-species-checked": "guaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>", "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "<p></p>" }, "Rat": { "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>", "WB-species-checked": "guaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>", "FlowCytIntra-species-checked": "guaranteed", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "" } } }
style
left-column

Product details

ab273508 is the carrier-free version of ab252432.

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Do Not Freeze
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

MtTFA also known as mitochondrial transcription factor A or TFAM is an important element in mitochondrial DNA regulation. It plays a pivotal role in maintaining mitochondrial genome integrity and ensuring proper mitochondrial function. This protein weighing approximately 25 kDa is expressed within the mitochondria. It binds to the mitochondrial DNA facilitating the transcription and replication processes ensuring the correct functioning of cellular energy metabolism.
Biological function summary

MtTFA is essential for mitochondrial DNA packaging and transcriptional activation. It acts as a binding factor that organizes the mtDNA into a nucleoid-like structure providing protection and stability. MtTFA functions as part of a larger multi-protein complex that includes mitochondrial RNA polymerase ensuring proper transcription of mitochondrial genes. These activities are critical for normal energy production and mitochondrial biogenesis.

Pathways

The mtTFA protein is integral to the oxidative phosphorylation and mitochondrial biogenesis pathways. It orchestrates the expression of genes critical for these pathways alongside related proteins like NRF2 and PGC-1α. MtTFA ensures effective mitochondrial function by modulating the transcription of key mitochondrial-encoded components necessary for electron transport and ATP synthesis thereby sustaining cellular energy balance.

MtTFA dysregulation is associated with mitochondrial diseases and neurodegenerative disorders. Abnormal mtTFA activity disrupts mitochondrial DNA maintenance potentially leading to conditions like mitochondrial myopathy. It is also linked with proteins such as POLG which are involved in mitochondrial DNA replication. Understanding mtTFA's role in these pathologies highlights its importance as a target in therapeutic strategies aimed at restoring mitochondrial function and preventing disease progression.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Isoform Mitochondrial. Binds to the mitochondrial light strand promoter and functions in mitochondrial transcription regulation (By similarity). Component of the mitochondrial transcription initiation complex, composed at least of TFB2M, TFAM and POLRMT that is required for basal transcription of mitochondrial DNA (By similarity). In this complex, TFAM recruits POLRMT to a specific promoter whereas TFB2M induces structural changes in POLRMT to enable promoter opening and trapping of the DNA non-template strand (By similarity). Required for accurate and efficient promoter recognition by the mitochondrial RNA polymerase (By similarity). Promotes transcription initiation from the HSP1 and the light strand promoter by binding immediately upstream of transcriptional start sites (By similarity). Is able to unwind DNA (By similarity). Bends the mitochondrial light strand promoter DNA into a U-turn shape via its HMG boxes (By similarity). Required for maintenance of normal levels of mitochondrial DNA (PubMed : 9500544). May play a role in organizing and compacting mitochondrial DNA (PubMed : 17581862).. Isoform Nuclear. May also function as a transcriptional activator or may have a structural role in the compaction of nuclear DNA during spermatogenesis.
See full target information Tfam
