Anti-MUPP1 antibody [EPR26317-59] (BSA and Azide free)

12 product images

•

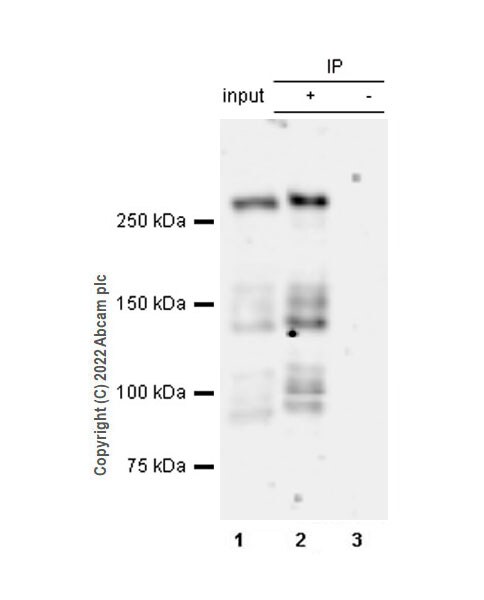

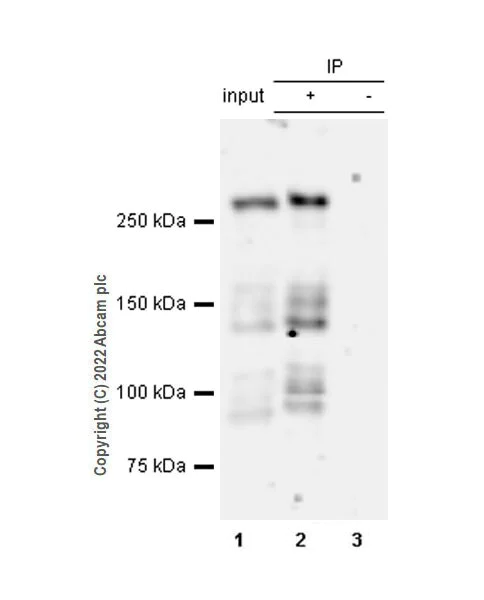

  Immunoprecipitation - Anti-MUPP1 antibody [EPR26317-59] (BSA and Azide free) (ab302622)

  This data was developed using Anti-MUPP1 antibody [EPR26317-59] ab302621, the same antibody clone in a different buffer formulation.


  MUPP1 was immunoprecipitated from 0.35 mg C6 (rat glial tumor glial cell), whole cell lysate 10 µg with Anti-MUPP1 antibody [EPR26317-59] ab302621 at 1/30 dilution (2µg in 0.35mg lysates). Western blot was performed on the immunoprecipitate using Anti-MUPP1 antibody [EPR26317-59] ab302621 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.

  Lane 1: C6 (rat glial tumor glial cell), whole cell lysate 10 µg

  Lane 2: Anti-MUPP1 antibody [EPR26317-59] ab302621 IP in C6 whole cell lysate

  Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of Anti-MUPP1 antibody [EPR26317-59] ab302621 in C6 whole cell lysate

  Blocking and dilution buffer and concentration: 5% NFDM/TBST.

  This blot was developed using a high sensitivity ECL substrate. The high-sensitivity ECL substrate used allows for the detection of proteins in the mid-femtogram range.

  The bands beneath the target band are likely to be degraded target fragments.

  All lanes: Immunoprecipitation - Anti-MUPP1 antibody [EPR26317-59] (Anti-MUPP1 antibody [EPR26317-59] ab302621) at 1/30 dilution

  All lanes: C6 (rat glial tumor glial cell), whole cell lysate

  Secondary

  All lanes: Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/5000 dilution

  Developed using the ECL technique.

  Predicted band size: 219 kDa

  Exposure time: 58s

•

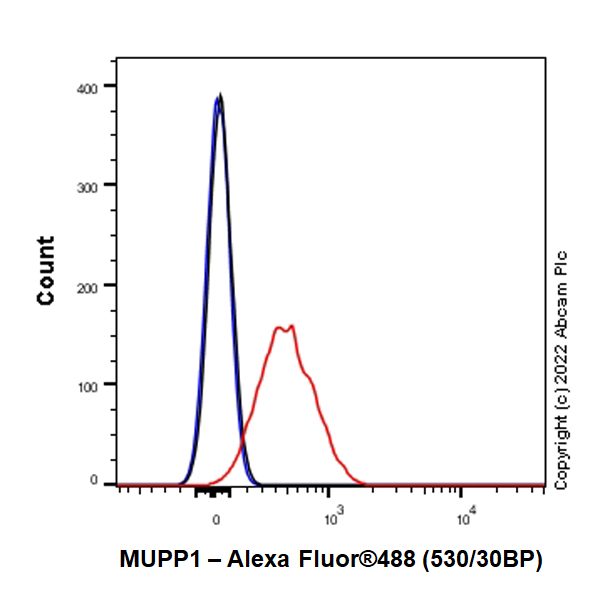

  Flow Cytometry (Intracellular) - Anti-MUPP1 antibody [EPR26317-59] (BSA and Azide free) (ab302622)

  This data was developed using Anti-MUPP1 antibody [EPR26317-59] ab302621, the same antibody clone in a different buffer formulation.
  Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized mIMCD3 (mouse inner medullary collecting duct epithelial cell) cells labelling MUPP1 with Anti-MUPP1 antibody [EPR26317-59] ab302621 at 1/500 dilution (0.1ug) (Red) (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/2000 dilution was used as the secondary antibody.

•

  Immunohistochemistry (Frozen sections) - Anti-MUPP1 antibody [EPR26317-59] (BSA and Azide free) (ab302622)

  This data was developed using Anti-MUPP1 antibody [EPR26317-59] ab302621, the same antibody clone in a different buffer formulation.
  Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Rat choroid plexus tissue labeling MUPP1 with Anti-MUPP1 antibody [EPR26317-59] ab302621 at 1/50 (10.92 ug/ml) dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/mL dilution (Green). Positive staining on rat choroid plexus is observed. The nuclear counterstain was DAPI (Blue). Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbedat 1/1000 2 ug/mL dilution. Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20).

•

  Immunohistochemistry (Frozen sections) - Anti-MUPP1 antibody [EPR26317-59] (BSA and Azide free) (ab302622)

  This data was developed using Anti-MUPP1 antibody [EPR26317-59] ab302621, the same antibody clone in a different buffer formulation.
  Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Mouse choroid plexus tissue labeling MUPP1 with Anti-MUPP1 antibody [EPR26317-59] ab302621 at 1/50 (10.92 ug/ml) dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/mL dilution (Green). Positive staining on mouse choroid plexus is observed. The nuclear counterstain was DAPI (Blue). Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbedat 1/1000 2 ug/mL dilution. Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20).

•

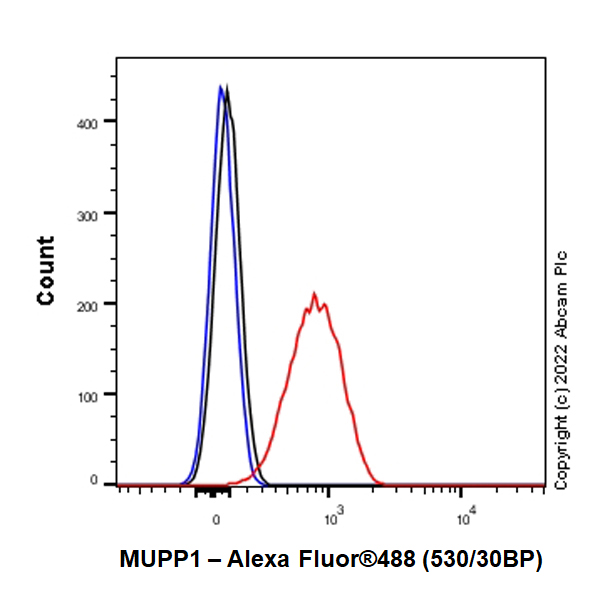

  Flow Cytometry (Intracellular) - Anti-MUPP1 antibody [EPR26317-59] (BSA and Azide free) (ab302622)

  This data was developed using Anti-MUPP1 antibody [EPR26317-59] ab302621, the same antibody clone in a different buffer formulation.
  Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized A549 (human lung carcinoma epithelial cell) cells labelling MUPP1 with Anti-MUPP1 antibody [EPR26317-59] ab302621 at 1/500 dilution (0.1ug) (Red) (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/2000 dilution was used as the secondary antibody.

•

  Immunocytochemistry/ Immunofluorescence - Anti-MUPP1 antibody [EPR26317-59] (BSA and Azide free) (ab302622)

  This data was developed using Anti-MUPP1 antibody [EPR26317-59] ab302621, the same antibody clone in a different buffer formulation.
  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized mIMCD3 (mouse inner medullary collecting duct epithelial cell) cells labelling MUPP1 with Anti-MUPP1 antibody [EPR26317-59] ab302621 at 1/50 (10.92 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2 ug/ml dilution (Green). Confocal image showing membranous and cytoplasmic staining in mIMCD3 cell line is observed. Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue).
  Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/ml dilution.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MUPP1 antibody [EPR26317-59] (BSA and Azide free) (ab302622)

  This data was developed using Anti-MUPP1 antibody [EPR26317-59] ab302621, the same antibody clone in a different buffer formulation.
  Immunohistochemical analysis of paraffin-embedded Rat skeletal muscle tissue labeling MUPP1 with Anti-MUPP1 antibody [EPR26317-59] ab302621 at 1/800 (0.683 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used. Negative control: no staining in rat skeletal muscle (PMID: 12706259). The section was incubated with Anti-MUPP1 antibody [EPR26317-59] ab302621 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used.
  Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MUPP1 antibody [EPR26317-59] (BSA and Azide free) (ab302622)

  This data was developed using Anti-MUPP1 antibody [EPR26317-59] ab302621, the same antibody clone in a different buffer formulation.
  Immunohistochemical analysis of paraffin-embedded Mouse skeletal muscl tissue labeling MUPP1 with Anti-MUPP1 antibody [EPR26317-59] ab302621 at 1/800 (0.683 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used. Negative control: no staining in mouse skeletal muscle (PMID: 12706259). The section was incubated with Anti-MUPP1 antibody [EPR26317-59] ab302621 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used.
  Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins

•

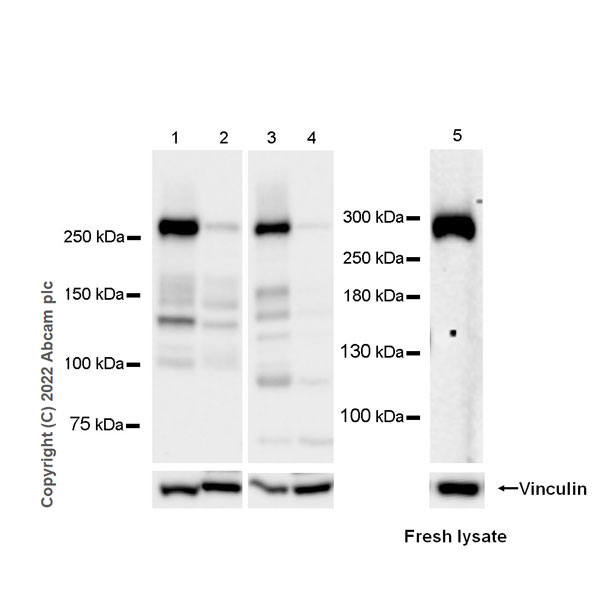

  Western blot - Anti-MUPP1 antibody [EPR26317-59] (BSA and Azide free) (ab302622)

  This data was developed using Anti-MUPP1 antibody [EPR26317-59] ab302621, the same antibody clone in a different buffer
  Blocking and diluting buffer and concentration: 5% NFDM/TBST
  The expression profile/ molecular weight observed is consistent with what has been described in the literature (PMID: 12403818).

  Low expression: skeletal muscle (PMID: 12706259)

  Lysate in lane 5 was freshly made and used for Western blotting immediately to minimize protein degradation.

  The bands beneath the target band are likely to be degraded target fragments.

  Samples are non-boiled as boiling may cause protein aggregates.
  Exposure time: Lane 1-4: 26 seconds
  Lane 5: 3 minutes

  All lanes: Western blot - Anti-MUPP1 antibody [EPR26317-59] (Anti-MUPP1 antibody [EPR26317-59] ab302621) at 1/1000 dilution

  Lane 1: Mouse brain tissue lysate 40 µg

  Lane 2: Mouse skeletal muscle tissue lysate 40 µg

  Lane 3: Rat brain tissue lysate 40 µg

  Lane 4: Rat skeletal muscle tissue lysate 40 µg

  Lane 5: Mouse testis tissue lysate 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

  Observed band size: 280 kDa, 278 kDa

  Exposure time: 26s

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MUPP1 antibody [EPR26317-59] (BSA and Azide free) (ab302622)

  This data was developed using Anti-MUPP1 antibody [EPR26317-59] ab302621, the same antibody clone in a different buffer formulation.
  Immunohistochemical analysis of paraffin-embedded Rat choroid plexus tissue labeling MUPP1 with Anti-MUPP1 antibody [EPR26317-59] ab302621 at 1/800 (0.683 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used. Positive staining in rat choroid plexus (PMID: 30518636, PMID: 12706259 ). The section was incubated with Anti-MUPP1 antibody [EPR26317-59] ab302621 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used.
  Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MUPP1 antibody [EPR26317-59] (BSA and Azide free) (ab302622)

  This data was developed using Anti-MUPP1 antibody [EPR26317-59] ab302621, the same antibody clone in a different buffer formulation.
  Immunohistochemical analysis of paraffin-embedded Mouse choroid plexus tissue labeling MUPP1 with Anti-MUPP1 antibody [EPR26317-59] ab302621 at 1/800 (0.683 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used. Positive staining in mouse choroid plexus (PMID: 30518636, PMID: 12706259). The section was incubated with Anti-MUPP1 antibody [EPR26317-59] ab302621 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used.
  Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins

•

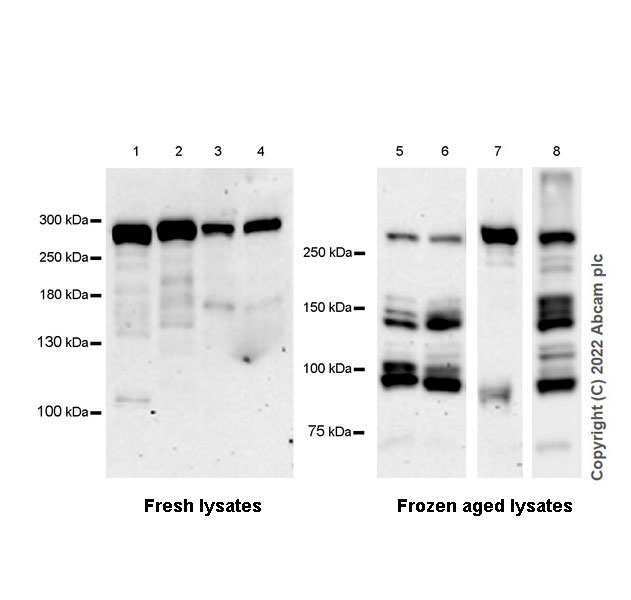

  Western blot - Anti-MUPP1 antibody [EPR26317-59] (BSA and Azide free) (ab302622)

  This data was developed using Anti-MUPP1 antibody [EPR26317-59] ab302621, the same antibody clone in a different buffer
  Blocking and diluting buffer and concentration: 5% NFDM/TBST
  The expression profile/ molecular weight observed is consistent with what has been described in the literature (PMID: 12403818).

  Lysates in lane1-4 were freshly made and used for Western blotting immediately to minimize protein degradation.

  The bands beneath the target band are likely to be degraded target fragments.

  Samples are non-boiled as boiling may cause protein aggregates.
  Exposure time: Lane 1-7: 3 minutes
  Lane 8: 26 seconds

  All lanes: Western blot - Anti-MUPP1 antibody [EPR26317-59] (Anti-MUPP1 antibody [EPR26317-59] ab302621) at 1/1000 dilution

  Lane 1: C6 (rat glial tumor glial cell), whole cell fresh lysate 20 µg

  Lane 2: Neuro-2a (mouse neuroblastoma neuroblast), whole cell fresh lysate 20 µg

  Lane 3: U-87 MG (human glioblastoma-astrocytoma epithelial cell), whole cell fresh lysate 20 µg

  Lane 4: SH-SY5Y (human neuroblastoma epithelial cell), whole cell fresh lysate 20 µg

  Lane 5: C6 (rat glial tumor glial cell), whole cell lysate 40 µg

  Lane 6: PC-12 (rat adrenal gland pheochromocytoma), whole cell lysate 40 µg

  Lane 7: human cerebellum tissue lysate 40 µg

  Lane 8: mIMCD3 (mouse inner medlary collecting duct epithelial cell), whole cell lysate 40 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

  Observed band size: 280 kDa

  Exposure time: 3min
