Anti-muscle Actin antibody [EPR8484] - Loading Control

19 product images

•

  Western blot - Anti-muscle Actin antibody [EPR8484] - Loading Control (ab156302)

  Muscle Actin Western blot staining using rabbit Anti-muscle Actin antibody

  Blocking and dilution buffer: 5% NFDM /TBST.

  All lanes: Western blot - Anti-muscle Actin antibody [EPR8484] - Loading Control (ab156302) at 1/10000 dilution

  Lane 1: NIH/3T3 whole cell lysate at 10 µg

  Lane 2: Rat spleen tissue lysate at 10 µg

  Lane 3: L6 whole cell lysate at 10 µg

  Secondary

  All lanes: HRP-conjugated goat anti-rabbit IgG (specific to the non-reduced form of IgG) at 1/10000 dilution

  Predicted band size: 42 kDa

  Observed band size: 42 kDa

•

  Western blot - Anti-muscle Actin antibody [EPR8484] - Loading Control (ab156302)

  Muscle Actin Western blot staining of Human stomach tissue lysate using rabbit Anti-muscle Actin antibody

  Blocking and dilution buffer: 5% NFDM /TBST.

  All lanes: Western blot - Anti-muscle Actin antibody [EPR8484] - Loading Control (ab156302) at 1/10000 dilution

  All lanes: Human stomach tissue lysate at 10 µg

  Secondary

  All lanes: HRP-conjugated goat anti-rabbit IgG (specific to the non-reduced form of IgG) at 1/10000 dilution

  Predicted band size: 42 kDa

  Observed band size: 42 kDa

•

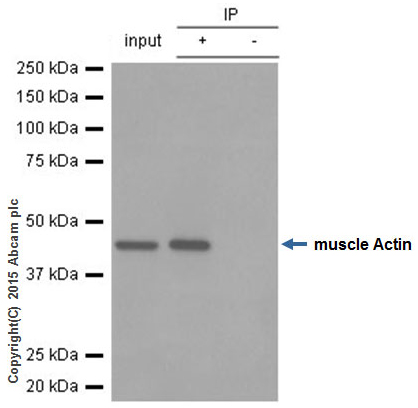

  Immunoprecipitation - Anti-muscle Actin antibody [EPR8484] - Loading Control (ab156302)

  ab156302 (purified) at 1/20 immunoprecipitating muscle Actin in NIH/3T3 whole cell lysate.


  Lane 1 (input): NIH/3T3 whole cell lysate (10μg)

  Lane 2 (+): ab156302 + NIH/3T3 whole cell lysate.

  Lane 3 (-): Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab156302 in NIH/3T3 whole cell lysate.

  For western blotting, VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366), was used for detection at 1/10,000 dilution.

  Blocking buffer and concentration: 5% NFDM/TBST.

  Diluting buffer and concentration: 5% NFDM /TBST.

  All lanes: Immunoprecipitation - Anti-muscle Actin antibody [EPR8484] - Loading Control (ab156302)

  Predicted band size: 42 kDa

  Observed band size: 42 kDa

•

  Western blot - Anti-muscle Actin antibody [EPR8484] - Loading Control (ab156302)

  Muscle Actin Western blot staining of A673 whole cell lysate using rabbit Anti-muscle Actin antibody

  Blocking and dilution buffer: 5% NFDM /TBST.

  All lanes: Western blot - Anti-muscle Actin antibody [EPR8484] - Loading Control (ab156302) at 1/1000 dilution

  All lanes: A673 whole cell lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/10000 dilution

  Predicted band size: 42 kDa

  Observed band size: 42 kDa

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-muscle Actin antibody [EPR8484] - Loading Control (ab156302)

  Muscle Actin Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) staining using rabbit Anti-muscle Actin antibody

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of rat colon tissue labelling muscle Actin with purified ab156302 at a dilution of 1/250. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. Goat Anti-Rabbit IgG H&L (HRP) ab97051, a HRP-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody (1/500). Negative control using PBS instead of primary antibody. Counterstained with hematoxylin.

•

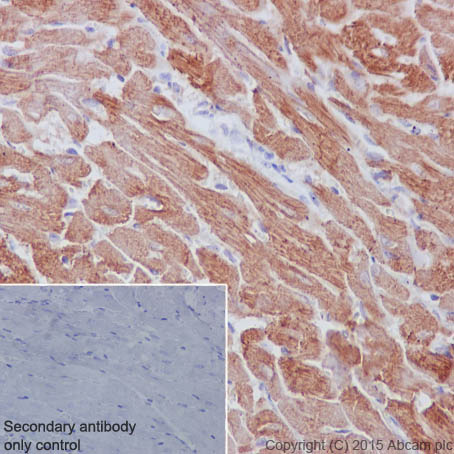

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-muscle Actin antibody [EPR8484] - Loading Control (ab156302)

  Muscle Actin Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) staining using rabbit Anti-muscle Actin antibody

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of mouse cardiac muscle tissue labelling muscle Actin with purified ab156302 at a dilution of 1/250. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. Goat Anti-Rabbit IgG H&L (HRP) ab97051, a HRP-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody (1/500). Negative control using PBS instead of primary antibody. Counterstained with hematoxylin.

•

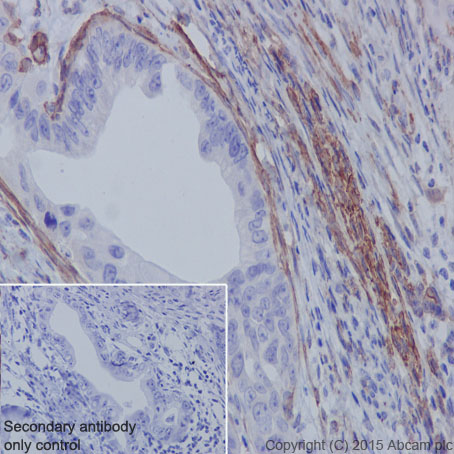

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-muscle Actin antibody [EPR8484] - Loading Control (ab156302)

  Muscle Actin Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) staining using rabbit Anti-muscle Actin antibody

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human cervical carcinoma tissue labelling muscle Actin with purified ab156302 at a dilution of 1/250. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. Goat Anti-Rabbit IgG H&L (HRP) ab97051, a HRP-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody (1/500). Negative control using PBS instead of primary antibody. Counterstained with hematoxylin.

•

  Immunocytochemistry/ Immunofluorescence - Anti-muscle Actin antibody [EPR8484] - Loading Control (ab156302)

  Muscle Actin Immunocytochemistry/ Immunofluorescence staining using rabbit Anti-muscle Actin antibody

  Immunocytochemistry/Immunofluorescence analysis of A673 cells labelling muscle Actin with purified ab156302 at 1/100. Cells were fixed with 100% methanol and permeabilized with 0.1% Triton X-100. Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077, an Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/1000) was used as the secondary antibody. DAPI (blue) was used as the nuclear counterstain. Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291, a mouse anti-tubulin (1/1000) and Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120, an Alexa Fluor^® 594-conjugated goat anti-mouse IgG (1/1000) were also used.

  Control 1: primary antibody (1/100) and secondary antibody, Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120, an Alexa Fluor^® 594-conjugated goat anti-mouse IgG (1/1000).

  Control 2: Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 (1/1000) and secondary antibody, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077, an Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/1000).

•

  Flow Cytometry (Intracellular) - Anti-muscle Actin antibody [EPR8484] - Loading Control (ab156302)

  Muscle Actin Flow Cytometry (Intracellular) staining using rabbit Anti-muscle Actin antibody

  Overlay histogram showing HeLa cells fixed in 4% PFA and stained with purified ab156302 at a dilution of 1 in 50 (red line). The secondary antibody used was FITC goat anti-rabbit at a dilution of 1 in 500. Rabbit monoclonal IgG was used as an isotype control (black line) and cells incubated in the absence of both primary and secondary antibody were used as a negative control (blue line).

•

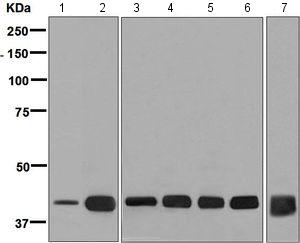

  Western blot - Anti-muscle Actin antibody [EPR8484] - Loading Control (ab156302)

  Muscle Actin Western blot staining using rabbit Anti-muscle Actin antibody

  All lanes: Western blot - Anti-muscle Actin antibody [EPR8484] - Loading Control (ab156302) at 1/1000 dilution

  Lane 1: NIH 3T3 lysate at 10 µg

  Lane 2: Human fetal artery lysate at 10 µg

  Lane 3: Human fetal kidney lysate at 10 µg

  Lane 4: Human uterus lysate at 10 µg

  Lane 5: Human stomach lysate at 10 µg

  Lane 6: Human fetal heart lysate at 10 µg

  Lane 7: Human skeletal muscle lysate at 10 µg

  Predicted band size: 42 kDa

•

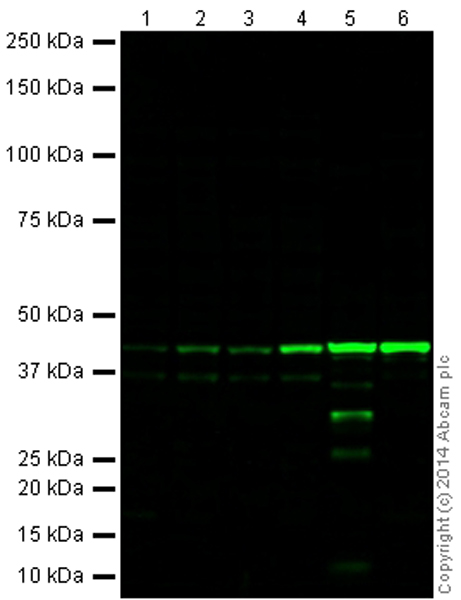

  Western blot - Anti-muscle Actin antibody [EPR8484] - Loading Control (ab156302)

  Muscle Actin Western blot staining using rabbit Anti-muscle Actin antibody

  This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using Licor blocking buffer before being incubated with ab156302 overnight at 4°C. Antibody binding was detected using Goat Anti-Rabbit IgG H&L (Alexa Fluor® 790) ab175781 at a 1/10,000 dilution for 1hr at room temperature and then imaged using the Licor Odyssey CLx.

  Secondary antibody - goat anti-rabbit Alexa Fluor^® 790 (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 790) ab175781).

  All lanes: Western blot - Anti-muscle Actin antibody [EPR8484] - Loading Control (ab156302) at 1/1000 dilution

  Lane 1: A431 (Human epithelial carcinoma cell line) Whole Cell Lysate at 20 µg

  Lane 2: HEK293 (Human embryonic kidney cell line) Whole Cell Lysate at 20 µg

  Lane 3: MCF7 (Human breast adenocarcinoma cell line) Whole Cell Lysate at 20 µg

  Lane 4: HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 20 µg

  Lane 5: Skeletal Muscle (Human) Tissue Lysate - adult normal tissue at 20 µg

  Lane 6: NIH 3T3 (Mouse embryonic fibroblast cell line) Whole Cell Lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 790) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 790) ab175781) at 1/10000 dilution

  Predicted band size: 42 kDa

  Observed band size: 42 kDa

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-muscle Actin antibody [EPR8484] - Loading Control (ab156302)

  Muscle Actin Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) staining using rabbit Anti-muscle Actin antibody

  IHC image of unpurified ab156302 staining muscle Actin in human colon* formalin fixed paraffin embedded tissue sections, performed on a Leica Bond. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with unpurified ab156302, 5μg/ml working concentration, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. No primary antibody was used in the secondary only control (shown on the inset).
  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.
  *Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-muscle Actin antibody [EPR8484] - Loading Control (ab156302)

  Muscle Actin Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) staining using rabbit Anti-muscle Actin antibody

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human skeletal muscle tissue labelling muscle Actin with unpurified ab156302 at a dilution of 1/1000.


  Heat mediated antigen retrieval was performed before commencing with IHC staining protocol.

•

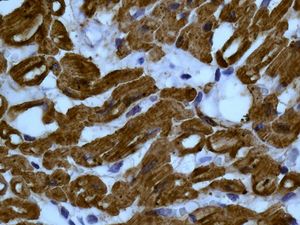

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-muscle Actin antibody [EPR8484] - Loading Control (ab156302)

  Muscle Actin Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) staining using rabbit Anti-muscle Actin antibody

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human heart muscle tissue labelling muscle Actin with unpurified ab156302 at a dilution of 1/1000.


  Heat mediated antigen retrieval was performed before commencing with IHC staining protocol.

•

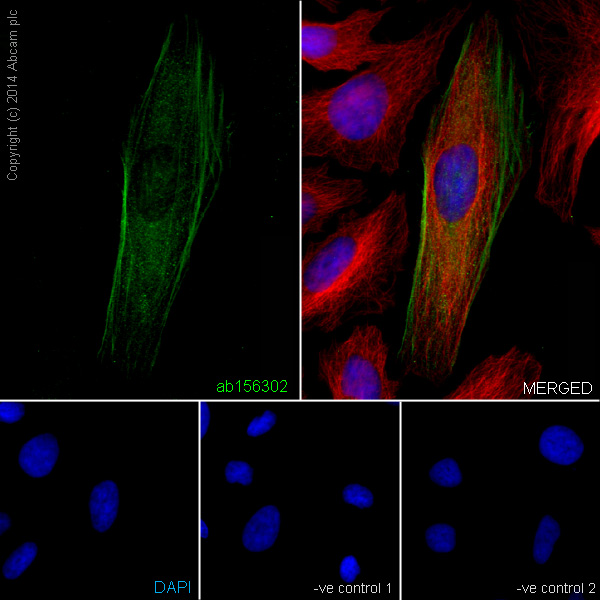

  Immunocytochemistry/ Immunofluorescence - Anti-muscle Actin antibody [EPR8484] - Loading Control (ab156302)

  Muscle Actin Immunocytochemistry/ Immunofluorescence staining using rabbit Anti-muscle Actin antibody

  Unpurified ab156302 staining Actin in HeLa cells. The cells were fixed with 100% methanol (5min) and then blocked in 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with unpurified ab156302 at 10μg/ml and Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 at 1μg/ml overnight at +4°C, followed by a further incubation at room temperature for 1h with an goat anti-rabbit Alexa Fluor^® 488 secondary (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 2 μg/ml (shown in green) and goat anti-mouse Alexa Fluor^® 594 secondary (Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120) at 2 μg/ml (shown in pseudo color red). Nuclear DNA was labelled in blue with DAPI.

  Negative controls: 1 – Rabbit primary and anti-mouse secondary antibody; 2 – Mouse primary antibody and anti-rabbit secondary antibody. Controls 1 and 2 indicate that there is no unspecific reaction between primary and secondary antibodies used.

•

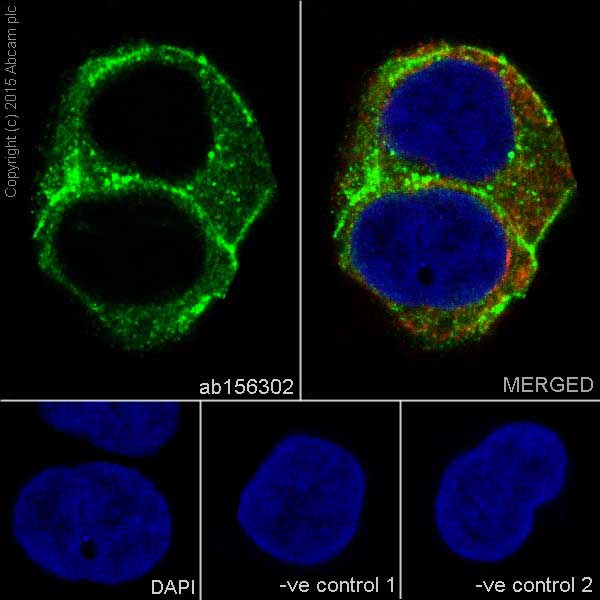

  Immunocytochemistry/ Immunofluorescence - Anti-muscle Actin antibody [EPR8484] - Loading Control (ab156302)

  Muscle Actin Immunocytochemistry/ Immunofluorescence staining using rabbit Anti-muscle Actin antibody

  Unpurified ab156302 staining Actin in NIH3T3 cells. The cells were fixed with 100% methanol (5min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked in 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with unpurified ab156302 at 5μg/ml and Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 at 1/250 dilution (shown in pseudo color red) overnight at +4°C, followed by a further incubation at room temperature for 1h with an goat anti-rabbit Alexa Fluor^® 488 secondary (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 2 μg/ml (shown in green). Nuclear DNA was labelled in blue with DAPI.

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

•

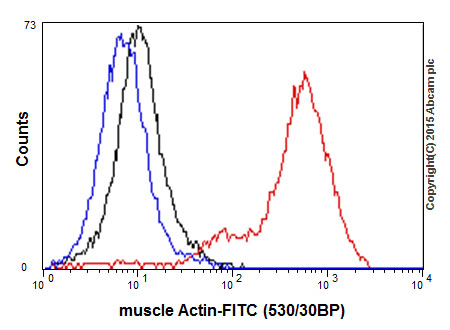

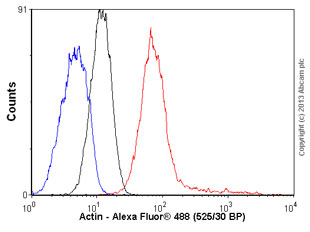

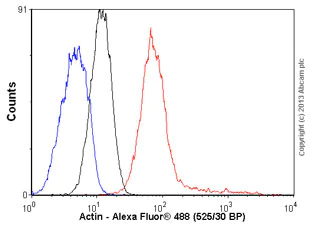

  Flow Cytometry (Intracellular) - Anti-muscle Actin antibody [EPR8484] - Loading Control (ab156302)

  Muscle Actin Flow Cytometry (Intracellular) staining using rabbit Anti-muscle Actin antibody

  Overlay histogram showing HeLa cells stained with unpurified ab156302 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Triton X-100 for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (unpurified ab156302, 1/100 dilution) for 30 min at 22°C. The secondary antibody used was goat anti-rabbit Alexa Fluor^® 488 (IgG H&L) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (1μg/1x10⁶ cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter.


•

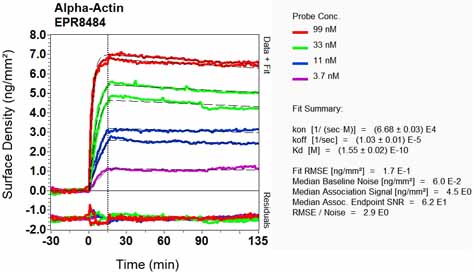

  OI-RD Scanning - Anti-muscle Actin antibody [EPR8484] - Loading Control (ab156302)

  We have systematically measured KD (the equilibrium dissociation constant between the antibody and its antigen), of more than 840 recombinant antibodies to assess not only their individual KD values but also to see the average affinity of antibody.
  Based on the comparison with published literature values for mouse monoclonal antibodies, Recombinant antibodies appear to be on average 1-2 order of magnitude higher affinity.

•

  Image collected and cropped by CiteAb under a CC-BY license from the publication

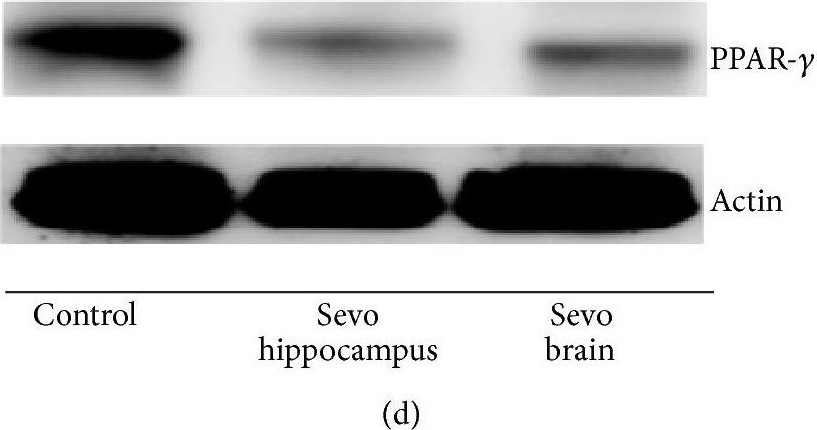

  Western blot - Anti-muscle Actin antibody [EPR8484] - Loading Control (ab156302)

  Muscle Actin Western blot staining using rabbit Anti-muscle Actin antibody

  muscle Actin western blot using anti-muscle Actin antibody [EPR8484] ab156302. Publication image and figure legend from Zhao, Y., Chen, K., et al., 2015, Biomed Res Int, PubMed 26236713.




  ab156302 was used in this publication in western blot. This may not be the same as the application(s) guaranteed by Abcam. For a full list of applications guaranteed by Abcam for ab156302 please see the product overview.

  Sevoflurane downregulated PPAR-γ expression. (a-b) Gene Set Enrichment Analysis plots for the peroxisome proliferator-activated receptor- (PPAR-) γ target gene set and PPAR signaling gene set in the microarray dataset are shown. The PPAR-γ target gene signature and PPAR signaling pathway signature were highly enriched in control samples than in sevoflurane-treated samples, thus indicating that PPAR-γ signaling is downregulated by sevoflurane. (c) The heat map of PPAR-γ target genes in control and sevoflurane-treated samples is shown. (d) Exposure to 3% sevoflurane for 2 h daily from P6 to P8 downregulated the expression of PPAR-γ in the brain tissue of mice and the hippocampal tissues of mice. (e) Quantification of western blots (n = 6) confirmed that sevoflurane downregulated the expression of PPAR-γ. (f) Quantification of western blots (n = 6) confirmed that sevoflurane downregulated the expression of PPAR-γ. NES: normalized enrichment scores; FWER: familywise error rate; RXRA: Rerinoid X receptor alpha.
