Anti-Myc tag antibody

31 product images

•

  Immunocytochemistry/ Immunofluorescence - Anti-Myc tag antibody (ab9106)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney epithelial cell) cells labelling Human papillomavirus L2 protein with Anti-Human papillomavirus L2 antibody [K18_HPV16L2(20-38)] ab322522 at 1/100 (10.45 ug/ml) dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 (2 ug/ml) dilution (Green).

  Confocal image showing nuclear staining in 293T cells transfected with a Human papillomavirus type 16 L2 protein expression vector containing a myc-His-tag®(shown in green). The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue).

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).


  ab9106 Anti-Myc Rabbit polyclonal antibody was used to counterstain tubulin at 1/200 (2.5ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) ab150080 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) at 1/500 (4μg/ml) dilution (Magenta).

•

  This image is courtesy of an anonymous customer review.

  Immunoprecipitation - Anti-Myc tag antibody (ab9106)

  ab9106 at 4 μg/mg lysate used in Huh7 (Human cell line) whole cell lysate (1x10⁶ cells).


  Cells expressed myc-tagged CDC42 protein. Immunoprecipitation step performed using Protein A matrix. Incubation time 4 hours at 4°C. Western Blot antibody used at 1/300 dilution.

  All lanes: Immunoprecipitation - Anti-Myc tag antibody (ab9106)

  Predicted band size: 49 kDa

•

  Pais et al PLoS One. 2013;8(2):e56292. doi: 10.1371/journal.pone.0056292. Epub 2013 Feb 19. Fig 6. Reproduced under the Creative Commons license http://creativecommons.org/licenses/by/4.0/

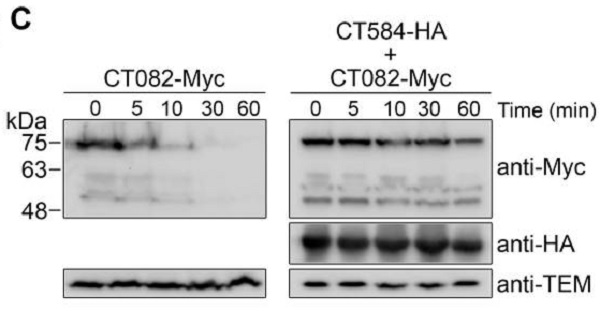

  Western blot - Anti-Myc tag antibody (ab9106)

  Y. enterocolitica ΔHOPEMT carrying plasmids encoding Myc-tagged CT082 or CT695, and HA-tagged Slc1 (as indicated) were grown in non-secreting conditions. Chloramphenicol was added (time = 0 min) to stop bacterial protein synthesis and samples were taken at the indicated time points. Samples were analyzed by immunoblotting using ab9106, anti-HA, and anti-TEM antibodies.

  All lanes: Western blot - Anti-Myc tag antibody (ab9106)

  Predicted band size: 49 kDa

•

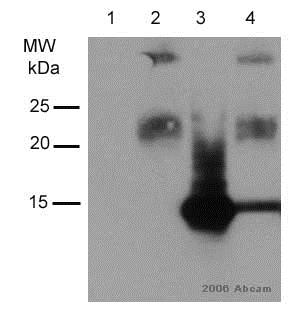

  Immunoprecipitation - Anti-Myc tag antibody (ab9106)

  ab9106 used at 1/250 in the immunoprecipitation of transfected human 293FT cells (whole cell lysate).


  In this experiment cells were co-transfected with myc tagged cdc25 along with an HA tagged viral protein which binds to cdc25. The cell lysate was immunoprecipitated using ab9106, run on a 10% gel. The blot was probed for HA and HA tagged protein (which co-IPed with Myc tagged protein) and this is seen at ~15KDa.

  Lane 1: Input non-transfected cells

  Lane 2: Immunoprecipitated non-transfected cells

  Lane 3: Input co-transfected cells

  Lane 4: Immunoprecipitated co-transfected cells

  This image is courtesy of an Abreview submitted on 23 March 2006.

  All lanes: Immunoprecipitation - Anti-Myc tag antibody (ab9106)

  Predicted band size: 49 kDa

•

  This image is courtesy of an anonymous customer review.

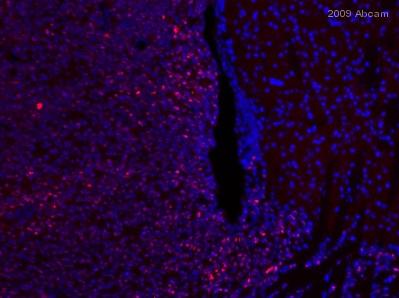

  Immunohistochemistry (Frozen sections) - Anti-Myc tag antibody (ab9106)

  Paraformaldehyde-fixed frozen mouse brain tissue stained for Myc tag using ab9106 at a 1/500 dilution (2hrs at 25°C), followed by a goat anti-rabbit Alexa-Fluor^® 568 secondary used at a 1/500 dilution.

•

  This image is courtesy of Karen Lee by customer review.

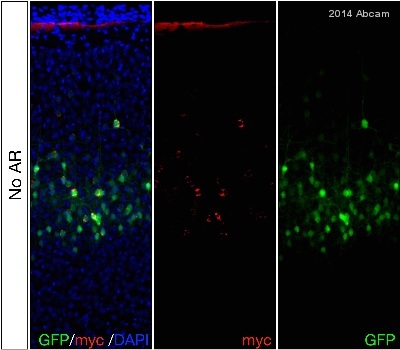

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Myc tag antibody (ab9106)

  Paraformaldehyde-fixed, 0.3% Triton X-100 permeabilized mouse brain tissue stained for Myc tag using ab9106 at a 1/500 dilution (15 hrs, 4°C) followed by and Alexa-Fluor® 555 donkey anti-rabbit secondary used at a 1/500 dilution.
  For further details please see abreview.

•

  This image is courtesy of a customer review submitted by Dr Eeva-Liisa Eskelinen

  Electron Microscopy - Anti-Myc tag antibody (ab9106)

  ab9106 at 1/2000 staining mouse embryonic fibroblasts expressing myc-tagged protein by ICC.


  The cells were paraformaldehyde fixed and blocked with 3% BSA prior to incubation with the antibody for 1 hour. A goat anti-rabbit IgG antibody (10 nm gold conjugated) was used as the secondary.

  The image shown is immuno electron microscopical staining with thawed cryosections.

•

  Immunocytochemistry/ Immunofluorescence - Anti-Myc tag antibody (ab9106)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney epithelial cell) cells labelling Human papillomavirus 6 L1 protein with Anti-Human papillomavirus 6 L1 protein antibody [LH6L1_D] ab322925 at 1/2000 dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

  Confocal image showing nuclear staining in 293T cells transfected with a human papillomavirus type 6B L1, (shown in green) but no staining in 293T cells transfected with a human papillomavirus type 11 L1 expression vector containing a myc tag. The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue). Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8).


  ab9106 Anti-Myc Rabbit polyclonal antibody was used to counterstain tubulin at 1/200 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

•

  Immunocytochemistry/ Immunofluorescence - Anti-Myc tag antibody (ab9106)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney epithelial cell) cells labelling Human papillomavirus 6 L1 protein with Anti-Human papillomavirus 6 L1 protein antibody [LH6L1_D] ab322925 at 1/2000 dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

  Confocal image showing nuclear staining in 293T cells transfected with a human papillomavirus type 6B L1 expression vector containing a myc tag (shown in green) but no staining in 293T cells transfected with a human papillomavirus type 18 L1 or human papillomavirus type 4 L1 expression vector containing a myc tag. The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue). Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8).

  ab9106 Anti-Myc Rabbit polyclonal antibody was used to counterstain tubulin at 1/200 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

•

  Immunocytochemistry/ Immunofluorescence - Anti-Myc tag antibody (ab9106)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney epithelial cell) cells labelling HPV4 L2 with Anti-Human papillomavirus type 4 L2 antibody [HPV4L2(20-38)_4SA] ab322958 at 1/100 dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

  Confocal image showing nuclear staining in 293T cells transfected with a Human papillomavirus type 4 L2 and Human papillomavirus type 65 L2 expression vector containing a myc-His-tag®(shown in green) but no staining in 293T cells transfected with a human papillomavirus type 60 L2 expression vector containing a myc-His-tag®. The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue).

  Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8).

  ab9106 Anti-Myc Rabbit polyclonal antibody was used to counterstain tubulin at 1/200 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

•

  Immunocytochemistry/ Immunofluorescence - Anti-Myc tag antibody (ab9106)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney epithelial cell) cells labelling Human respiratory syncytial virus phosphoprotein VP32 with Anti-Human respiratory syncytial virus phosphoprotein VP32 antibody [3.5-18] ab322893 at 1/200 dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

  Confocal image showing positive staining both in 293T cells transfected with a human respiratory syncytial virus A (strain A2) Phosphoprotein VP32 and a human respiratory syncytial virus B (strain B1) Phosphoprotein VP32 expression vector containing a myc-His-tag® (shown in green). The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue).

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

  ab9106 Anti-Myc Rabbit polyclonal antibody was used to counterstain tubulin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

•

  Immunocytochemistry/ Immunofluorescence - Anti-Myc tag antibody (ab9106)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney epithelial cell) cells labelling Human respiratory syncytial virus Fusion (F) Glycoprotein with Anti-Human respiratory syncytial virus Fusion (F) Glycoprotein antibody [11-3-A3] ab322869 at 1/100 dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

  Confocal image showing positive staining in 293T cells transfected with a Human respiratory syncytial virus (RSV) (strain B1) Fusion glycoprotein expression vector containing a myc-His-tag® and weak staining in 293T cells transfected with a Human respiratory syncytial virus (RSV) (strain A2) Fusion glycoprotein expression vector containing a myc-His-tag® (shown in green). The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue).

  Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8).

  ab9106 Anti-Myc Rabbit polyclonal antibody was used to counterstain tubulin at 1/200 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

•

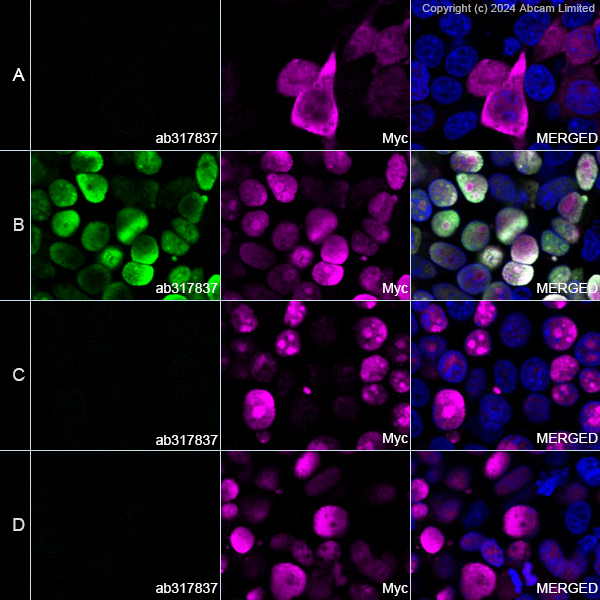

  Immunocytochemistry/ Immunofluorescence - Anti-Myc tag antibody (ab9106)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney epithelial cell) cells labelling Human papillomavirus type 11 L1 with Anti-Human Papilloma Virus type 11 L1 antibody [LH11L1_A] ab317837 at 1/500 (2.062 ug/ml) dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 (2ug/ml) dilution (Green).

  Confocal image showing positive staining in 293T cells transfected with a HPV 11 L1 expression vector containing a myc-His-tag® (shown in green) but no staining in 293T cells transfected with a HPV 16 L1 or HPV 18 L1 expression vector containing a myc-His-tag®. The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue).

  A: Myc transfected cells

  B: HPV 11 L1-Myc transfected cells

  C: HPV 18 L1-Myc transfected cells

  D: HPV 16 L1-Myc transfected cells

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).


  ab9106 Anti-Myc Rabbit polyclonal antibody was used to counterstain tubulin at 1/200 (2.5ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) preadsorbed ab150088 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) preadsorbed at 1/1000 (2μg/ml) dilution (Magenta).

•

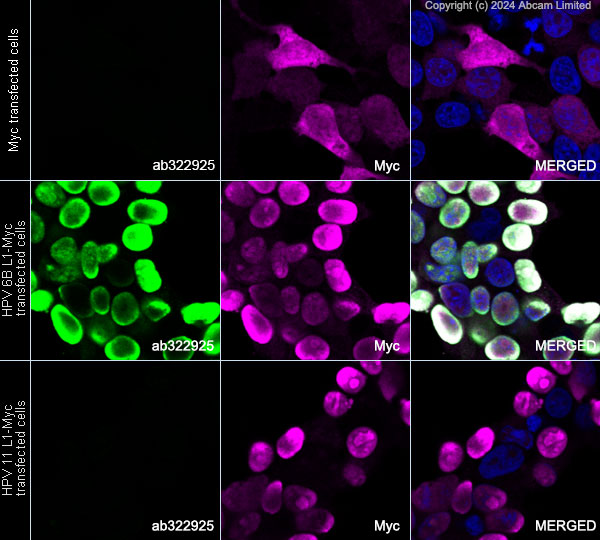

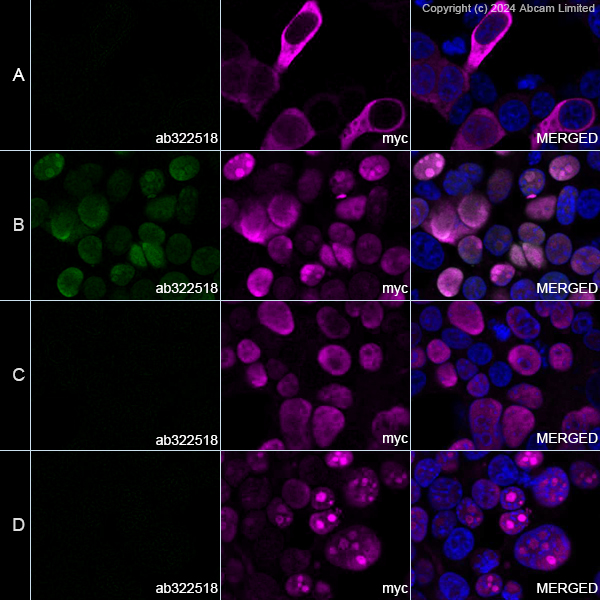

  Immunocytochemistry/ Immunofluorescence - Anti-Myc tag antibody (ab9106)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney epithelial cell) cells labelling Human papillomavirus type 11 L1 with Anti-Human Papilloma Virus type 11 L1 antibody [LH11L1_A] ab317837 at 1/500 (2.062 ug/ml) dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 (2ug/ml) dilution (Green).

  Confocal image showing positive staining in 293T cells transfected with a HPV 11 L1 expression vector containing a myc-His-tag® (shown in green) but no staining in 293T cells transfected with a HPV 6B L1 or HPV13 L1 expression vector containing a myc-His-tag®. The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue).

  A: Myc transfected cells

  B: HPV 11 L1-Myc transfected cells

  C: HPV 6B L1-Myc transfected cells

  D: HPV13 L1-Myc transfected cells

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).


  ab9106 Anti-Myc Rabbit polyclonal antibody was used to counterstain tubulin at 1/100 (5 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) preadsorbed ab150088 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) preadsorbed at 1/1000 (2μg/ml) dilution (Magenta).

•

  Immunocytochemistry/ Immunofluorescence - Anti-Myc tag antibody (ab9106)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney epithelial cell) cells labelling Human papillomavirus L2 protein with Anti-Human papillomavirus L2 antibody [MK18L2_K3] ab322523 at 1/1000 (1.04 ug/ml) dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 (2ug/ml) dilution (Green).

  Confocal image showing positive staining in 293T cells transfected with a Human papillomavirus type 18 L2 protein, a Human papillomavirus type 16 L2 protein, a Human papillomavirus type 31 L2 protein, a Human papillomavirus type 45 L2 protein, a Human papillomavirus type 51 L2 protein, a Human papillomavirus type 6B L2 protein and a Human papillomavirus type 11 L2 protein expression vector containing a myc-His-tag®(shown in green). The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue).

  Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8).

  ab9106 Anti-Myc Rabbit polyclonal antibody was used to counterstain tubulin at 1/200 (2.5ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) preadsorbed ab150088 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) preadsorbed at 1/1000 (2μg/ml) dilution (Magenta).

•

  Immunocytochemistry/ Immunofluorescence - Anti-Myc tag antibody (ab9106)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney epithelial cell) cells labelling Hepatitis C Virus region NS5B with Anti-Hepatitis C Virus region NS5B antibody [1A4] ab322521 at 1/2000 (0.47 ug/ml) dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 (2 ug/ml) dilution (Green).

  Confocal image showing positive staining in 293T cells transfected with a Hepatitis C virus genotype 2a (isolate JFH-1) (HCV) region NS5B expression vector containing a myc-His-tag®(shown in green). The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue).

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).


  ab9106 Anti-Myc Rabbit polyclonal antibody was used to counterstain tubulin at 1/200 (2.5ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) preadsorbed ab150088 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) preadsorbed at 1/1000 (2μg/ml) dilution (Magenta).

•

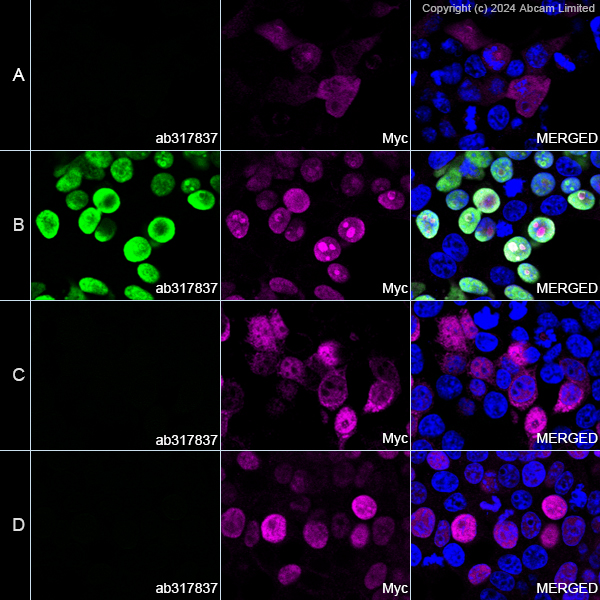

  Immunocytochemistry/ Immunofluorescence - Anti-Myc tag antibody (ab9106)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney epithelial cell) cells labelling Human Papilloma Virus type 35 L1 protein with Anti-Human Papilloma Virus type 35 L1 antibody [LH35L1_A] ab322518 at 1/100 (10.66 ug/ml) dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 (2ug/ml) dilution (Green).

  Confocal image showing nuclear staining in 293T cells transfected with a HPV 35 L1 expression vector containing a myc-His-tag®(shown in green) but no staining in 293T cells transfected with a HPV 16 L1 or HPV 11 L1 expression vector containing a myc-His-tag®. The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue).

  A: Myc transfected cells

  B: HPV 35 L1-Myc transfected cells

  C: HPV 16 L1-Myc transfected cells

  D: HPV 11 L1-Myc transfected cells

  Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8).

  ab9106 Anti-Myc Rabbit polyclonal antibody was used to counterstain tubulin at 1/200 (2.5ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) preadsorbed ab150088 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) preadsorbed at 1/1000 (2ug/ml) dilution (Magenta).

•

  Immunocytochemistry/ Immunofluorescence - Anti-Myc tag antibody (ab9106)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney epithelial cell) cells labelling Human papillomavirus L2 protein with Anti-Human Papilloma Virus L2 antibody [K4_HPV16L2(20-38)] ab321817 at 1/2000 (0.51 ug/ml) dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 (2 ug/ml) dilution (Green).

  Confocal image showing nuclear and cytoplasmic staining in 293T cells transfected with a Human papillomavirus type 16 L2 protein expression vector containing a myc-His-tag®(shown in green). The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue).

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).


  ab9106 Anti-Myc Rabbit polyclonal antibody was used to counterstain tubulin at 1/200 (2.5 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) ab150080 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) at 1/500 (4 ug/ml) dilution (Magenta).

•

  Immunocytochemistry/ Immunofluorescence - Anti-Myc tag antibody (ab9106)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney epithelial cell) cells labelling Human respiratory syncytial virus Fusion (F) Glycoprotein with Anti-Human respiratory syncytial virus Fusion (F) Glycoprotein antibody [4.15] ab322235 at 1/2000 (0.56 ug/ml) dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2 ug/ml dilution (Green).

  Confocal image showing cytoplasmic staining in 293T cells transfected with a Human respiratory syncytial virus subtype B1 Fusion (F) Glycoprotein expression vector containing a myc-His-tag® and weak staining in 293T cells transfected with a Human respiratory syncytial virus subtype A2 Fusion (F) Glycoprotein expression vector containing a myc-His-tag®(shown in green). The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue).

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

  ab9106 Anti-Myc Rabbit polyclonal antibody was used to counterstain tubulin at 1/200 2.5 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

  Secondary antibody only control: Secondary antibody is Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/ml dilution.

•

  Immunocytochemistry/ Immunofluorescence - Anti-Myc tag antibody (ab9106)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney epithelial cell) cells labelling Human papillomavirus type 16 L1 protein with Anti-Human Papilloma Virus type 16 L1 antibody [16L1_VIII_1.3.5.15] ab321901 at 1/2000 (0.57 ug/ml) dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 1000 2ug/ml dilution (Green).

  Confocal image showing nuclear staining in 293T cells transfected with a HPV 16 L1 protein expression vector containing a myc-His-tag®(shown in green) but no staining in 293T cells transfected with a HPV 18 L1 protein or HPV 6B L1 protein or HPV 11 L1 protein expression vector containing a myc-His-tag®. The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue).

  Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8).

  ab9106 Anti-Myc Rabbit polyclonal antibody was used to counterstain tubulin at 1/200 2.5 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

  Secondary antibody only control: Secondary antibody is Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed at 1/Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 1000 2ug/ml dilution.

•

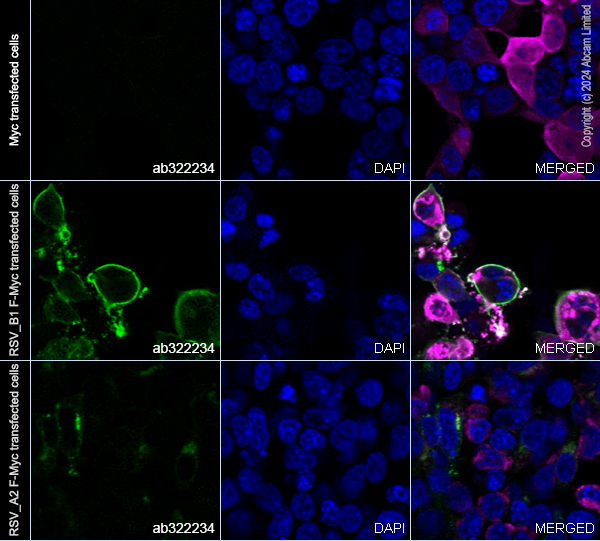

  Immunocytochemistry/ Immunofluorescence - Anti-Myc tag antibody (ab9106)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney epithelial cell) cells labelling Human respiratory syncytial virus Fusion (F) Glycoprotein with Anti-Human respiratory syncytial virus Fusion (F) Glycoprotein antibody [11-6-F9] ab322234 at 1/2000 (0.48 ug/ml) dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2 ug/ml dilution (Green).

  Confocal image showing cytoplasmic staining in 293T cells transfected with a Human respiratory syncytial virus subtype B1 Fusion (F) Glycoprotein expression vector containing a myc-His-tag® and weak staining in 293T cells transfected with a Human respiratory syncytial virus subtype A2 Fusion (F) Glycoprotein expression vector containing a myc-His-tag®(shown in green). The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue).

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).


  ab9106 Anti-Myc Rabbit polyclonal antibody was used to counterstain tubulin at 1/200 2.5 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

  Secondary antibody only control: Secondary antibody is Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/ml dilution.

•

  Immunocytochemistry/ Immunofluorescence - Anti-Myc tag antibody (ab9106)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney epithelial cell) cells labelling MERS Spike glycoprotein with Anti-MERS Spike glycoprotein antibody [abd144] ab322146 at 1/500 (1.92 ug/ml) dilution, followed by Goat anti-Human IgG (H+L) Cross-Adsorbed Secondary Antibody (Alexa Fluor® 488) antibody at 1/1000 2 ug/ml dilution (Green).

  Confocal image showing cytoplasmic staining in 293T cells transfected with a MERS-CoV S protein expression vector containing a myc-His-tag®(shown in green) and no staining in 293T cells transfected with a SARS-CoV-2 Spike glycoprotein expression vector containing a myc-His-tag®. The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue).

  Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8).

  ab9106 Anti-Myc Rabbit polyclonal antibody was used to counterstain tubulin at 1/200 2.5 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

  Secondary antibody only control: Secondary antibody is Goat anti-Human IgG (H+L) Cross-Adsorbed Secondary Antibody (Alexa Fluor® 488) at 1/1000 2 ug/ml dilution.

•

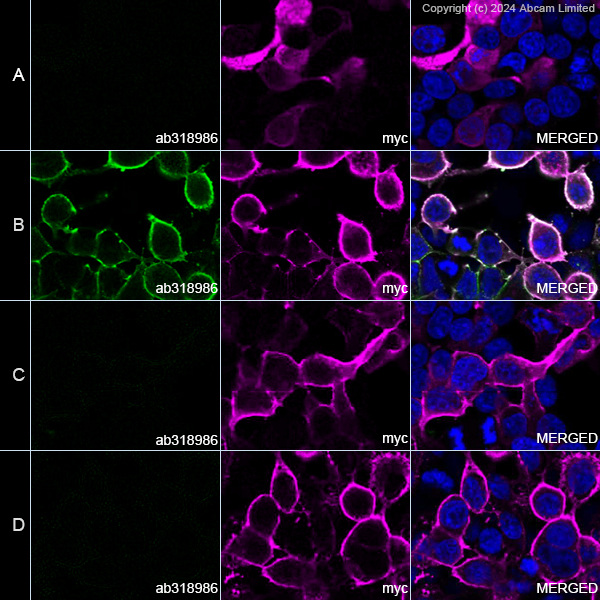

  Immunocytochemistry/ Immunofluorescence - Anti-Myc tag antibody (ab9106)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney epithelial cell) cells labelling influenza A H1N1 (A/Brisbane/59/2007) neuraminidase with Anti-influenza A H1N1 (A/Brisbane/59/2007) neuraminidase antibody [3A2] ab318986 at 1/2000 (0.451 ug/ml) dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 (2ug/ml) dilution (Green).

  Confocal image showing cytoplasmic and membranous staining in 293T cells transfected with a N1, H1N1, A/Brisbane/59/2007 expression vector containing a myc-His-tag® (shown in green) but no staining in 293T cells transfected with a N9, H7N9, A/Anhui/1/2013 or N1, H1N1, A/California/07/2009 vector containing a myc-His-tag®. The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue).

  A: Myc transfected cells

  B: N1, H1N1, A/Brisbane/59/2007-Myc transfected cells

  C: N1, H1N1, A/California/07/2009-Myc transfected cells

  D: N9, H7N9, A/Anhui/1/2013-Myc transfected cells

  Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8).

  ab9106 Anti-Myc Rabbit polyclonal antibody was used to counterstain tubulin at 1/200 (10ug/ml) dilution (Magenta). The nuclear counterstain was DAPI (Blue).

  Secondary antibody only control: Secondary antibody is Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 (2ug/ml) dilution.

•

  Immunocytochemistry/ Immunofluorescence - Anti-Myc tag antibody (ab9106)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HEK-293T (human epithelial cell line from embryonic kidney) transfected with myc-tagged Herpes simplex virus 1 gH expression vector cells labelling HSV1 gH with Anti-HSV1 gH antibody [BBH1] ab110227 at 1/200 (4.47 ug/ml) dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 (2 ug/ml) dilution (Green). Confocal image showing cytoplasmic and membranous staining in 293T cells transfected with a Herpes simplex virus 1 gH expression vector containing a myc-His-tag.

  Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8). Anti-Myc Rabbit polyclonal antibody (ab9106) was used to counterstain tubulin at 1/200 (2.5 ug/ml) dilution (Red). The Nuclear counterstain was DAPI (Blue).

•

  Immunocytochemistry/ Immunofluorescence - Anti-Myc tag antibody (ab9106)

  Myc tag Immunocytochemistry/ Immunofluorescence staining of 293T cells transfected with a Human immunodeficiency virus type 1 group M subtype B (isolate HXB2) (HIV-1) expression vector containing a myc-His-tag® using rabbit Anti-Myc tag antibody

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney epithelial cell) cells labelling HIV1 p24 with Anti-HIV1 p24 antibody [24-2] ab85536 at 1/100 dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor^® 488) preadsorbed antibody at 1/1000 dilution(Green).

  Confocal image showing positive staining in 293T cells transfected with a Human immunodeficiency virus type 1 group M subtype B (isolate HXB2) (HIV-1) expression vector containing a myc-His-tag^® (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

  ab9106 Anti-Myc Rabbit polyclonal antibody was used to counter stain Myc at a 1/200 dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) ab150080 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 594) at a 1/500 dilution (Magenta).

•

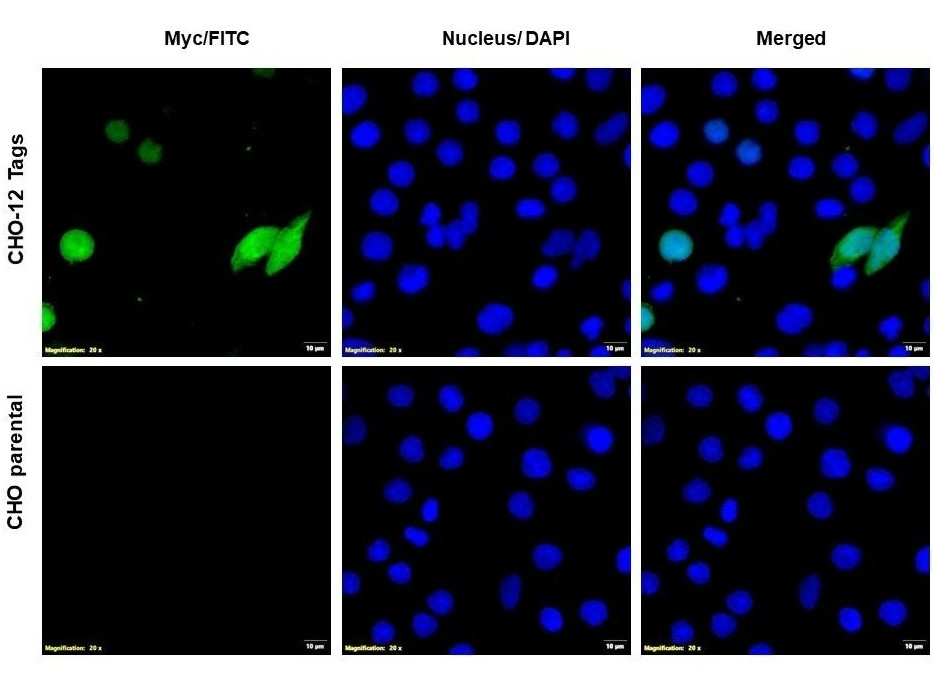

  Immunocytochemistry/ Immunofluorescence - Anti-Myc tag antibody (ab9106)

  Immunofluorescent analysis of 4% paraformaldehyde (PFA)-fixed, permeabilized with 0.1% Triton X-100 in CHO cells transfected with 12-tags constructs (named as CHO-12 tags, Top) and parental CHO cells (Bottom) labelling MYC with ab9106 at 1/1000 dilution (1 μg/mL), followed by Donkey Anti-rabbit IgG (H&L), FITC conjugated antibody at 1/1000 dilution (1 μg/mL) (Green). Nucleus was counterstained with DAPI (Blue).

•

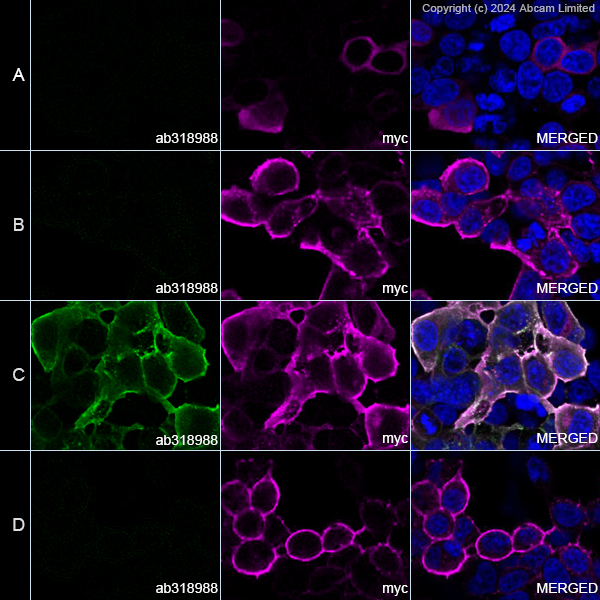

  Immunocytochemistry/ Immunofluorescence - Anti-Myc tag antibody (ab9106)

  Myc tag Immunocytochemistry/ Immunofluorescence staining using rabbit Anti-Myc tag antibody

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney epithelial cell) cells labelling influenza A H1N1 (A/California/07/2009) neuraminidase with Anti-influenza A H1N1 (A/California/07/2009) neuraminidase antibody [CD6] ab318988 at 1/2000 (0.465 ug/ml) dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) ab150113 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) antibody at 1/1000 (2ug/ml) dilution (Green).

  Confocal image showing cytoplasmic and membranous staining in 293T cells transfected with a N1, H1N1, A/California/07/2009 expression vector containing a myc-His-tag® (shown in green) but no staining in 293T cells transfected with a N9, H7N9, A/Anhui/1/2013 or N1, H1N1, A/Brisbane/59/2007 vector containing a myc-His-tag®. The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue).

  A: Myc transfected cells

  B: N1, H1N1, A/Brisbane/59/2007-Myc transfected cells

  C: N1, H1N1, A/California/07/2009-Myc transfected cells

  D: N9, H7N9, A/Anhui/1/2013-Myc transfected cells

  Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8).

  ab9106 Anti-Myc Rabbit polyclonal antibody was used to counterstain tubulin at 1/200 (2.5 ug/ml) dilution (Magenta). The nuclear counterstain was DAPI (Blue).

  Secondary antibody only control: Secondary antibody is Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) ab150113 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) at 1/1000 (2ug/ml) dilution.

•

  Immunocytochemistry/ Immunofluorescence - Anti-Myc tag antibody (ab9106)

  Myc tag Immunocytochemistry/ Immunofluorescence staining using rabbit Anti-Myc tag antibody

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney epithelial cell) cells labelling Human papillomavirus type 59 L1 protein with Anti-HPV 59 L1 antibody [FR_αHPV59L1_6E12] ab322271 at 1/2000 (0.49ug/ml) dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) ab150113 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) antibody at 1/1000 2ug/ml dilution (Green).

  Confocal image showing positive staining in 293T cells transfected with a Human papillomavirus type 59 (HPV59) L1 protein expression vector containing a myc-His-tag®(shown in green). The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue).

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

  ab9106 Anti-Myc Rabbit polyclonal antibody was used to counterstain tubulin at 1/200 2.5 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

  Secondary antibody only control: Secondary antibody is Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) ab150113 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) at 1/1000 2ug/ml dilution.

•

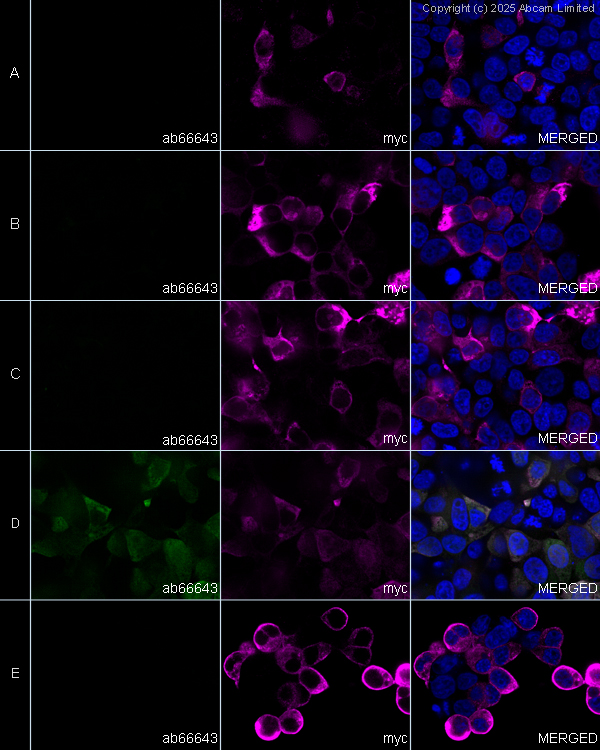

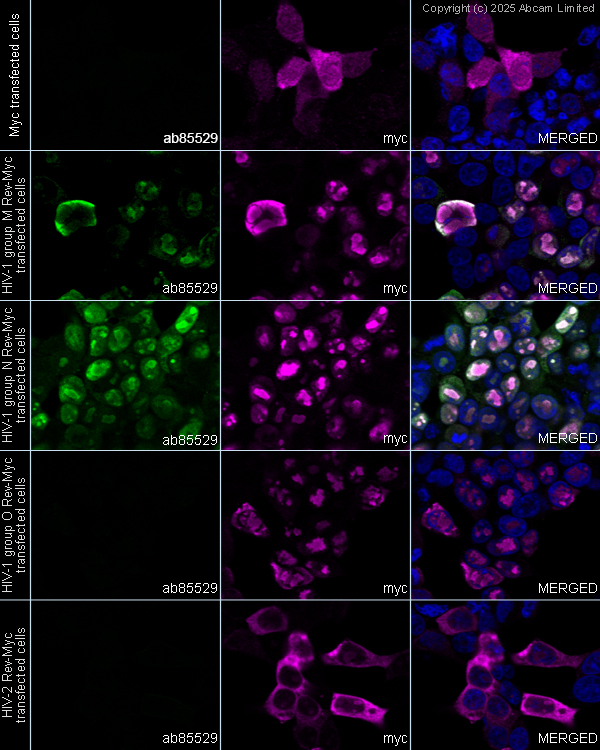

  Immunocytochemistry/ Immunofluorescence - Anti-Myc tag antibody (ab9106)

  Myc tag Immunocytochemistry/ Immunofluorescence staining using rabbit Anti-Myc tag antibody

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized transfected 293T (human embryonic kidney epithelial cell) cells labelling HIV Vif with Anti-HIV1 Vif antibody [319] ab66643 at 1/100 dilution followed by secondary antibody Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluo^® 488) at 1/1000 dilution (green).

  ab9106 Anti-Myc Rabbit polyclonal antibody was used as a counterstain at a 1/200 dilution followed by a secondary antibody Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) preadsorbed ab150088 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 594) preadsorbed at a 1/1000 dilution (Magenta).

  Confocal image showing positive staining in 293T cells transfected with human immunodeficiency virus type 1 group M subtype B (isolate YU-2) (HIV-1) Vif expression vector containing a myc-His-tag^® (shown in green) but no staining in 293T cells transfected with a human immunodeficiency virus type 1 group M subtype K (isolate 96CM-MP535) (HIV-1) Vif, human immunodeficiency virus type 1 group M subtype K (isolate 97ZR-EQTB11) (HIV-1) Vif, human immunodeficiency virus type 1 group M subtype D (isolate ELI) (HIV-1) Vif expression vector containing a myc-His-tag^®. The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
  A: 293T cells transfected with an empty vector containing a myc-His-tag^®
  B: 293T cells transfected with a human immunodeficiency virus type 1 group M subtype K (isolate 96CM-MP535) (HIV-1) Vif expression vector containing a myc-His-tag^®
  C: 293T cells transfected with a human immunodeficiency virus type 1 group M subtype K (isolate 97ZR-EQTB11) (HIV-1) Vif expression vector containing a myc-His-tag^®
  D: 293T cells transfected with a human immunodeficiency virus type 1 group M subtype B (isolate YU-2) (HIV-1) Vif expression vector containing a myc-His-tag^®
  E: 293T cells transfected with a human immunodeficiency virus type 1 group M subtype D (isolate ELI) (HIV-1) Vif expression vector containing a myc-His-tag^®

•

  Immunocytochemistry/ Immunofluorescence - Anti-Myc tag antibody (ab9106)

  Myc tag Immunocytochemistry/ Immunofluorescence staining using rabbit Anti-Myc tag antibody

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T cells transfected with a HIV1 Rev M, HIV Rev N, a HIV1 Rev O and HIV2 Rev expression vector labelling HIV Rev with Anti-HIV1 Rev antibody [Rev-6] ab85529 at 1/500 dilution. Anti-HIV1 Rev antibody [Rev-6] ab85529 was incubated overnight at 4° C, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor^® 488) preadsorbed (Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117) at 1/1000 dilution at RT for 45 min. ab9106 Anti-Myc Rabbit polyclonal antibody at 1/200 dilution, was co-incubated with Anti-HIV1 Rev antibody [Rev-6] ab85529 overnight at 4° C. Nucleus were visualized using DAPI.

  Confocal image showing positive staining in 293T cells transfected with a HIV1 Rev M and HIV Rev N expression vector containing a myc-His-tag®(shown in green). but no staining in 293T cells transfected with a HIV1 Rev O and HIV2 Rev expression vector containing a myc-His-tag®.

•

  Immunocytochemistry/ Immunofluorescence - Anti-Myc tag antibody (ab9106)

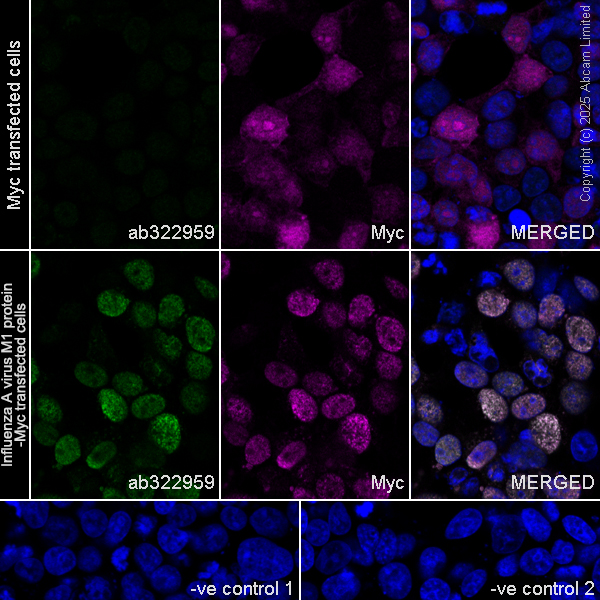

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 100% Methanol permeabilized 293T (human embryonic kidney epithelial cell) cells labelling Influenza A virus M1 protein with Anti-Mouse Influenza A virus M1 protein antibody [1G1A12] ab322959 at 1/2000 (0.50 ug/ml) dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 1000 2ug/ml dilution (Green).

  Confocal image showing nuclear staining in 293T cells transfected with a Influenza A virus M1 protein expression vector containing a myc tag (shown in green). The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue).

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).


  ab9106 Anti-Myc Rabbit polyclonal antibody was used to counterstain tubulin at 1/200 2.5 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

  -ve control 1: Anti-Mouse Influenza A virus M1 protein antibody [1G1A12] ab322959 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) preadsorbed ab150088 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) preadsorbed at 1/1000 dilution.

  -ve control 2: ab9106 at 1/200 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution.
