Anti-Myc tag antibody [Myc.A7]

• WB

Supplier Data

Western blot - Anti-Myc tag antibody [Myc.A7] (AB18185)

All lanes:

Western blot - Anti-Myc tag antibody [Myc.A7] (ab18185) at 1/1000 dilution

Lane 1:

HEK293 lysate - untransfected

Lane 2:

HEK293 lysate - transfected with Myc-tagged protein

Predicted band size: 49 kDa

false

• WB

Lab

Western blot - Anti-Myc tag antibody [Myc.A7] (AB18185)

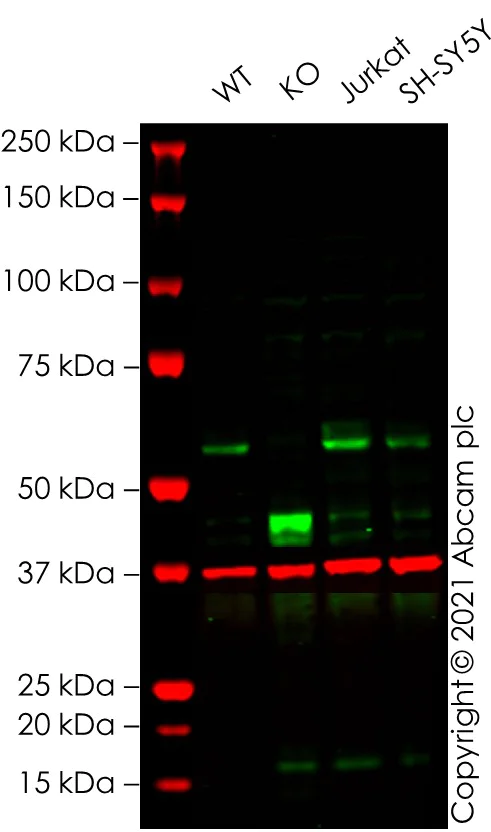

False colour image of Western blot : Anti-Myc tag antibody [Myc.A7] staining at 1/1000 dilution, shown in green; Rabbit Anti-GAPDH antibody [EPR16891] (ab181602) loading control staining at 1/20000 dilution, shown in red. In Western blot, ab18185 was shown to bind specifically to Myc tag. A band was observed at 57 kDa in wild-type HEK-293T cell lysates with no signal observed at this size in MYC knockout cell line ab256500 (knockout cell lysate ab263850). The band observed in the knockout lysate lane below 57 kDa is likely to represent a truncated form of Myc tag. This has not been investigated further and the functional properties of the gene product have not been determined. To generate this image, wild-type and MYC knockout HEK-293T cell lysates were analysed.First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween^® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Mouse IgG H&L (IRDye^® 800CW) preabsorbed (ab216772) and Goat anti-Rabbit IgG H&L (IRDye^® 680RD) preabsorbed (ab216777) at 1/20000 dilution.

All lanes:

Western blot - Anti-Myc tag antibody [Myc.A7] (ab18185) at 1/1000 dilution

Lane 1:

Wild-type HEK-293T cell lysate at 20 µg

Lane 2:

MYC knockout HEK-293T cell lysate at 20 µg

Lane 3:

Jurkat cell lysate at 20 µg

Lane 4:

SH-SY5Y cell lysate at 20 µg

Predicted band size: 48 kDa

false

• WB

Lab

Western blot - Anti-Myc tag antibody [Myc.A7] (AB18185)

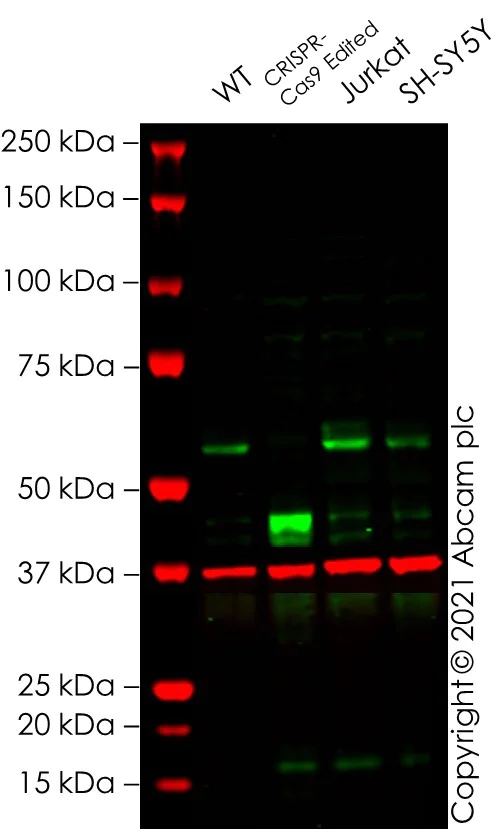

False colour image of Western blot : Anti-Myc tag antibody [Myc.A7] staining at 1/1000 dilution, shown in green; Rabbit Anti-GAPDH antibody [EPR16891] (ab181602) loading control staining at 1/20000 dilution, shown in red. In Western blot, ab18185 was shown to bind specifically to Myc tag. A band was observed at 57 kDa in wild-type HEK-293T cell lysates with no signal observed at this size in MYC CRISPR-Cas9 edited cell line ab256500 (CRISPR-Cas9 edited cell lysate ab263850). The band observed in the CRISPR-Cas9 edited lysate lane below 57 kDa is likely to represent a truncated form of Myc tag. This has not been investigated further and the functional properties of the gene product have not been determined. To generate this image, wild-type and MYC CRISPR-Cas9 edited HEK-293T cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween^® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Mouse IgG H&L (IRDye^® 800CW) preabsorbed (ab216772) and Goat anti-Rabbit IgG H&L (IRDye^® 680RD) preabsorbed (ab216777) at 1/20000 dilution.

All lanes:

Western blot - Anti-Myc tag antibody [Myc.A7] (ab18185) at 1/1000 dilution

Lane 1:

Wild-type HEK-293T cell lysate at 20 µg

Lane 2:

MYC CRISPR-Cas9 edited HEK-293T cell lysate at 20 µg

Lane 2:

Western blot - Human MYC (c-Myc) knockout HEK-293T cell line (<a href='/en-us/products/cell-lines/human-myc-c-myc-knockout-hek-293t-cell-line-ab256500'>ab256500</a>)

Lane 3:

Jurkat cell lysate at 20 µg

Lane 4:

SH-SY5Y cell lysate at 20 µg

Predicted band size: 48 kDa,49 kDa

false
