Anti-NCAM1 antibody [EP2567Y] - Low endotoxin, Azide free

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NCAM1 antibody [EP2567Y] - Low endotoxin, Azide free (AB215981)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human astrocytoma tissue sections labeling NCAM1 with Purified ab75813 at 1 : 10000 dilution (0.0156 μg/ml). Heat mediated antigen retrieval was performed using Heat mediated antigen retrieval using Bond™ Epitope Retrieval Solution 2 (pH 9.0) . Tissue was counterstained with Hematoxylin. Rabbit specific IHC polymer detection kit HRP/DAB (ab209101) secondary antibody was used. PBS instead of the primary antibody was used as the negative control.

This data was developed using ab75813, the same antibody clone in a different buffer formulation.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NCAM1 antibody [EP2567Y] - Low endotoxin, Azide free (AB215981)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human cerebrum tissue sections labeling NCAM1 with Purified ab75813 at 1 : 10000 dilution (0.0156 μg/ml). Heat mediated antigen retrieval was performed using Heat mediated antigen retrieval using Bond™ Epitope Retrieval Solution 2 (pH 9.0) . Tissue was counterstained with Hematoxylin. Rabbit specific IHC polymer detection kit HRP/DAB (ab209101) secondary antibody was used. PBS instead of the primary antibody was used as the negative control.

This data was developed using ab75813, the same antibody clone in a different buffer formulation.

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Anti-NCAM1 antibody [EP2567Y] - Low endotoxin, Azide free (AB215981)

Flow Cytometry analysis of SH-SY5Y (Human neuroblastoma epithelial cell) cells labelling NCAM1 with Purified ab75813 at 1 : 20 dilution (10 μg/ml) (Red). Cells were fixed with 4% Paraformaldehyde and permeabilised with 90% Methanol. A Goat anti rabbit IgG (Alexa Fluor® 488, ab150081) secondary antibody was used at 1 : 2000. Isotype control - Rabbit monoclonal IgG (Black). Unlabelled control - Cell without incubation with primary antibody and secondary antibody (Blue).

This data was developed using ab75813, the same antibody clone in a different buffer formulation.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-NCAM1 antibody [EP2567Y] - Low endotoxin, Azide free (AB215981)

Immunocytochemistry analysis of SH-SY5Y (Human neuroblastoma epithelial cell) cells labeling NCAM1 with Purified ab75813 at 1 : 50 dilution (3.1 μg/ml). Cells were fixed in 4% Paraformaldehyde and permeabilized with 0.1% tritonX-100. Cells were counterstained with ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) 1 : 200 (2.5 μg/ml). Goat anti rabbit IgG (Alexa Fluor® 488, ab150077) was used as the secondary antibody at 1 : 1000 (2 μg/ml) dilution. DAPI (blue) was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

This data was developed using ab75813, the same antibody clone in a different buffer formulation.

• IP

Supplier Data

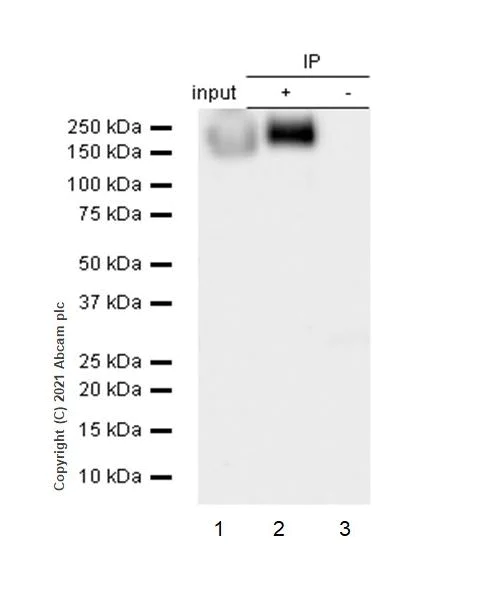

Immunoprecipitation - Anti-NCAM1 antibody [EP2567Y] - Low endotoxin, Azide free (AB215981)

NCAM1 was immunoprecipitated from 0.35 mg SH-SY5Y (Human neuroblastoma epithelial cell) whole cell lysate 10 μg with ab75813 at 1/50 dilution (2μg). VeriBlot for IP Detection Reagent (HRP)(ab131366) was used at 1/5000 dilution.

Lane 1 : SH-SY5Y (Human neuroblastoma epithelial cell) whole cell lysate 10 μg

Lane 2 : ab75813 IP in SH-SY5Y whole cell lysate

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab75813 in SH-SY5Y whole cell lysate

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

This data was developed using ab75813, the same antibody clone in a different buffer formulation.

All lanes:

Immunoprecipitation - Anti-NCAM1 antibody [EP2567Y] - Low endotoxin, Azide free (ab215981)

Predicted band size: 94 kDa

false

• WB

Supplier Data

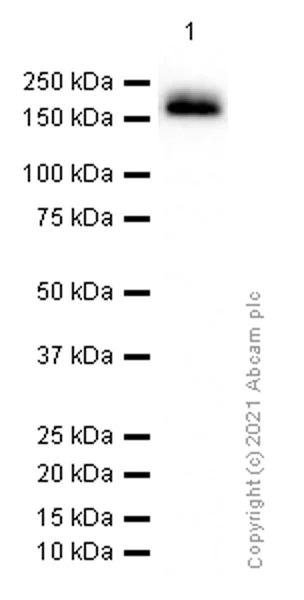

Western blot - Anti-NCAM1 antibody [EP2567Y] - Low endotoxin, Azide free (AB215981)

This data was developed using ab75813, the same antibody clone in a different buffer formulation.

All lanes:

Western blot - Anti-NCAM1 antibody [EP2567Y] (<a href='/en-us/products/primary-antibodies/ncam1-antibody-ep2567y-ab75813'>ab75813</a>) at 1/10000 dilution

All lanes:

SH-SY5Y (Human neuroblastoma epithelial cell) whole cell lysate at 15 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 94 kDa

false
