Rabbit Recombinant Monoclonal NCAM1 antibody. Suitable for IP, Flow Cyt, WB, ICC/IF, IHC-P and reacts with Mouse, Rat samples. Cited in 19 publications.


Images

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NCAM1 antibody [EPR21827] (AB220360), expandable thumbnail
  • Western blot - Anti-NCAM1 antibody [EPR21827] (AB220360), expandable thumbnail
  • Flow Cytometry - Anti-NCAM1 antibody [EPR21827] (AB220360), expandable thumbnail
  • Western blot - Anti-NCAM1 antibody [EPR21827] (AB220360), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NCAM1 antibody [EPR21827] (AB220360), expandable thumbnail

Publications

Key facts

Isotype
IgG
Host species
Rabbit
Storage buffer

pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IPFlow CytWBICC/IFIHC-P
Mouse
Tested
Tested
Tested
Tested
Tested
Rat
Tested
Expected
Tested
Expected
Tested

Tested
Tested

Species
Mouse
Dilution info
1/30
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Species
Rat
Dilution info
1/30
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Tested
Tested

Species
Mouse
Dilution info
1/600
Notes

-

Expected
Expected

Species
Rat
Dilution info
Use at an assay dependent concentration.
Notes

-

Tested
Tested

Species
Mouse
Dilution info
1/1000
Notes

-

Species
Rat
Dilution info
1/1000
Notes

-

Tested
Tested

Species
Mouse
Dilution info
1/1000
Notes

-

Expected
Expected

Species
Rat
Dilution info
Use at an assay dependent concentration.
Notes

-

Tested
Tested

Species
Mouse
Dilution info
1/2000
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Species
Rat
Dilution info
1/2000
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Associated Products

Select an associated product type

15 products for Alternative Product

Target data

Function

This protein is a cell adhesion molecule involved in neuron-neuron adhesion, neurite fasciculation, outgrowth of neurites, etc.

Alternative names

CD56, Ncam, Ncam1, Neural cell adhesion molecule 1, N-CAM-1, NCAM-1

Recommended products

Rabbit Recombinant Monoclonal NCAM1 antibody. Suitable for IP, Flow Cyt, WB, ICC/IF, IHC-P and reacts with Mouse, Rat samples. Cited in 19 publications.

Key facts

Isotype
IgG
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number
EPR21827
Purification technique
Affinity purification Protein A
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

NCAM1 also known as Neural Cell Adhesion Molecule 1 or CD56 is an important cell surface glycoprotein that plays a role in cell-cell adhesion. It has a molecular mass of approximately 120-140 kDa. NCAM1 is widely expressed in various tissues including the nervous system skeletal muscle and certain hematopoietic cells. In flow cytometry and immunohistochemistry NCAM1's expression is extensively studied to track and analyze cell populations using techniques like NCAM1 ELISA for quantification.

Biological function summary

NCAM1 influences neuronal growth survival and synaptic plasticity. This protein is part of the immunoglobulin superfamily and contributes to dynamic interactions during development. NCAM1 exists on cell membranes assisting in the formation and maintenance of tissue structures. In particular cell adhesion molecule CAL53 interacts with NCAM1 highlighting its involvement in synaptic connections. Additionally NCAM1 impacts cellular migration and differentiation particularly in myogenic processes involving MY31's pathway.

Pathways

The NCAM1 protein participates in the MAPK signaling pathway and the PI3K/AKT pathway both essential in cellular growth and survival. NCAM1 acts alongside ERIC1 aiding in the transduction of signals that regulate cytoskeletal rearrangement. These pathways influence cellular communication and responses to external stimuli further enhancing tissue development and regeneration mechanisms.

Associated diseases and disorders

NCAM1 is associated with neurodegenerative conditions like Alzheimer's disease and certain types of cancer including neuroblastoma. Changes in NCAM1 expression or function can disrupt normal cell adhesion and signaling leading to pathological states. The protein's interaction with cell surface markers such as CD56 mouse marker helps in the diagnosis and therapy of these disorders providing potential therapeutic targets or biomarkers for clinical applications.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

9 product images

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NCAM1 antibody [EPR21827] (ab220360), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NCAM1 antibody [EPR21827] (ab220360)

    Immunohistochemical analysis of paraffin-embedded mouse stomach tissue labeling NCAM1 with ab220360 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP), Ready to use. Positive staining of ganglion (arrow) in mouse stomach (PMID: 1705171). Counter stained with Hematoxylin.

    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rab it IgG H&L (HRP), Ready to use.

    Heat mediated antigen retrieval was performed with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

  • Western blot - Anti-NCAM1 antibody [EPR21827] (ab220360), expandable thumbnail

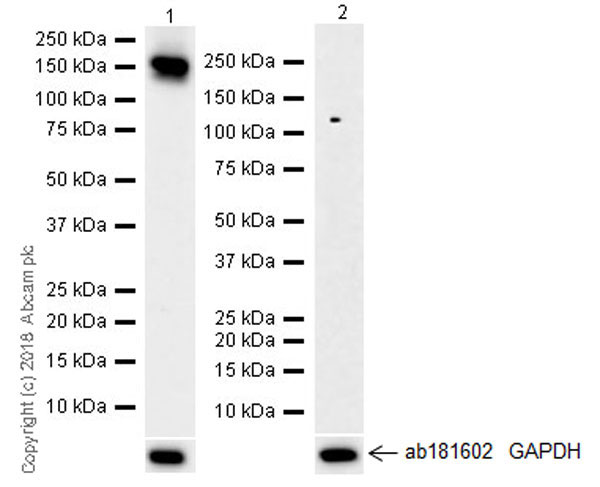

    Western blot - Anti-NCAM1 antibody [EPR21827] (ab220360)

    Blocking/Dilution buffer: 5% NFDM/TBST.

    Negative control: L-929 (PMID: 9696812)

    All lanes: Western blot - Anti-NCAM1 antibody [EPR21827] (ab220360) at 1/1000 dilution

    Lane 1: Neuro-2a (mouse neuroblastoma cell line) whole cell lysate at 10 µg

    Lane 2: L-929 (mouse connective tissue fibroblast cell line) whole cell lysate at 10 µg

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

    Developed using the ECL technique.

    Predicted band size: 94 kDa

    Observed band size: 140 kDa

    Exposure time: 70s

  • Flow Cytometry - Anti-NCAM1 antibody [EPR21827] (ab220360), expandable thumbnail

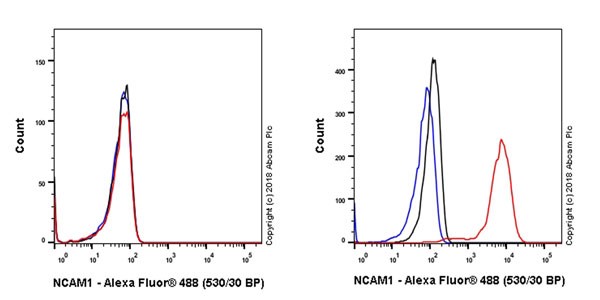

    Flow Cytometry - Anti-NCAM1 antibody [EPR21827] (ab220360)

    Flow cytometric analysis of L-929 (mouse connective tissue fibroblast cell line) cell line (left panel) and Neuro-2a (mouse neuroblastoma cell line) cell line (right panel) labeling NCAM1 with ab220360 at 1/500 dilution (red) compared with a Rabbit IgG, monoclonal [EPR25A] - Isotype Control (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (black) and an unlabeled control (cells without incubation with primary antibody and secondary antibody) (blue). Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/2000 dilution was used as the secondary antibody.

    Gated on viable cells. Negative control: L-929.

  • Western blot - Anti-NCAM1 antibody [EPR21827] (ab220360), expandable thumbnail

    Western blot - Anti-NCAM1 antibody [EPR21827] (ab220360)

    Exposure time: Lanes 1-2: 26 seconds; Lane 3: 70 seconds; Lane 4: 3 minutes.

    Blocking/Dilution buffer: 5% NFDM/TBST.

    The 120,140 and 180kDa bands are different isoforms as reported in the literature (PMID:26288071).

    All lanes: Western blot - Anti-NCAM1 antibody [EPR21827] (ab220360) at 1/5000 dilution

    Lane 1: Mouse brain lysate at 20 µg

    Lane 2: Mouse cerebellum lysate at 20 µg

    Lane 3: Rat brain lysate at 20 µg

    Lane 4: Rat cerebellum lysate at 20 µg

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

    Developed using the ECL technique.

    Predicted band size: 94 kDa

    Observed band size: 120 kDa, 140 kDa, 180 kDa

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NCAM1 antibody [EPR21827] (ab220360), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NCAM1 antibody [EPR21827] (ab220360)

    Immunohistochemical analysis of paraffin-embedded mouse cerebrum tissue labeling NCAM1 with ab220360 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP), Ready to use. Positive staining on mouse cerebrum (PMID: 1705171). Counter stained with Hematoxylin.

    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rab it IgG H&L (HRP), Ready to use.

    Heat mediated antigen retrieval was performed with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NCAM1 antibody [EPR21827] (ab220360), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NCAM1 antibody [EPR21827] (ab220360)

    Immunohistochemical analysis of paraffin-embedded rat colon tissue labeling NCAM1 with ab220360 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP), Ready to use. Positive staining of ganglia (arrows) in rat colon (PMID: 1705171). Counter stained with Hematoxylin.

    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rab it IgG H&L (HRP), Ready to use.

    Heat mediated antigen retrieval was performed with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

  • Immunoprecipitation - Anti-NCAM1 antibody [EPR21827] (ab220360), expandable thumbnail

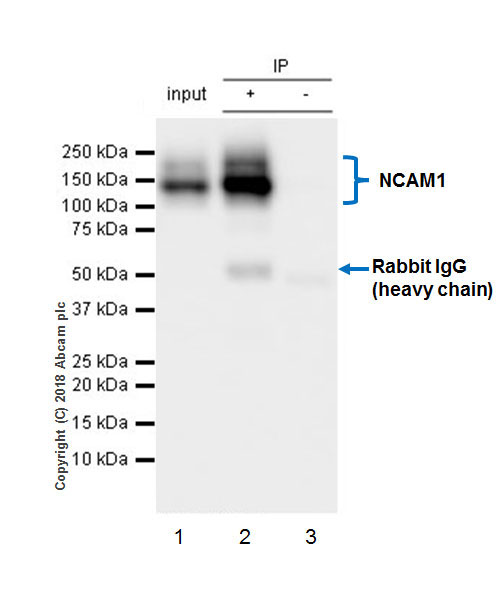

    Immunoprecipitation - Anti-NCAM1 antibody [EPR21827] (ab220360)

    NCAM1 was immunoprecipitated from 0.35 mg of mouse brain lysate with ab220360 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab220360 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366), was used for detection at 1/1000 dilution.

    Lane 1: Mouse brain lysate 10 μg (Input).

    Lane 2: ab220360 IP in mouse brain lysate.

    Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab220360 in mouse brain lysate.

    Blocking and dilution buffer and concentration: 5% NFDM/TBST.

    Exposure time: 1 second.

    The 120,140 and 180kDa bands are different isoforms as reported in the literature (PMID: 26288071).

    All lanes: Immunoprecipitation - Anti-NCAM1 antibody [EPR21827] (ab220360)

    Predicted band size: 94 kDa

    Observed band size: 120-200 kDa

  • Immunocytochemistry/ Immunofluorescence - Anti-NCAM1 antibody [EPR21827] (ab220360), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-NCAM1 antibody [EPR21827] (ab220360)

    Immunofluorescent analysis of 100% methanol-fixed, 0.1% Triton X-100 permeabilized Neuro-2a (mouse neuroblastoma cell line) cells labeling NCAM1 with ab220360 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing membranous staining in Neuro-2a cell line.

    Negative control: L-929 PMID: 9696812).

    The nuclear counter stain is DAPI (blue). Tubulin is detected with Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) (Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889) at 1/200 dilution (red).

    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/1000 dilution.

  • Immunoprecipitation - Anti-NCAM1 antibody [EPR21827] (ab220360), expandable thumbnail

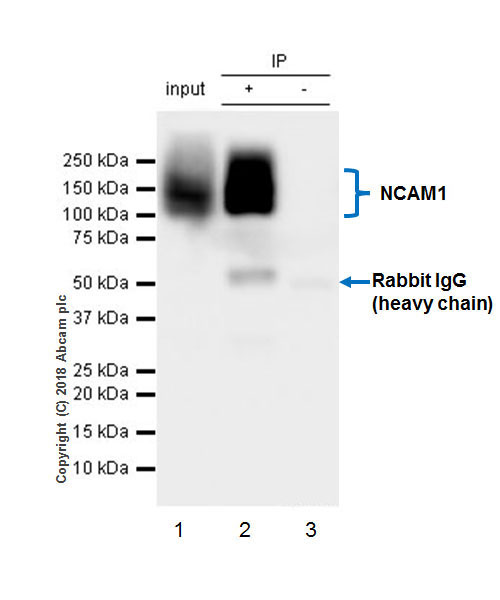

    Immunoprecipitation - Anti-NCAM1 antibody [EPR21827] (ab220360)

    NCAM1 was immunoprecipitated from 0.35 mg of rat brain lysate with ab220360 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab220360 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366), was used for detection at 1/1000 dilution.

    Lane 1: Rat brain lysate 10 μg (Input).

    Lane 2: ab220360 IP in rat brain lysate.

    Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab220360 in rat brain lysate.

    Blocking and dilution buffer and concentration: 5% NFDM/TBST.

    Exposure time: 1 second.

    The 120,140 and 180kDa bands are different isoforms as reported in the literature (PMID: 26288071).

    All lanes: Immunoprecipitation - Anti-NCAM1 antibody [EPR21827] (ab220360)

    Predicted band size: 94 kDa

    Observed band size: 120-200 kDa
