Rabbit Recombinant Monoclonal NDUFAF1 antibody. Carrier free. Suitable for ICC/IF, WB, IHC-P and reacts with Human samples.

Be the first to review this product! Submit a review

Images

Western blot - Anti-NDUFAF1 antibody [EPR2795] - BSA and Azide free (AB247556), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NDUFAF1 antibody [EPR2795] - BSA and Azide free (AB247556), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - Anti-NDUFAF1 antibody [EPR2795] - BSA and Azide free (AB247556), expandable thumbnail

Key facts

Isotype
IgG
Host species
Rabbit
Storage buffer

pH: 7.2 - 7.4
Constituents: PBS

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
ICC/IFWBIHC-P
Human
Tested
Tested
Tested

Tested
Tested

Species
Human
Dilution info
-
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Tested
Tested

Species
Human
Dilution info
-
Notes

-

Tested
Tested

Species
Human
Dilution info
-
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Target data

Function

As part of the MCIA complex, involved in the assembly of the mitochondrial complex I.

Alternative names

Recommended products

Rabbit Recombinant Monoclonal NDUFAF1 antibody. Carrier free. Suitable for ICC/IF, WB, IHC-P and reacts with Human samples.

Key facts

Isotype
IgG
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Carrier free
Yes
Clone number
EPR2795
Purification technique
Affinity purification
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Do Not Freeze

Notes

ab247556 is the carrier-free version of Anti-NDUFAF1 antibody [EPR2795] ab92454.

Mouse, Rat: We have preliminary internal testing data to indicate this antibody may not react with these species. Please contact us for more information.

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. The carrier-free buffer and high concentration allow for increased conjugation efficiency.

This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

NDUFAF1 also known as NADH dehydrogenase (ubiquinone) complex I assembly factor 1 plays an essential role in the mitochondrial respiratory chain by assisting the assembly of complex I. This protein has a mass of approximately 36 kDa. NDUFAF1 expression occurs mainly in tissues with high metabolic activity like the brain heart and skeletal muscle. It facilitates the proper formation and function of the complex I assembly allowing efficient electron transport essential for cellular respiration.

Biological function summary

NDUFAF1 is a critical assembly factor integral to forming the mitochondrial complex I also known as NADH:ubiquinone oxidoreductase. NDUFAF1 contributes to the stability and proper function of this multi-component enzyme system which is important in cellular energy production. As part of the complex it ensures efficient ATP generation through oxidative phosphorylation which is the primary source of energy in aerobic eukaryotic cells.

Pathways

NDUFAF1 functions predominantly in the oxidative phosphorylation pathway. This involvement connects NDUFAF1 to the fundamental molecular processes sustaining life. The protein plays a role alongside others like NDUFV1 and NDUFS1 in maintaining complex I activity. These relationships ensure the effective transfer of electrons from NADH to ubiquinone promoting efficient energy production throughout the cell.

Associated diseases and disorders

NDUFAF1 mutations or dysfunction have been linked to mitochondrial disorders such as Leigh syndrome and complex I deficiency. These conditions are often characterized by a disruption in mitochondrial energy metabolism leading to severe neurological and muscular symptoms. Furthermore NDUFAF1 dysfunction can indirectly affect other proteins like NDUFS4 which is also involved in complex I assembly and function exacerbating the disease phenotypes. Mitochondrial diseases often arise from impaired pathways involving several network proteins highlighting the significance of proper NDUFAF1 function.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

3 product images

  • Western blot - Anti-NDUFAF1 antibody [EPR2795] - BSA and Azide free (ab247556), expandable thumbnail

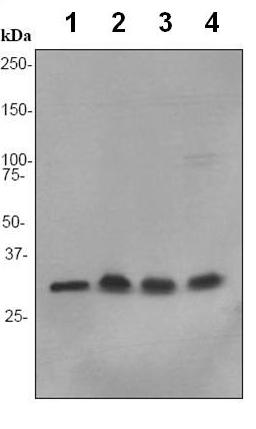

    Western blot - Anti-NDUFAF1 antibody [EPR2795] - BSA and Azide free (ab247556)

    This data was developed using Anti-NDUFAF1 antibody [EPR2795] ab92454, the same antibody clone in a different buffer formulation.

    All lanes: Western blot - Anti-NDUFAF1 antibody [EPR2795] (Anti-NDUFAF1 antibody [EPR2795] ab92454) at 1/10000 dilution

    Lane 1: HeLa cell lysate at 10 µg

    Lane 2: 293T (Human embryonic kidney epithelial cell) cell lysate at 10 µg

    Lane 3: A549 cell lysate at 10 µg

    Lane 4: HepG2 cell lysate at 10 µg

    Secondary

    All lanes: HRP labelled goat anti-rabbit at 1/2000 dilution

    Predicted band size: 37 kDa

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NDUFAF1 antibody [EPR2795] - BSA and Azide free (ab247556), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NDUFAF1 antibody [EPR2795] - BSA and Azide free (ab247556)

    This data was developed using Anti-NDUFAF1 antibody [EPR2795] ab92454, the same antibody clone in a different buffer formulation.Paraffin embedded Human liver tissue labelled with Anti-NDUFAF1 antibody [EPR2795] ab92454 at 1/100 dilution. Perform heat mediated antigen retrieval with EDTA buffer pH 9 before commencing with IHC staining protocol.

  • Immunocytochemistry/ Immunofluorescence - Anti-NDUFAF1 antibody [EPR2795] - BSA and Azide free (ab247556), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-NDUFAF1 antibody [EPR2795] - BSA and Azide free (ab247556)

    This data was developed using Anti-NDUFAF1 antibody [EPR2795] ab92454, the same antibody clone in a different buffer formulation.Immunofluorescence analysis of HeLa cells labelled with Anti-NDUFAF1 antibody [EPR2795] ab92454 at 1/500 dilution.
