AB251379

Anti-NDUFB3 antibody [EPR15571] - BSA and Azide free

Be the first to review this product! Submit a review

|

(1 Publication)

Rabbit Recombinant Monoclonal NDUFB3 antibody. Carrier free. Suitable for ICC/IF, IP, WB, Flow Cyt (Intra), IHC-P and reacts with Human, Mouse, Rat samples. Cited in 1 publication.

View Alternative Names

NADH dehydrogenase [ubiquinone] 1 beta subcomplex subunit 3, Complex I-B12, NADH-ubiquinone oxidoreductase B12 subunit, CI-B12, NDUFB3

11 Images
Immunocytochemistry/ Immunofluorescence - Anti-NDUFB3 antibody [EPR15571] - BSA and Azide free (AB251379)
  • ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-NDUFB3 antibody [EPR15571] - BSA and Azide free (AB251379)

This data was developed using ab202585, the same antibody clone in a different buffer formulation.

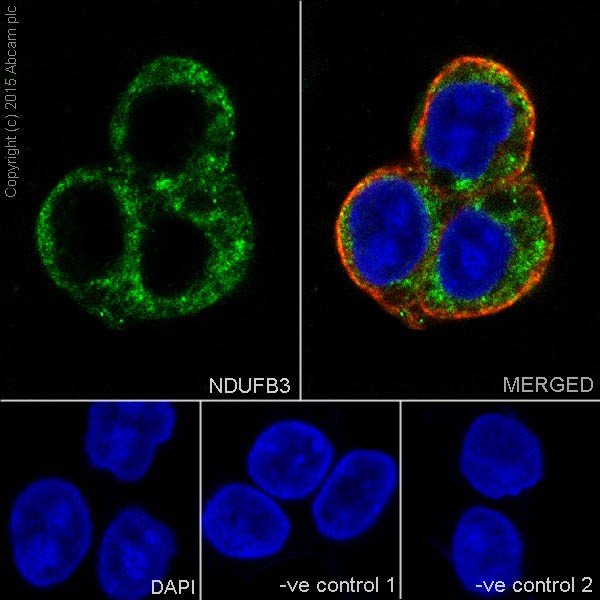

Immunofluorescent analysis of 100% Methanol-fixed, 0.1% Triton X-100 permeabilized SH-SY5Y (Human neuroblastoma from bone marrow cells) cells labeling NDUFB3 with ab202585 at 1/300 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor® 488) (ab150077) secondary antibody at 1/500 dilution (green). Confocal image showing cytoplasmic staining on SH-SY5Y cell line. The nuclear counter stain is DAPI (blue). Tubulin is detected with ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution and ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution (red).

The negative controls are as follows :
-ve control 1 : ab202585 at 1/300 dilution followed by ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution.
-ve control 2 : ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution followed by ab150077 (Alexa Fluor®488 Goat Anti-Rabbit IgG H&L) at 1/500 dilution.

Flow Cytometry (Intracellular) - Anti-NDUFB3 antibody [EPR15571] - BSA and Azide free (AB251379)
  • Flow Cyt (Intra)

Lab

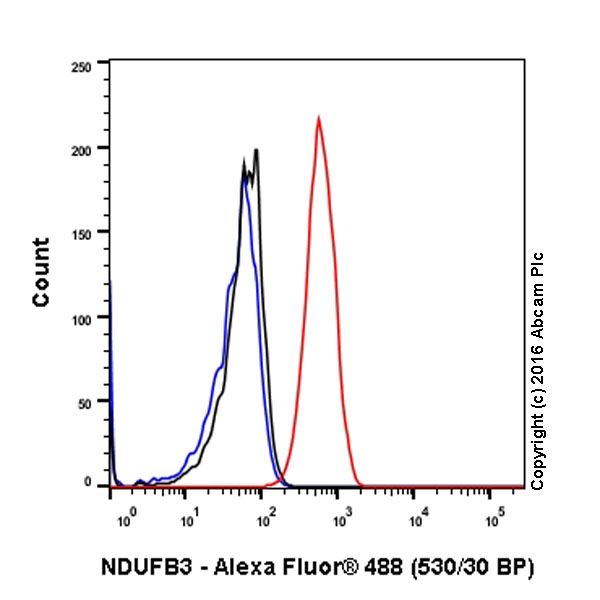

Flow Cytometry (Intracellular) - Anti-NDUFB3 antibody [EPR15571] - BSA and Azide free (AB251379)

This data was developed using ab202585, the same antibody clone in a different buffer formulation.

Intracellular Flow Cytometry analysis of HepG2 cells labelling NDUFB3 (red) with purified ab202585 at dilution of 1/60. The secondary antibody used was Alexa Fluor® 488 goat-anti-rabbit IgG (1/2000). Cells were fixed with 4% paraformaldehyde and permeabilised with 90% methanol. Isotype control antibody used was Rabbit monoclonal IgG (black). The blue line shows cells without incubation with primary antibody and secondary antibody.

Immunocytochemistry/ Immunofluorescence - Anti-NDUFB3 antibody [EPR15571] - BSA and Azide free (AB251379)
  • ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-NDUFB3 antibody [EPR15571] - BSA and Azide free (AB251379)

This data was developed using ab202585, the same antibody clone in a different buffer formulation.

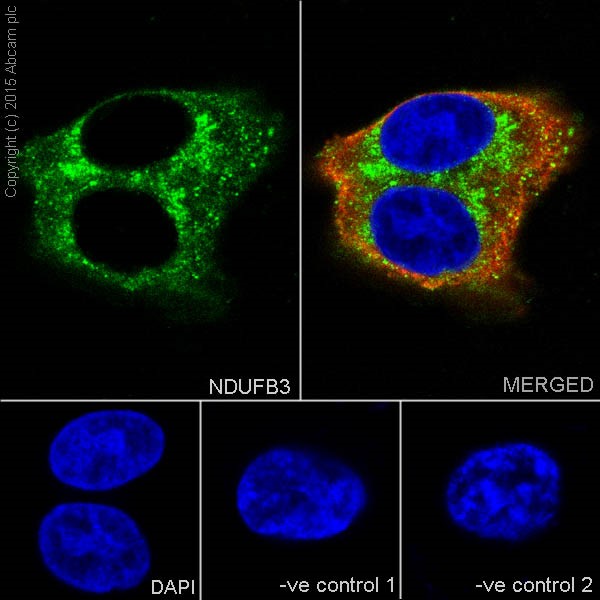

Immunofluorescent analysis of 100% Methanol-fixed, 0.1% Triton X-100 permeabilized HepG2 (Human liver hepatocellular carcinoma) cells labeling NDUFB3 with ab202585 at 1/300 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor® 488) (ab150077) secondary antibody at 1/500 dilution (green). Confocal image showing cytoplasmic staining on HepG2 cell line. The nuclear counter stain is DAPI (blue). Tubulin is detected with ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution and ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution (red).

The negative controls are as follows :
-ve control 1 : ab202585 at 1/300 dilution followed by ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution.
-ve control 2 : ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution followed by ab150077 (Alexa Fluor®488 Goat Anti-Rabbit IgG H&L) at 1/500 dilution.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NDUFB3 antibody [EPR15571] - BSA and Azide free (AB251379)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NDUFB3 antibody [EPR15571] - BSA and Azide free (AB251379)

This data was developed using ab202585, the same antibody clone in a different buffer formulation.

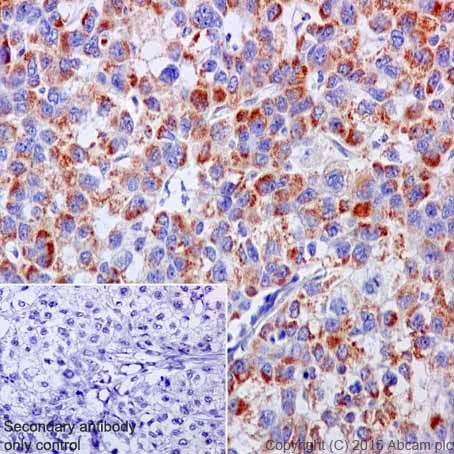

Immunohistochemical analysis of paraffin-embedded Human hepatocellular carcinoma tissue labeling NDUFB3 with ab202585 at 1/50 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) secondary antibody at 1/500 dilution. Cytoplasmic staining on Human hepatocellular carcinoma tissue is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Immunoprecipitation - Anti-NDUFB3 antibody [EPR15571] - BSA and Azide free (AB251379)
  • IP

Supplier Data

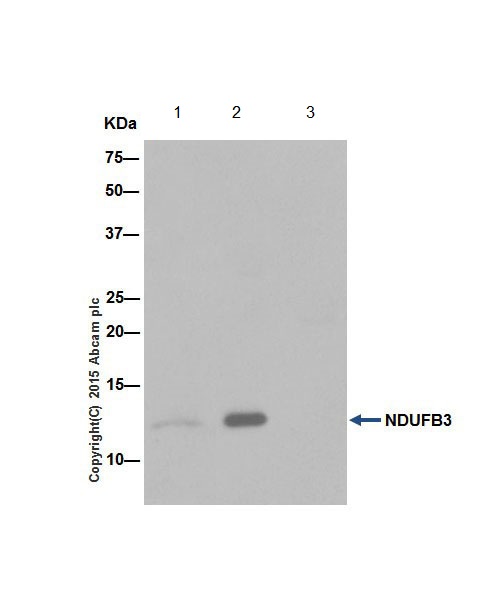

Immunoprecipitation - Anti-NDUFB3 antibody [EPR15571] - BSA and Azide free (AB251379)

This data was developed using ab202585, the same antibody clone in a different buffer formulation.

NDUFB3 was immunoprecipitated from 1mg of HepG2 (Human liver hepatocellular carcinoma) whole cell lysate with ab202585 at 1/40 dilution. Western blot was performed from the immunoprecipitate using ab202585 at 1/1000 dilution. Anti-Rabbit IgG (HRP), specific to the non-reduced form of IgG, was used as secondary antibody at 1/1500 dilution.

Lane 1 : HepG2 whole cell lysate 10 μg (Input). Lane 2 : ab202585 IP in HepG2 whole cell lysate. Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab202585 in HepG2 whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 5 seconds.

All lanes:

Immunoprecipitation - Anti-NDUFB3 antibody [EPR15571] (<a href='/en-us/products/primary-antibodies/ndufb3-antibody-epr15571-ab202585'>ab202585</a>)

Predicted band size: 11 kDa

false

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NDUFB3 antibody [EPR15571] - BSA and Azide free (AB251379)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NDUFB3 antibody [EPR15571] - BSA and Azide free (AB251379)

This data was developed using ab202585, the same antibody clone in a different buffer formulation.

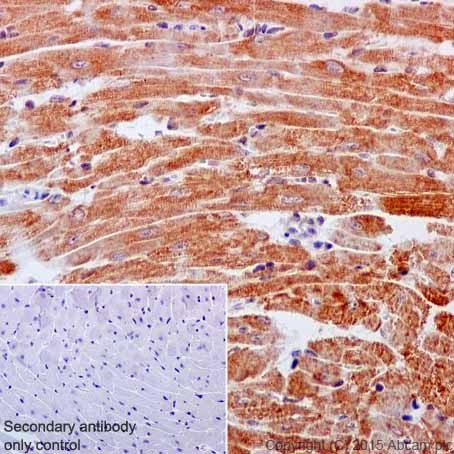

Immunohistochemical analysis of paraffin-embedded Mouse cardiac muscle tissue labeling NDUFB3 with ab202585 at 1/50 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) secondary antibody at 1/500 dilution. Cytoplasmic staining on mouse cardiac muscle tissue is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NDUFB3 antibody [EPR15571] - BSA and Azide free (AB251379)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NDUFB3 antibody [EPR15571] - BSA and Azide free (AB251379)

This data was developed using ab202585, the same antibody clone in a different buffer formulation.

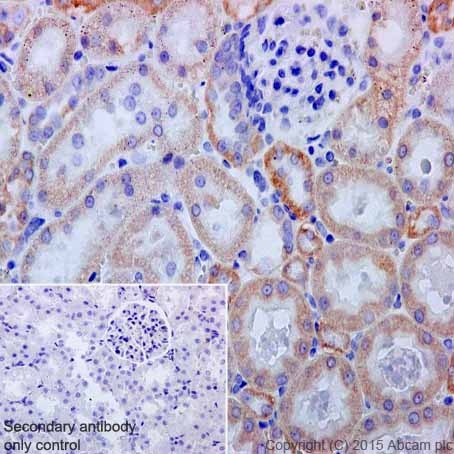

Immunohistochemical analysis of paraffin-embedded rat kidney tissue labeling NDUFB3 with ab202585 at 1/50 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) secondary antibody at 1/500 dilution. Cytoplasmic staining on rat kidney tissue is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Western blot - Anti-NDUFB3 antibody [EPR15571] - BSA and Azide free (AB251379)
  • WB

Supplier Data

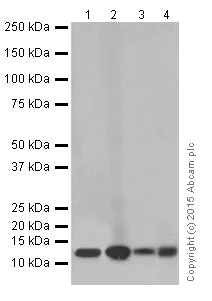

Western blot - Anti-NDUFB3 antibody [EPR15571] - BSA and Azide free (AB251379)

This data was developed using ab202585, the same antibody clone in a different buffer formulation.

Blocking and dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-NDUFB3 antibody [EPR15571] (<a href='/en-us/products/primary-antibodies/ndufb3-antibody-epr15571-ab202585'>ab202585</a>) at 1/1000 dilution

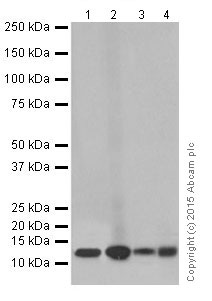

Lane 1:

Human fetal brain lysate at 10 µg

Lane 2:

Human fetal heart lysate at 10 µg

Lane 3:

Human fetal kidney lysate at 10 µg

Lane 4:

Human fetal spleen lysate at 10 µg

Secondary

All lanes:

Anti-Rabbit IgG (HRP), specific to the non-reduced form of IgG at 1/1000 dilution

Predicted band size: 11 kDa

Observed band size: 11 kDa

false

Exposure time: 30s

Western blot - Anti-NDUFB3 antibody [EPR15571] - BSA and Azide free (AB251379)
  • WB

Unknown

Western blot - Anti-NDUFB3 antibody [EPR15571] - BSA and Azide free (AB251379)

This data was developed using ab202585, the same antibody clone in a different buffer formulation.

Blocking and dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-NDUFB3 antibody [EPR15571] (<a href='/en-us/products/primary-antibodies/ndufb3-antibody-epr15571-ab202585'>ab202585</a>) at 1/1000 dilution

All lanes:

HepG2 (Human liver hepatocellular carcinoma) whole cell lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/1000 dilution

Predicted band size: 11 kDa

false

Exposure time: 3min

Western blot - Anti-NDUFB3 antibody [EPR15571] - BSA and Azide free (AB251379)
  • WB

Unknown

Western blot - Anti-NDUFB3 antibody [EPR15571] - BSA and Azide free (AB251379)

This data was developed using ab202585, the same antibody clone in a different buffer formulation.

Blocking and dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-NDUFB3 antibody [EPR15571] (<a href='/en-us/products/primary-antibodies/ndufb3-antibody-epr15571-ab202585'>ab202585</a>) at 1/1000 dilution

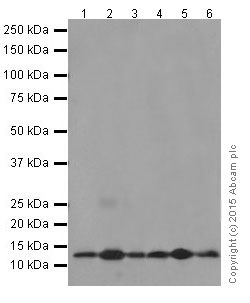

Lane 1:

Mouse brain tissue lysate at 10 µg

Lane 2:

Mouse heart tissue lysate at 10 µg

Lane 3:

Mouse kidney tissue lysate at 10 µg

Lane 4:

Rat brain tissue lysate at 10 µg

Lane 5:

Rat heart tissue lysate at 10 µg

Lane 6:

Rat kidney tissue lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/1000 dilution

Predicted band size: 11 kDa

Observed band size: 11 kDa

false

Exposure time: 10s

Western blot - Anti-NDUFB3 antibody [EPR15571] - BSA and Azide free (AB251379)
  • WB

Supplier Data

Western blot - Anti-NDUFB3 antibody [EPR15571] - BSA and Azide free (AB251379)

This data was developed using ab202585, the same antibody clone in a different buffer formulation.

Blocking and dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-NDUFB3 antibody [EPR15571] (<a href='/en-us/products/primary-antibodies/ndufb3-antibody-epr15571-ab202585'>ab202585</a>) at 1/5000 dilution

All lanes:

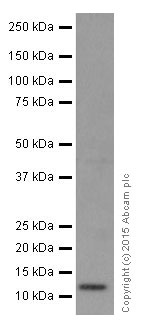

PC-12 (Rat adrenal gland pheochromocytoma) whole cell lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/1000 dilution

Predicted band size: 11 kDa

Observed band size: 11 kDa

false

Exposure time: 3min

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR15571

Isotype

IgG

Carrier free

Yes

Reacts with

Mouse, Rat, Human

Applications

IP, ICC/IF, WB, Flow Cyt (Intra), IHC-P

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>", "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "<p></p>", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>" }, "Mouse": { "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IP-species-checked": "guaranteed", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "FlowCytIntra-species-checked": "guaranteed", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>" }, "Rat": { "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IP-species-checked": "guaranteed", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "FlowCytIntra-species-checked": "guaranteed", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>" } } }
style
left-column

Product details

ab251379 is the carrier-free version of ab202585.

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

style
left-column

Properties and storage information

Form
Liquid
Storage buffer
pH: 7.2 - 7.4 Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Do Not Freeze
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

The protein NDUFB3 also known as NADH:ubiquinone oxidoreductase subunit B3 plays a significant role in cellular respiration. It is a component of the mitochondrial complex I where it participates in the electron transport chain. NDUFB3 is a small protein with a molecular weight of approximately 12 kDa. It is expressed in various human tissues notably in high-energy-demanding organs such as the heart brain and skeletal muscles where mitochondria are abundant.
Biological function summary

NDUFB3 contributes to the transfer of electrons from NADH to ubiquinone an essential step in oxidative phosphorylation. This protein is part of the larger NADH dehydrogenase complex also called complex I which consists of 45 protein subunits. Complex I is the largest enzyme complex in the electron transport chain and serves a fundamental role in ATP production by establishing a proton gradient across the inner mitochondrial membrane.

Pathways

NDUFB3 significantly affects mitochondrial energy metabolism. It is an integral component of the electron transport chain. Through this it participates in pathways such as oxidative phosphorylation and cellular respiration. NDUFB3 associates with other proteins subunits of complex I such as NDUFS2 for electron transport which ultimately powers ATP synthesis by ATP synthase.

Disruptions in NDUFB3 function can contribute to mitochondrial diseases particularly those related to energy metabolism. Mutations in this protein have been linked to Leigh syndrome a severe neurological disorder. Moreover the dysfunction of complex I which includes NDUFB3 has connections to Parkinson's disease highlighting the importance of this protein in neurodegenerative conditions.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Accessory subunit of the mitochondrial membrane respiratory chain NADH dehydrogenase (Complex I), that is believed not to be involved in catalysis. Complex I functions in the transfer of electrons from NADH to the respiratory chain. The immediate electron acceptor for the enzyme is believed to be ubiquinone.
See full target information NDUFB3
style
left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Journal of nanobiotechnology 22:800 PubMed39731111

2024

Role of PCBP2 in regulating nanovesicles loaded with curcumin to mitigate neuroferroptosis in neural damage caused by heat stroke.

Applications

Unspecified application

Species

Unspecified reactive species

Fei Guo,Yizhan Wu,Guangjun Wang,Jiangwei Liu
