AB192243

Anti-NDUFB4 antibody [EPR16240]

RabMAb
Recombinant
What is this?

Be the first to review this product! Submit a review

(2 Publications)

Rabbit Recombinant Monoclonal NDUFB4 antibody. Suitable for WB, ICC/IF, IHC-P and reacts with Rat, Human, Mouse samples. Cited in 2 publications.

View Alternative Names

NADH dehydrogenase [ubiquinone] 1 beta subcomplex subunit 4, Complex I-B15, NADH-ubiquinone oxidoreductase B15 subunit, CI-B15, NDUFB4

6 Images

Immunocytochemistry/ Immunofluorescence - Anti-NDUFB4 antibody [EPR16240] (AB192243)

ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-NDUFB4 antibody [EPR16240] (AB192243)

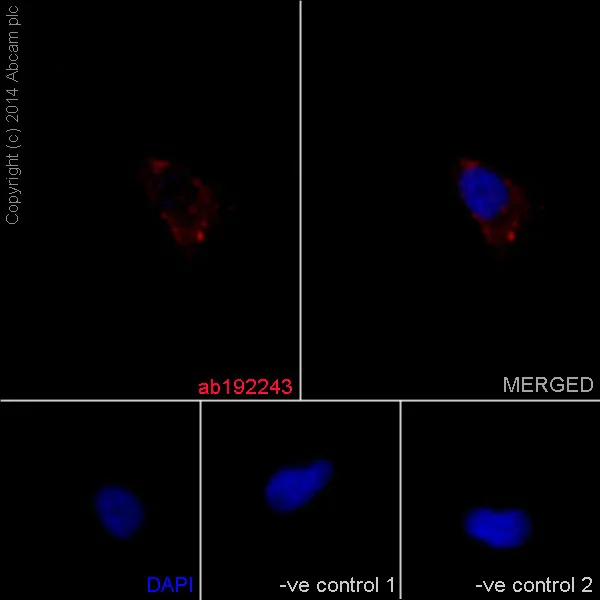

Immunofluorescent analysis of 4% paraformaldehyde-fixed 0.1% tritonX-100 permeabilized A549 cells labeling NDUFB4 with ab192243 at 1/50 dilution followed by Goat anti rabbit IgG (Alexa Fluor® 555) secondary antibody (ab150078) at 1/500 dilution. Nuclear counter stain Dapi (blue).

The two negative controls are anti-NDUFB4 at 1/50 dilution followed by (Goat anti mouse IgG (Alexa Fluor®488) secondary antibody at 1/200 dilution.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NDUFB4 antibody [EPR16240] (AB192243)

IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NDUFB4 antibody [EPR16240] (AB192243)

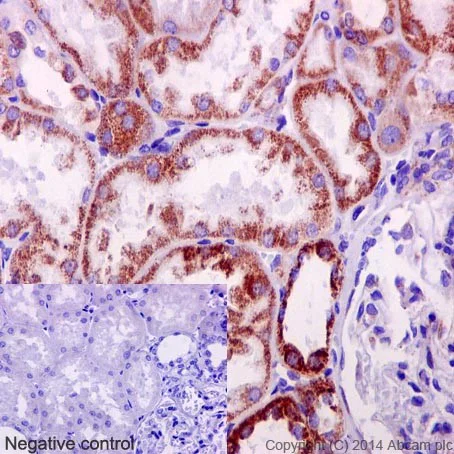

Immunohistochemical analysis of paraffin-embedded Human kidney tissue labeling NDUFB4 with ab192243 at 1/200 dilution followed by prediluted HRP Polymer for Rabbit/Mouse IgG. Counter stained with Hematoxylin.

(inset : negative control).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NDUFB4 antibody [EPR16240] (AB192243)

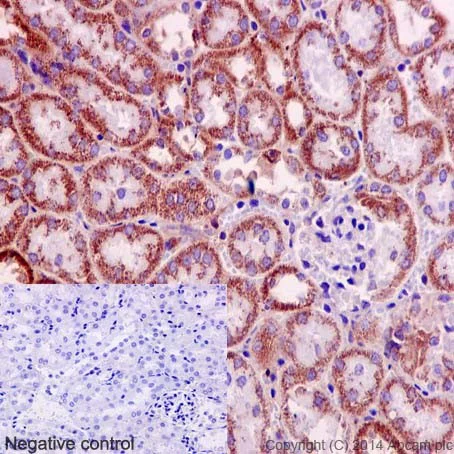

Immunohistochemical analysis of paraffin-embedded Mouse kidney tissue labeling NDUFB4 with ab192243 at 1/200 dilution followed by prediluted HRP Polymer for Rabbit/Mouse IgG. Counter stained with Hematoxylin.

(inset : negative control).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Supplier Data

Western blot - Anti-NDUFB4 antibody [EPR16240] (AB192243)

Blocking/Dilution buffer : 5% NFDM /TBST.

All lanes:

Western blot - Anti-NDUFB4 antibody [EPR16240] (ab192243) at 1/20000 dilution

All lanes:

Human fetal heart lysate at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/1000 dilution

Predicted band size: 15 kDa

false

Supplier Data

Western blot - Anti-NDUFB4 antibody [EPR16240] (AB192243)

Blocking/Dilution buffer : 5% NFDM /TBST.

All lanes:

Western blot - Anti-NDUFB4 antibody [EPR16240] (ab192243) at 1/1000 dilution

Lane 1:

HepG2 cell lysate at 10 µg

Lane 2:

Human cerebellum tissue lysate at 10 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/1000 dilution

Predicted band size: 15 kDa

false

Supplier Data

Western blot - Anti-NDUFB4 antibody [EPR16240] (AB192243)

Blocking/Dilution buffer : 5% NFDM /TBST.

All lanes:

Western blot - Anti-NDUFB4 antibody [EPR16240] (ab192243) at 1/5000 dilution

All lanes:

Rat kidney tissue lysate at 10 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/1000 dilution

Predicted band size: 15 kDa

false

Carrier free

Anti-NDUFB4 antibody [EPR16240] - BSA and Azide free

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR16240

Isotype

IgG

Carrier free

Reacts with

Mouse, Rat, Human

Applications

ICC/IF, WB, IHC-P

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style

left-column

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000 - 1/20000", "WB-species-notes": "", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/50", "ICCIF-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "1/100 - 1/200", "IHCP-species-notes": "" }, "Mouse": { "WB-species-checked": "guaranteed", "WB-species-dilution-info": "", "WB-species-notes": "", "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "1/100 - 1/200", "IHCP-species-notes": "" }, "Rat": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000 - 1/20000", "WB-species-notes": "", "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" } } }

style

left-column

Product details

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification Protein A

Storage buffer

pH: 7.2 - 7.4 Preservative: 0.01% Sodium azide Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

NDUFB4 also known as NADH: ubiquinone oxidoreductase subunit B4 plays a role in the mitochondrial respiratory chain complex I. Weighing approximately 15 kDa NDUFB4 is expressed in mitochondria across various cell types. It couples electron transfer from NADH to ubiquinone thereby contributing to energy production process in cells. NDUFB4 is important in maintaining mitochondrial functionality due to its role in the electron transport chain.

Biological function summary

NADH: ubiquinone oxidoreductase subunit B4 is part of the NADH dehydrogenase complex I. This complex is involved in the initial step of the mitochondrial electron transport chain. NDUFB4 supports the bioenergetic functions of cells by facilitating redox reactions. It also helps establish the electrochemical gradient needed for ATP synthesis. This protein interacts synergistically with other subunits in complex I to ensure efficient energy conversion.

Pathways

NADH dehydrogenase complex I which includes NDUFB4 is central in oxidative phosphorylation. This process supports energy production by converting NADH and FADH2 into ATP. NDUFB4 is integrally linked with proteins like NDUFS2 and NDUFV1 within this pathway ensuring electron transport is seamless. Complex I contributes to metabolic processes like the TCA cycle by feeding the mitochondria with necessary energy intermediates.

Malfunction of NDUFB4 in complex I links to mitochondrial diseases such as Leigh syndrome. This syndrome affects central nervous system development. Mitochondrial encephalopathies are another group where NDUFB4 involvement is observed. In these conditions proteins like NDUFA1 and mitochondrial DNA mutations can manifest similar neurodegenerative symptoms due to impaired oxidative phosphorylation. Therefore understanding NDUFB4’s function helps in identifying therapeutic interventions for these disorders.

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

Accessory subunit of the mitochondrial membrane respiratory chain NADH dehydrogenase (Complex I), that is believed not to be involved in catalysis. Complex I functions in the transfer of electrons from NADH to the respiratory chain. The immediate electron acceptor for the enzyme is believed to be ubiquinone.

See full target information NDUFB4

style

left-column

Publications (2)

Recent publications for all applications. Explore the full list and refine your search

Disease models & mechanisms 16: PubMed37497665

2023

OPA1 deficiency impairs oxidative metabolism in cycling cells, underlining a translational approach for degenerative diseases.

Applications

Species

Human

Aurélie M C Millet,Corentin Coustham,Camille Champigny,Marlène Botella,Christine Demeilliers,Anne Devin,Anne Galinier,Pascale Belenguer,Joel Bordeneuve-Guibé,Noélie Davezac

The Journal of neuroscience : the official journal of the Society for Neuroscience 41:3331-3343 PubMed33707295

2021

Mutations Cause Mechanotransduction Defects in Cochlear Hair Cells.

Applications

Unspecified application

Species

Unspecified reactive species

Alix Trouillet,Katharine K Miller,Shefin Sam George,Pei Wang,Noor-E-Seher Ali,Anthony Ricci,Nicolas Grillet
