AB188581

Anti-NDUFB9 antibody [EPR15955]

Be the first to review this product! Submit a review

|

(0 Publication)

Rabbit Recombinant Monoclonal NDUFB9 antibody. Suitable for IP, WB, ICC/IF, Flow Cyt (Intra), IHC-P and reacts with Human samples.

View Alternative Names

LYRM3, UQOR22, NDUFB9, NADH dehydrogenase [ubiquinone] 1 beta subcomplex subunit 9, Complex I-B22, LYR motif-containing protein 3, NADH-ubiquinone oxidoreductase B22 subunit, CI-B22

6 Images
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NDUFB9 antibody [EPR15955] (AB188581)
  • IHC-P

Supplier Data

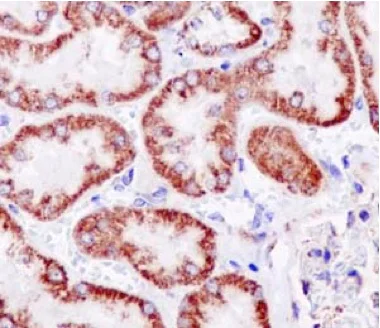

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NDUFB9 antibody [EPR15955] (AB188581)

Immunohistochemical analysis of paraffin-embedded Human kidney tissue labeling NDUFB9 with ab188581 at 1/500 dilution followed by prediluted HRP Polymer for Rabbit IgG. Counter stained with Hematoxylin.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Immunocytochemistry/ Immunofluorescence - Anti-NDUFB9 antibody [EPR15955] (AB188581)
  • ICC/IF

Supplier Data

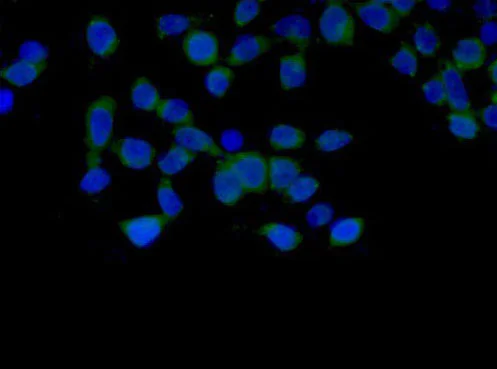

Immunocytochemistry/ Immunofluorescence - Anti-NDUFB9 antibody [EPR15955] (AB188581)

Immunofluorescent analysis of 4% paraformaldehyde-fixed 293 cells labeling NDUFB9 with ab188581 at 1/100 dilution followed by Goat anti rabbit IgG (Alexa Fluor® 488) secondary antibody at 1/200 dilution. Counter stained with Dapi.

Western blot - Anti-NDUFB9 antibody [EPR15955] (AB188581)
  • WB

Unknown

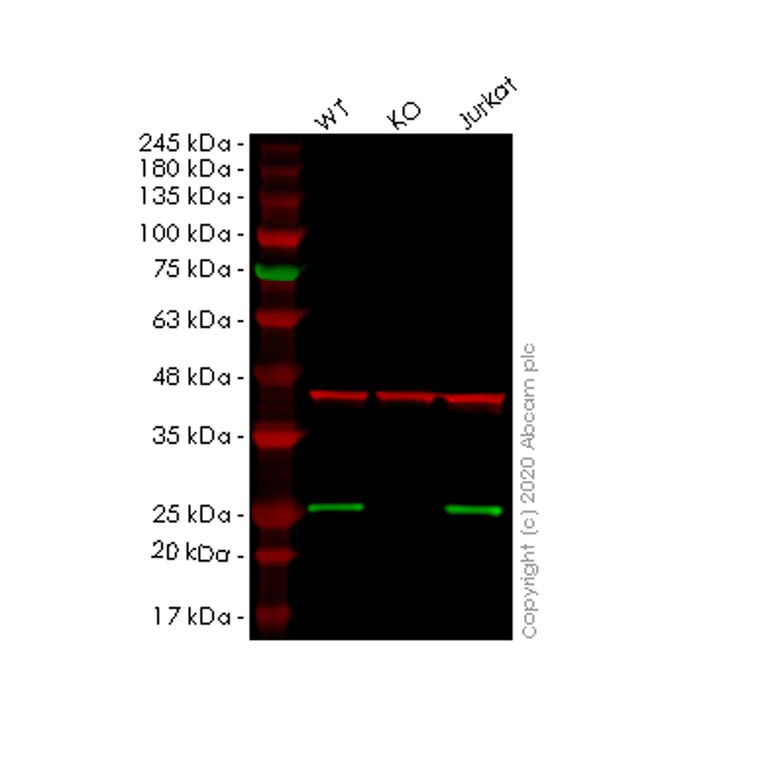

Western blot - Anti-NDUFB9 antibody [EPR15955] (AB188581)

Lanes 1-3 : Merged signal (red and green). Green - ab188581 observed at 22 kDa. Red - loading control ab8245 observed at 36 kDa.

ab188581 Anti-NDUFB9 antibody [EPR15955] was shown to specifically react with NDUFB9 in wild-type HeLa cells. Loss of signal was observed when knockout cell line ab265946 (knockout cell lysate ab258065) was used. Wild-type and NDUFB9 knockout samples were subjected to SDS-PAGE. ab188581 and Anti-GAPDH antibody [6C5] - Loading Control (ab8245) were incubated overnight at 4°C at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-NDUFB9 antibody [EPR15955] (ab188581) at 1/1000 dilution

Lane 1:

Wild-type HeLa cell lysate at 20 µg

Lane 2:

NDUFB9 knockout HeLa cell lysate at 20 µg

Lane 2:

Western blot - Human NDUFB9 knockout HeLa cell line (<a href='/en-us/products/cell-lines/human-ndufb9-knockout-hela-cell-line-ab265946'>ab265946</a>)

Lane 3:

Jurkat cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-irdye-800cw-preadsorbed-ab216773'>ab216773</a>) at 1/10000 dilution

Predicted band size: 21 kDa

Observed band size: 22 kDa

false

Flow Cytometry (Intracellular) - Anti-NDUFB9 antibody [EPR15955] (AB188581)
  • Flow Cyt (Intra)

Supplier Data

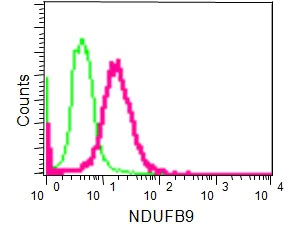

Flow Cytometry (Intracellular) - Anti-NDUFB9 antibody [EPR15955] (AB188581)

Intracellular flow cytometric analysis of 2% paraformaldehyde-fixedHeLa cells labeling NDUFB9 with ab188581 at 1/440 dilution compared to a Rabbit monoclonal IgG isotype control, followed by Goat anti rabbit IgG (FITC)secondary antibody at 1/150 dilution.

Immunoprecipitation - Anti-NDUFB9 antibody [EPR15955] (AB188581)
  • IP

Supplier Data

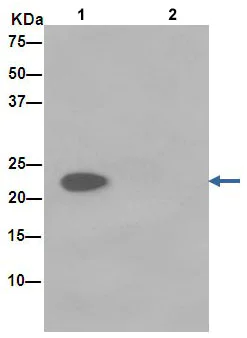

Immunoprecipitation - Anti-NDUFB9 antibody [EPR15955] (AB188581)

Western blot analysis of NDUFB9 immunoprecipitated from Human fetal liver lysate using ab188581 at 1/50 (Lane 1). Lane 2 : PBS instead of Human fetal liver lysates.

Secondary antibody : Anti-Rabbit IgG (HRP), specific to the non-reduced form of IgG at 1/1500 dilution.

All lanes:

Immunoprecipitation - Anti-NDUFB9 antibody [EPR15955] (ab188581)

Predicted band size: 21 kDa

false

Western blot - Anti-NDUFB9 antibody [EPR15955] (AB188581)
  • WB

Supplier Data

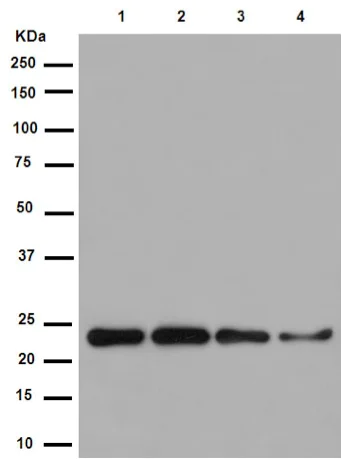

Western blot - Anti-NDUFB9 antibody [EPR15955] (AB188581)

All lanes:

Western blot - Anti-NDUFB9 antibody [EPR15955] (ab188581) at 1/10000 dilution

Lane 1:

Human fetal liver lysate at 20 µg

Lane 2:

HeLa cell lysate at 20 µg

Lane 3:

293 cell lysate at 20 µg

Lane 4:

Jurkat cell lysate at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugate at 1/1000 dilution

Predicted band size: 21 kDa

Observed band size: 22 kDa

false

  • Carrier free

    Anti-NDUFB9 antibody [EPR15955] - BSA and Azide free

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR15955

Isotype

IgG

Carrier free

No

Reacts with

Human

Applications

Flow Cyt (Intra), IP, ICC/IF, IHC-P, WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "1/50", "IP-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000 - 1/10000", "WB-species-notes": "<p></p>", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/100", "ICCIF-species-notes": "<p></p>", "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "1/440", "FlowCytIntra-species-notes": "<p><a href='/en-us/products/primary-antibodies/rabbit-igg-monoclonal-epr25a-isotype-control-ab172730'>ab172730</a> - Rabbit monoclonal IgG, is suitable for use as an isotype control with this antibody.</p>", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "1/250 - 1/500", "IHCP-species-notes": "<p></p> Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol." }, "Rat": { "IP-species-checked": "predicted", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "", "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCytIntra-species-checked": "predicted", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "IHCP-species-checked": "predicted", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" } } }
style
left-column
style
left-column

Product details

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Preservative: 0.01% Sodium azide Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

The protein NDUFB9 also known as NADH:ubiquinone oxidoreductase subunit B9 is a part of the mitochondrial respiratory chain. This protein has a molecular mass of approximately 22 kDa. NDUFB9 is expressed in the mitochondria of many tissues serving as an accessory subunit of complex I the first enzyme in the electron transport chain. It does not participate in catalysis but assists in maintaining the integrity and stability of the complex.
Biological function summary

NDUFB9 plays a role in mitochondrial energy production. As a component of complex I which is the largest of the five mitochondrial complexes NDUFB9 contributes to the process of oxidative phosphorylation. This complex transfers electrons from NADH to ubiquinone facilitating the pumping of protons across the inner mitochondrial membrane. This proton gradient drives ATP production vital for energy metabolism in cells.

Pathways

The function of NDUFB9 is critical in cellular respiration and energy production pathways. It is integral to the pathway of oxidative phosphorylation closely associated with aerobic energy metabolism. Through its role in complex I NDUFB9 interacts with other mitochondrial proteins such as NDUFA1 and NDUFS1 which are also part of the same complex and contribute to electron transport and energy conservation.

NDUFB9 mutations have been linked to mitochondrial disorders including Leigh syndrome a severe neurological disorder characterized by progressive loss of mental and movement abilities. NDUFB9 dysfunction can also contribute to Complex I deficiency which leads to a range of metabolic syndromes. This protein's interaction with other complex I proteins like NDUFS2 is important for maintaining proper mitochondrial function and disturbances can lead to broader mitochondrial pathologies.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Accessory subunit of the mitochondrial membrane respiratory chain NADH dehydrogenase (Complex I), that is believed to be not involved in catalysis. Complex I functions in the transfer of electrons from NADH to the respiratory chain. The immediate electron acceptor for the enzyme is believed to be ubiquinone.
See full target information NDUFB9
style
left-column
style
left-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions
