Anti-NELFe antibody [EPR11600] - BSA and Azide free

• ICC/IF

Unknown

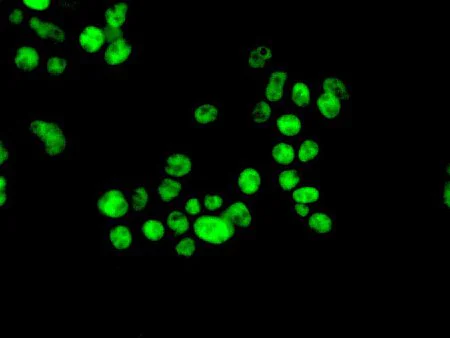

Immunocytochemistry/ Immunofluorescence - Anti-NELFe antibody [EPR11600] - BSA and Azide free (AB240158)

Immunofluorescence analysis of HepG2 cells labeling NELFe with ab170104 at a 1/100 dilution.

This image was generated using the unpurified version of the product.

• Flow Cyt (Intra)

Unknown

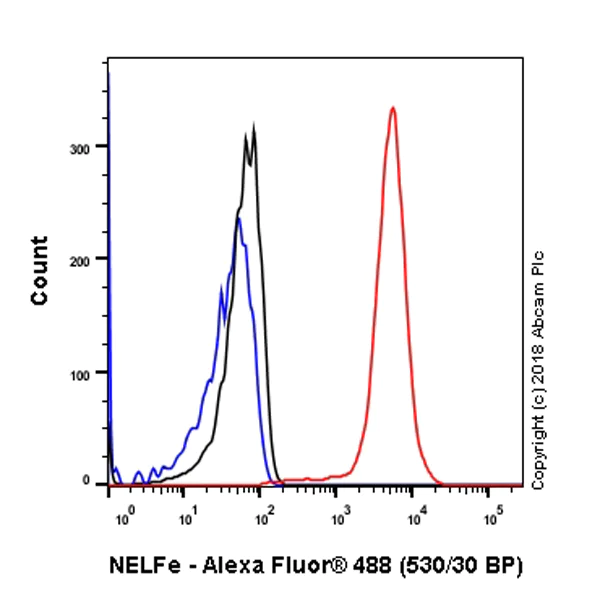

Flow Cytometry (Intracellular) - Anti-NELFe antibody [EPR11600] - BSA and Azide free (AB240158)

Intracellular Flow Cytometry analysis of HeLa (Human cervix adenocarcinoma epithelial cell) cells labeling NELFe with Purified ab170104 at 1/300 dilution (1μg/ml) (red). Cells were fixed with 4% Paraformaldehyde. A Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) secondary antibody was used at 1/2000. Isotype control - Rabbit monoclonal IgG (Black). Unlabeled control - Cell without incubation with primary antibody and secondary antibody (Blue).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab170104).

• ICC/IF

Unknown

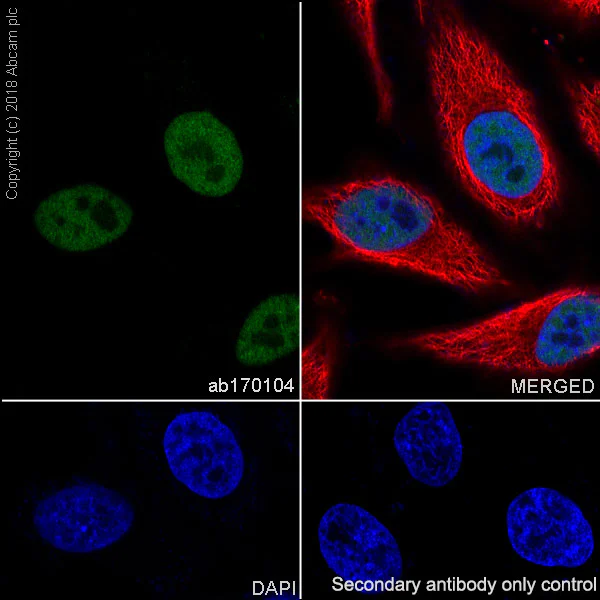

Immunocytochemistry/ Immunofluorescence - Anti-NELFe antibody [EPR11600] - BSA and Azide free (AB240158)

Immunocytochemistry/ Immunofluorescence analysis of HeLa (Human cervix adenocarcinoma epithelial cell) cells labeling NELFe with Purified ab170104 at 1 : 500 dilution (0.5 μg/ml). Cells were fixed in 4% Paraformaldehyde and permeabilized with 0.1% tritonX-100. Cells were counterstained with ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) 1 : 200 (2.5 μg/ml). Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) was used as the secondary antibody at 1 : 1000 (2 μg/ml) dilution. DAPI nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab170104).

• IP

Unknown

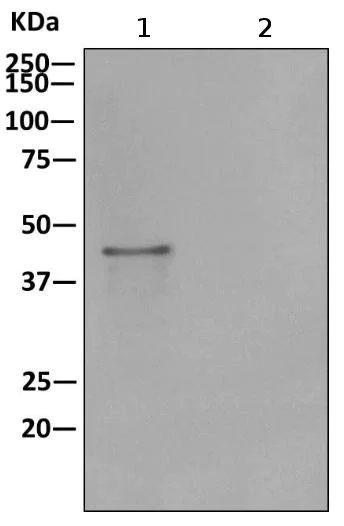

Immunoprecipitation - Anti-NELFe antibody [EPR11600] - BSA and Azide free (AB240158)

Western blot analysis on immunoprecipitation pellet from HeLa cell lysate (lane 1) or 1X PBS (negative control) (lane 2) using ab170104, and HRP-conjugated anti-rabbit IgG preferentially detecting the non-reduced form of rabbit IgG.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab170104).

This image was generated using the unpurified version of the product.

All lanes:

Immunoprecipitation - Anti-NELFe antibody [EPR11600] - BSA and Azide free (ab240158)

Predicted band size: 43 kDa

false

• IP

Unknown

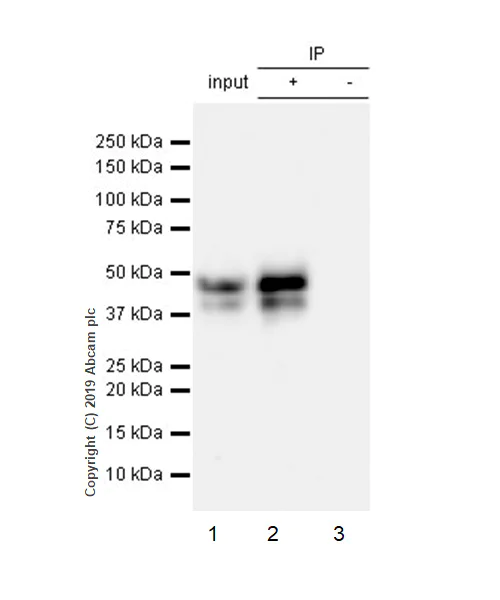

Immunoprecipitation - Anti-NELFe antibody [EPR11600] - BSA and Azide free (AB240158)

ab170104 (purified) at 1 : 20 dilution (2μg) immunoprecipitating NELFe in HeLa whole cell lysate.
Lane 1 (input) : HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate 10μg
Lane 2 (+) : ab170104 & HeLa whole cell lysate
Lane 3 (-) : Rabbit monoclonal IgG (ab172730) instead of ab170104 in HeLa whole cell lysate
For western blotting, VeriBlot for IP Detection Reagent (HRP) (ab131366) was used for detection at 1 : 1000 dilution.
Blocking and diluting buffer : 5% NFDM/TBST.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab170104).

All lanes:

Immunoprecipitation - Anti-NELFe antibody [EPR11600] (<a href='/en-us/products/primary-antibodies/nelfe-antibody-epr11600-ab170104'>ab170104</a>)

Predicted band size: 43 kDa

false
