Anti-Nephrin antibody [EPR20993] (ab216341) is a rabbit monoclonal antibody detecting Nephrin in Western Blot, IP, IHC-P, IHC-Fr. Suitable for Human, Mouse, Rat.
- Biophysical QC for unrivalled batch-batch consistency
- Over 40 publications
View Alternative Names
NPHN, NPHS1, Nephrin, Renal glomerulus-specific cell adhesion receptor
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Nephrin antibody [EPR20993] (AB216341)
Immunohistochemical analysis of paraffin-embedded rat kidney tissue labeling Nephrin with ab216341 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Membranous staining on rat renal glomerulus (PMID : 18599604; PMID : 25367693). Counter stained with hematoxylin. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.
- WB
Supplier Data
Western blot - Anti-Nephrin antibody [EPR20993] (AB216341)
Blocking/Dilution buffer : 5% NFDM/TBST.
The MW is consistent with the literature (PMID 11733379).
All lanes:
Western blot - Anti-Nephrin antibody [EPR20993] (ab216341) at 1/1000 dilution
Lane 1:
Mouse kidney lysate at 10 µg
Lane 2:
Mouse spleen lysate at 10 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution
Predicted band size: 134 kDa
Observed band size: 200 kDa
true
Exposure time: 3min
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Nephrin antibody [EPR20993] (AB216341)
Immunohistochemical analysis of paraffin-embedded human kidney tissue labeling Nephrin with ab216341 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Membranous staining on human renal glomerulus (PMID : 18599604; PMID : 25367693). Counter stained with hematoxylin. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.
Primary antibody incubation overnight at +4°C is recommended for human species
- IHC-Fr
Supplier Data
Immunohistochemistry (Frozen sections) - Anti-Nephrin antibody [EPR20993] (AB216341)
Immunohistochemical analysis of 4% paraformaldehyde-fixed, 0.2% Triton X-100 permeabilized frozen mouse kidney tissue labeling Nephrin with ab216341 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Positive cytoplasmic staining in the glomerular podocytes (PMID : 26380915).
The nuclear counter stain is DAPI (blue).
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution.
- IHC-Fr
Unknown
Immunohistochemistry (Frozen sections) - Anti-Nephrin antibody [EPR20993] (AB216341)
Immunohistochemical analysis of 4% paraformaldehyde-fixed, 0.2% Triton X-100 permeabilized frozen rat kidney tissue labeling Nephrin with ab216341 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Positive cytoplasmic staining in the glomerular podocytes (PMID : 26380915).
The nuclear counter stain is DAPI (blue).
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution.
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Nephrin antibody [EPR20993] (AB216341)
Immunohistochemical analysis of paraffin-embedded mouse kidney tissue labeling Nephrin with ab216341 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Membranous staining on mouse renal glomerulus (PMID : 18599604; PMID : 25367693). Counter stained with hematoxylin. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.
- IP
Supplier Data
Immunoprecipitation - Anti-Nephrin antibody [EPR20993] (AB216341)
Nephrin was immunoprecipitated from 0.35 mg of mouse kidney lysate with ab216341 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab216341 at 1/500 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10,000 dilution
Lane 1 : Mouse kidney lysate 10 μg (Input).
Lane 2 : ab216341 IP in mouse kidney lysate.
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab216341 in mouse kidney lysate.
Blocking and dilution buffer and concentration : 5% NFDM/TBST.
Exposure time : 30 seconds.
Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
All lanes:
Immunoprecipitation - Anti-Nephrin antibody [EPR20993] (ab216341)
Predicted band size: 134 kDa
false
- WB
Supplier Data

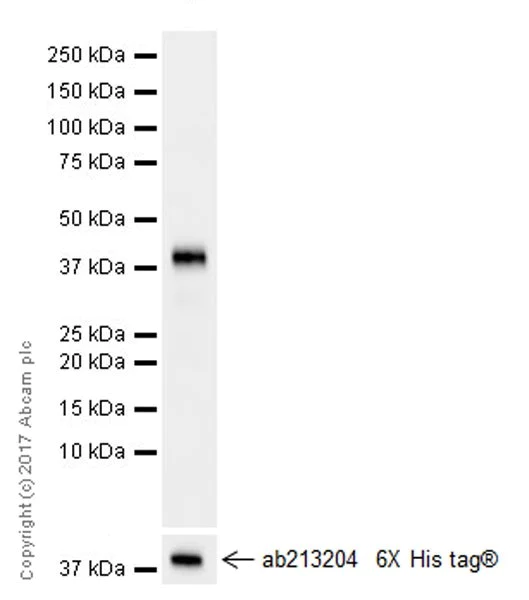

Western blot - Anti-Nephrin antibody [EPR20993] (AB216341)
Blocking/Dilution buffer : 5% NFDM/TBST.
All lanes:
Western blot - Anti-Nephrin antibody [EPR20993] (ab216341) at 1/10000 dilution
All lanes:
His-tagged mouse nephrin (aa1001-1250) recombinant protein at 0.01 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution
Predicted band size: 134 kDa
Observed band size: 38 kDa
true
Exposure time: 15s
- WB
Supplier Data

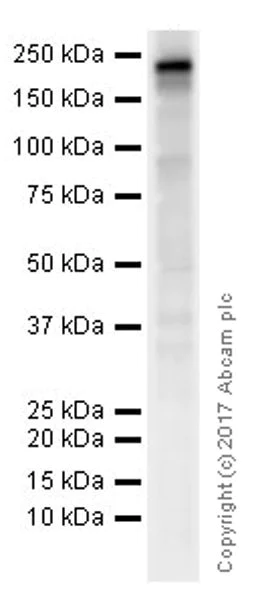

Western blot - Anti-Nephrin antibody [EPR20993] (AB216341)
Blocking/Dilution buffer : 5% NFDM/TBST.
Use high sensitivity ECL to obtain a strong signal.
All lanes:
Western blot - Anti-Nephrin antibody [EPR20993] (ab216341) at 1/1000 dilution
All lanes:
Rat kidney lysate at 10 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution
Predicted band size: 134 kDa
Observed band size: 200 kDa
true
Exposure time: 15s
- WB
CiteAb
Western blot - Anti-Nephrin antibody [EPR20993] (AB216341)
Nephrin western blot using anti-Nephrin antibody [EPR20993] ab216341. Publication image and figure legend from Gong, Q., He, L. L., et al., 2019, Evid Based Complement Alternat Med, PubMed 31275420.
ab216341 was used in this publication in western blot. This may not be the same as the application(s) guaranteed by Abcam. For a full list of applications guaranteed by Abcam for ab216341 please see the product overview.
Fibrosis of kidney and expressions of the factors after the intravenous administration of B4. (a)–(f) Morphology of kidney (200×amplification). (a) normal; (b) model; (c) prednisolone (Predn.); (d) B4 (2.5 mg/kg); (e) B4 (1.25 mg/kg); (f) B4 (0.625 mg/kg); (g) the statistical analysis of the fibrosis in the kidney images by using grayscale scanning. (h)-(j) Protein expression of nephrin and podocin. The data were shown as mean ± SEM from 10 rats in each group. ##, compared with the normal control, p < 0.01. *, **, compared with model groups, p < 0.05 & p < 0.01. NS means no significance.
false
Related conjugates and formulations (7)
-
Anti-Nephrin antibody [EPR20993] - BSA and Azide free
-
617 Alexa Fluor® 594
Alexa Fluor® 594 Anti-Nephrin antibody [EPR20993]
-
565 Alexa Fluor® 555
Alexa Fluor® 555 Anti-Nephrin antibody [EPR20993]
-
519 Alexa Fluor® 488
Alexa Fluor® 488 Anti-Nephrin antibody [EPR20993]
-
660 APC
APC Anti-Nephrin antibody [EPR20993]
-
578 PE
PE Anti-Nephrin antibody [EPR20993]
-
775 Alexa Fluor® 750
Alexa Fluor® 750 Anti-Nephrin antibody [EPR20993]
Reactivity data
You may be interested in:
Why is this recommended?
We recommend this product because it’s often used in the same experiment or related research.
We advise that you always check the datasheet to ensure it fits your experiments, or contact ourtechnical teamfor help.
Product details
What is this antibody validated in?
Anti-Nephrin antibody [EPR20993] (ab216341) is a rabbit recombinant monoclonal antibody and is validated for use in Western Blot (WB), Immunoprecipitation (IP), Immunohistochemistry (IHC-P), Immunohistochemistry (IHC-Fr) in Human, Mouse, Rat samples.
What is the molecular weight of Nephrin?
Anti-Nephrin [EPR20993] (ab216341) specifically detects a band for Nephrin (UniProt: Q9QZS7) at a molecular weight of 136kDa.
Trusted by the scientific community
Anti-Nephrin [EPR20993] (ab216341) was first used in a scientific publication in 2017 and has been cited over 40 times in peer-reviewed journals.
Trial sizes available!
Test your antibody or perform pre-screening before committing to a larger quantity. Sold in 10µl. Discover our selection of trial-size antibodies.
Other related products
We have a range of other formats of antibody clone [EPR20993] also available for your convenience: ab216341, Carrier free - ab227806, PE - ab318357, APC - ab318460, Alexa Fluor® 488 - ab318563, Alexa Fluor® 594 - ab318769, Alexa Fluor® 555 - ab318869, Alexa Fluor® 750 - ab321387
Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.
What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:
- - High batch-to-batch consistency and reproducibility
- - Improved sensitivity and specificity
- - Long-term security of supply
- - Animal-free batch production
For more information, read more on recombinant antibodies.
Properties and storage information
Form
Purification technique
Storage buffer
Shipped at conditions
Appropriate short-term storage duration
Appropriate short-term storage conditions
Appropriate long-term storage conditions
Aliquoting information
Storage information
Supplementary information
This supplementary information is collated from multiple sources and compiled automatically.
Biological function summary
Nephrin is essential for the regulation of glomerular permeability and podocyte foot process architecture. It serves as a significant component of the slit diaphragm complex working alongside proteins like podocin and CD2AP. This protein complex helps regulate the integrity and selectivity of the glomerular filtration barrier ensuring that blood plasma contents are selectively filtered while preventing the loss of large proteins into urine.
Pathways
Nephrin is integral to the PI3K/Akt signaling pathway influencing cell survival and cytoskeletal organization in podocytes. Nephrin's interaction within this pathway involves related proteins such as GAPDH and PTPRO which impact cellular functions critical to maintaining kidney structure and function. Additionally nephrin participates in the synaptopodin pathway modulating actin dynamics and therefore playing a role in cellular contraction and movement.
Product protocols
- Visit the General protocols
- Visit the Troubleshooting
Target data
Publications (48)
Recent publications for all applications. Explore the full list and refine your search
International journal of molecular sciences 24: PubMed38139429
2023
Applications
Unspecified application
Species
Unspecified reactive species
Endocrine connections 12: PubMed37522848
2023
Applications
Unspecified application
Species
Unspecified reactive species
PloS one 18:e0288876 PubMed37467292
2023
Applications
Unspecified application
Species
Unspecified reactive species
Drug design, development and therapy 17:1847-1861 PubMed37360573
2023
Applications
Unspecified application
Species
Unspecified reactive species
Chinese medicine 18:32 PubMed36967383
2023
Applications
Unspecified application
Species
Unspecified reactive species
Cell biology international 47:1126-1135 PubMed36841942
2023
Applications
Unspecified application
Species
Unspecified reactive species
Evidence-based complementary and alternative medicine : eCAM 2023:3357281 PubMed36760471
2023
Applications
Unspecified application
Species
Unspecified reactive species
European journal of medical research 28:52 PubMed36707848
2023
Applications
Unspecified application
Species
Unspecified reactive species
Journal of inflammation research 15:6657-6673 PubMed36532651
2022
Applications
Unspecified application
Species
Unspecified reactive species
Frontiers in endocrinology 13:914865 PubMed36568100
2022
Applications
Unspecified application
Species
Unspecified reactive species
