Anti-NeuN antibody [EPR12763] - Mouse IgG1 (Chimeric) - BSA and Azide free

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-NeuN antibody [EPR12763] - Mouse IgG1 (Chimeric) - BSA and Azide free (AB279307)

This data was generated using the same antibody clone in a different buffer formulation (ab279295)

IHC image of NeuN staining in a section of formalin-fixed paraffin-embedded normal human cerebral cortex performed on a Leica BONDTM system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20mins. The section was then incubated with ab279295, 1ug/ml, for 15 mins at room temperature. A rabbit anti-mouse IgG1, ab125913, was added for 8 mins at room temperature and detected using an HRP conjugated goat anti-rabbit compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset secondary-only control image is taken from an identical assay without primary antibody.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-NeuN antibody [EPR12763] - Mouse IgG1 (Chimeric) - BSA and Azide free (AB279307)

This data was generated using the same antibody clone in a different buffer formulation (ab279295)

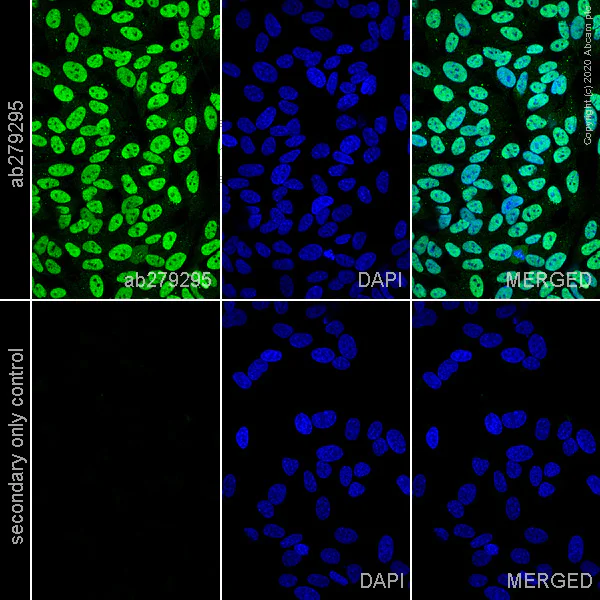

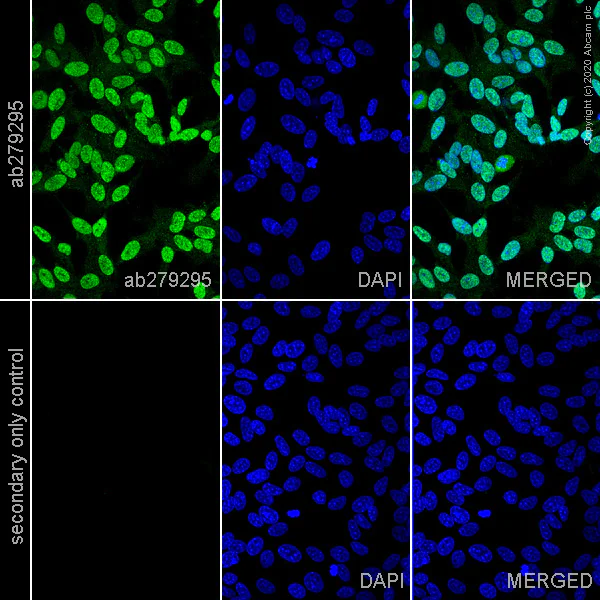

Immunofluorescence staining of NeuN using ab279295 in human SHSY5Y cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% Triton X-100 for 5 mins and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab279295 at 1.0 μg/ml. Cells were then incubated with ab150117, Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green) and nuclear DNA was labelled with DAPI (shown in blue). The secondary only control (bottom row) was not incubated with ab279295 but otherwise processed the same. Images were acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NeuN antibody [EPR12763] - Mouse IgG1 (Chimeric) - BSA and Azide free (AB279307)

This data was generated using the same antibody clone in a different buffer formulation (ab279295)

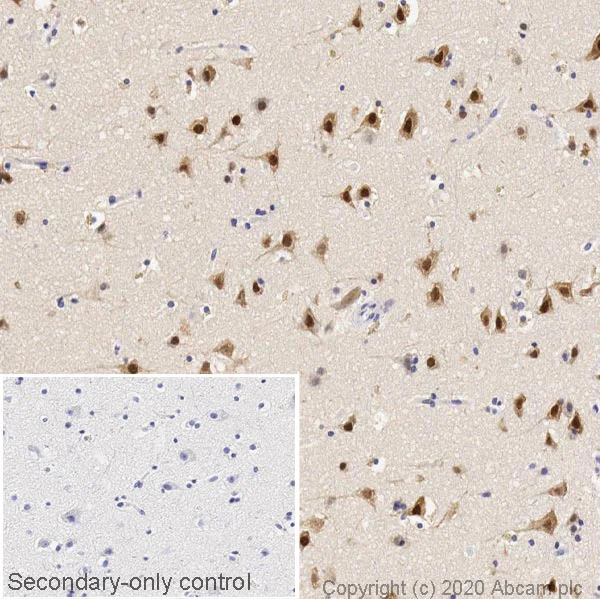

IHC image of NeuN staining in a section of formalin-fixed paraffin-embedded normal human cerebral cortex performed on a Leica BONDTM system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20mins. The section was then incubated with ab279295, 1ug/ml, for 15 mins at room temperature. A rabbit anti-mouse IgG1, ab125913, was added for 8 mins at room temperature and detected using an HRP conjugated goat anti-rabbit compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset secondary-only control image is taken from an identical assay without primary antibody.

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Anti-NeuN antibody [EPR12763] - Mouse IgG1 (Chimeric) - BSA and Azide free (AB279307)

This data was produced using ab279295, the same clone in a different formulation.

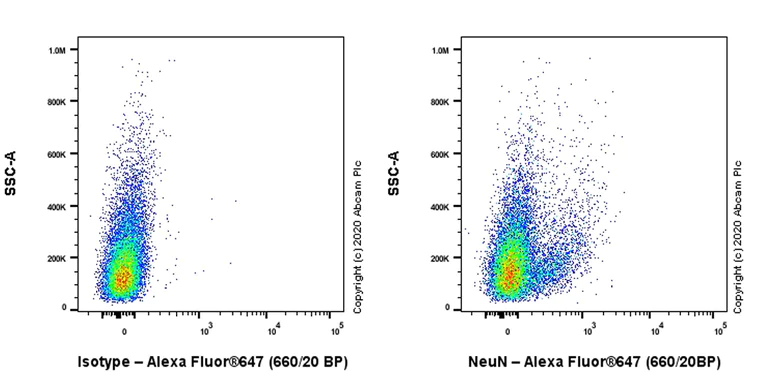

Flow cytometric analysis of 4% paraformaldehyde-fixed, 90% methanol-permeabilized rat primary neural/glia cells labelling NeuN with ab279295 at 1/1000 dilution (0.1μg)/ Right compared with a Mouse monoclonal IgG isotype control/ Left.

Goat Anti-Mouse IgG (Alexa Fluor^® 647, ab150119) at 1/2000 dilution was used as the secondary antibody.

• IP

Supplier Data

Immunoprecipitation - Anti-NeuN antibody [EPR12763] - Mouse IgG1 (Chimeric) - BSA and Azide free (AB279307)

This data was produced using ab279295, the same clone in a different formulation.

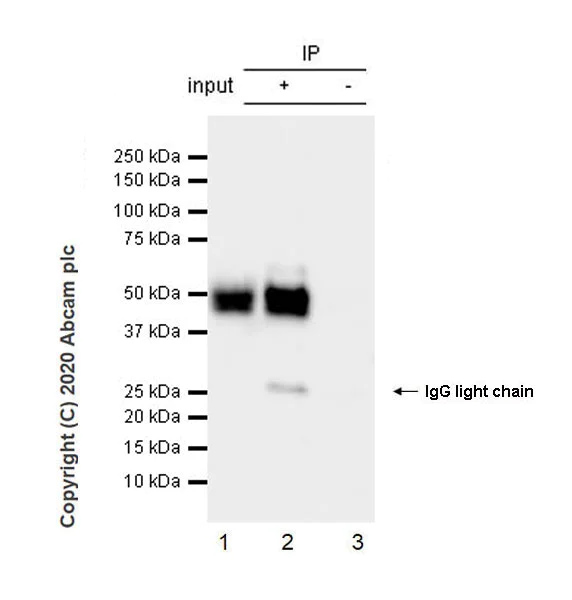

NeuN was immunoprecipitated from 0.35 mg mouse brain tissue lysate 10 μg with ab279295 at 1/30 dilution (2μg in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab279295 at 1/1000 dilution. mouse IgG for IP (HRP) (ab131368) was used at 1/5000 dilution.

Lane 1 : Mouse brain tissue lysate 10μg.

Lane 2 : ab279295 IP in mouse brain tissue lysate.

Lane 3 : Mouse monoclonal IgG1 (ab18443) instead of ab279295 in mouse brain tissue lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 15 seconds.

All lanes:

Immunoprecipitation - Anti-NeuN antibody [EPR12763] - Neuronal Marker - Mouse IgG1 (Chimeric) (<a href='/en-us/products/primary-antibodies/neun-antibody-epr12763-neuronal-marker-mouse-igg1-chimeric-ab279295'>ab279295</a>)

Predicted band size: 34 kDa

false

• WB

Supplier Data

Western blot - Anti-NeuN antibody [EPR12763] - Mouse IgG1 (Chimeric) - BSA and Azide free (AB279307)

This data was produced using ab279295, the same clone in a different formulation.

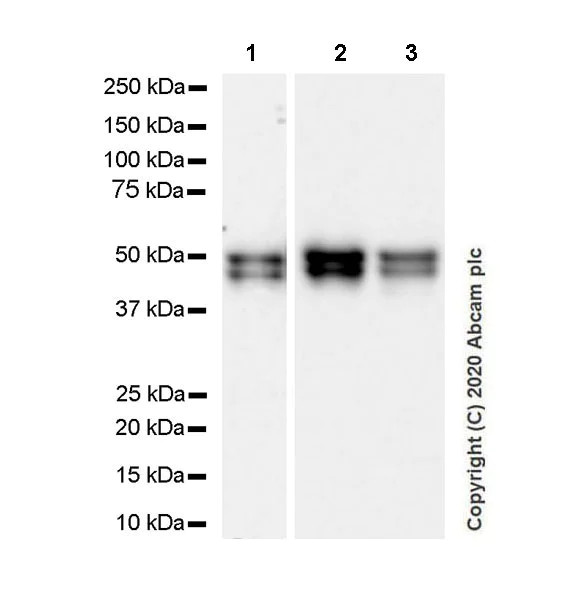

Exposure times : Lane 1 : 3 minutes; Lane 2, 3 : 11.5 seconds.

Blocking/Dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-NeuN antibody [EPR12763] - Neuronal Marker - Mouse IgG1 (Chimeric) (<a href='/en-us/products/primary-antibodies/neun-antibody-epr12763-neuronal-marker-mouse-igg1-chimeric-ab279295'>ab279295</a>) at 1/1000 dilution

Lane 1:

Human brain tissue lysate at 20 µg

Lane 2:

Mouse brain tissue lysate at 20 µg

Lane 3:

Rat brain tissue lysate at 20 µg

Secondary

All lanes:

Peroxidase-Conjugated Goat anti-Mouse IgG (H+L) at 1/5000 dilution

Predicted band size: 34 kDa

false
