AB226489

Anti-NeuroD1 antibody [EPR20766] - BSA and Azide free

Be the first to review this product! Submit a review

|

(2 Publications)

Rabbit Recombinant Monoclonal NeuroD1 antibody. Carrier free. Suitable for IP, WB, Flow Cyt (Intra), IHC-P and reacts with Human, Mouse, Rat samples. Cited in 2 publications.

View Alternative Names

BHLHA3, NEUROD, NEUROD1, Neurogenic differentiation factor 1, NeuroD, NeuroD1, Class A basic helix-loop-helix protein 3, bHLHa3

4 Images
Flow Cytometry (Intracellular) - Anti-NeuroD1 antibody [EPR20766] - BSA and Azide free (AB226489)
  • Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Anti-NeuroD1 antibody [EPR20766] - BSA and Azide free (AB226489)

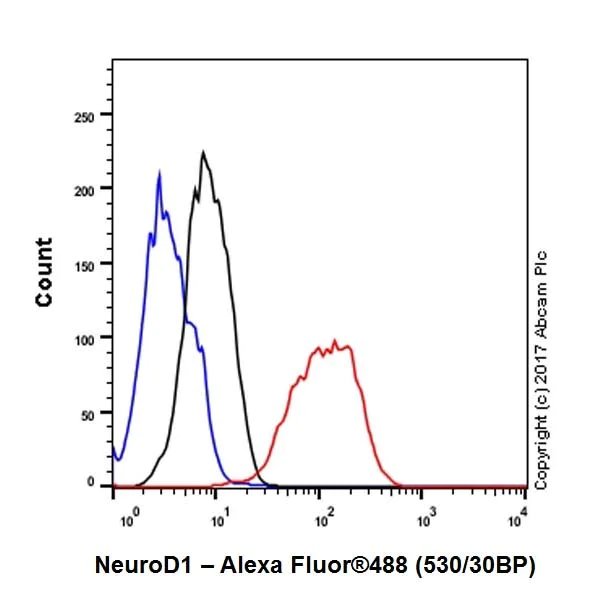

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed, 90% methanol-permeabilized Y79 (human retinoblastoma cell line) cell line labeling NeuroD1 with ab213725 at 1/50 (red) compared with a Rabbit IgG, monoclonal [EPR25A] - Isotype control details (ab172730) (black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (blue).

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077), at 1/2000 dilution was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab213725).

Immunoprecipitation - Anti-NeuroD1 antibody [EPR20766] - BSA and Azide free (AB226489)
  • IP

Supplier Data

Immunoprecipitation - Anti-NeuroD1 antibody [EPR20766] - BSA and Azide free (AB226489)

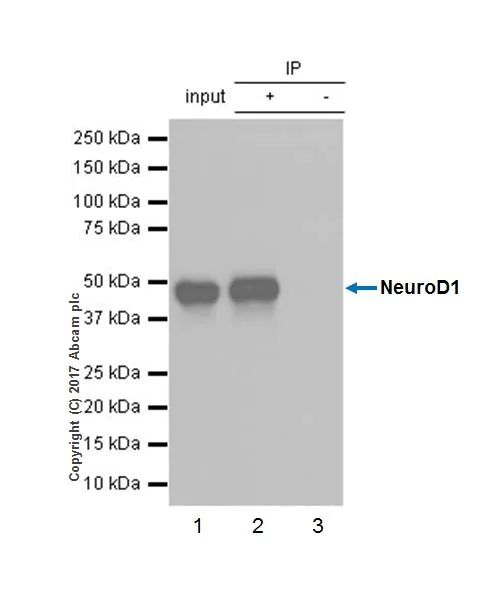

NeuroD1 was immunoprecipitated from 0.35 mg of Y79 (human retinoblastoma cell line) whole cell lysate with ab213725 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab213725 at 1/500 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/1000 dilution.

Lane 1 : Y79 whole cell lysate 10 μg (Input).
Lane 2 : ab213725 IP in Y79 whole cell lysate.
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab213725 in Y79 whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 1 second.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab213725).

All lanes:

Immunoprecipitation - Anti-NeuroD1 antibody [EPR20766] (<a href='/en-us/products/primary-antibodies/neurod1-antibody-epr20766-ab213725'>ab213725</a>)

Predicted band size: 40 kDa

Observed band size: 39 kDa

true

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NeuroD1 antibody [EPR20766] - BSA and Azide free (AB226489)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NeuroD1 antibody [EPR20766] - BSA and Azide free (AB226489)

Immunohistochemical analysis of paraffin-embedded rat hippocampus tissue labeling NeuroD1 with ab213725 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Nuclear staining on subgranular zone of the rat hippocampus (PMID : 19701197, PMID : 25825708) is observed. Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab213725).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NeuroD1 antibody [EPR20766] - BSA and Azide free (AB226489)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NeuroD1 antibody [EPR20766] - BSA and Azide free (AB226489)

Immunohistochemical analysis of paraffin-embedded mouse hippocampus tissue labeling NeuroD1 with ab213725 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Nuclear staining on subgranular zone of the mouse hippocampus dentate gyrus (PMID : 19701197, PMID : 25825708) is observed. Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab213725).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR20766

Isotype

IgG

Carrier free

Yes

Reacts with

Mouse, Rat, Human

Applications

IHC-P, Flow Cyt (Intra), WB, IP

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Alternative Products

Primary Antibodies

AB235145

Anti-NeuroD1 antibody

Western blot - Anti-NeuroD1 antibody (AB235145)

  • 0
  • 0
Primary Antibodies

AB205300

Anti-NeuroD1 antibody [EPR17084]

BOND RX™ Validated|RabMAb|Recombinant|20ul selling size

Immunocytochemistry/ Immunofluorescence - Anti-NeuroD1 antibody [EPR17084] (AB205300)

  • 0
  • 0
Primary Antibodies

AB109224

Anti-NeuroD1 antibody [EPR4008]

20ul selling size|RabMAb|Recombinant

Immunocytochemistry/ Immunofluorescence - Anti-NeuroD1 antibody [EPR4008] (AB109224)

  • 5
  • 1
Primary Antibodies

AB239955

Anti-NeuroD1 antibody [EPR4008] - BSA and Azide free

RabMAb|Recombinant

Immunocytochemistry/ Immunofluorescence - Anti-NeuroD1 antibody [EPR4008] - BSA and Azide free (AB239955)

  • 0
  • 0
Primary Antibodies

AB236148

Anti-NeuroD1 antibody [EPR17084] - BSA and Azide free

BOND RX™ Validated|RabMAb|Recombinant

Immunocytochemistry/ Immunofluorescence - Anti-NeuroD1 antibody [EPR17084] - BSA and Azide free (AB236148)

  • 0
  • 0
Primary Antibodies

AB60704

Anti-NeuroD1 antibody [3H8] - BSA and Azide free

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NeuroD1 antibody [3H8] - BSA and Azide free (AB60704)

  • 4
  • 15

Complementary Products

Primary Antibodies

AB211327

Anti-MASH1/Achaete-scute homolog 1 antibody [EPR19840]

BOND RX™ Validated|RabMAb|Recombinant|Advanced Validation|20ul selling size

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MASH1/Achaete-scute homolog 1 antibody [EPR19840] (AB211327)

  • 4
  • 3
Primary Antibodies

AB177487

Anti-NeuN antibody [EPR12763] - Neuronal Marker

BOND RX™ Validated|RabMAb|Recombinant|Lab Essentials|20ul selling size|Advanced Validation

Immunohistochemistry (Frozen sections) - Anti-NeuN antibody [EPR12763] - Neuronal Marker (AB177487)

  • 5
  • 74
Primary Antibodies

AB15580

Anti-Ki67 antibody

BOND RX™ Validated|KO Validated

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Ki67 antibody (AB15580)

  • 5
  • 230
Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "ICC" : {"fullname" : "Immunocytochemistry", "shortname":"ICC"}, "IHCFr" : {"fullname" : "Immunohistochemistry (Frozen sections)", "shortname":"IHC-Fr"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>", "ICC-species-checked": "notRecommended", "ICC-species-dilution-info": "", "ICC-species-notes": "", "IHCFr-species-checked": "notRecommended", "IHCFr-species-dilution-info": "", "IHCFr-species-notes": "" }, "Mouse": { "IP-species-checked": "guaranteed", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "FlowCytIntra-species-checked": "guaranteed", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p> Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.", "ICC-species-checked": "notRecommended", "ICC-species-dilution-info": "", "ICC-species-notes": "<p></p>", "IHCFr-species-checked": "notRecommended", "IHCFr-species-dilution-info": "", "IHCFr-species-notes": "<p></p>" }, "Rat": { "IP-species-checked": "guaranteed", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "FlowCytIntra-species-checked": "guaranteed", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p> Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.", "ICC-species-checked": "notRecommended", "ICC-species-dilution-info": "", "ICC-species-notes": "", "IHCFr-species-checked": "notRecommended", "IHCFr-species-dilution-info": "", "IHCFr-species-notes": "" } } }
style
left-column

Product details

ab226489 is the carrier-free version of ab213725.

The Human species recommendation is based on the WB results. We do not guarantee IHC-P for Human.

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Do Not Freeze
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

NeuroD1 also referred to as Neurogenic Differentiation 1 is a basic helix-loop-helix transcription factor with a molecular mass of approximately 40 kDa. This protein is expressed mainly in the central nervous system as well as in the pancreas. NeuroD1 plays a role in activating transcription by binding to DNA sequences in specific target genes. This process involves dimerization with E proteins facilitating its function as a transcriptional activator.
Biological function summary

NeuroD1 influences neural development and differentiation. It is vital in converting undifferentiated neural precursors into mature neurons ensuring proper brain formation. NeuroD1 forms part of a transcriptional complex with other neural transcription factors which coordinates the expression of genes needed for neuron specification. Apart from neurogenesis it regulates insulin gene expression in pancreatic beta cells linking neural functions to endocrine regulation.

Pathways

NeuroD1 functions in the neurogenesis pathway and interacts closely with the Notch signaling pathway. It plays a role by influencing the expression of genes essential for neuronal lineage commitment. In the insulin signaling pathway NeuroD1 cooperates with other transcription factors like Pdx1 and MafA managing the expression of insulin and other important beta-cell genes. Interactions with proteins like E47 increase its regulatory effects on these pathways.

Defects in NeuroD1 function connect to conditions such as diabetes mellitus and medulloblastoma. In diabetes mellitus NeuroD1 mutations can disturb insulin gene regulation impacting glucose metabolism severely. The connection with Pdx1 further magnifies its involvement in pancreatic beta-cell function. In medulloblastoma aberrant expression or mutations in NeuroD1 affect neuronal differentiation leading to tumor development. NeuroD1 influences cellular pathways interacting with proteins such as Sox9 which contributes to oncogenic processes in neural tissues.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Acts as a transcriptional activator : mediates transcriptional activation by binding to E box-containing promoter consensus core sequences 5'-CANNTG-3'. Associates with the p300/CBP transcription coactivator complex to stimulate transcription of the secretin gene as well as the gene encoding the cyclin-dependent kinase inhibitor CDKN1A. Contributes to the regulation of several cell differentiation pathways, like those that promote the formation of early retinal ganglion cells, inner ear sensory neurons, granule cells forming either the cerebellum or the dentate gyrus cell layer of the hippocampus, endocrine islet cells of the pancreas and enteroendocrine cells of the small intestine. Together with PAX6 or SIX3, is required for the regulation of amacrine cell fate specification. Also required for dendrite morphogenesis and maintenance in the cerebellar cortex. Associates with chromatin to enhancer regulatory elements in genes encoding key transcriptional regulators of neurogenesis (By similarity).
See full target information NEUROD1
style
left-column

Publications (2)

Recent publications for all applications. Explore the full list and refine your search

Experimental and therapeutic medicine 25:176 PubMed37006878

2023

COL4A1 promotes the proliferation and migration of oral squamous cell carcinoma cells by binding to NID1.

Applications

Unspecified application

Species

Unspecified reactive species

Xiaobei Tian,Jian Sun,Changshun Li,Kun Zhang

Cancer cell 39:1479-1496.e18 PubMed34653364

2021

Signatures of plasticity, metastasis, and immunosuppression in an atlas of human small cell lung cancer.

Applications

Unspecified application

Species

Unspecified reactive species

Joseph M Chan,Álvaro Quintanal-Villalonga,Vianne Ran Gao,Yubin Xie,Viola Allaj,Ojasvi Chaudhary,Ignas Masilionis,Jacklynn Egger,Andrew Chow,Thomas Walle,Marissa Mattar,Dig V K Yarlagadda,James L Wang,Fathema Uddin,Michael Offin,Metamia Ciampricotti,Besnik Qeriqi,Amber Bahr,Elisa de Stanchina,Umesh K Bhanot,W Victoria Lai,Matthew J Bott,David R Jones,Arvin Ruiz,Marina K Baine,Yanyun Li,Natasha Rekhtman,John T Poirier,Tal Nawy,Triparna Sen,Linas Mazutis,Travis J Hollmann,Dana Pe'er,Charles M Rudin
