Rabbit Recombinant Monoclonal Niemann Pick C2 antibody. Suitable for WB, IHC-P and reacts with Mouse, Rat, Human samples.

Be the first to review this product! Submit a review

Images

Western blot - Anti-Niemann Pick C2 antibody [EPR19993] (AB207158), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Niemann Pick C2 antibody [EPR19993] (AB207158), expandable thumbnail
  • Western blot - Anti-Niemann Pick C2 antibody [EPR19993] (AB207158), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Niemann Pick C2 antibody [EPR19993] (AB207158), expandable thumbnail
  • Western blot - Anti-Niemann Pick C2 antibody [EPR19993] (AB207158), expandable thumbnail

Key facts

Isotype
IgG
Host species
Rabbit
Storage buffer

pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Abcam Recommends

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
WBIHC-P
Human
Tested
Tested
Mouse
Tested
Tested
Rat
Tested
Tested

Tested
Tested

Species
Mouse
Dilution info
1/1000
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Species
Rat
Dilution info
1/1000
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Species
Human
Dilution info
1/1000
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Tested
Tested

Species
Mouse
Dilution info
1/4000
Notes

ab93684 can be used for antigen retrieval buffer.

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Species
Rat
Dilution info
1/4000
Notes

ab93684 can be used for antigen retrieval buffer.

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Species
Human
Dilution info
1/4000
Notes

ab93684 can be used for antigen retrieval buffer.

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Associated Products

Select an associated product type

3 products for Alternative Product

1 product for Alternative Version

Target data

Function

Intracellular cholesterol transporter which acts in concert with NPC1 and plays an important role in the egress of cholesterol from the lysosomal compartment (PubMed:11125141, PubMed:15937921, PubMed:17018531, PubMed:18772377, PubMed:29580834). Unesterified cholesterol that has been released from LDLs in the lumen of the late endosomes/lysosomes is transferred by NPC2 to the cholesterol-binding pocket in the N-terminal domain of NPC1 (PubMed:17018531, PubMed:18772377, PubMed:27238017). May bind and mobilize cholesterol that is associated with membranes (PubMed:18823126). NPC2 binds cholesterol with a 1:1 stoichiometry (PubMed:17018531). Can bind a variety of sterols, including lathosterol, desmosterol and the plant sterols stigmasterol and beta-sitosterol (PubMed:17018531). The secreted form of NCP2 regulates biliary cholesterol secretion via stimulation of ABCG5/ABCG8-mediated cholesterol transport (By similarity).

Alternative names

HE1, NPC2, NPC intracellular cholesterol transporter 2, Epididymal secretory protein E1, Human epididymis-specific protein 1, Niemann-Pick disease type C2 protein, He1

Recommended products

Rabbit Recombinant Monoclonal Niemann Pick C2 antibody. Suitable for WB, IHC-P and reacts with Mouse, Rat, Human samples.

Key facts

Isotype
IgG
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number
EPR19993
Purification technique
Affinity purification Protein A
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

The Niemann Pick C2 protein (NPC2) is a small intracellular cholesterol transport protein weighing approximately 16 kDa. Alternately referred to as "NPC2 protein" or "NPC 293" it binds with lipids and is predominantly expressed in the lysosome. This protein plays a critical role in the intracellular lipid transport process. NPC2 forms part of a family of proteins tasked with moving cholesterol and other related lipids within lysosomal compartments.

Biological function summary

NPC2 protein facilitates the transfer of cholesterol from lysosomes to other parts of the cell. It operates in tandem with its partner protein Niemann Pick C1 (NPC1) to mediate the egress of cholesterol. The NPC2 protein docks to NPC1 within the lysosomal membrane forming an essential complex in lipid transport. This function is pivotal for the maintenance of cellular cholesterol homeostasis influencing various cellular and systemic functions linked to cholesterol metabolism.

Pathways

NPC2 protein participates prominently in the cholesterol efflux pathways. It associates with the NPC1 protein to regulate the movement of cholesterol from the lysosomal membrane to cytoplasmic areas where it can be utilized or stored. This pathway links NPC2 to significant biological processes like the homeostasis of lipoprotein-derived cholesterol influencing the SREBP pathway which governs lipid synthesis and uptake. Such interactions highlight NPC2's involvement in regulating cellular lipid balance.

Associated diseases and disorders

NPC2 protein dysfunction notably links to Niemann-Pick disease type C a lipid storage disorder. Mutations in the genes encoding NPC2 or NPC1 disrupt cholesterol transportation leading to abnormal lipid accumulation and progressive neurodegeneration. Additionally this protein's dysregulation is indirectly connected to atherosclerosis as such disruptions can result in altered cellular cholesterol management highlighting its interaction with proteins involved in cardiovascular diseases.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

7 product images

  • Western blot - Anti-Niemann Pick C2 antibody [EPR19993] (ab207158), expandable thumbnail

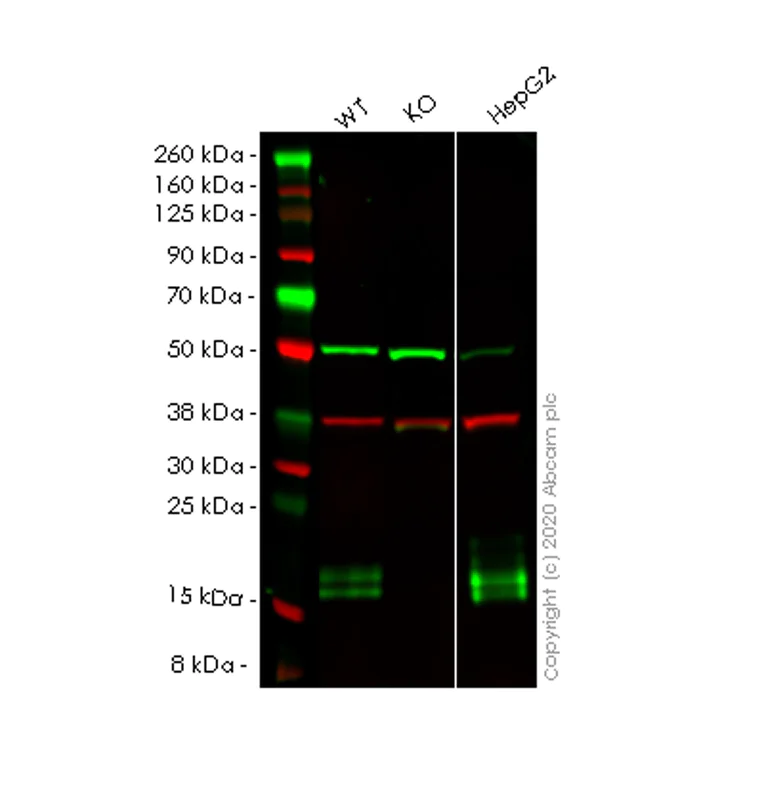

    Western blot - Anti-Niemann Pick C2 antibody [EPR19993] (ab207158)

    Lanes 1-3: Merged signal (red and green). Green - ab207158 observed at 16-18 kDa. Red - loading control Anti-GAPDH antibody [6C5] - Loading Control ab8245 observed at 36 kDa.

    ab207158 Anti-Niemann Pick C2 antibody [EPR19993] was shown to specifically react with Niemann Pick C2 in wild-type HEK-293T cells. Loss of signal was observed when knockout cell line Human NPC2 (Niemann Pick C2) knockout HEK-293T cell line ab266749 (knockout cell lysate Human NPC2 (Niemann Pick C2) knockout HEK-293T cell lysate ab258079) was used. Wild-type and Niemann Pick C2 knockout samples were subjected to SDS-PAGE. ab207158 and Anti-GAPDH antibody [6C5] - Loading Control (Anti-GAPDH antibody [6C5] - Loading Control ab8245) were incubated overnight at 4°C at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

    All lanes: Western blot - Anti-Niemann Pick C2 antibody [EPR19993] (ab207158) at 1/1000 dilution

    Lane 1: Wild-type HEK-293T (Human epithelial cell line from embryonic kidney transformed with large T antigen) whole cell lysate at 20 µg

    Lane 2: NPC2 knockout HEK-293T (Human epithelial cell line from embryonic kidney transformed with large T antigen) whole cell lysate at 20 µg

    Lane 2: Western blot - Human NPC2 (Niemann Pick C2) knockout HEK-293T cell line (Human NPC2 (Niemann Pick C2) knockout HEK-293T cell line ab266749)

    Lane 3: HepG2 (Human liver hepatocellular carcinoma cell line) whole cell lysate at 20 µg

    Secondary

    All lanes: Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) at 1/10000 dilution

    Predicted band size: 17 kDa

    Observed band size: 16-18 kDa

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Niemann Pick C2 antibody [EPR19993] (ab207158), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Niemann Pick C2 antibody [EPR19993] (ab207158)

    Immunohistochemical analysis of paraffin-embedded human endometrium cancer tissue labeling Niemann Pick C2 with ab207158 at 1/4000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution. Cytoplasmic staining on human endometrium cancer is observed. Counter stained with Hematoxylin.

    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.

    Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

  • Western blot - Anti-Niemann Pick C2 antibody [EPR19993] (ab207158), expandable thumbnail

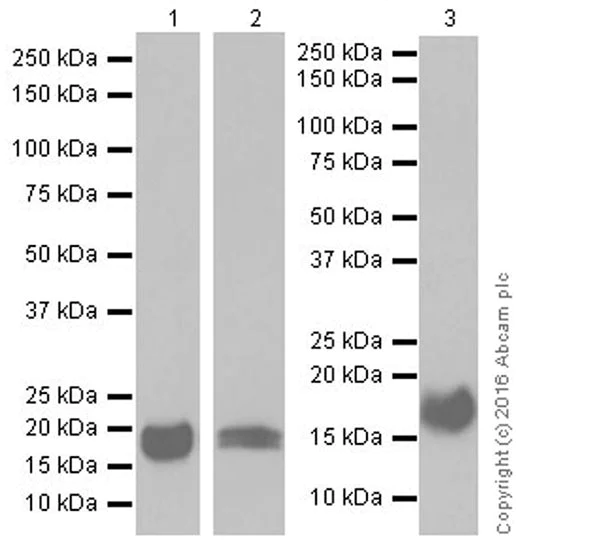

    Western blot - Anti-Niemann Pick C2 antibody [EPR19993] (ab207158)

    Blocking/Dilution buffer: 5% NFDM/TBST.

    Exposure time: Lane 1/2: 3 seconds; Lane 3: 30 seconds.

    NPC2 can be glycosylated, the WB pattern is consistent with references PMID:16374838 and PMID:22183894.

    Lanes 1 and 3: Western blot - Anti-Niemann Pick C2 antibody [EPR19993] (ab207158) at 1/1000 dilution

    Lane 2: Western blot - Anti-Niemann Pick C2 antibody [EPR19993] (ab207158) at 1/10000 dilution

    Lane 1: Human fetal kidney lysate at 10 µg

    Lane 2: HepG2 (Human liver hepatocellular carcinoma cell line) whole cell lysate at 10 µg

    Lane 3: Human spleen lysate at 10 µg

    Secondary

    All lanes: Goat Anti-Rabbit IgG Peroxidase Conjugate, specific to the non-reduced form of IgG at 1/10000 dilution

    Predicted band size: 17 kDa

    Observed band size: 16-18 kDa

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Niemann Pick C2 antibody [EPR19993] (ab207158), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Niemann Pick C2 antibody [EPR19993] (ab207158)

    Immunohistochemical analysis of paraffin-embedded human endometrium tissue labeling Niemann Pick C2 with ab207158 at 1/4000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution. Cytoplasmic staining on human endometrium is observed. Counter stained with Hematoxylin.

    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.

    Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

  • Western blot - Anti-Niemann Pick C2 antibody [EPR19993] (ab207158), expandable thumbnail

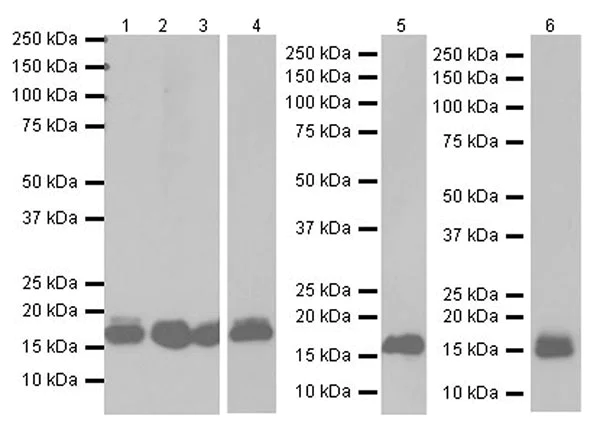

    Western blot - Anti-Niemann Pick C2 antibody [EPR19993] (ab207158)

    Blocking/Dilution buffer: 5% NFDM/TBST.

    Exposure time: Lane 1-3/5: 3 minutes; Lane 4/6: 10 seconds.

    NPC2 can be glycosylated, the WB pattern is consistent with references PMID:16374838 and PMID:22183894.

    All lanes: Western blot - Anti-Niemann Pick C2 antibody [EPR19993] (ab207158) at 1/1000 dilution

    Lane 1: C6 (Rat glial tumor cell line) whole cell lysate at 10 µg

    Lane 2: RAW 264.7 (Mouse macrophage cell line transformed with Abelson murine leukemia virus) whole cell lysate at 10 µg

    Lane 3: PC-12 (Rat adrenal gland pheochromocytoma cell line) whole cell lysate at 10 µg

    Lane 4: NIH/3T3 (Mouse embryonic fibroblast cell line) whole cell lysate at 10 µg

    Lane 5: Mouse spleen lysate at 10 µg

    Lane 6: Rat kidney lysate at 10 µg

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

    Predicted band size: 17 kDa

    Observed band size: 16-18 kDa

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Niemann Pick C2 antibody [EPR19993] (ab207158), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Niemann Pick C2 antibody [EPR19993] (ab207158)

    Immunohistochemical analysis of paraffin-embedded mouse testis tissue labeling Niemann Pick C2 with ab207158 at 1/4000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution. Cytoplasmic staining on mouse testis is observed. Counter stained with Hematoxylin.

    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.

    Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Niemann Pick C2 antibody [EPR19993] (ab207158), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Niemann Pick C2 antibody [EPR19993] (ab207158)

    Immunohistochemical analysis of paraffin-embedded rat kidney tissue labeling Niemann Pick C2 with ab207158 at 1/4000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution. Cytoplasmic staining on rat kidney is observed. Counter stained with Hematoxylin.

    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.

    Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
