Anti-NKG2A antibody [EPR23737-127] - BSA and Azide free

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NKG2A antibody [EPR23737-127] - BSA and Azide free (AB273516)

Immunohistochemical analysis of paraffin-embedded Human gastric cancer tissue labeling NKG2A with ab260035 at 1/2000 dilution followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Positive staining on human gastric cancer (PMID : 11222501).The section was incubated with ab260035 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab260035).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NKG2A antibody [EPR23737-127] - BSA and Azide free (AB273516)

Immunohistochemical analysis of paraffin-embedded Human tonsil tissue labeling NKG2A with ab260035 at 1/2000 dilution followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Positive staining on human tonsil (PMID : 11222501). The section was incubated with ab260035 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab260035).

• Flow Cyt (Intra)

Unknown

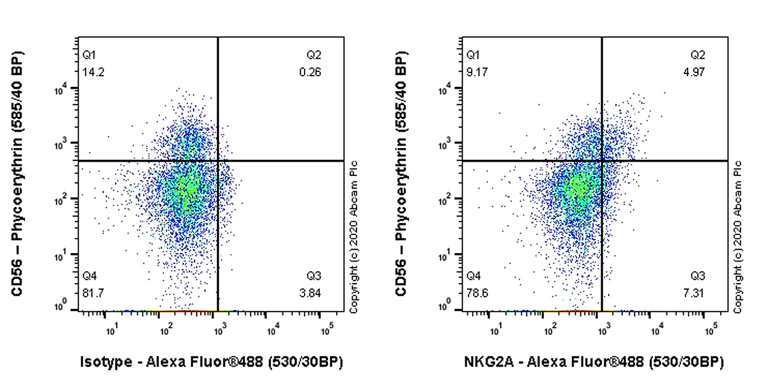

Flow Cytometry (Intracellular) - Anti-NKG2A antibody [EPR23737-127] - BSA and Azide free (AB273516)

Intracellular flow cytometric analysis of 2% paraformaldehyde fixed, 0.1% Tween-20 permeabilized Human peripheral blood mononuclear cell (PBMC) cells labelling NKG2A with ab260035 at 1/500 dilution (0.1ug)/ Right compared with a Rabbit monoclonal IgG (ab172730) isotype control (Left).

A Goat anti rabbit IgG (Alexa Fluor^®488, ab150077) at 1/2000 dilution was used as the secondary antibody.

Cells were stained with anti-CD56 conjugated to PE, then fixed with 2% PFA followed by intracellularly stained with rabbit IgG (Left) or ab260035 (Right).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab260035).

• mIHC

Supplier Data

Multiplex immunohistochemistry - Anti-NKG2A antibody [EPR23737-127] - BSA and Azide free (AB273516)

Fluorescence multiplex immunohistochemical analysis of the human endometrium (Formalin/PFA-fixed paraffin-embedded sections). Panel A : merged staining of anti-EpCAM (ab223582, magenta; Opal™690), anti-NKG2A (ab260035, green; Opal™520) and anti-CD31 (ab182981, red; Opal™570) on human endometrium. Panel B : anti-NKG2A stained on NK cells. Panel C : anti-CD31 stained on endothelial cells. Panel D : anti-EpCAM stained on glandular cells. Opal Polymer HRP Ms + Rb was used as a secondary antibody. The section was incubated in three rounds of staining : in the order of ab223582 at 1/500 dilution (1.008 μg/ml), ab260035 at 1/2000 dilution (0.262 μg/ml) and ab182981 at 1/4000 dilution (0.137 μg/ml) for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system. The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins. DAPI (blue) was used as a nuclear counter stain. This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab260035).
