AB240318

Anti-Nkx2.2 antibody [EPR14638] - BSA and Azide free

BOND RX™ Validated
RabMAb
Recombinant
What is this?

Be the first to review this product! Submit a review

(1 Publication)

Rabbit Recombinant Monoclonal Nkx2.2 antibody. Carrier free. Suitable for ICC/IF, IHC-P and reacts with Rat, Mouse, Human samples. Cited in 1 publication.

View Alternative Names

NKX2.2, NKX2B, NKX2-2, Homeobox protein Nkx-2.2, Homeobox protein NK-2 homolog B

8 Images

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Nkx2.2 antibody [EPR14638] - BSA and Azide free (AB240318)

IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Nkx2.2 antibody [EPR14638] - BSA and Azide free (AB240318)

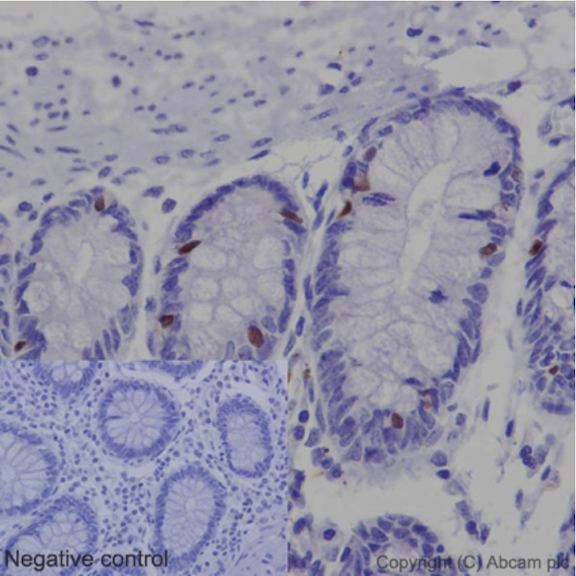

Immunohistochemical analysis of paraffin-embedded Human colon tissue labeling Nkx2.2 with ab191077 at 1/1000. Secondary antibody Goat anti rabbit IgG (HRP) prediluted. Counter stain Hematoxylin. Negative control also shown.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab191077).

Perform heat mediated antigen retrieval with EDTA buffer pH 9 before commencing with IHC staining protocol.

IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Nkx2.2 antibody [EPR14638] - BSA and Azide free (AB240318)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab191077).

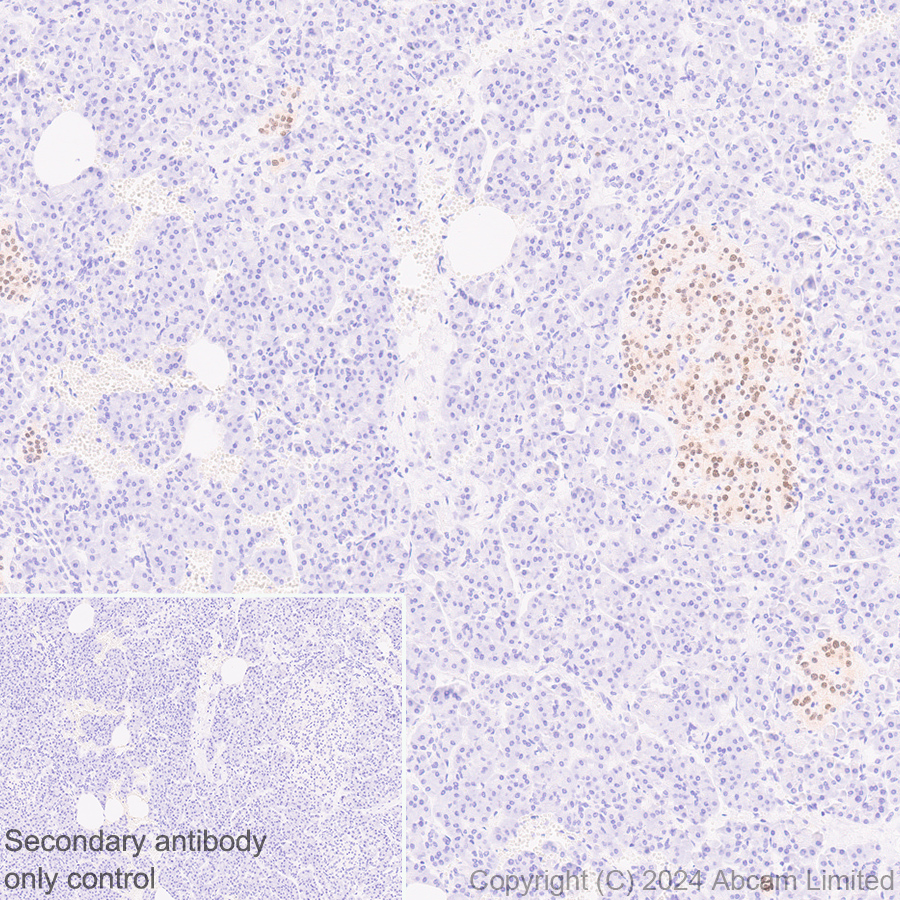

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human pancreas tissue staining with ab191077 at 1/6000 dilution. The secondary was ready-to-use LeicaDS9800 (Bond™ Polymer Refine Detection), and the counterstain was Hematoxylin. Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins. Positive staining on human pancreatic islets. The section was incubated with ab191077 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Nkx2.2 antibody [EPR14638] - BSA and Azide free (AB240318)

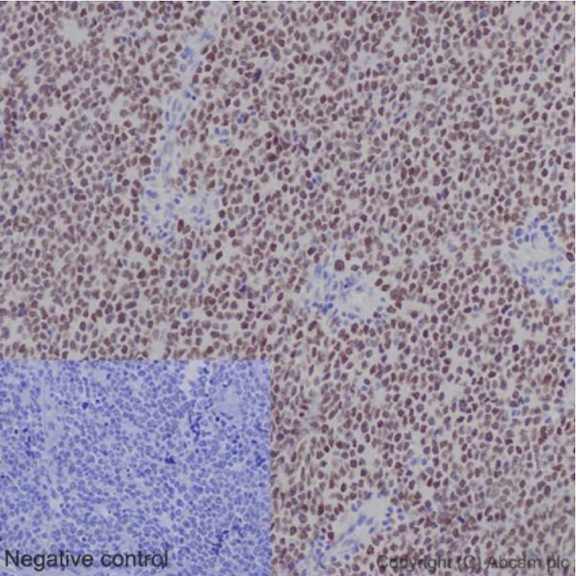

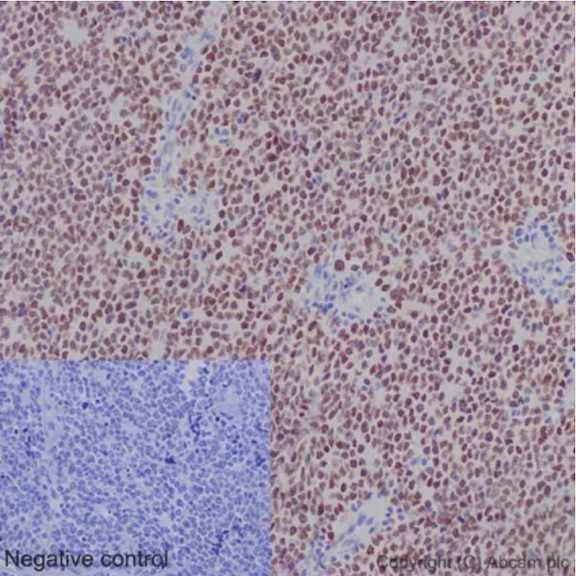

Immunohistochemical analysis of paraffin-embedded Human Ewing sarcoma tissue labeling Nkx2.2 with ab191077 at 1/1000. Secondary antibody Goat anti rabbit IgG (HRP) prediluted. Counter stain Hematoxylin. Negative control also shown.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab191077).

Perform heat mediated antigen retrieval with EDTA buffer pH 9 before commencing with IHC staining protocol.

IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Nkx2.2 antibody [EPR14638] - BSA and Azide free (AB240318)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab191077).

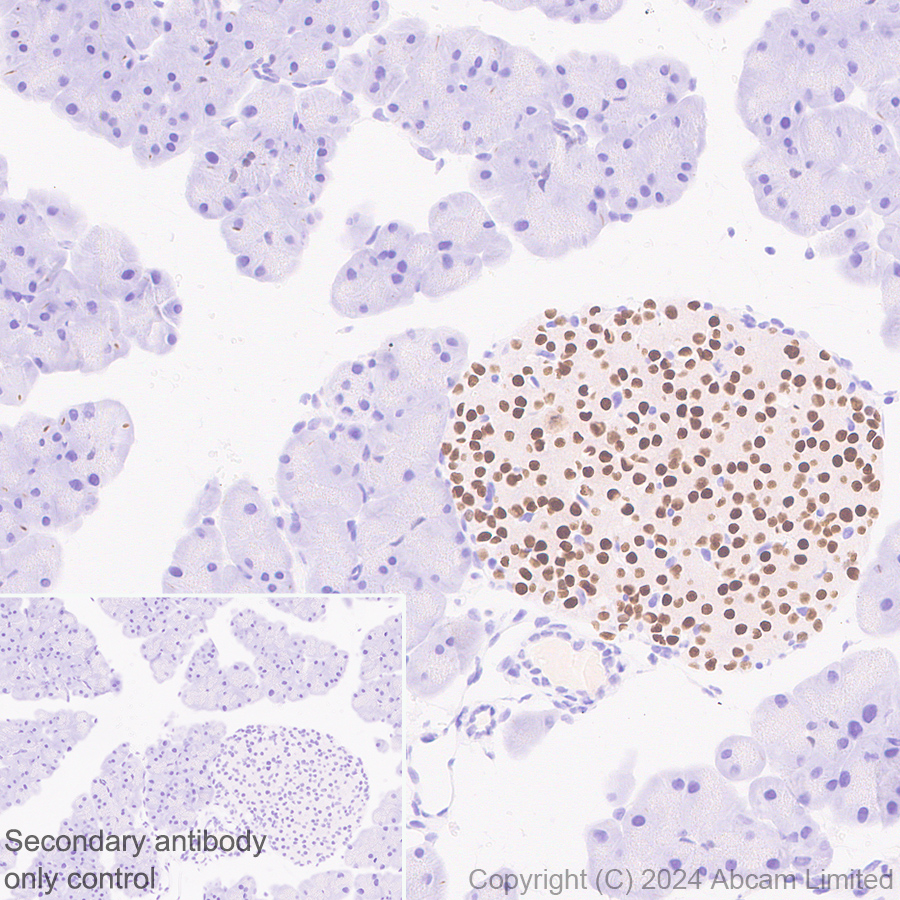

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of mouse pancreas tissue staining with ab191077 at 1/6000 dilution. The secondary was ready-to-use LeicaDS9800 (Bond™ Polymer Refine Detection), and the counterstain was Hematoxylin. Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins. Positive staining on mouse pancreatic islet. The section was incubated with ab191077 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Nkx2.2 antibody [EPR14638] - BSA and Azide free (AB240318)

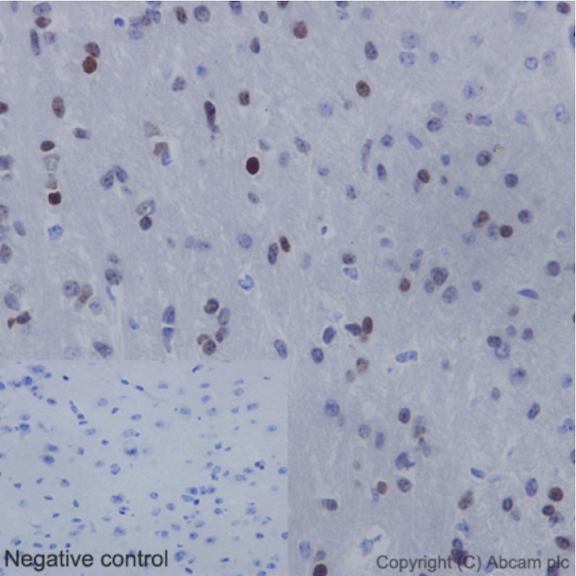

Immunohistochemical analysis of paraffin-embedded Mouse brain tissue labeling Nkx2.2 with ab191077 at 1/1000. Secondary antibody Goat anti rabbit IgG (HRP) prediluted. Counter stain Hematoxylin. Negative control also shown.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab191077).

Perform heat mediated antigen retrieval with EDTA buffer pH 9 before commencing with IHC staining protocol.

IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Nkx2.2 antibody [EPR14638] - BSA and Azide free (AB240318)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab191077).

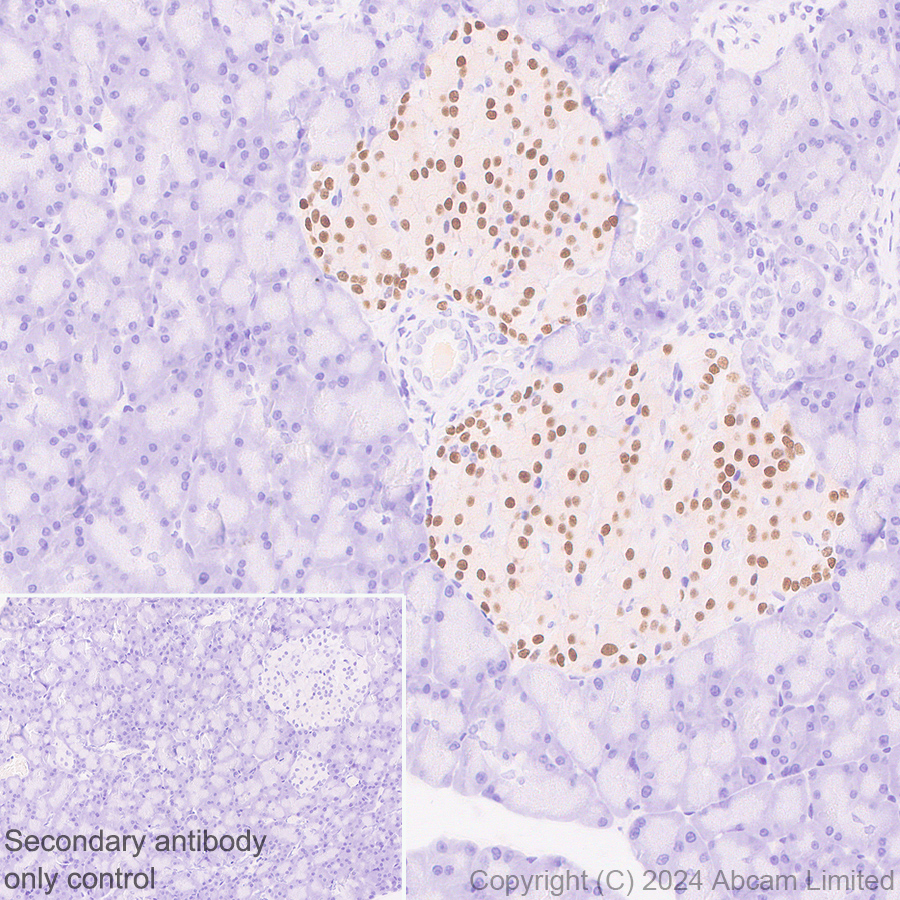

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of rat pancreas tissue staining with ab191077 at 1/6000 dilution. The secondary was ready-to-use LeicaDS9800 (Bond™ Polymer Refine Detection), and the counterstain was Hematoxylin. Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins. Positive staining on rat pancreatic islets. The section was incubated with ab191077 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

Immunocytochemistry/ Immunofluorescence - Anti-Nkx2.2 antibody [EPR14638] - BSA and Azide free (AB240318)

ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-Nkx2.2 antibody [EPR14638] - BSA and Azide free (AB240318)

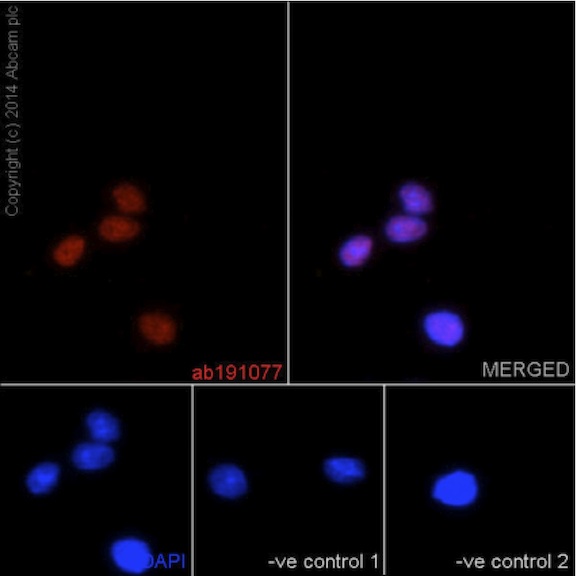

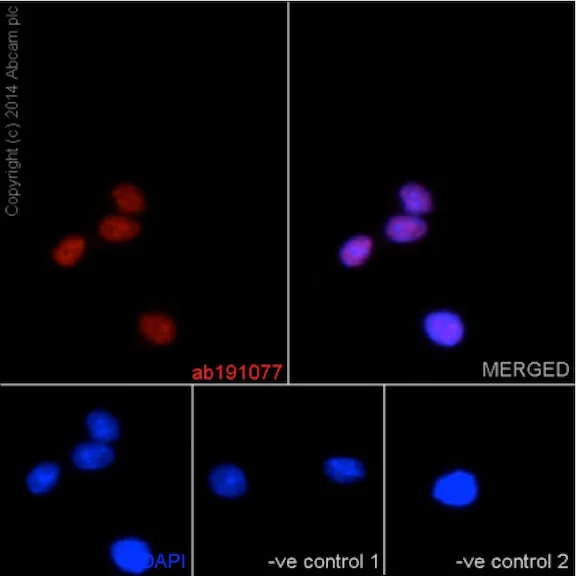

Immunofluorescent analysis of 4% paraformaldehyde-fixed C6 cells labeling Nkx2.2 with ab191077 at 1/50, Goat anti rabbit IgG (Alexa Fluor® 555) at 1/200 and DAPI staining (blue). Negative controls also shown.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab191077).

IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Nkx2.2 antibody [EPR14638] - BSA and Azide free (AB240318)

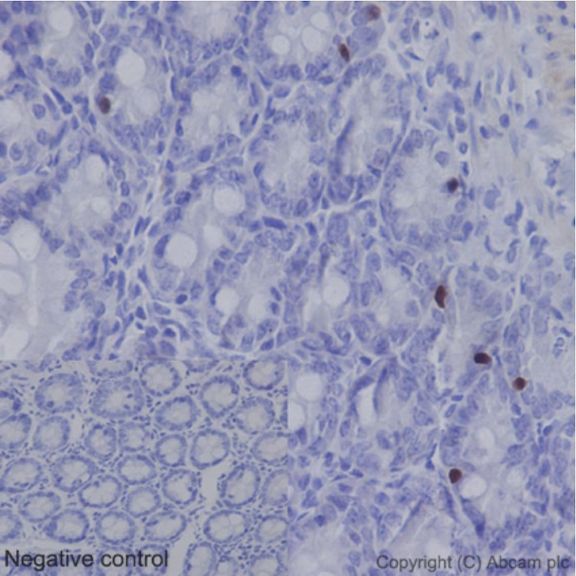

Immunohistochemical analysis of paraffin-embedded Rat colon tissue labeling Nkx2.2 with ab191077 at 1/1000. Secondary antibody Goat anti rabbit IgG (HRP) prediluted. Counter stain Hematoxylin. Negative control also shown.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab191077).

Perform heat mediated antigen retrieval with EDTA buffer pH 9 before commencing with IHC staining protocol.

Unconjugated

Anti-Nkx2.2 antibody [EPR14638] - N-terminal
519 Alexa Fluor® 488

Alexa Fluor® 488 Anti-Nkx2.2 antibody [EPR14638] - N-terminal

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR14638

Isotype

IgG

Carrier free

Yes

Reacts with

Mouse, Rat, Human

Applications

IHC-P, ICC/IF

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style

left-column

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" }, "Mouse": { "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" }, "Rat": { "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" } } }

style

left-column

Product details

ab240318 is the carrier-free version of ab191077.

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar^® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar^® is a trademark of Fluidigm Canada Inc.

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification Protein A

Storage buffer

pH: 7.2 - 7.4 Constituents: PBS

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Storage information

Do Not Freeze

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Nkx2.2 also known as NK2 homeobox 2 is a transcription factor weighing approximately 29 kDa. It plays a pivotal role in early neural development and is important for the differentiation of oligodendrocytes in the central nervous system. Nkx2.2 is expressed in the developing brain and spinal cord. Researchers often use Nkx2.2 immunohistochemistry (IHC) to study its spatial and temporal expression patterns during embryonic development. This protein is part of a group that includes other members such as Nkx2-1 and Nkx2-5 and it shares conserved domains with them.

Biological function summary

Nkx2.2 influences the regulation of specific genes essential for cell fate determination. It interacts with other factors in a regulatory network forming complexes that modulate gene expression necessary for the maturation of neural precursor cells. Notably Nkx2.2 is required for the development of insulin-producing pancreatic beta cells where it works in conjunction with other transcription factors like Pdx1 and Foxa2. Its ability to bind DNA and promote specific gene transcription positions it as an important regulator in the networks driving neural and pancreatic tissue specification.

Pathways

Nkx2.2 is important in the Sonic Hedgehog (Shh) signaling pathway which is instrumental for embryonic neural tube patterning. The Shh pathway directs Nkx2.2 expression in response to morphogen gradients to determine distinct neural progenitor domains. Nkx2.2 expression is closely linked with the transcription factor Olig2 which aligns with specific domains in the ventral neural tube. Moreover Nkx2.2 is involved in the Wnt signaling pathway playing a role in the coordination of cell differentiation and proliferation.

Nkx2.2 has associations with glioma and type 1 diabetes. Abnormal expression may contribute to glioma development by disrupting normal oligodendrocyte precursor cell development. Nkx2.2 dysregulation can also interfere with insulin regulation implicating it in type 1 diabetes progression especially through its interaction with Pdx1 an important player in pancreas development. Understanding Nkx2.2's role in these conditions aids in deciphering underlying mechanisms and provides potential therapeutic targets.

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

Transcriptional activator involved in the development of insulin-producting beta cells in the endocrine pancreas (By similarity). May also be involved in specifying diencephalic neuromeric boundaries, and in controlling the expression of genes that play a role in axonal guidance. Binds to elements within the NEUROD1 promoter (By similarity).

See full target information NKX2-2

style

left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

The Journal of biological chemistry 299:105447 PubMed37949223

2023

Cardioprotective O-GlcNAc signaling is elevated in murine female hearts via enhanced O-GlcNAc transferase activity.

Applications

Unspecified application

Species

Unspecified reactive species

Bhargavi Narayanan,Prithvi Sinha,Roger Henry,Russell A Reeves,Nazareno Paolocci,Mark J Kohr,Natasha E Zachara

View all publications

style

left-column

style

left-column

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
