AB4207

Anti-NLRP3 antibody

3

(9 Reviews)

|

(161 Publications )

Anti-NLRP3 antibody (ab4207) is a goat polyclonal antibody detecting NLRP3 in Western Blot, Flow Cytometry (Intra). Suitable for Human.

- Over 130 publications
- Trusted since 2003
3 Images
Western blot - Anti-NLRP3 antibody (AB4207)
  • WB

Lab

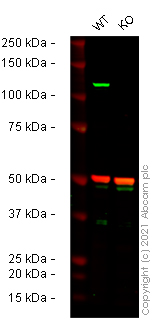

Western blot - Anti-NLRP3 antibody (AB4207)

False colour image of Western blot : Anti-NLRP3 antibody staining at 1/1000 dilution, shown in green; Mouse anti-Alpha Tubulin [DM1A] (ab7291) loading control staining at 1/20000 dilution, shown in red. In Western blot, ab4207 was shown to bind specifically to NLRP3. A band was observed at 118 kDa in wild-type THP-1 cell lysates with no signal observed at this size in NLRP3 knockout cell line ab280063 (knockout cell lysate ab280122). To generate this image, wild-type and NLRP3 knockout THP-1 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in fluorescent western blot (TBS-based) blocking solution before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Donkey anti-Goat IgG H&L (IRDye® 800CW) preabsorbed (ab216775) and Donkey anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed (ab216778) at 1/20000 dilution.

All lanes:

Western blot - Anti-NLRP3 antibody (ab4207) at 1/1000 dilution

Lane 1:

Wild-type THP-1 cell lysate at 20 µg

Lane 2:

NLRP3 knockout THP-1 cell lysate at 20 µg

Lane 2:

Western blot - Human NLRP3 knockout THP-1 cell line (<a href='/en-us/products/cell-lines/human-nlrp3-knockout-thp-1-cell-line-ab280063'>ab280063</a>)

Predicted band size: 118 kDa

Observed band size: 118 kDa

false

Flow Cytometry (Intracellular) - Anti-NLRP3 antibody (AB4207)
  • Flow Cyt (Intra)

AbReview22977****

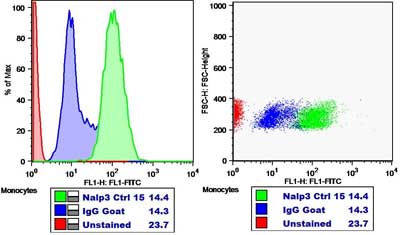

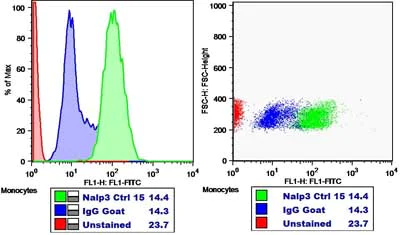

Flow Cytometry (Intracellular) - Anti-NLRP3 antibody (AB4207)

ab4207 staining NLRP3 in the Human White Blood Cells (Mixed Population) by Flow Cytometry. WBC were isolated spinning Blood on Ficoll Gradient after removal of RBC's and permeabilized with 0.1% Triton-X100 in 2% BSA for 15 minutes. The sample was incubated with the primary antibody (1/100 in PBS + 2% BSA in PBS) for 16 hours at 4°C. An Alexa Flour® 488 Donkey Anti Goat IgG (H+L) (1/250) was used as the secondary antibody.
Gating Strategy : Monocytes

This image is courtesy of an Abreview submitted by Mahesh Shivananjappa.

Flow Cytometry (Intracellular) - Anti-NLRP3 antibody (AB4207)
  • Flow Cyt (Intra)

Supplier Data

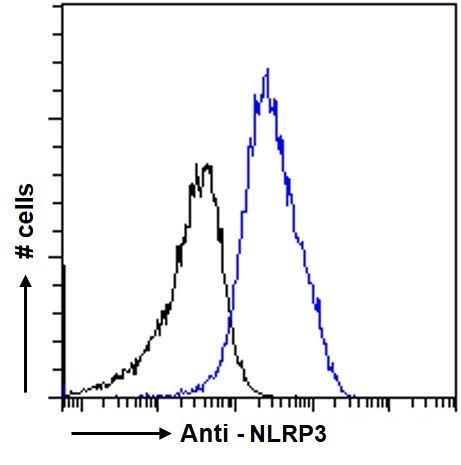

Flow Cytometry (Intracellular) - Anti-NLRP3 antibody (AB4207)

Flow cytometric analysis of paraformaldehyde fixed U937 cells (blue line), permeabilized with 0.5% Triton. Primary incubation with ab4207 was 1hr (10ug/ml) followed by Alexa Fluor® 488 secondary antibody (1ug/ml). IgG control : Unimmunized goat IgG (black line) followed by Alexa Fluor® 488 secondary antibody.

Key facts

Host species

Goat

Clonality

Polyclonal

Isotype

IgG

Carrier free

No

Reacts with

Human

Applications

WB, Flow Cyt (Intra)

applications

Immunogen

Synthetic Peptide within Human NLRP3 aa 1000 to C-terminus. The exact immunogen used to generate this antibody is proprietary information.

Q96P20

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "<p></p>", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "10 µg/mL", "ICCIF-species-notes": "<p></p>", "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "10 µg/mL", "FlowCytIntra-species-notes": "<p><a href='/en-us/products/primary-antibodies/goat-igg-polyclonal-isotype-control-ab37373'>ab37373</a> - Goat polyclonal IgG, is suitable for use as an isotype control with this antibody.</p>" }, "Rat": { "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCytIntra-species-checked": "predicted", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "" }, "Cow": { "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCytIntra-species-checked": "predicted", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "" } } }

Product details

What is this antibody validated in?
Anti-NLRP3 antibody (ab4207) is a goat polyclonal antibody and is validated for use in Western Blot (WB), Flow Cytometry (Intra), Flow Cytometry (Flow Cyt) in Human samples.

What is the molecular weight of NLRP3?
Anti-NLRP3 (ab4207) specifically detects a band for NLRP3 (UniProt: Q96P20) at a molecular weight of 118kDa.

Trusted by the scientific community
Anti-NLRP3 (ab4207) was first used in a scientific publication in 2003 and has been cited over 130 times in peer-reviewed journals.

Reviewed by scientists
Anti-NLRP3 (ab4207) has over 5 independent reviews from customers.

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Immunogen
Purification notes
Purified from goat serum by ammonium sulphate precipitation followed by antigen affinity chromatography using the immunizing peptide.
Storage buffer
pH: 7.3 Preservative: 0.02% Sodium azide Constituents: Tris buffered saline, 0.5% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

NLRP3 also known as NALP3 or cryopyrin is a protein important for the inflammatory response. It is a component of the inflammasome which senses pathogenic microorganisms and stress. NLRP3 weighs around 118 kDa and is widely expressed in innate immune cells particularly macrophages and dendritic cells. Researchers often use techniques such as 'NLRP3 WB' (Western blot) and 'NLRP3 immunofluorescence' to study NLRP3 expression and localization.
Biological function summary

NLRP3 is central to the body’s defense mechanism by participating in forming the inflammasome complex which activates caspase-1. This activation leads to the cleavage of pro-inflammatory cytokines like IL-1Β and IL-18 into their active forms. NLRP3's function is essential for mounting an effective immune response to infections and damage signals. It senses a range of stimuli including crystalline substances and cellular stress triggering an immune response. Its expression is tightly regulated to prevent excessive inflammation.

Pathways

The NLRP3 inflammasome is key in the innate immune response and inflammation pathways. It links cellular stress signals to inflammation through the activation of caspase-1 which is important for the IL-1 signaling pathway. NLRP3 interacts with other proteins like ASC (apoptosis-associated speck-like protein containing a CARD) to form the inflammasome complex which is a core part of the inflammatory signaling pathways and links innate and adaptive immunity.

NLRP3 has a significant role in inflammatory diseases and is linked to conditions like cryopyrin-associated periodic syndromes (CAPS) and gout. Mutations or dysregulation of NLRP3 lead to hyperactivation resulting in autoimmune and autoinflammatory conditions. NLRP3's interaction with IL-1 contributes to the excessive inflammatory response seen in these disorders. Understanding NLRP3's function in these pathways can inform therapeutic approaches targeting chronic inflammatory diseases.

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Target data

Sensor component of the NLRP3 inflammasome, which mediates inflammasome activation in response to defects in membrane integrity, leading to secretion of inflammatory cytokines IL1B and IL18 and pyroptosis (PubMed : 16407889, PubMed : 18403674, PubMed : 18604214, PubMed : 23582325, PubMed : 25686105, PubMed : 27929086, PubMed : 28656979, PubMed : 28847925, PubMed : 30487600, PubMed : 30612879, PubMed : 31086327, PubMed : 31086329, PubMed : 31189953, PubMed : 33231615, PubMed : 34133077, PubMed : 34341353, PubMed : 34512673, PubMed : 36442502, PubMed : 40450990). In response to pathogens and other damage-associated signals that affect the integrity of membranes, initiates the formation of the inflammasome polymeric complex composed of NLRP3, CASP1 and PYCARD/ASC (PubMed : 16407889, PubMed : 18403674, PubMed : 27432880, PubMed : 28847925, PubMed : 31189953, PubMed : 33231615, PubMed : 34133077, PubMed : 34341353, PubMed : 36142182, PubMed : 36442502). Recruitment of pro-caspase-1 (proCASP1) to the NLRP3 inflammasome promotes caspase-1 (CASP1) activation, which subsequently cleaves and activates inflammatory cytokines IL1B and IL18 and gasdermin-D (GSDMD), promoting cytokine secretion and pyroptosis (PubMed : 23582325, PubMed : 28847925, PubMed : 31189953, PubMed : 33231615, PubMed : 34133077, PubMed : 34341353). Activation of NLRP3 inflammasome is also required for HMGB1 secretion; stimulating inflammatory responses (PubMed : 22801494). Involved in the homeostatic wound healing response to tissue injury, a multistep cascade that guides neutrophil migration to necrotic sites while avoiding collateral damage of healthy tissues. ATP released from necrotic cells triggers activation of NLRP3 inflammasome through P2RX7 signaling leading to neutrophil adhesion to the vascular endothelium close to the injury site (By similarity). Under resting conditions, ADP-bound NLRP3 is autoinhibited (PubMed : 35114687). NLRP3 activation stimuli include extracellular ATP, nigericin, reactive oxygen species, crystals of monosodium urate or cholesterol, amyloid-beta fibers, environmental or industrial particles and nanoparticles, such as asbestos, silica, aluminum salts, cytosolic dsRNA, etc (PubMed : 16407889, PubMed : 18403674, PubMed : 18604214, PubMed : 19414800, PubMed : 23871209). Almost all stimuli trigger intracellular K(+) efflux (By similarity). These stimuli lead to membrane perturbation and activation of NLRP3 (By similarity). Upon activation, NLRP3 is transported to microtubule organizing center (MTOC), where it is unlocked by NEK7, leading to its relocalization to dispersed trans-Golgi network (dTGN) vesicle membranes and formation of an active inflammasome complex (PubMed : 36442502, PubMed : 39173637). Associates with dTGN vesicle membranes by binding to phosphatidylinositol 4-phosphate (PtdIns4P) (PubMed : 30487600, PubMed : 34554188). Shows ATPase activity (PubMed : 17483456).. Independently of inflammasome activation, regulates the differentiation of T helper 2 (Th2) cells and has a role in Th2 cell-dependent asthma and tumor growth (By similarity). During Th2 differentiation, required for optimal IRF4 binding to IL4 promoter and for IRF4-dependent IL4 transcription (By similarity). Binds to the consensus DNA sequence 5'-GRRGGNRGAG-3' (By similarity). May also participate in the transcription of IL5, IL13, GATA3, CCR3, CCR4 and MAF (By similarity).
See full target information NLRP3

Alternative Names

C1orf7, CIAS1, NALP3, PYPAF1, NLRP3, Angiotensin/vasopressin receptor AII/AVP-like, Caterpiller protein 1.1, Cold-induced autoinflammatory syndrome 1 protein, Cryopyrin, PYRIN-containing APAF1-like protein 1, CLR1.1

Publications (161)

Recent publications for all applications. Explore the full listand refine your search

Cells 14: PubMed40940788

2025

Prepubertal Diabetes Stagnates Testicular Development by Skewing Autophagy Homeostasis in Leydig Cells.

Applications

Unspecified application

Species

Unspecified reactive species

Zonghao Tang,Youkun Zheng

International journal of molecular sciences 26: PubMed40869318

2025

Tonabersat Inhibits Retinal Inflammation After Hypoxia-Ischemia in the Neonatal Rat.

Applications

Unspecified application

Species

Unspecified reactive species

Jack Jonathan Maran,Alice McDouall,Justin M Dean,Joanne Davidson,Odunayo O Mugisho

Scientific reports 15:10291 PubMed40133367

2025

Exosomal novel-miRNA-126 mediates vascular endothelial dysfunction by targeting AhR-NLRP3 pathway in nonalcoholic steatohepatitis.

Applications

Unspecified application

Species

Unspecified reactive species

Qiuhe Chen,Lifeng Ye,Liting Huang,Hongjing You,Xiaoying Yu,Ke Wang,Shengtao Xiong,Weiyan Liao,Xiao Wang,Haiyan Li,Yang Chen

PLoS pathogens 21:e1012915 PubMed39869629

2025

PRRSV-2 nsp2 Ignites NLRP3 inflammasome through IKKβ-dependent dispersed trans-Golgi network translocation.

Applications

Unspecified application

Species

Unspecified reactive species

Lujie Zhang,Yanni Gao,Haoran Zhou,Xiao Liang,Xiaolin Jiang,Wenqin Gong,Yangyang Sun,Desheng Zhang,Xianwei Wang,Hans Nauwynck,Juan Bai,Ping Jiang

Open medicine (Warsaw, Poland) 19:20241097 PubMed39655049

2024

Purinergic P2X7 receptor mediates hyperoxia-induced injury in pulmonary microvascular endothelial cells via NLRP3-mediated pyroptotic pathway.

Applications

Unspecified application

Species

Unspecified reactive species

Wen Zeng,Zhuyu Deng,Huaying Li,Shuqiang Gao,Rong Ju

Cell death & disease 15:867 PubMed39616223

2024

GEFT inhibits the GSDM-mediated proptosis signalling pathway, promoting the progression and drug resistance of rhabdomyosarcoma.

Applications

Unspecified application

Species

Unspecified reactive species

Fan Yang,Tian Xia,Zhijuan Zhao,Jinyang Lin,Ling Zhong,Tian Tang,Degui Liao,Miaoling Lai,Jiamin Ceng,Lian Meng,Feng Li,Chunxia Liu

Acta pharmaceutica Sinica. B 14:3983-4000 PubMed39309491

2024

Heme oxygenase 1-mediated ferroptosis in Kupffer cells initiates liver injury during heat stroke.

Applications

Unspecified application

Species

Unspecified reactive species

Ru Li,Riqing Wei,Chenxin Liu,Keying Zhang,Sixiao He,Zhifeng Liu,Junhao Huang,Youyong Tang,Qiyuan An,Ligen Lin,Lishe Gan,Liying Zhao,Xiaoming Zou,Fudi Wang,Yuan Ping,Qiang Ma

Communications biology 7:1078 PubMed39223249

2024

Activated tissue-resident macrophages contribute to hair cell insults in noise-induced hearing loss in mice.

Applications

Unspecified application

Species

Unspecified reactive species

Jing Pan,Kaiye Wang,Jiaxi Qu,Dongxiu Chen,Anning Chen,Yunyou You,Jie Tang,Hongzheng Zhang

Journal of neuroinflammation 21:200 PubMed39129007

2024

The dopamine analogue CA140 alleviates AD pathology, neuroinflammation, and rescues synaptic/cognitive functions by modulating DRD1 signaling or directly binding to Abeta.

Applications

Unspecified application

Species

Unspecified reactive species

Sehyun Chae,Hyun-Ju Lee,Ha-Eun Lee,Jieun Kim,Yoo Joo Jeong,Yuxi Lin,Hye Yun Kim,Geoffray Leriche,Rachel S Ehrlich,Sascha Castro Lingl,Min-Duk Seo,Young-Ho Lee,Jerry Yang,Jae-Ick Kim,Hyang-Sook Hoe

Shock (Augusta, Ga.) 61:885-893 PubMed38662580

2024

EARLY FLUID PLUS NOREPINEPHRINE RESUSCITATION DIMINISHES KIDNEY HYPOPERFUSION AND INFLAMMATION IN SEPTIC NEWBORN PIGS.

Applications

Unspecified application

Species

Unspecified reactive species

Mina S Fanous,Julia E de la Cruz,Olugbenga S Michael,Jeremiah M Afolabi,Ravi Kumar,Adebowale Adebiyi
View all publications

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
