Rabbit Recombinant Monoclonal NMDAR2B antibody. Suitable for IP, WB, IHC-P and reacts with Mouse, Rat, Human samples. Cited in 5 publications.

Be the first to review this product! Submit a review

Images

Immunoprecipitation - Anti-NMDAR2B antibody [EPR23460-119] (AB254356), expandable thumbnail
  • Western blot - Anti-NMDAR2B antibody [EPR23460-119] (AB254356), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NMDAR2B antibody [EPR23460-119] (AB254356), expandable thumbnail
  • Western blot - Anti-NMDAR2B antibody [EPR23460-119] (AB254356), expandable thumbnail
  • Immunoprecipitation - Anti-NMDAR2B antibody [EPR23460-119] (AB254356), expandable thumbnail

Publications

Key facts

Isotype
IgG
Host species
Rabbit
Storage buffer

Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
ICC/IFIPFlow CytWBIHC-FrIHC-P
Human
Not recommended
Expected
Not recommended
Tested
Not recommended
Tested
Mouse
Not recommended
Tested
Not recommended
Tested
Not recommended
Tested
Rat
Not recommended
Tested
Not recommended
Tested
Not recommended
Tested

Not recommended
Not recommended

Species
Mouse
Dilution info
-
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Species
Rat
Dilution info
-
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Species
Human
Dilution info
-
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Tested
Tested

Species
Mouse
Dilution info
1/30
Notes

-

Species
Rat
Dilution info
1/30
Notes

-

Expected
Expected

Species
Human
Dilution info
Use at an assay dependent concentration.
Notes

-

Not recommended
Not recommended

Species
Mouse, Rat, Human
Dilution info
-
Notes

-

Tested
Tested

Species
Mouse
Dilution info
1/1000
Notes

-

Species
Rat
Dilution info
1/1000
Notes

-

Species
Human
Dilution info
1/1000
Notes

-

Not recommended
Not recommended

Species
Mouse, Rat, Human
Dilution info
-
Notes

-

Tested
Tested

Species
Mouse
Dilution info
1/1000
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Species
Rat
Dilution info
1/1000
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Species
Human
Dilution info
1/1000
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Target data

Function

Component of N-methyl-D-aspartate (NMDA) receptors (NMDARs) that function as heterotetrameric, ligand-gated cation channels with high calcium permeability and voltage-dependent block by Mg(2+) (PubMed:24272827, PubMed:24863970, PubMed:26875626, PubMed:26919761, PubMed:27839871, PubMed:28095420, PubMed:28126851, PubMed:38538865, PubMed:8768735). Participates in synaptic plasticity for learning and memory formation by contributing to the long-term depression (LTD) of hippocampus membrane currents (By similarity). Channel activation requires binding of the neurotransmitter L-glutamate to the GluN2 subunit, glycine or D-serine binding to the GluN1 subunit, plus membrane depolarization to eliminate channel inhibition by Mg(2+) (PubMed:24272827, PubMed:24863970, PubMed:26875626, PubMed:26919761, PubMed:27839871, PubMed:28095420, PubMed:28126851, PubMed:38538865, PubMed:8768735). NMDARs mediate simultaneously the potasium efflux and the influx of calcium and sodium (By similarity). Each GluN2 subunit confers differential attributes to channel properties, including activation, deactivation and desensitization kinetics, pH sensitivity, Ca2(+) permeability, and binding to allosteric modulators (PubMed:26875626, PubMed:28095420, PubMed:28126851, PubMed:38538865, PubMed:8768735). In concert with DAPK1 at extrasynaptic sites, acts as a central mediator for stroke damage. Its phosphorylation at Ser-1303 by DAPK1 enhances synaptic NMDA receptor channel activity inducing injurious Ca2+ influx through them, resulting in an irreversible neuronal death (By similarity).

Alternative names

NMDAR2B, GRIN2B, GluN2B, Glutamate [NMDA] receptor subunit epsilon-2, N-methyl D-aspartate receptor subtype 2B, N-methyl-D-aspartate receptor subunit 3, NR2B, NR3, hNR3

Recommended products

Rabbit Recombinant Monoclonal NMDAR2B antibody. Suitable for IP, WB, IHC-P and reacts with Mouse, Rat, Human samples. Cited in 5 publications.

Key facts

Isotype
IgG
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number
EPR23460-119
Purification technique
Affinity purification Protein A
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

NMDAR2B also known as NR2B or GluN2B functions as a subunit of the NMDA receptor complex. It plays a role in synaptic transmission and plasticity in the central nervous system. The target weighs approximately 166 kDa. It is highly expressed in the cerebral cortex hippocampus and striatum. NMDAR2B interacts with other subunits in the NMDA receptor which assemble to form a functional ion channel that allows for calcium ion influx when activated by glutamate and glycine.

Biological function summary

The NMDAR2B subunit contributes to the regulation of synaptic strength and is essential for processes involved in learning and memory. As part of the NMDA receptor complex it mediates excitatory neurotransmission and is involved in synaptic plasticity processes such as long-term potentiation (LTP). These functions are significant for cognitive function and neural development. The receptor's role in signal transduction is aided by the unique properties conferred by the NMDAR2B subunit such as its high affinity for glycine and slower deactivation kinetics.

Pathways

NMDAR2B is involved in the glutamatergic signaling pathway which is important for neural communication. It also participates in the calcium signaling pathway affecting cellular responses to external stimuli. The protein interacts with CaMKII and PSD-95 which are proteins that influence synaptic strength and architecture through these pathways. Its involvement links it to a variety of signaling events important for brain function.

Associated diseases and disorders

Alterations in NMDAR2B have been associated with neurodegenerative conditions such as Alzheimer's disease and neurodevelopmental disorders like schizophrenia. The protein's malfunction can lead to abnormal synaptic connectivity and excitotoxicity. It is linked to other proteins associated with these diseases such as beta-amyloid in Alzheimer's and dopamine receptor dysregulation in schizophrenia indicating its role in disease progression and symptom manifestation.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

7 product images

  • Immunoprecipitation - Anti-NMDAR2B antibody [EPR23460-119] (ab254356), expandable thumbnail

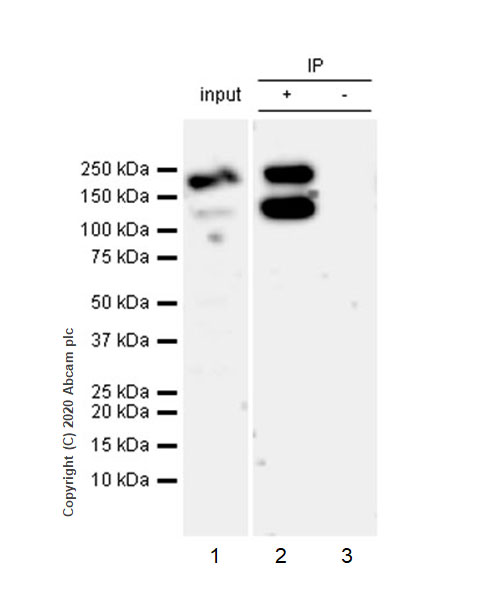

    Immunoprecipitation - Anti-NMDAR2B antibody [EPR23460-119] (ab254356)

    NMDAR2B was immunoprecipitated from 0.35 mg mouse brain tissue lysate 10 μg with ab254356 at 1/30 dilution (2μg in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab254356 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.

    Lane 1: Mouse brain tissue lysate 10 μg.

    Lane 2: ab254356 IP in mouse brain tissue lysate.

    Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab254356 in mouse brain tissue lysate

    Blocking and dilution buffer and concentration: 5% NFDM/TBST.

    Exposure time: 3 minutes.

    Sample loaded onto lane 1 was non-boiled as boiling may cause protein aggregates. The expression profile observed is consistent with what has been described in the literature (PMID: 22523092).

    All lanes: Immunoprecipitation - Anti-NMDAR2B antibody [EPR23460-119] (ab254356)

    Predicted band size: 166 kDa

  • Western blot - Anti-NMDAR2B antibody [EPR23460-119] (ab254356), expandable thumbnail

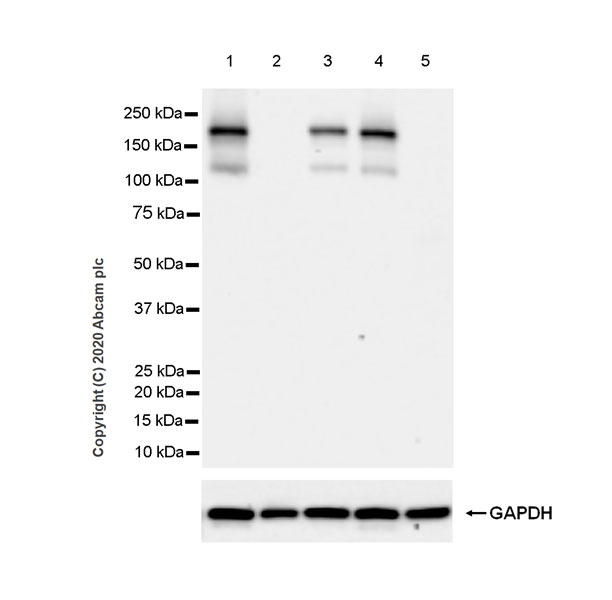

    Western blot - Anti-NMDAR2B antibody [EPR23460-119] (ab254356)

    Blocking and diluting buffer and concentration: 5% NFDM/TBST.

    Samples are non-boiled as boiling may cause protein aggregates.

    Bands of 180KDa and 115KDa respectively represent the full length and endogenously cleaved form.

    The expression profile observed is consistent with what has been described in the literature (PMID: 22523092)

    Negative control: Liver (PMID: 10049997, 9712644).

    Exposure time: 10 seconds.

    Lanes 1, 2, 4 and 5: Western blot - Anti-NMDAR2B antibody [EPR23460-119] (ab254356) at 1/2000 dilution

    Lane 3: Western blot - Anti-NMDAR2B antibody [EPR23460-119] (ab254356) at 1/1000 dilution

    Lane 1: Mouse hippocampus tissue lysate at 10 µg

    Lane 2: Mouse liver tissue lysate at 20 µg

    Lane 3: Rat brain tissue lysate at 10 µg

    Lane 4: Rat hippocampus tissue lysate at 10 µg

    Lane 5: Rat liver tissue lysate at 20 µg

    Secondary

    All lanes: Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

    Predicted band size: 166 kDa

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NMDAR2B antibody [EPR23460-119] (ab254356), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NMDAR2B antibody [EPR23460-119] (ab254356)

    Immunohistochemical analysis of paraffin-embedded human cerebrum tissue labeling NMDAR2B with ab254356 at 1/1000 (0.514 ug/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Positive staining on the human cerebrum (PMID: 7931566). Counterstained with Hematoxylin.

    Secondary antibody only control: Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).

    Heat mediated antigen retrieval using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0).

  • Western blot - Anti-NMDAR2B antibody [EPR23460-119] (ab254356), expandable thumbnail

    Western blot - Anti-NMDAR2B antibody [EPR23460-119] (ab254356)

    Blocking and diluting buffer and concentration: 5% NFDM/TBST.

    Samples are non-boiled as boiling may cause protein aggregates.

    Bands of 180KDa, 150KDa and 115KDa respectively represent the full length and endogenously cleaved form.

    The expression profile observed is consistent with what has been described in the literature (PMID: 22523092).

    Exposure time: 48 seconds.

    All lanes: Western blot - Anti-NMDAR2B antibody [EPR23460-119] (ab254356) at 1/1000 dilution

    All lanes: Human hippocampus tissue lysate at 20 µg

    Secondary

    All lanes: Western blot - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/100000 dilution

    Predicted band size: 166 kDa

  • Immunoprecipitation - Anti-NMDAR2B antibody [EPR23460-119] (ab254356), expandable thumbnail

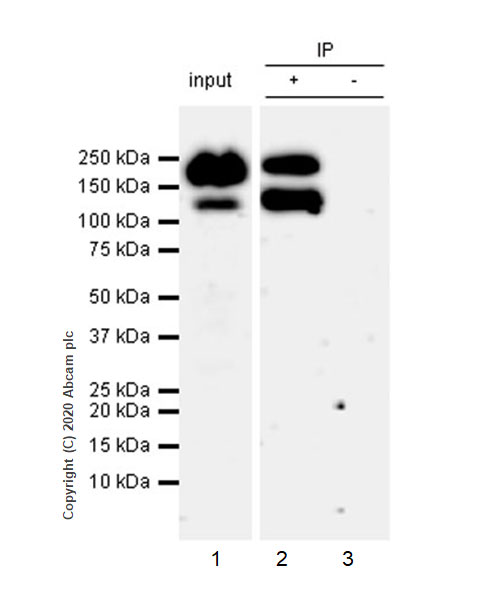

    Immunoprecipitation - Anti-NMDAR2B antibody [EPR23460-119] (ab254356)

    NMDAR2B was immunoprecipitated from 0.35 mg rat brain tissue lysate 10 μg with ab254356 at 1/30 dilution (2μg in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab254356 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.

    Lane 1: Rat brain tissue lysate 10 μg.

    Lane 2: ab254356 IP in rat brain tissue lysate.

    Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab254356 in rat brain tissue lysate.

    Blocking and dilution buffer and concentration: 5% NFDM/TBST.

    Exposure time: 3 minutes.

    Sample loaded onto lane 1 was non-boiled as boiling may cause protein aggregates. The expression profile observed is consistent with what has been described in the literature (PMID: 22523092).

    All lanes: Immunoprecipitation - Anti-NMDAR2B antibody [EPR23460-119] (ab254356)

    Predicted band size: 166 kDa

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NMDAR2B antibody [EPR23460-119] (ab254356), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NMDAR2B antibody [EPR23460-119] (ab254356)

    Immunohistochemical analysis of paraffin-embedded mouse hippocampus tissue labeling NMDAR2B with ab254356 at 1/1000 (0.514 ug/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Positive staining on the mouse hippocampus (PMID: 7931566). The section was incubated with ab254356 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.

    Secondary antibody only control: Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).

    Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NMDAR2B antibody [EPR23460-119] (ab254356), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NMDAR2B antibody [EPR23460-119] (ab254356)

    Immunohistochemical analysis of paraffin-embedded rat hippocampus tissue labeling NMDAR2B with ab254356 at 1/1000 (0.514 ug/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Positive staining on the rat hippocampus (PMID: 7931566). The section was incubated with ab254356 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.

    Secondary antibody only control: Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).

    Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.
