Rabbit Recombinant Monoclonal OPA1 antibody. Suitable for IHC-P, WB, IHC-Fr and reacts with Human, Mouse samples. Cited in 69 publications.


Images

Immunohistochemistry (Frozen sections) - Anti-OPA1 antibody [EPR11057(B)] (AB157457), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-OPA1 antibody [EPR11057(B)] (AB157457), expandable thumbnail
  • Western blot - Anti-OPA1 antibody [EPR11057(B)] (AB157457), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-OPA1 antibody [EPR11057(B)] (AB157457), expandable thumbnail
  • Western blot - Anti-OPA1 antibody [EPR11057(B)] (AB157457), expandable thumbnail

Publications

Key facts

Isotype
IgG
Host species
Rabbit
Storage buffer

pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 50% Tissue culture supernatant, 40% Glycerol (glycerin, glycerine), 9% PBS, 0.05% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IHC-PIPWBICC/IFIHC-Fr
Human
Tested
Not recommended
Tested
Not recommended
Expected
Mouse
Expected
Not recommended
Expected
Not recommended
Tested
Rat
Predicted
Not recommended
Predicted
Not recommended
Predicted
Bat
Predicted
Not recommended
Predicted
Not recommended
Predicted
Chicken
Predicted
Not recommended
Predicted
Not recommended
Predicted
Chinese hamster
Predicted
Not recommended
Predicted
Not recommended
Predicted
Common marmoset
Predicted
Not recommended
Predicted
Not recommended
Predicted
Guinea pig
Predicted
Not recommended
Predicted
Not recommended
Predicted
Horse
Predicted
Not recommended
Predicted
Not recommended
Predicted
Pig
Predicted
Not recommended
Predicted
Not recommended
Predicted
Primates
Predicted
Not recommended
Predicted
Not recommended
Predicted
Rabbit
Predicted
Not recommended
Predicted
Not recommended
Predicted
Sheep
Predicted
Not recommended
Predicted
Not recommended
Predicted

Tested
Tested

Species
Human
Dilution info
1/250 - 1/500
Notes

Perform heat-mediated antigen retrieval before commencing with IHC staining protocol.

Expected
Expected

Species
Mouse
Dilution info
Use at an assay dependent concentration.
Notes

-

Predicted
Predicted

Species
Rat, Sheep, Rabbit, Horse, Chicken, Guinea pig, Pig, Primates, Chinese hamster, Common marmoset, Bat
Dilution info
-
Notes

-

Not recommended
Not recommended

Species
Mouse, Human, Rat, Sheep, Rabbit, Horse, Chicken, Guinea pig, Pig, Primates, Chinese hamster, Common marmoset, Bat
Dilution info
-
Notes

-

Tested
Tested

Species
Human
Dilution info
1/1000 - 1/5000
Notes

-

Expected
Expected

Species
Mouse
Dilution info
Use at an assay dependent concentration.
Notes

-

Predicted
Predicted

Species
Rat, Sheep, Rabbit, Horse, Chicken, Guinea pig, Pig, Primates, Chinese hamster, Common marmoset, Bat
Dilution info
-
Notes

-

Not recommended
Not recommended

Species
Mouse, Human, Rat, Sheep, Rabbit, Horse, Chicken, Guinea pig, Pig, Primates, Chinese hamster, Common marmoset, Bat
Dilution info
-
Notes

-

Tested
Tested

Species
Mouse
Dilution info
1/250
Notes

Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20)

Expected
Expected

Species
Human
Dilution info
Use at an assay dependent concentration.
Notes

-

Predicted
Predicted

Species
Rat, Sheep, Rabbit, Horse, Chicken, Guinea pig, Pig, Primates, Chinese hamster, Common marmoset, Bat
Dilution info
-
Notes

-

Associated Products

Select an associated product type

3 products for Alternative Product

Target data

Function

Dynamin-related GTPase that is essential for normal mitochondrial morphology by mediating fusion of the mitochondrial inner membranes, regulating cristae morphology and maintaining respiratory chain function (PubMed:16778770, PubMed:17709429, PubMed:20185555, PubMed:24616225, PubMed:28628083, PubMed:28746876, PubMed:31922487, PubMed:32228866, PubMed:32567732, PubMed:33130824, PubMed:33237841, PubMed:37612504, PubMed:37612506). Exists in two forms: the transmembrane, long form (Dynamin-like GTPase OPA1, long form; L-OPA1), which is tethered to the inner mitochondrial membrane, and the short soluble form (Dynamin-like GTPase OPA1, short form; S-OPA1), which results from proteolytic cleavage and localizes in the intermembrane space (PubMed:31922487, PubMed:32228866, PubMed:33237841, PubMed:37612504, PubMed:37612506). Both forms (L-OPA1 and S-OPA1) cooperate to catalyze the fusion of the mitochondrial inner membrane (PubMed:31922487, PubMed:37612504, PubMed:37612506). The equilibrium between L-OPA1 and S-OPA1 is essential: excess levels of S-OPA1, produced by cleavage by OMA1 following loss of mitochondrial membrane potential, lead to an impaired equilibrium between L-OPA1 and S-OPA1, inhibiting mitochondrial fusion (PubMed:20038677, PubMed:31922487). The balance between L-OPA1 and S-OPA1 also influences cristae shape and morphology (By similarity). Involved in remodeling cristae and the release of cytochrome c during apoptosis (By similarity). Proteolytic processing by PARL in response to intrinsic apoptotic signals may lead to disassembly of OPA1 oligomers and release of the caspase activator cytochrome C (CYCS) into the mitochondrial intermembrane space (By similarity). Acts as a regulator of T-helper Th17 cells, which are characterized by cells with fused mitochondria with tight cristae, by mediating mitochondrial membrane remodeling: OPA1 is required for interleukin-17 (IL-17) production (By similarity). Its role in mitochondrial morphology is required for mitochondrial genome maintenance (PubMed:18158317, PubMed:20974897). Dynamin-like GTPase OPA1, long form. Constitutes the transmembrane long form (L-OPA1) that plays a central role in mitochondrial inner membrane fusion and cristae morphology (PubMed:31922487, PubMed:32228866, PubMed:37612504, PubMed:37612506). L-OPA1 and the soluble short form (S-OPA1) form higher-order helical assemblies that coordinate the fusion of mitochondrial inner membranes (PubMed:31922487, PubMed:37612504, PubMed:37612506). Inner membrane-anchored L-OPA1 molecules initiate membrane remodeling by recruiting soluble S-OPA1 to rapidly polymerize into a flexible cylindrical scaffold encaging the mitochondrial inner membrane (PubMed:37612504, PubMed:37612506). Once at the membrane surface, the formation of S-OPA1 helices induce bilayer curvature (PubMed:37612504, PubMed:37612506). OPA1 dimerization through the paddle region, which inserts into cardiolipin-containing membrane, promotes GTP hydrolysis and the helical assembly of a flexible OPA1 lattice on the membrane, which drives membrane curvature and mitochondrial fusion (PubMed:28628083, PubMed:37612504, PubMed:37612506). Plays a role in the maintenance and remodeling of mitochondrial cristae, some invaginations of the mitochondrial inner membrane that provide an increase in the surface area (PubMed:32567732, PubMed:33130824). Probably acts by forming helical filaments at the inside of inner membrane tubes with the shape and dimensions of crista junctions (By similarity). The equilibrium between L-OPA1 and S-OPA1 influences cristae shape and morphology: increased L-OPA1 levels promote cristae stacking and elongated mitochondria, while increased S-OPA1 levels correlated with irregular cristae packing and round mitochondria shape (By similarity). Dynamin-like GTPase OPA1, short form. Constitutes the soluble short form (S-OPA1) generated by cleavage by OMA1, which plays a central role in mitochondrial inner membrane fusion and cristae morphology (PubMed:31922487, PubMed:32228866, PubMed:32245890, PubMed:37612504, PubMed:37612506). The transmembrane long form (L-OPA1) and the S-OPA1 form higher-order helical assemblies that coordinate the fusion of mitochondrial inner membranes (PubMed:31922487, PubMed:32228866, PubMed:37612504, PubMed:37612506). Inner membrane-anchored L-OPA1 molecules initiate membrane remodeling by recruiting soluble S-OPA1 to rapidly polymerize into a flexible cylindrical scaffold encaging the mitochondrial inner membrane (PubMed:32228866, PubMed:37612504, PubMed:37612506). Once at the membrane surface, the formation of S-OPA1 helices induce bilayer curvature (PubMed:37612504, PubMed:37612506). OPA1 dimerization through the paddle region, which inserts into cardiolipin-containing membrane, promotes GTP hydrolysis and the helical assembly of a flexible OPA1 lattice on the membrane, which drives membrane curvature and mitochondrial fusion (PubMed:28628083, PubMed:37612504, PubMed:37612506). Excess levels of S-OPA1 produced by cleavage by OMA1 following stress conditions that induce loss of mitochondrial membrane potential, lead to an impaired equilibrium between L-OPA1 and S-OPA1, thereby inhibiting mitochondrial fusion (PubMed:20038677). Involved in mitochondrial safeguard in response to transient mitochondrial membrane depolarization by mediating flickering: cleavage by OMA1 leads to excess production of S-OPA1, preventing mitochondrial hyperfusion (By similarity). Plays a role in the maintenance and remodeling of mitochondrial cristae, some invaginations of the mitochondrial inner membrane that provide an increase in the surface area (PubMed:32245890). Probably acts by forming helical filaments at the inside of inner membrane tubes with the shape and dimensions of crista junctions (By similarity). The equilibrium between L-OPA1 and S-OPA1 influences cristae shape and morphology: increased L-OPA1 levels promote cristae stacking and elongated mitochondria, while increased S-OPA1 levels correlated with irregular cristae packing and round mitochondria shape (By similarity). Isoform 1. Coexpression of isoform 1 with shorter alternative products is required for optimal activity in promoting mitochondrial fusion. Isoform 4. Isoforms that contain the alternative exon 4b are required for mitochondrial genome maintenance, possibly by anchoring the mitochondrial nucleoids to the inner mitochondrial membrane. Isoform 5. Isoforms that contain the alternative exon 4b are required for mitochondrial genome maintenance, possibly by anchoring the mitochondrial nucleoids to the inner mitochondrial membrane.

Alternative names

Recommended products

Rabbit Recombinant Monoclonal OPA1 antibody. Suitable for IHC-P, WB, IHC-Fr and reacts with Human, Mouse samples. Cited in 69 publications.

Key facts

Isotype
IgG
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number
EPR11057(B)
Purification technique
Affinity purification Protein A
Specificity

Recent lab testing showed that the antibody detects the band of interest at the proper molecular weight in several cell and tissue lysates. However, the antibody also detects a band at about 50kDa. We could not find in the literature any references on what this band could be. On our test, the 50kDa band detections decreased by decreasing the antibody concentration.

Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

OPA1 also known as optic atrophy 1 is a dynamin-related GTPase protein important for mitochondrial fusion. OPA1 has a molecular weight of about 120 kDa and is present mostly in the inner mitochondrial membrane. It promotes the maintenance of mitochondrial DNA cristae structures and the modulation of mitochondrial dynamics. Expression of OPA1 occurs in tissues with high energy demands including the retina brain and muscles. Detection of the OPA1 protein can be done using techniques such as Western blot and it reveals different isoforms generated through alternative splicing.

Biological function summary

Mitochondrial dynamics involving OPA1 ensure energy production efficiency and cell health. OPA1 plays a role in mitochondrial fusion by forming a complex with mitofusins MFN1 and MFN2. This complex maintains the integrity of mitochondrial networks facilitates proper respiratory function and prevents apoptosis by regulating cristae junctions. It also participates in the stress response particularly in the preservation of the mitochondrial structure and function under challenging conditions.

Pathways

OPA1 integrates into the mitochondrial fusion and fission pathways important for cellular energy metabolism. It works alongside proteins like DRP1 in balancing these processes. The involvement in these pathways is essential for cellular adaptation to metabolic needs and stress. OPA1 also has a relationship with the PINK1/Parkin pathway where its regulation affects mitophagy a process of clearing damaged mitochondria. These interactions highlight the importance of OPA1 in maintaining cellular and mitochondrial homeostasis.

Associated diseases and disorders

Mutations in OPA1 have been linked to autosomal dominant optic atrophy and a range of neurodegenerative conditions. The protein’s dysfunction leads to the degeneration of the retinal ganglion cells and their axons resulting in vision loss. OPA1 also shows connections to disorders like Charcot-Marie-Tooth disease where its interaction with other proteins like MFN2 plays a role. Deficiency or dysfunction of OPA1 disrupts mitochondrial dynamics leading to cellular energy deficits and contributing to disease pathophysiology.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

5 product images

  • Immunohistochemistry (Frozen sections) - Anti-OPA1 antibody [EPR11057(B)] (ab157457), expandable thumbnail

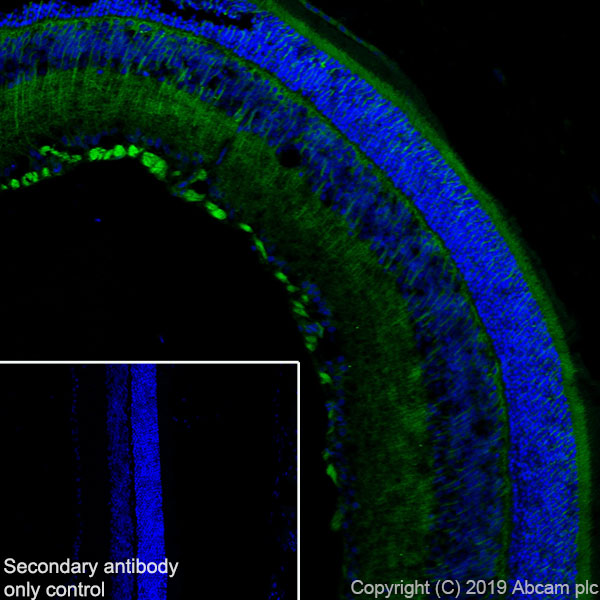

    Immunohistochemistry (Frozen sections) - Anti-OPA1 antibody [EPR11057(B)] (ab157457)

    Immunohistochemistry (Frozen sections) analysis of mouse retina tissue sections labeling OPA1 with Purified ab157457 at 1/250 (1.1 µg/ml).Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20). Goat anti rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) was used as the secondary antibody. Negative control: PBS instead of the primary antibody. DAPI was used as a counterstain.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-OPA1 antibody [EPR11057(B)] (ab157457), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-OPA1 antibody [EPR11057(B)] (ab157457)

    Immunohistochemical analysis of Paraffin-embedded Human brain tissue labeling OPA1 with ab157457 at 1/250 dilution.

    Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

  • Western blot - Anti-OPA1 antibody [EPR11057(B)] (ab157457), expandable thumbnail

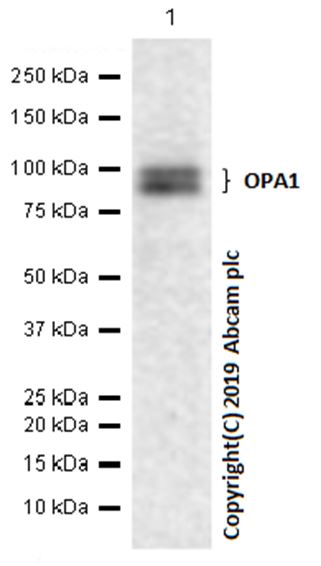

    Western blot - Anti-OPA1 antibody [EPR11057(B)] (ab157457)

    Blocking/Diluting buffer and concentration: 5% NFDM/TBST

    All lanes: Western blot - Anti-OPA1 antibody [EPR11057(B)] (ab157457) at 1/1000 dilution

    All lanes: A431 (Human epidermoid carcinoma epithelial cell) whole cell lysate at 20 µg

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

    Predicted band size: 111 kDa

    Observed band size: 85-100 kDa

    Exposure time: 180s

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-OPA1 antibody [EPR11057(B)] (ab157457), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-OPA1 antibody [EPR11057(B)] (ab157457)

    Immunohistochemical analysis of Paraffin-embedded Human retina tissue labeling OPA1 with ab157457 at 1/250 dilution.

    Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

  • Western blot - Anti-OPA1 antibody [EPR11057(B)] (ab157457), expandable thumbnail

    Western blot - Anti-OPA1 antibody [EPR11057(B)] (ab157457)

    All lanes: Western blot - Anti-OPA1 antibody [EPR11057(B)] (ab157457) at 1/1000 dilution

    Lane 1: HeLa cell lysate at 10 µg

    Lane 2: HepG2 cell lysate at 10 µg

    Lane 3: A431 cell lysate at 10 µg

    Secondary

    All lanes: Goat anti-rabbit HRP at 1/2000 dilution

    Predicted band size: 111 kDa
