Anti-Optineurin antibody [EPR23059-124] - BSA and Azide free

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Optineurin antibody [EPR23059-124] - BSA and Azide free (AB264563)

This data was developed using the same antibody clone in a different buffer formulation (ab242146) ab242146 was shown to react with OPTN in wild-type U20S cells in immunocytochemistry with loss of signal observed in a OPTN knockout cell line. Wild-type and knockout cells were mixed and pelleted at a 1 : 1 ratio on coverslips. The cells were fixed with 4% paraformaldehyde (15 min) then permeabilized with 0.1% Triton X-100 (10min) and then blocked with 1x PBS, 0.01% Triton X-100, 5% BSA, 5% NGS. The cells were then incubated with ab242146 at dilution overnight at 4°C followed by a further incubation at room temperature for 1h with a goat anti-rabbit secondary antibody to (Alexa Fluor® 555) at 0.5 µg/ml. Acquisition of the green (wild-type), red (antibody staining) and far-red (knockout) channels was performed. Representative grayscale images of the red channel are shown. Wild-type and knockout cells are outlined with yellow and magenta dashed line, respectively. Schematic representation of the mosaic strategy used is shown on the bottom-right panel. Image was acquired with a Zeiss(LSM-880).

This data was provided by YCharOS Inc., an open science company with the mission of characterizing commercially available antibody reagents for all human proteins. Abcam and YCharOS are working together to help address the reproducibility crisis by enabling the life science community to better evaluate commercially available antibodies.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Optineurin antibody [EPR23059-124] - BSA and Azide free (AB264563)

Immunohistochemical analysis of paraffin-embedded Human cerebrum tissue labeling Optineurin with ab242146 at 1/500 dilution (0.98 ug/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Cytoplasmic staining on human cerebrum tissue. The section was incubated with ab242146 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND®RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20mins.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab242146).

• Flow Cyt (Intra)

Unknown

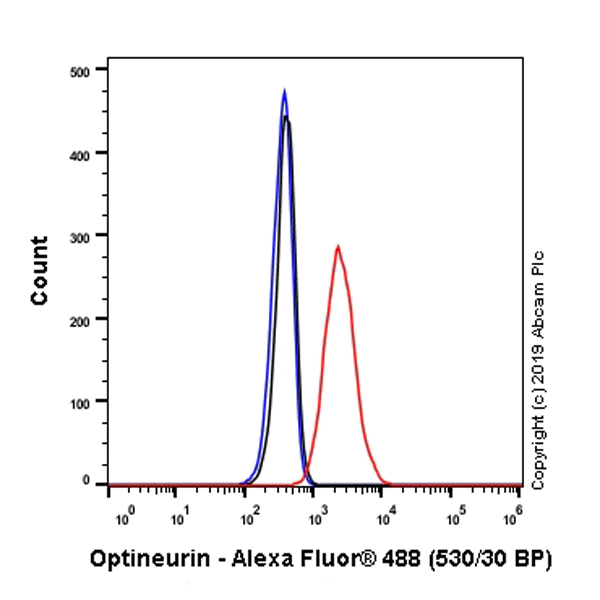

Flow Cytometry (Intracellular) - Anti-Optineurin antibody [EPR23059-124] - BSA and Azide free (AB264563)

Intracellular flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized HeLa (human cervix adenocarcinoma) cells labelling Optineurin with ab242146 at 1/50 (Red) compared with a Rabbit monoclonal IgG (ab172730, Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti rabbit IgG (Alexa Fluor^®488, ab150077) at 1/2000 dilution was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab242146).

• IP

Lab

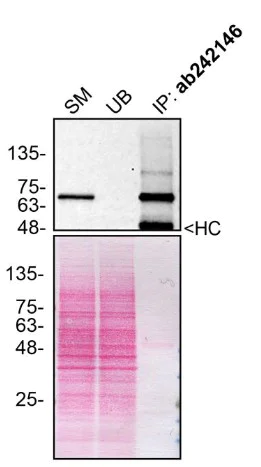

Immunoprecipitation - Anti-Optineurin antibody [EPR23059-124] - BSA and Azide free (AB264563)

This data was developed using the same antibody clone in a different buffer formulation (ab242146)

Immunoprecipitation of OPTN in U20S cells. Lysates were prepared and immunoprecipitation was performed using 1.0 µg of ab242146 pre-coupled to Protein A beads. Samples were washed and processed for western blot with OPTN Monoclonal Antibody at 1/10000

This data was provided by YCharOS Inc., an open science company with the mission of characterizing commercially available antibody reagents for all human proteins. Abcam and YCharOS are working together to help address the reproducibility crisis by enabling the life science community to better evaluate commercially available antibodies.

Lane 1:

Immunoprecipitation at 1/10000 dilution

Lane 3:

Immunoprecipitation - Anti-Optineurin antibody [EPR23059-124] (<a href='/en-us/products/primary-antibodies/optineurin-antibody-epr23059-124-ab242146'>ab242146</a>) at 1 µg

All lanes:

U20S cells

Observed band size: 66 kDa

false

• WB

Lab

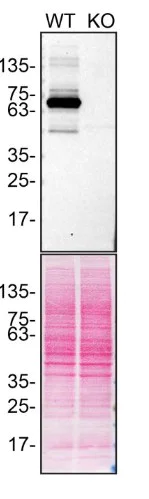

Western blot - Anti-Optineurin antibody [EPR23059-124] - BSA and Azide free (AB264563)

This data was developed using the same antibody clone in a different buffer formulation (ab242146)

ab242146 was shown to react with OPTN in wild-type U-2 OS cells in Western blot with loss of signal observed in OPTN knockout cell line ab261906. Wild-type U-2 OS and OPTN knockout cell lysates were subjected to SDS-PAGE. Membranes were blocked in 5% milk in TBST for 1 hr before incubation with ab242146 overnight at 4 °C at a 1/1000 dilution. Blots were incubated with secondary antibodies at 0.2ug/mL before imaging.

This data was provided by YCharOS Inc., an open science company with the mission of characterizing commercially available antibody reagents for all human proteins. Abcam and YCharOS are working together to help address the reproducibility crisis by enabling the life science community to better evaluate commercially available antibodies.

All lanes:

Western blot - Anti-Optineurin antibody [EPR23059-124] (<a href='/en-us/products/primary-antibodies/optineurin-antibody-epr23059-124-ab242146'>ab242146</a>) at 1/1000 dilution

Lane 1:

Wild-type U-2 OS cell lysate at 20 µg

Lane 2:

OPTN knockout U-2 OS cell lysate at 20 µg

Observed band size: 66 kDa

false
