AB175040

Anti-Orai1 antibody [266.1]

4

(1 Review)

|

(11 Publications)

Mouse Monoclonal Orai1 antibody. Suitable for WB, IHC-P and reacts with Rat, Human samples. Cited in 11 publications.

View Alternative Names

CRACM1, TMEM142A, ORAI1, Calcium release-activated calcium channel protein 1, Protein orai-1, Transmembrane protein 142A

3 Images
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Orai1 antibody [266.1] (AB175040)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Orai1 antibody [266.1] (AB175040)

IHC image of Orai1 staining in human kidney formalin fixed paraffin embedded tissue section, performed on a Leica Bond system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with ab175040, 0.5µg/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

Western blot - Anti-Orai1 antibody [266.1] (AB175040)
  • WB

Project

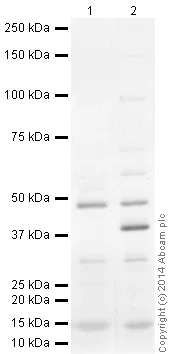

Western blot - Anti-Orai1 antibody [266.1] (AB175040)

All lanes:

Western blot - Anti-Orai1 antibody [266.1] (ab175040) at 5 µg/mL

Lane 1:

Human kidney tissue lysate - total protein (<a href='/en-us/products/unavailable/human-kidney-tissue-lysate-total-protein-ab30203'>ab30203</a>) at 20 µg

Lane 2:

Rat Kidney Tissue Lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Mouse IgG H&L (HRP) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-mouse-igg-h-l-hrp-preadsorbed-ab97040'>ab97040</a>) at 1/10000 dilution

Predicted band size: 32 kDa

Observed band size: 15 kDa,32 kDa,39 kDa,48 kDa

true

Exposure time: 4min

Western blot - Anti-Orai1 antibody [266.1] (AB175040)
  • WB

Project

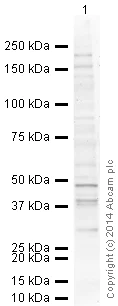

Western blot - Anti-Orai1 antibody [266.1] (AB175040)

All lanes:

Western blot - Anti-Orai1 antibody [266.1] (ab175040) at 5 µg/mL

All lanes:

Testis (Rat) Tissue Lysate (<a href='/en-us/products/unavailable/testis-rat-tissue-lysate-ab4040'>ab4040</a>) at 30 µg

Secondary

All lanes:

Western blot - Goat Anti-Mouse IgG H&L (HRP) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-mouse-igg-h-l-hrp-preadsorbed-ab97040'>ab97040</a>) at 1/10000 dilution

Predicted band size: 32 kDa

Observed band size: 32 kDa,39 kDa,48 kDa

true

Exposure time: 8min

Key facts

Host species

Mouse

Clonality

Monoclonal

Clone number

266.1

Isotype

IgG

Carrier free

No

Reacts with

Rat, Human

Applications

IHC-P, WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "WB-species-checked": "guaranteed", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "0.5 µg/mL", "IHCP-species-notes": "<p></p>" }, "Mouse": { "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "predicted", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" }, "Rat": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "5 µg/mL", "WB-species-notes": "<p></p>", "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" }, "Cynomolgus monkey": { "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "predicted", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" } } }

Product details

Want a custom formulation?
This antibody clone is manufactured by Abcam. If you require a custom buffer formulation or conjugation for your experiments, please contact orders@abcam.com

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein G
Storage buffer
Preservative: 0.02% Sodium azide Constituents: PBS, 6.97% L-Arginine
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Orai1 also known as CRACM1 is an important protein that forms part of the calcium release-activated calcium (CRAC) channels. These channels are essential for calcium ion flow across cell membranes. Orai1 weighs about 33 kDa and plays an integral role in cellular calcium homeostasis. This protein is expressed ubiquitously but it is found in high levels in excitable cells like T-cells where calcium signaling is important for activation and function. The Orai1 channel structure includes six transmembrane segments and works specifically with calcium-specific pore formation.
Biological function summary

Orai1 is a critical component of the store-operated calcium entry (SOCE) mechanism which maintains cellular calcium levels after depletion. Orai1 partners with stromal interaction molecule 1 (STIM1) to form the functional CRAC channel complex. Upon calcium store depletion STIM1 senses this change and interacts with Orai1 triggering calcium influx. This process is important in activating various cellular responses and promoting the function of immune cells among others.

Pathways

Orai1 is a significant player in the calcium signaling pathway and the immune response pathway. Through its role in maintaining cellular calcium levels it influences the activation of various downstream signaling events including those involving calcineurin and nuclear factor of activated T-cells (NFAT). These interactions highlight the protein's importance in transcriptional regulation and immune cell activation highlighting its connection to proteins like STIM1 and NFAT.

Orai1 disruption relates to immune dysfunction and autoimmune diseases like severe combined immunodeficiency (SCID) and rheumatoid arthritis. Mutations in Orai1 lead to impaired CRAC channel function and compromised calcium homeostasis affecting immune cell function. Furthermore the aberrant expression or function of Orai1 and its partner STIM1 associates with these disorders providing potential targets for therapeutic CRAC channel inhibitors aimed to restore normal signaling and immune function.

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Target data

Pore-forming subunit of two major inward rectifying Ca(2+) channels at the plasma membrane : Ca(2+) release-activated Ca(2+) (CRAC) channels and arachidonate-regulated Ca(2+)-selective (ARC) channels (Probable) (PubMed : 16645049, PubMed : 16733527, PubMed : 16807233, PubMed : 16921383, PubMed : 19249086, PubMed : 19706554, PubMed : 23307288, PubMed : 26956484, PubMed : 28219928). Assembles with ORAI2 and ORAI3 to form hexameric CRAC channels that mediate Ca(2+) influx upon depletion of endoplasmic reticulum Ca(2+) store and channel activation by Ca(2+) sensor STIM1, a process known as store-operated Ca(2+) entry (SOCE). Various pore subunit combinations may account for distinct CRAC channel spatiotemporal and cell-type specific dynamics. ORAI1 mainly contributes to the generation of Ca(2+) plateaus involved in sustained Ca(2+) entry and is dispensable for cytosolic Ca(2+) oscillations, whereas ORAI2 and ORAI3 generate oscillatory patterns. CRAC channels assemble in Ca(2+) signaling microdomains where Ca(2+) influx is coupled to calmodulin and calcineurin signaling and activation of NFAT transcription factors recruited to ORAI1 via AKAP5. Activates NFATC2/NFAT1 and NFATC3/NFAT4-mediated transcriptional responses. CRAC channels are the main pathway for Ca(2+) influx in T cells and promote the immune response to pathogens by activating NFAT-dependent cytokine and chemokine transcription (PubMed : 16582901, PubMed : 17442569, PubMed : 19182790, PubMed : 20354224, PubMed : 22641696, PubMed : 26221052, PubMed : 32415068, PubMed : 33941685). Assembles with ORAI3 to form channels that mediate store-independent Ca(2+) influx in response to inflammatory metabolites arachidonate or its derivative leukotriene C4, termed ARC and LRC channels respectively (PubMed : 19622606, PubMed : 32415068). Plays a prominent role in Ca(2+) influx at the basolateral membrane of mammary epithelial cells independently of the Ca(2+) content of endoplasmic reticulum or Golgi stores. May mediate transepithelial transport of large quantities of Ca(2+) for milk secretion (By similarity) (PubMed : 20887894).. Isoform alpha. Pore-forming subunit of both CRAC and ARC channels. Couples Ca(2+) influx to NFAT-mediated transcriptional responses.. Isoform beta. Pore-forming subunit of CRAC channels exclusively.
See full target information ORAI1

Publications (11)

Recent publications for all applications. Explore the full list and refine your search

The Journal of cell biology 224: PubMed40116769

2025

STIM1/2 maintain signaling competence at ER-PM contact sites during neutrophil spreading.

Applications

Unspecified application

Species

Unspecified reactive species

Camille Rabesahala de Meritens,Amado Carreras-Sureda,Nicolas Rosa,Robert Pick,Christoph Scheiermann,Nicolas Demaurex

Frontiers in molecular neuroscience 17:1391189 PubMed38962804

2024

Novel insights into STIM1's role in store-operated calcium entry and its implications for T-cell mediated inflammation in trigeminal neuralgia.

Applications

Unspecified application

Species

Unspecified reactive species

Guangyu Cheng,Yu Zhao,Fujia Sun,Qi Zhang

Nature communications 14:5500 PubMed37679321

2023

Astrocyte reactivity and inflammation-induced depression-like behaviors are regulated by Orai1 calcium channels.

Applications

Unspecified application

Species

Unspecified reactive species

Michaela M Novakovic,Kirill S Korshunov,Rogan A Grant,Megan E Martin,Hiam A Valencia,G R Scott Budinger,Jelena Radulovic,Murali Prakriya

Journal of extracellular vesicles 11:e12279 PubMed36482876

2022

Suppression of PD-L1 release from small extracellular vesicles promotes systemic anti-tumor immunity by targeting ORAI1 calcium channels.

Applications

Unspecified application

Species

Unspecified reactive species

Xi Chen,Jiaqi Li,Ren Zhang,Yao Zhang,Xiaoxuan Wang,Elaine Lai-Han Leung,Lijuan Ma,Vincent Kam Wai Wong,Liang Liu,Erwin Neher,Haijie Yu

Frontiers in immunology 13:835936 PubMed35663942

2022

Intracellular Ca Signaling and Calcium Release-Activated Calcium Modulator ORAI1 Are Associated With CD4 T Lymphocytes in Dairy Cows.

Applications

Unspecified application

Species

Unspecified reactive species

Ming Li,Bingbing Zhang,Yufeng Yin,Jianan Wen,Jingjing Wang,Yuxin He,Qianming Jiang,Juan J Loor,Shuang Wang,Wei Yang,Chuang Xu

The Journal of biological chemistry 298:101607 PubMed35065962

2022

The mammalian trafficking chaperone protein UNC93B1 maintains the ER calcium sensor STIM1 in a dimeric state primed for translocation to the ER cortex.

Applications

Unspecified application

Species

Unspecified reactive species

Wen-An Wang,Nicolas Demaurex

Journal of pain research 14:3289-3299 PubMed34703304

2021

Store-Operated Calcium Channels Contribute to Remifentanil-Induced Postoperative Hyperalgesia via Phosphorylation of CaMKIIα in Rats.

Applications

Unspecified application

Species

Unspecified reactive species

Zhenhui Zhou,Meng Mao,Xuechun Cai,Wei Zhu,Jie Sun

Frontiers in cell and developmental biology 9:639952 PubMed33748129

2021

SARAF and Orai1 Contribute to Endothelial Cell Activation and Angiogenesis.

Applications

Unspecified application

Species

Unspecified reactive species

Isabel Galeano-Otero,Raquel Del Toro,Abdel-Majid Khatib,Juan Antonio Rosado,Antonio Ordóñez-Fernández,Tarik Smani

The Journal of physiology 599:2103-2123 PubMed33569781

2021

Junctophilin-4 facilitates inflammatory signalling at plasma membrane-endoplasmic reticulum junctions in sensory neurons.

Applications

Unspecified application

Species

Unspecified reactive species

Alexandra Hogea,Shihab Shah,Frederick Jones,Chase M Carver,Han Hao,Ce Liang,Dongyang Huang,Xiaona Du,Nikita Gamper

Cell reports 33:108464 PubMed33264616

2020

Orai1 Channels Are Essential for Amplification of Glutamate-Evoked Ca Signals in Dendritic Spines to Regulate Working and Associative Memory.

Applications

IHC-P

Species

Mouse

Mohammad Mehdi Maneshi,Anna B Toth,Toshiyuki Ishii,Kotaro Hori,Shogo Tsujikawa,Andrew K Shum,Nisha Shrestha,Megumi Yamashita,Richard J Miller,Jelena Radulovic,Geoffrey T Swanson,Murali Prakriya
View all publications
