AB247578

Anti-Otx1 antibody [EPR3347] - BSA and Azide free

RabMAb
Recombinant
What is this?

Be the first to review this product! Submit a review

(1 Publication)

Rabbit Recombinant Monoclonal OTX1 antibody. Carrier free. Suitable for IP, WB, IHC-P and reacts with Human, Mouse, Rat, Recombinant full length protein samples. Cited in 1 publication.

View Alternative Names

Homeobox protein OTX1, Orthodenticle homolog 1, OTX1

10 Images

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Otx1 antibody [EPR3347] - BSA and Azide free (AB247578)

IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Otx1 antibody [EPR3347] - BSA and Azide free (AB247578)

This data was developed using ab92515, the same antibody clone in a different buffer formulation.

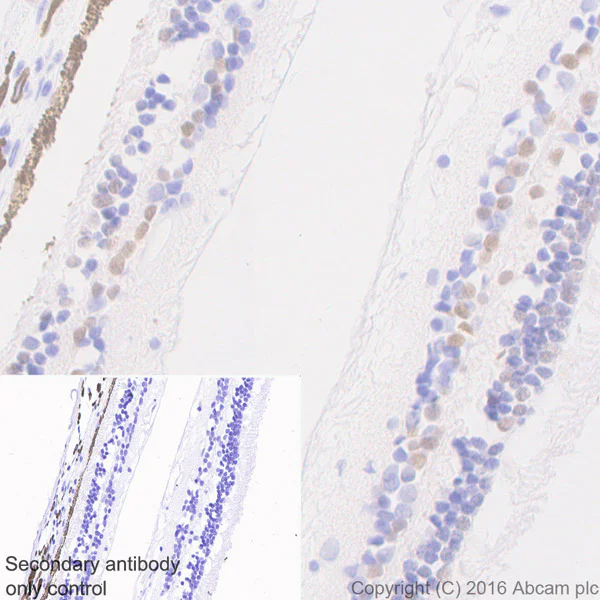

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human retina tissue labelling Otx1 with purified ab92515 at a dilution 1/500. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9 (ab93684). ab97051, a HRP-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody (1/500). Counterstained with hematoxylin. Nuclear staining on inner nuclear layer and outer nuclear layer of the human retina.

IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Otx1 antibody [EPR3347] - BSA and Azide free (AB247578)

This data was developed using ab92515, the same antibody clone in a different buffer formulation.

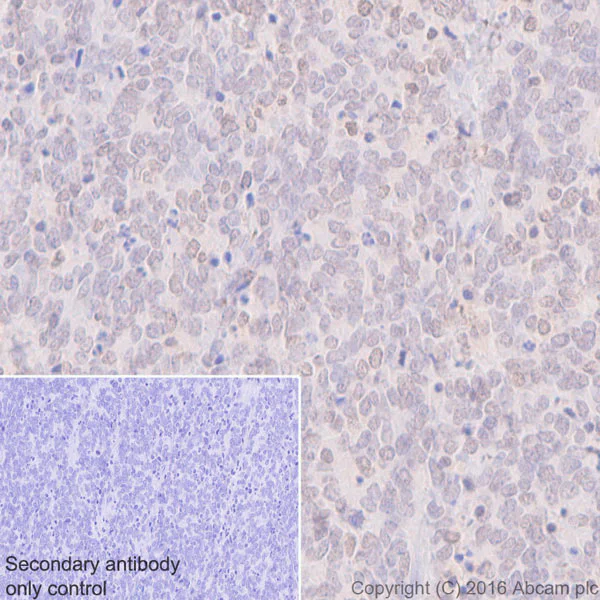

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human retinoblastoma tissue labelling Otx1 with purified ab92515 at a dilution 1/500. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9 (ab93684). ab97051, a HRP-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody (1/500). Counterstained with hematoxylin. Nuclear staining on tumor cells of human retinoblastoma.

IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Otx1 antibody [EPR3347] - BSA and Azide free (AB247578)

This data was developed using ab92515, the same antibody clone in a different buffer formulation.Immunohistochemical staining of paraffin embedded human cerebral cortex with purified ab92515 at a working dilution of 1/250. The secondary antibody used is HRP goat anti-rabbit IgG H&L (ab97051) at 1/500. The sample is counter-stained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0. PBS was used instead of the primary antibody as the negative control, and is shown in the inset.

Supplier Data

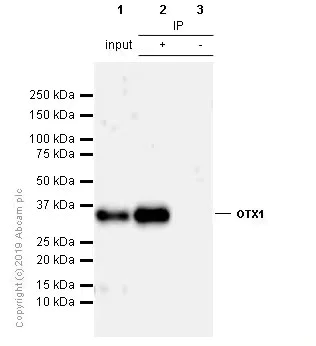

Immunoprecipitation - Anti-Otx1 antibody [EPR3347] - BSA and Azide free (AB247578)

Otx1 was immunoprecipitated from Y79（Human retinoblastoma retinoblastoma）whole cell lysate with ab92515 at 1/20 dilution. Western blot was performed from the immunoprecipitate using ab92515 at 1/500 dilution. Secondary antibody details (ab131366), was used as secondary antibody at 1/1000 dilution.

All lanes:

Immunoprecipitation - Anti-Otx1 antibody [EPR3347] (<a href='/en-us/products/primary-antibodies/otx1-antibody-epr3347-ab92515'>ab92515</a>) at 1/500 dilution

Lane 1:

Y79 (Human retinoblastoma retinoblastoma) whole cell lysate at 10 µg

Lanes 2 - 3:

Y79 whole cell lysate at 10 µg

Secondary

All lanes:

Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (<a href='/en-us/products/reagents/veriblot-for-ip-detection-reagent-hrp-ab131366'>ab131366</a>) at 1/1000 dilution

Predicted band size: 37 kDa

false

IHC-P

Unknown

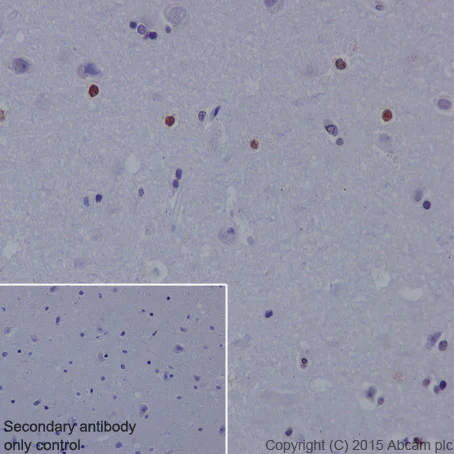

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Otx1 antibody [EPR3347] - BSA and Azide free (AB247578)

This data was developed using ab92515, the same antibody clone in a different buffer formulation.Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of mouse E14.5 choroid plexus tissue labelling Otx1 with purified ab92515 at a dilution 1/500. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9 (ab93684). ab97051, a HRP-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody (1/500). Counterstained with hematoxylin. Nuclear staining on mouse E14.5 choroid plexus.

IHC-P

Unknown

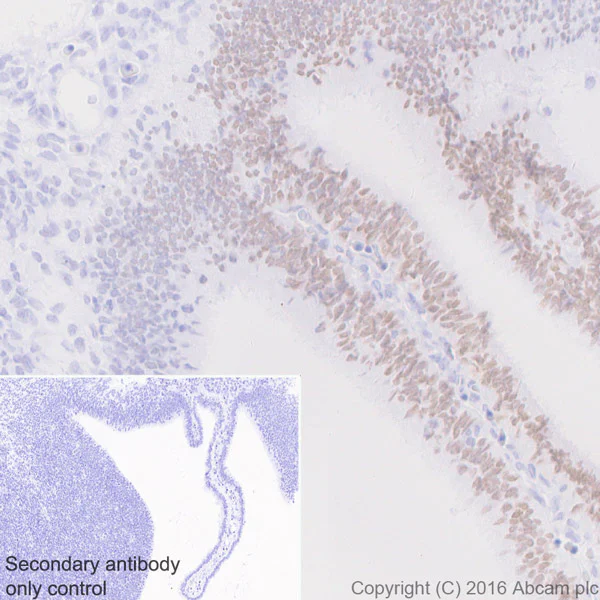

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Otx1 antibody [EPR3347] - BSA and Azide free (AB247578)

This data was developed using ab92515, the same antibody clone in a different buffer formulation.Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of rat E14.5 choroid plexus tissue labelling Otx1 with purified ab92515 at a dilution 1/1000. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9 (ab93684). ab97051, a HRP-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody (1/500). Counterstained with hematoxylin. Nuclear staining on rat E14.5 choroid plexus.

IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Otx1 antibody [EPR3347] - BSA and Azide free (AB247578)

This data was developed using ab92515, the same antibody clone in a different buffer formulation.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of mouse retina tissue labelling Otx1 with purified ab92515 at a dilution 1/500. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9 (ab93684). ab97051, a HRP-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody (1/500). Counterstained with hematoxylin. Nuclear staining on nuclear layer of the mouse retina.

Lab

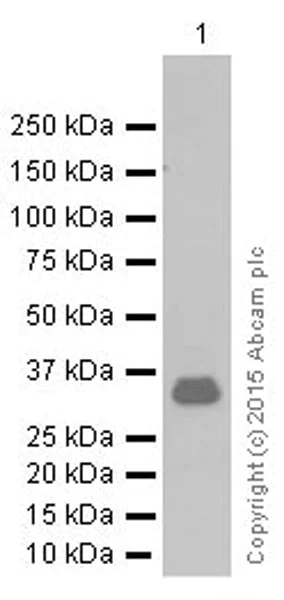

Western blot - Anti-Otx1 antibody [EPR3347] - BSA and Azide free (AB247578)

This data was developed using ab92515, the same antibody clone in a different buffer formulation.

Blocking and dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-Otx1 antibody [EPR3347] (<a href='/en-us/products/primary-antibodies/otx1-antibody-epr3347-ab92515'>ab92515</a>) at 1/2500 dilution

All lanes:

Y79 cell lysate at 10 µg

Secondary

All lanes:

HRP goat anti-rabbit IgG (H+L) at 1/20000 dilution

Predicted band size: 37 kDa

Observed band size: 32 kDa

false

Lab

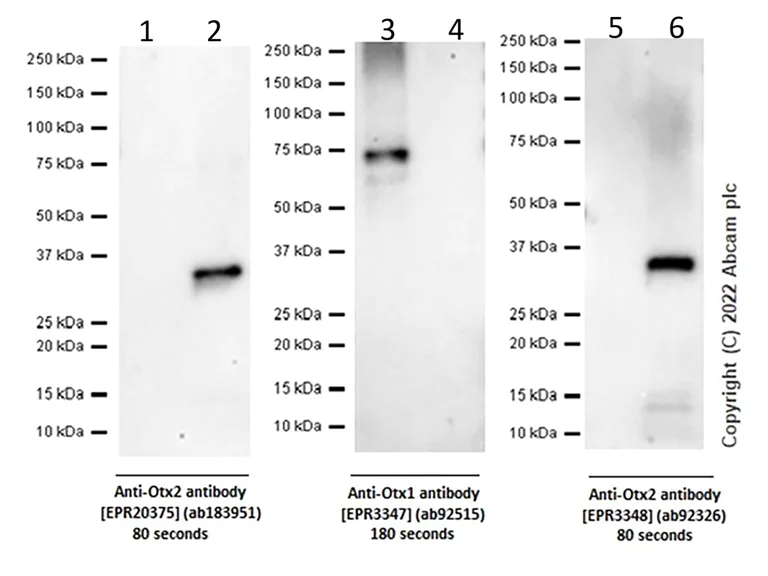

Western blot - Anti-Otx1 antibody [EPR3347] - BSA and Azide free (AB247578)

This data was developed using ab92515, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Lanes 1 - 2:

Western blot - Anti-Otx2 antibody [EPR20375] (<a href='/en-us/products/primary-antibodies/otx2-antibody-epr20375-ab183951'>ab183951</a>) at 1/1000 dilution

Lanes 3 - 4:

Western blot - Anti-Otx1 antibody [EPR3347] (<a href='/en-us/products/primary-antibodies/otx1-antibody-epr3347-ab92515'>ab92515</a>) at 1/1000 dilution

Lanes 5 - 6:

Western blot - Anti-Otx2 antibody [EPR3348] (<a href='/en-us/products/primary-antibodies/otx2-antibody-epr3348-ab92326'>ab92326</a>) at 1/1000 dilution

Lanes 1, 3 and 5:

GST-tagged Human OTX1 full length recombinant protein at 10 ng

Lanes 2, 4 and 6:

His-tagged Human OTX2 full length recombinant protein at 10 ng

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 35 kDa,75 kDa

false

Unknown

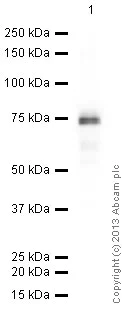

Western blot - Anti-Otx1 antibody [EPR3347] - BSA and Azide free (AB247578)

This data was developed using ab92515, the same antibody clone in a different buffer formulation.

All lanes:

Western blot - Anti-Otx1 antibody [EPR3347] (<a href='/en-us/products/primary-antibodies/otx1-antibody-epr3347-ab92515'>ab92515</a>) at 1 µg/mL

All lanes:

OTX1 Recombinant Protein at 0.1 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-preadsorbed-ab97080'>ab97080</a>) at 1/5000 dilution

Predicted band size: 37 kDa

Observed band size: 75 kDa

true

Unconjugated

Anti-Otx1 antibody [EPR3347]

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR3347

Isotype

IgG

Carrier free

Yes

Reacts with

Mouse, Rat, Human

Applications

IHC-P, IP, WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" }, "Mouse": { "IP-species-checked": "guaranteed", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "guaranteed", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" }, "Rat": { "IP-species-checked": "guaranteed", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "guaranteed", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" }, "Recombinant full length protein": { "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" } } }

style

left-column

Product details

ab247578 is the carrier-free version of ab92515.

Species reactivity
Mouse, Rat: We have preliminary internal testing data to indicate this antibody may not react with these species.
Please contact us for more information.

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar^® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar^® is a trademark of Fluidigm Canada Inc.

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification Protein A

Storage buffer

pH: 7.2 - 7.4 Constituents: PBS

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Storage information

Do Not Freeze

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Otx1 also known as Orthodenticle homeobox 1 is a transcription factor with a noted molecular weight of approximately 32 kDa. It identifies as a homeodomain-containing protein that binds to specific DNA sequences regulating gene expression. This protein finds expression mainly in the developing and adult brain where it plays significant roles in brain morphogenesis. In addition to the central nervous system Otx1 displays expression in the retina and skeletal tissues during embryonic development.

Biological function summary

Otx1 functions in the regulation of several critical developmental processes. It contains a homeodomain which allows the protein to precisely bind to DNA influencing the transcriptional activation of target genes. Although it does not participate in large protein complexes it exerts influence in morphogenesis by its interaction with co-factors that regulate gene expression important for brain and sensory organ development. Its expression is pivotal in maintaining the balance of excitatory and inhibitory signals during cortical development.

Pathways

Otx1 integrates into signaling networks essential for developmental processes. It participates actively in pathways like the Wnt signaling pathway and the Sonic Hedgehog (Shh) pathway both contributing significantly to brain development and patterning. Within these pathways it interacts closely with proteins like β-catenin in the Wnt pathway and Gli transcription factors in the Shh pathway steering the developmental fates of neural progenitors.

Otx1 contributes to conditions affecting the central nervous system. Mutations or dysregulation of Otx1 have connections to intellectual disabilities and specific epilepsy forms due to its role in cortical neuron development and function. The protein's interactions with other developmental regulators such as Pax6 offer insights into congenital neural developmental disorders emphasizing its critical role alongside other homeodomain proteins in maintaining proper neural development and function.

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

Probably plays a role in the development of the brain and the sense organs. Can bind to the BCD target sequence (BTS) : 5'-TCTAATCCC-3'.

See full target information OTX1

style

left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Obesity (Silver Spring, Md.) 30:666-679 PubMed35170865

2022

Exosomal miR-122 promotes adipogenesis and aggravates obesity through the VDR/SREBF1 axis.

Applications

Unspecified application

Species

Unspecified reactive species

Xiao-Yan Huang,Ji-Xiong Chen,Yi Ren,Li-Chun Fan,Wei Xiang,Xiao-Jie He
