Anti-p27 KIP 1 antibody [Y236] - BSA and Azide free

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-p27 KIP 1 antibody [Y236] - BSA and Azide free (AB206927)

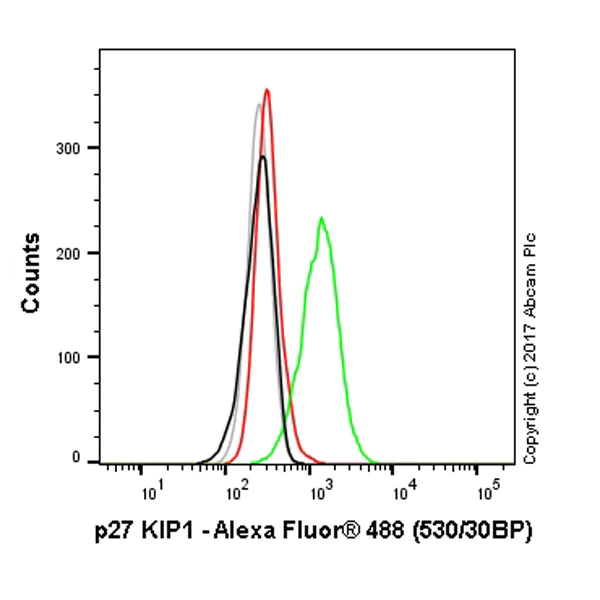

Overlay histogram showing HAP1 wildtype (green line) and HAP1-CDKN1B knockout cells (red line) stained with ab32034. The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Triton X-100 for 15 min. The cells were then incubated in 1x PBS / 10% normal goat serum to block non-specific protein-protein interactions followed by the antibody (ab32034, 1μg/ml) for 30 min at 22°C. The secondary antibody used was Alexa Fluor^® 488 goat anti-rabbit IgG (H&L) presorbed (ab150081) at 1/2000 dilution for 30 min at 22°C. A rabbit IgG isotype control antibody (ab172730) was used at the same concentration and conditions as the primary antibody (HAP1 wildtype - black line, HAP1-CDKN1B knockout - grey line). Unlabelled sample was also used as a control (this line is not shown for the purpose of simplicity). Acquisition of >5,000 events were collected using a 50 mW Blue laser (488nm) and 530/30 bandpass filter. This antibody can also be used in HAP1 cells fixed with 4%PFA (10 min), permeabilized with 0.1% PBS-Triton X-100 for 15 min under the same conditions.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32034).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-p27 KIP 1 antibody [Y236] - BSA and Azide free (AB206927)

Immunocytochemistry/Immunofluorescence analysis of HeLa (human cervix adenocarcinoma) cells labelling p27 KIP 1 (green) with purified ab32034 at 1/500. Cells were fixed with 4% Paraformaldehyde and permeabilized with 0.1% Triton X-100. ab150077, Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/1000) was used as the secondary antibody. Nuclei were counterstained with DAPI (blue).

Secondary Only Control : PBS was used instead of the primary antibody as the negative control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32034).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-p27 KIP 1 antibody [Y236] - BSA and Azide free (AB206927)

Immunohistochemical analysis of paraffin-embedded human breast carcinomaThis data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32034).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-p27 KIP 1 antibody [Y236] - BSA and Azide free (AB206927)

Unpurified ab32034 staining p27 KIP1 in MCF7 cells treated with NS 398 (ab120295), by ICC/IF. Increase in p27 KIP1 expression correlates with increased concentration of NS 398, as described in literature.
The cells were incubated at 37°C for 6h in media containing different concentrations of ab120295 (NS 398) in DMSO, fixed with 4% formaldehyde for 10 minutes at room temperature and blocked with PBS containing 10% goat serum, 0.3 M glycine, 1% BSA and 0.1% tween for 2h at room temperature. Staining of the treated cells with ab32034 (1/100 dilution) was performed overnight at 4°C in PBS containing 1% BSA and 0.1% tween. A DyLight^® 488 goat anti-rabbit polyclonal antibody (ab96899) at 1/250 dilution was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32034).

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-p27 KIP 1 antibody [Y236] - BSA and Azide free (AB206927)

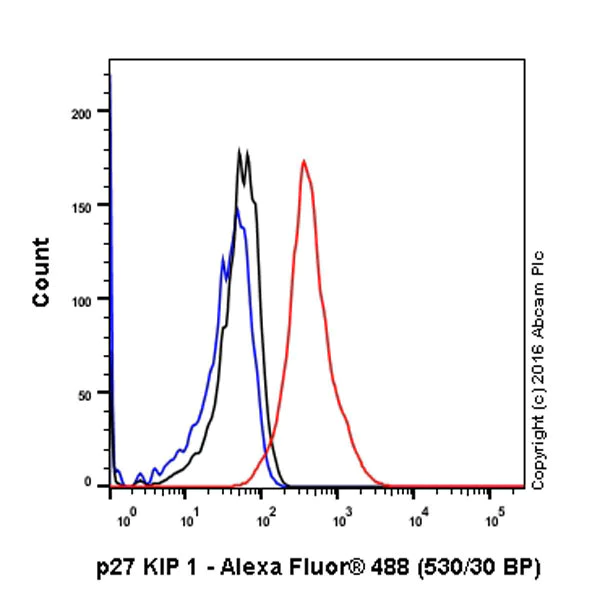

Unpurified ab32034 staining p27 KIP 1 in the human cell line MCF-7 (human breast carcinoma) by intracellular flow cytometry. Cells were fixed with 4% paraformaldehyde, permeabilized with 90% methanol and the sample was incubated with the primary antibody at a dilution of 1/20. A goat anti rabbit IgG (Alexa Fluor^® 488) at a dilution of 1/2000 was used as the secondary antibody.

Isoytype control : Rabbit monoclonal IgG (Black)

Unlabelled control : Cell without incubation with primary antibody and secondary antibody (Blue)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32034).

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-p27 KIP 1 antibody [Y236] - BSA and Azide free (AB206927)

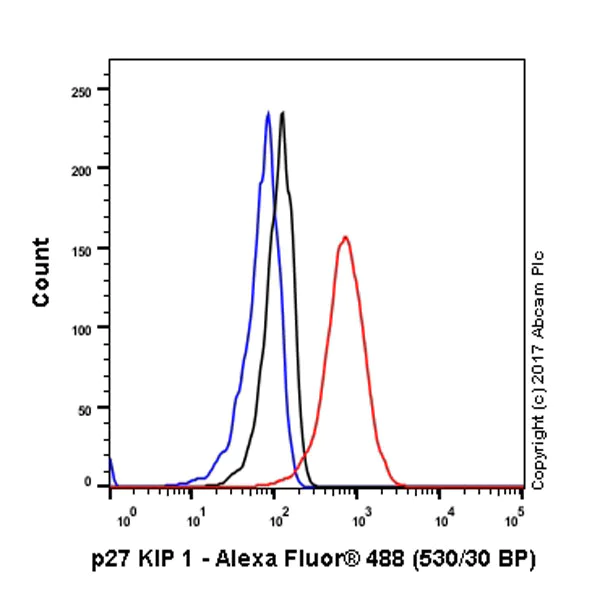

Intracellular Flow Cytometry analysis of MCF7 (Human breast adenocarcinoma epithelial cell) cells labeling p27 KIP 1 with purified ab32034 at 1/50 dilution (10 μg/ml) (red). Cells were fixed with 4% Paraformaldehyde and permeabilised with 90% methanol. A Goat anti rabbit IgG (Alexa Fluor^® 488) secondary antibody was used at 1/2000 dilution. Isotype control - Rabbit monoclonal IgG (Black). Unlabeled control - Cell without incubation with primary antibody and secondary antibody (Blue).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32034).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-p27 KIP 1 antibody [Y236] - BSA and Azide free (AB206927)

This IHC data was generated using the same anti-p27 KIP 1 antibody clone, Y236, in a different buffer formulation (cat# ab32034).

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human cervical carcinoma tissue sections labeling p27 KIP 1 with Purified ab32034 at 1 : 50 dilution (10.4 μg/ml). Heat mediated antigen retrieval was performed using ab93684 (Tris/EDTA buffer, pH 9.0). Tissue was counterstained with Hematoxylin. ImmunoHistoProbe one step HRP Polymer (ready to use) secondary antibody was used at 1 : 0 dilution. PBS instead of the primary antibody was used as the negative control.

• IP

Unknown

Immunoprecipitation - Anti-p27 KIP 1 antibody [Y236] - BSA and Azide free (AB206927)

ab32034 (purified) at 1 : 20 dilution (2μg) immunoprecipitating p27 KIP 1 in MCF7 (Human breast adenocarcinoma epithelial cell) whole cell lysate.

Lane 1 (input) : MCF7 (Human breast adenocarcinoma epithelial cell) whole cell lysate 10μg
Lane 2 (+) : ab32034 & MCF7 (Human breast adenocarcinoma epithelial cell) whole cell lysate
Lane 3 (-) : Rabbit monoclonal IgG (ab172730) instead of ab32034 in MCF7 (Human breast adenocarcinoma epithelial cell) whole cell lysate

For western blotting, VeriBlot for IP Detection Reagent (HRP) (ab131366) was used for detection at 1 : 1000 dilution.
Blocking and diluting buffer : 5% NFDM/TBST.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32034).

All lanes:

Immunoprecipitation - Anti-p27 KIP 1 antibody [Y236] (<a href='/en-us/products/primary-antibodies/p27-kip-1-antibody-y236-ab32034'>ab32034</a>)

Predicted band size: 22 kDa

false

• WB

Lab

Western blot - Anti-p27 KIP 1 antibody [Y236] - BSA and Azide free (AB206927)

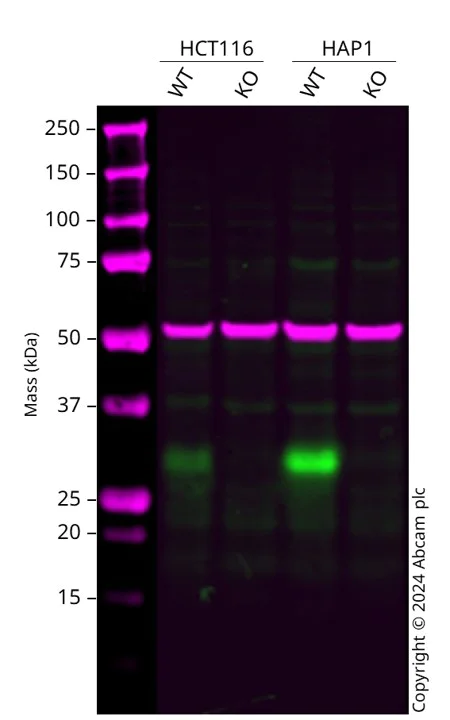

Western blot : Anti-CDKN1B antibody [Y236] (ab32034) staining at 1/5000 dilution, shown in green; Mouse anti-Alpha Tubulin [DM1A] (ab7291) loading control staining at 1/20000 dilution, shown in magenta. In Western blot, ab32034 was shown to bind specifically to CDKN1B. A band was observed at 30 kDa in wild-type HCT 116 cell lysates with no signal observed at this size in CDKN1B knockout cell line. To generate this image, wild-type and CDKN1B knockout HCT 116 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution.

All lanes:

Western blot - Anti-p27 KIP 1 antibody [Y236] (<a href='/en-us/products/primary-antibodies/p27-kip-1-antibody-y236-ab32034'>ab32034</a>) at 1/5000 dilution

Lane 1:

Wild-type HCT 116 cell lysate at 20 µg

Lane 2:

CDKN1B knockout HCT 116 cell lysate at 20 µg

Lane 3:

Wild-type HAP1 cell lysate at 20 µg

Lane 4:

CDKN1B knockout HAP1 cell lysate at 20 µg

Secondary

All lanes:

Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution

false

• WB

Unknown

Western blot - Anti-p27 KIP 1 antibody [Y236] - BSA and Azide free (AB206927)

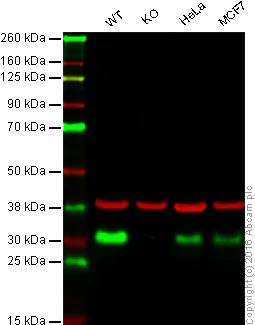

This WB data was generated using the same anti-p27 KIP 1 antibody clone, Y236, in a different buffer formulation (cat# ab32034).

Lane 1 : Wild type HAP1 whole cell lysate (20 μg)
Lane 2 : CDKN1B knockout HAP1 whole cell lysate (20 μg)
Lane 3 : HeLa whole cell lysate (20 μg)
Lane 4 : MCF7 whole cell lysate (20 μg)

Lanes 1 - 4 : Merged signal (red and green). Green - ab32034 observed at 30 kDa. Red - loading control, ab8245, observed at 37 kDa.

Unpurified ab32034 was shown to specifically react with CDKN1B in wild-type HAP1 cells. No band was observed when CDKN1B knockout samples were used. Wild-type and CDKN1B knockout samples were subjected to SDS-PAGE. ab32034 and ab8245 (Mouse anti GAPDH loading control) were incubated overnight at 4°C at 1/1000 and 1/10000 respectively. Blots were developed with 800CW Goat anti Rabbit and 680CW Goat anti Mouse secondary antibodies at 1/10000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-p27 KIP 1 antibody [Y236] (<a href='/en-us/products/primary-antibodies/p27-kip-1-antibody-y236-ab32034'>ab32034</a>)

Predicted band size: 22 kDa

false

• WB

Lab

Western blot - Anti-p27 KIP 1 antibody [Y236] - BSA and Azide free (AB206927)

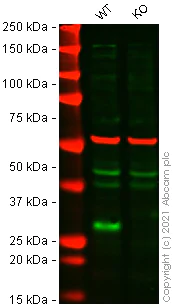

False colour image of Western blot : Anti-p27 KIP 1 antibody [Y236] staining at 1/5000 dilution, shown in green; Mouse anti-Alpha Tubulin [DM1A] (ab7291) loading control staining at 1/20000 dilution, shown in red. In Western blot, ab32034 was shown to bind specifically to p27 KIP 1. A band was observed at 28 kDa in wild-type RAW 264.7 cell lysates with no signal observed at this size in CDKN1B knockout cell line ab281619 (knockout cell lysate ab282970). To generate this image, wild-type and CDKN1B knockout RAW 264.7 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween^® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed (ab216776) at 1/20000 dilution.

All lanes:

Western blot - Anti-p27 KIP 1 antibody [Y236] (<a href='/en-us/products/primary-antibodies/p27-kip-1-antibody-y236-ab32034'>ab32034</a>) at 1/5000 dilution

Lane 1:

Wild-type RAW 264.7 cell lysate at 20 µg

Lane 2:

CDKN1B knockout RAW 264.7 cell lysate at 20 µg

Lane 2:

Western blot - Mouse CDKN1B (p27 KIP 1) knockout RAW 264.7 cell line (<a href='/en-us/products/cell-lines/mouse-cdkn1b-p27-kip-1-knockout-raw-2647-cell-line-ab281619'>ab281619</a>)

Predicted band size: 22 kDa

Observed band size: 28 kDa

false

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-p27 KIP 1 antibody [Y236] - BSA and Azide free (AB206927)

Unpurified ab32034 showing positive staining in Stomach adenocarcinoma tissue.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32034).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-p27 KIP 1 antibody [Y236] - BSA and Azide free (AB206927)

Unpurified ab32034 showing positive staining in Colonic adenocarcinoma tissue.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32034).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-p27 KIP 1 antibody [Y236] - BSA and Azide free (AB206927)

Unpurified ab32034 showing positive staining in Ovarian carcinoma tissue.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32034).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-p27 KIP 1 antibody [Y236] - BSA and Azide free (AB206927)

Unpurified ab32034 showing positive staining in Glioma tissue.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32034).

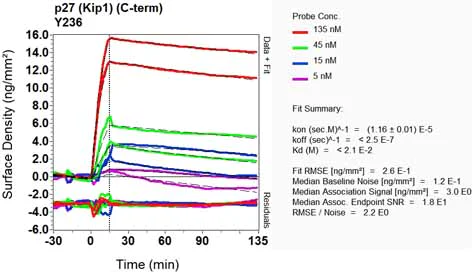

• OI-RD Scanning

Unknown

OI-RD Scanning - Anti-p27 KIP 1 antibody [Y236] - BSA and Azide free (AB206927)

We have systematically measured KD (the equilibrium dissociation constant between the antibody and its antigen), of more than 840 recombinant antibodies to assess not only their individual KD values but also to see the average affinity of antibody. Based on the comparison with published literature values for mouse monoclonal antibodies, Recombinant antibodies appear to be on average 1-2 order of magnitude higher affinity.
