Anti-p75 NGF Receptor antibody [EP1039Y] - Low endotoxin, Azide free

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-p75 NGF Receptor antibody [EP1039Y] - Low endotoxin, Azide free (AB221212)

This data was developed using ab52987, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of formalin fixed paraffin embedded human tonsil labelling p75 NGF Receptor with ab52987 at a concentration of 0.1µg/ml. The immunostaining was performed on a Ventana DISCOVERY ULTRA (Roche Tissue Diagnostics) instrument with a OptiView DAB IHC Detection Kit. Heat mediated antigen retrieval was performed with DISCOVERY cell conditioning solution (CC1) 100°C, pH8.5 for 32mins.

Anti-p75 NGF Receptor antibody [EP1039Y] ab52987 was incubated for 16mins at 37°C. Sections were counterstained with Hematoxylin II. Image inset shows absence of staining in secondary antibody only control.

Customers are encouraged to optimise antigen retrieval conditions, antibody concentration, incubation times and temperature for best results in their own IHC assay workflow (automated and manual).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-p75 NGF Receptor antibody [EP1039Y] - Low endotoxin, Azide free (AB221212)

Purified ab52987 staining p75 NGF receptor in paraffin embedded Human tonsil tissue sections by Immunohistochemistry. Antigen retrieval was by heat mediation using ab93684 (Tris/EDTA buffer, pH 9.0). Samples were incubated with primary antibody at 3.3μg/ml. A ready to use Goat Anti-Rabbit IgG H&L (HRP) was used as the secondary antibody. Hematoxylin was used as a counterstain. Positive staining on germinal centre of human tonsil.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab52987).

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-p75 NGF Receptor antibody [EP1039Y] - Low endotoxin, Azide free (AB221212)

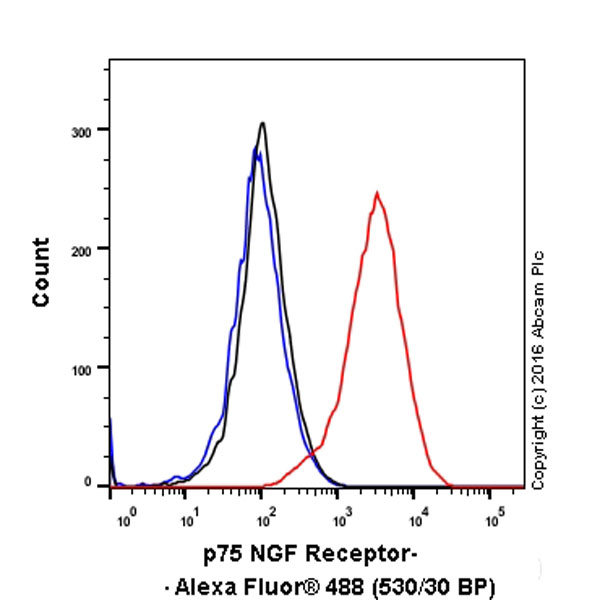

Intracellular Flow Cytometry analysis of PC-12 (rat adrenal gland pheochromocytoma) cells labeling p75 NGF Receptor with purified ab52987 at 1/80 dilution (1ug/mL) (red). Cells were fixed with 4% paraformaldehyde and permeabilised with 90% methanol. A Goat anti rabbit IgG (Alexa Fluor^®488) at 1/2000 dilution was used as the secondary antibody. Rabbit monoclonal IgG (ab172730) (Black) was used as the isotype control, cells without incubation with primary antibody and secondary antibody (Blue) was used as the unlabeled control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab52987).

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-p75 NGF Receptor antibody [EP1039Y] - Low endotoxin, Azide free (AB221212)

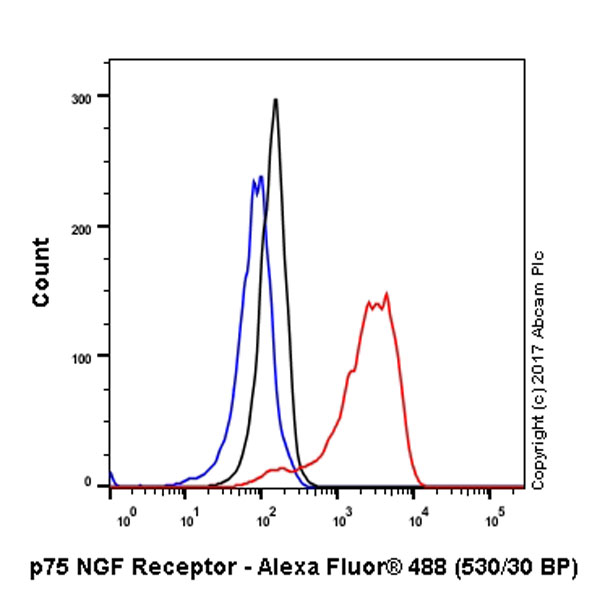

Intracellular Flow Cytometry analysis of PC-12 (rat adrenal gland pheochromocytoma) cells labeling p75 NGF Receptor with unpurified ab52987 at 1/60 dilution (10ug/mL) (red). Cells were fixed with 4% paraformaldehyde and permeabilised with 90% methanol. A Goat anti rabbit IgG (Alexa Fluor^®488) at 1/2000 dilution was used as the secondary antibody. Rabbit monoclonal IgG (Black) was used as the isotype control, cells without incubation with primary antibody and secondary antibody (Blue) was used as the unlabeled control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab52987).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-p75 NGF Receptor antibody [EP1039Y] - Low endotoxin, Azide free (AB221212)

ICC/IF image of ab52987 stained PC12 cells. The cells were 100% methanol fixed (5 min) and then incubated in 1% BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1 hour to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (ab52987, 1 µg/mL) overnight at 4^oC. The secondary antibody (green) was Alexa Fluor^® 488 goat anti-rabbit IgG (H+L) used at a 1/1000 dilution for 1 hour. Alexa Fluo^® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1 hour. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.4 µM.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab52987).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-p75 NGF Receptor antibody [EP1039Y] - Low endotoxin, Azide free (AB221212)

Purified ab52987 staining p75 NGF receptor in PC-12 (rat adrenal gland pheochromocytoma) by ICC/IF (Immunocytochemistry/Immunofluorescence). Cells were fixed with 4% paraformaldehyde and permeabilized with 0.1% TritonX-100. Samples were incubated with primary antibody at 3.9 µg/ml. An AlexaFluor^®488 Goat anti-Rabbit was used as the secondary antibody at 2 µg/ml. DAPI was used as a nuclear counterstain. Confocal image showing cytoplasmic and Membranous staining in PC-12 cells.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab52987).

• IP

Unknown

Immunoprecipitation - Anti-p75 NGF Receptor antibody [EP1039Y] - Low endotoxin, Azide free (AB221212)

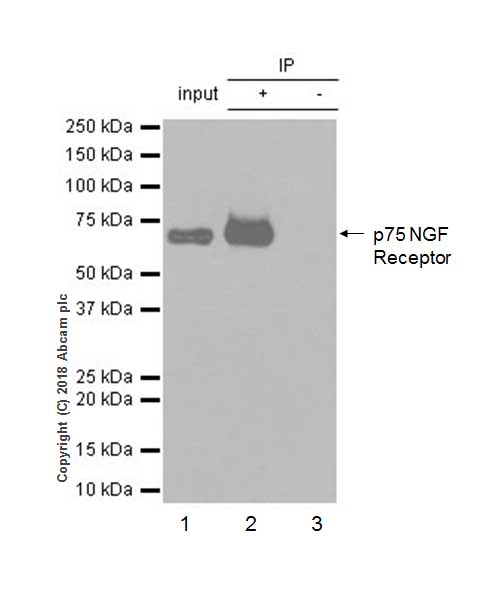

Lane 1 (input) : PC-12 (rat adrenal gland pheochromocytoma) whole cell lysate 10μg
Lane 2 (+) : PC-12 whole cell lysate
Lane 3 (-) : Rabbit monoclonal IgG (ab172730) instead of ab52987 in PC-12 whole cell lysate

ab52987 immunoprecipitating p75 NGF receptor in PC-12 whole cell lysates. For western blotting, primary antibody used was ab52987 at 1.6 μg/ml. ab131366 VeriBlot for IP (HRP) was used for detection at 1/1000 dilution. Capture antibody was used at 1 : 40 dilution (2μg in 0.35mg lysates).

Blocking and diluting buffer : 5% NFDM/TBST.

Exposure : 10 seconds

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab52987).

All lanes:

Immunoprecipitation - Anti-p75 NGF Receptor antibody [EP1039Y] (<a href='/en-us/products/primary-antibodies/p75-ngf-receptor-antibody-ep1039y-ab52987'>ab52987</a>)

Predicted band size: 45 kDa

Observed band size: 75 kDa

false

Exposure time: 10s

• WB

Lab

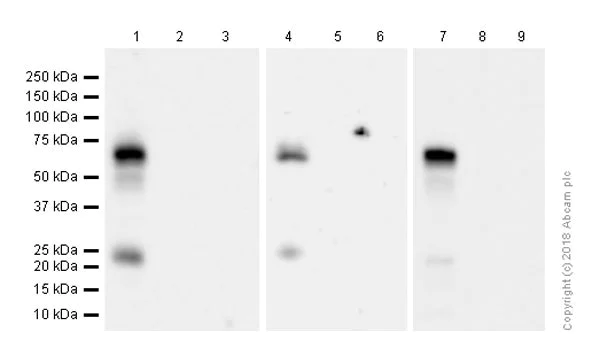

Western blot - Anti-p75 NGF Receptor antibody [EP1039Y] - Low endotoxin, Azide free (AB221212)

This data was developed using ab52987, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer : 5% NFDM/TBST.

ab52987 fails to detect band of interest in hippocampus and cortex lysates (positive, PMID : 25180603, 28507518, 18930453, 20937383, 21059364), indicating its low affinity in some p75 NGF Receptor positive materials.

Exposure :
Lane 1-3 : 8 seconds
Lane 4-6 : 180 seconds
Lane 7-9 : 30 seconds

All lanes:

Western blot - Anti-p75 NGF Receptor antibody [EP1039Y] (<a href='/en-us/products/primary-antibodies/p75-ngf-receptor-antibody-ep1039y-ab52987'>ab52987</a>) at 1/1000 dilution

Lane 1:

SW480 (Human colorectal adenocarcinoma epithelial cell) whole cell lysates at 20 µg

Lane 2:

Human hippocampus tissue lysates at 20 µg

Lane 3:

Human brain cortex tissue lysates at 20 µg

Lane 4:

Neuro-2a (Mouse neuroblastoma neuroblast) whole cell lysates at 20 µg

Lane 5:

Mouse hippocampus tissue lysates at 20 µg

Lane 6:

Mouse cerebral cortex lysates at 20 µg

Lane 7:

PC-12 (Rat adrenal gland pheochromocytoma) whole cell lysates at 20 µg

Lane 8:

Rat hippocampus tissue lysates at 20 µg

Lane 9:

Rat brain cortex tissue lysates at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

Predicted band size: 45 kDa

false

• WB

Lab

Western blot - Anti-p75 NGF Receptor antibody [EP1039Y] - Low endotoxin, Azide free (AB221212)

This data was developed using ab52987, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer : 5% NFDM/TBST.

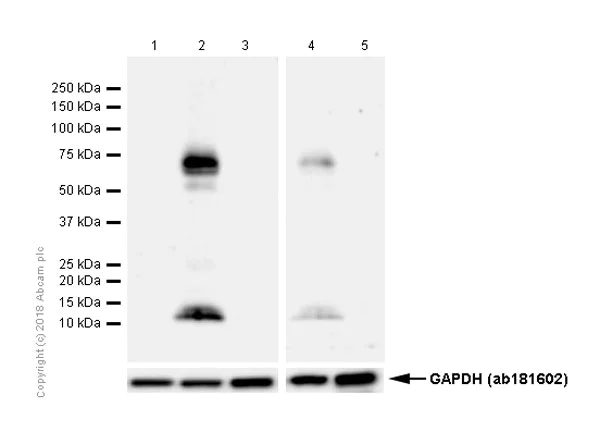

ab52987 fails to detect band of interest in Capan-1 (positive, PMID : 14613990) and brain lysates (positive, PMID : 21413144, 21541365), indicating its low affinity in some p75 NGF Receptor positive materials.

All lanes:

Western blot - Anti-p75 NGF Receptor antibody [EP1039Y] (<a href='/en-us/products/primary-antibodies/p75-ngf-receptor-antibody-ep1039y-ab52987'>ab52987</a>) at 1/1000 dilution

Lane 1:

Capan-1 (Human pancreas adenocarcinoma epithelial cell) whole cell lysates at 20 µg

Lane 2:

Mouse uterus tissue lysates at 20 µg

Lane 3:

Mouse brain tissue lysates at 20 µg

Lane 4:

Rat uterus tissue lysates at 20 µg

Lane 5:

Rat brain tissue lysates at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

Predicted band size: 45 kDa

false

Exposure time: 180s

• WB

Supplier Data

Western blot - Anti-p75 NGF Receptor antibody [EP1039Y] - Low endotoxin, Azide free (AB221212)

This data was developed using ab52987, the same antibody clone in a different buffer formulation.

All lanes:

Western blot - Anti-p75 NGF Receptor antibody [EP1039Y] (<a href='/en-us/products/primary-antibodies/p75-ngf-receptor-antibody-ep1039y-ab52987'>ab52987</a>) at 1/50000 dilution

All lanes:

PC12 cell lysate at 10 µg

Secondary

All lanes:

goat anti-rabbit HRP labelled at 1/2000 dilution

Predicted band size: 45 kDa

Observed band size: 75 kDa

false

• OI-RD Scanning

Unknown

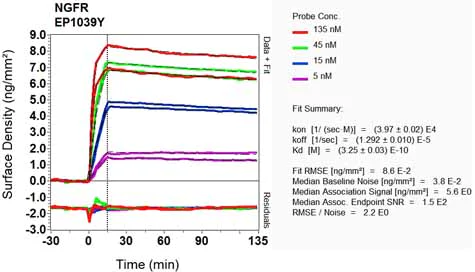

OI-RD Scanning - Anti-p75 NGF Receptor antibody [EP1039Y] - Low endotoxin, Azide free (AB221212)

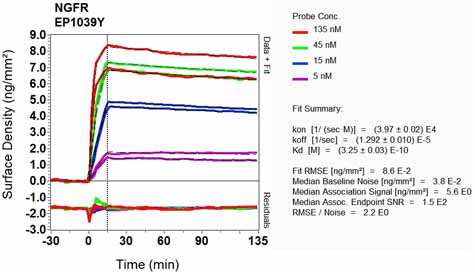

We have systematically measured KD (the equilibrium dissociation constant between the antibody and its antigen), of more than 840 recombinant antibodies to assess not only their individual KD values but also to see the average affinity of antibody. Based on the comparison with published literature values for mouse monoclonal antibodies, Recombinant antibodies appear to be on average 1-2 order of magnitude higher affinity.
