Anti-PAK1 antibody [EPR20048]

• Flow Cyt (Intra)

Supplier Data

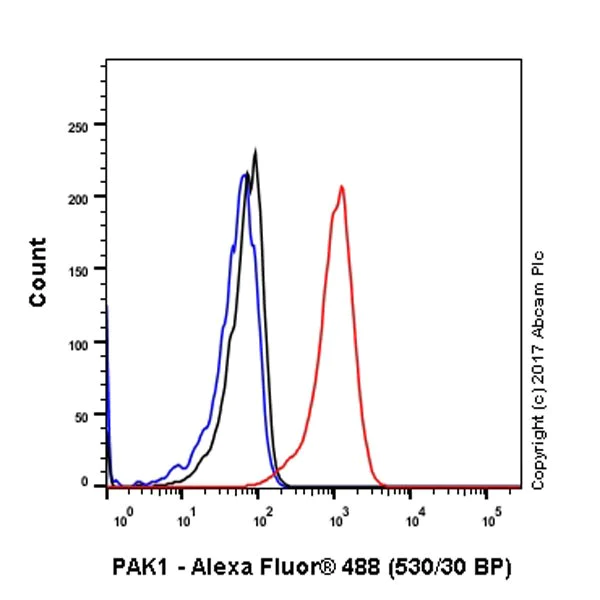

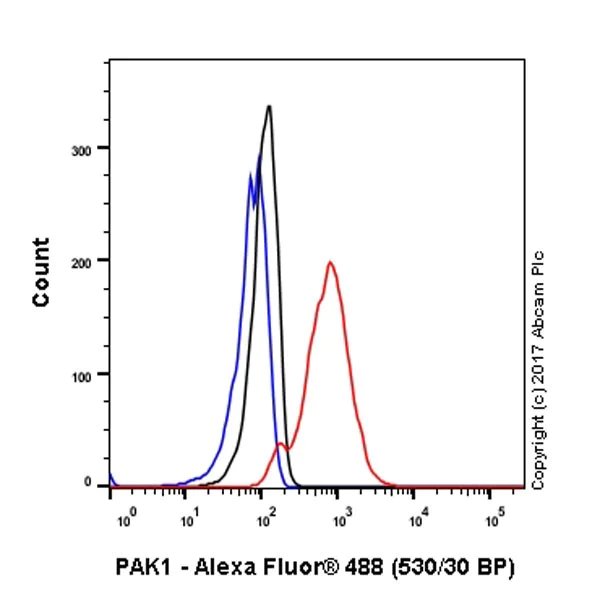

Flow Cytometry (Intracellular) - Anti-PAK1 antibody [EPR20048] (AB223849)

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed, 90% methanol permeabilized SH-SY5Y (human neuroblastoma cell line from bone marrow) cell line labeling PAK1 with ab223849 at 1/500 dilution (red) compared with a Rabbit IgG, monoclonal [EPR25A] - Isotype Control (ab172730) (black) and an unlabeled control (cells without incubation with primary antibody and secondary antibody) (blue). Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) at 1/2000 dilution was used as the secondary

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Anti-PAK1 antibody [EPR20048] (AB223849)

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed, 90% methanol permeabilized HeLa (human epithelial cell line from cervix adenocarcinoma) cell line labeling PAK1 with ab223849 at 1/50 dilution (red) compared with a Rabbit IgG, monoclonal [EPR25A] - Isotype Control (ab172730) (black) and an unlabeled control (cells without incubation with primary antibody and secondary antibody) (blue). Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) at 1/2000 dilution was used as the secondary antibody.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-PAK1 antibody [EPR20048] (AB223849)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized SH-SY5Y (human neuroblastoma cell line from bone marrow) cells labeling PAK1 with ab223849 at 1/100 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing cytoplasmic staining on SH-SY5Y cell line.

The nuclear counter stain is DAPI (blue). Tubulin is detected with Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) (ab195889) (red) at 1/200 dilution.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-PAK1 antibody [EPR20048] (AB223849)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HeLa (human epithelial cell line from cervix adenocarcinoma) cells labeling PAK1 with ab223849 at 1/100 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing cytoplasmic staining on HeLa cell line.

The nuclear counter stain is DAPI (blue). Tubulin is detected with Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) (ab195889) (red) at 1/200 dilution.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution.

• IP

Supplier Data

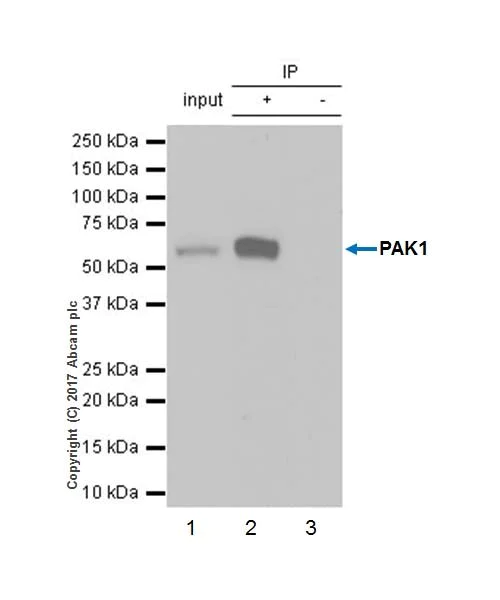

Immunoprecipitation - Anti-PAK1 antibody [EPR20048] (AB223849)

PAK1 was immunoprecipitated from 0.35 mg SH-SY5Y (human neuroblastoma cell line from bone marrow) whole cell lysate with ab223849 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab223849 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10000 dilution.

Lane 1 : SH-SY5Y whole cell lysate 10 μg (Input).

Lane 2 : ab223849 IP in SH-SY5Y whole cell lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab223849 in SH-SY5Y whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 1 second.

All lanes:

Immunoprecipitation - Anti-PAK1 antibody [EPR20048] (ab223849)

Predicted band size: 61 kDa

false

• WB

Supplier Data

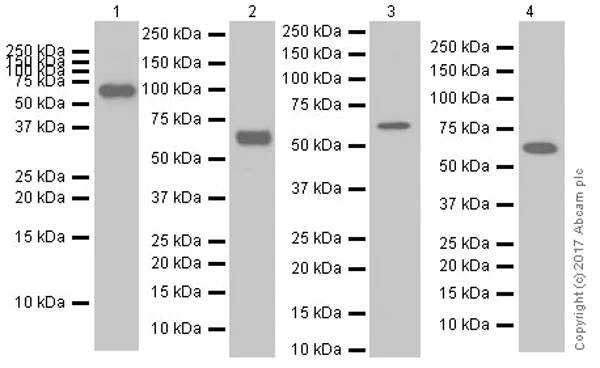

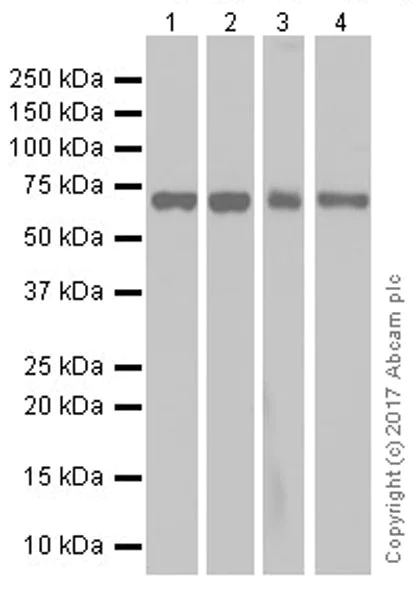

Western blot - Anti-PAK1 antibody [EPR20048] (AB223849)

Exposure time : Lane 1 : 5 seconds; Lane 2 : 3 seconds; Lane 3 : 3 minutes; Lane 4 : 1 minutes.

Blocking/Dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-PAK1 antibody [EPR20048] (ab223849) at 1/1000 dilution

Lane 1:

Mouse brain lysate at 10 µg

Lane 2:

Rat brain lysate at 10 µg

Lane 3:

SH-SY5Y (human euroblastoma cell line from bone marrow) whole cell lysate at 10 µg

Lane 4:

HEK-293T (human epithelial cell line from embryonic kidney transformed with large T antigen) whole cell lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 61 kDa

Observed band size: 60 kDa

true

• WB

Supplier Data

Western blot - Anti-PAK1 antibody [EPR20048] (AB223849)

Exposure time : Lane 1 : 3 minutes; Lane 2 : 30 seconds; Lane 3 : 3 seconds; Lane 4 : 15 seconds.

Blocking/Dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-PAK1 antibody [EPR20048] (ab223849) at 1/1000 dilution

Lane 1:

SK-OV-3 (human ovarian cancer epithelial cell line) whole cell lysate at 20 µg

Lane 2:

NIH/3T3 (mouse embryo fibroblast cell line) whole cell lysate at 20 µg

Lane 3:

PC-12 (rat adrenal gland pheochromocytoma cell line) whole cell lysate at 20 µg

Lane 4:

Human fetal brain lysate at 20 µg

Secondary

Lanes 1 - 3:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Lane 4:

Western blot - VeriBlot for IP Detection Reagent (HRP) (<a href='/en-us/products/reagents/veriblot-for-ip-detection-reagent-hrp-ab131366'>ab131366</a>) at 1/4000 dilution

Predicted band size: 61 kDa

Observed band size: 60 kDa

true

• WB

Supplier Data

Western blot - Anti-PAK1 antibody [EPR20048] (AB223849)

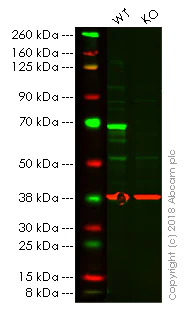

Lanes 1 - 2 : Merged signal (red and green). Green - ab223849 observed at 61 kDa. Red - loading control, ab9484, observed at 37 kDa.

ab223849 was shown to specifically react with PAK1 in wild-type HAP1 cells as signal was lost in PAK1 knockout cells. Wild-type and PAK1 knockout samples were subjected to SDS-PAGE. ab223849 and ab9484 (Mouse anti-GAPDH loading control) were incubated overnight at 4°C at 1/1000 dilution and 1/20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed ab216776 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-PAK1 antibody [EPR20048] (ab223849) at 1/1000 dilution

Lane 1:

Wild-type HAP1 whole cell lysate at 20 µg

Lane 2:

PAK1 knockout HAP1 whole cell lysate at 20 µg

Predicted band size: 61 kDa

false

• WB

Lab

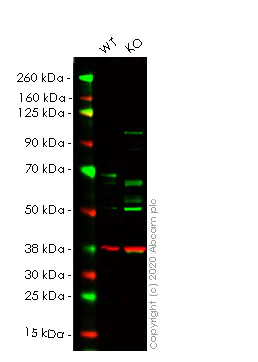

Western blot - Anti-PAK1 antibody [EPR20048] (AB223849)

Lanes 1- 2 : Merged signal (red and green). Green - ab223849 observed at 65 kDa. Red - Anti-GAPDH antibody [6C5] - Loading Control (ab8245) observed at 37 kDa.

ab223849 was shown to react with PAK1 in wild-type HeLa cells in western blot. The band observed in knockout cell line ab264889 (knockout cell lysate ab257572) lane below 65kDa may represent truncated forms and cleaved fragments. This has not been investigated further. Wild-type HeLa and PAK1 knockout HeLa cell lysates were subjected to SDS-PAGE. Membrane was blocked for 1 hour at room temperature in 0.1% TBST with 3% non-fat dried milk. ab223849 and Anti-GAPDH antibody [6C5] - Loading Control (ab8245) were incubated overnight at 4°C at a 1 in 1000 dilution and a 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^®800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^®680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-PAK1 antibody [EPR20048] (ab223849) at 1/1000 dilution

Lane 1:

Wild-type HeLa cell lysate at 20 µg

Lane 2:

PAK1 knockout HeLa cell lysate at 20 µg

Predicted band size: 61 kDa

Observed band size: 65 kDa

false

• WB

Lab

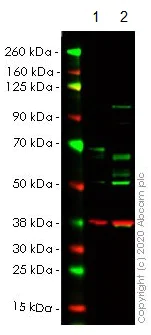

Western blot - Anti-PAK1 antibody [EPR20048] (AB223849)

Lanes 1- 2 : Merged signal (red and green). Green - ab223849 observed at 65 kDa. Red - Anti-GAPDH antibody [6C5] - Loading Control (ab8245) observed at 37 kDa.

ab223849 was shown to react with PAK1 in wild-type HeLa cells in western blot. The band observed in CRISPR/Cas9 editedcell line ab264889 (CRISPR/Cas9 editedcell lysate ab257572) lane below 65kDa may represent truncated forms and cleaved fragments. This has not been investigated further. Wild-type HeLa and PAK1 CRISPR/Cas9 edited HeLa cell lysates were subjected to SDS-PAGE. Membrane was blocked for 1 hour at room temperature in 0.1% TBST with 3% non-fat dried milk. ab223849 and Anti-GAPDH antibody [6C5] - Loading Control (ab8245) were incubated overnight at 4°C at a 1 in 1000 dilution and a 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^®800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^®680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-PAK1 antibody [EPR20048] (ab223849) at 1/1000 dilution

Lane 1:

Wild-type HeLa cell lysate at 20 µg

Lane 2:

PAK1 CRISPR/Cas9 edited HeLa cell lysate at 20 µg

Lane 2:

Western blot - Human PAK1 knockout HeLa cell line (<a href='/en-us/products/cell-lines/human-pak1-knockout-hela-cell-line-ab264889'>ab264889</a>)

Predicted band size: 61 kDa

Observed band size: 65 kDa

false

• WB

Supplier Data

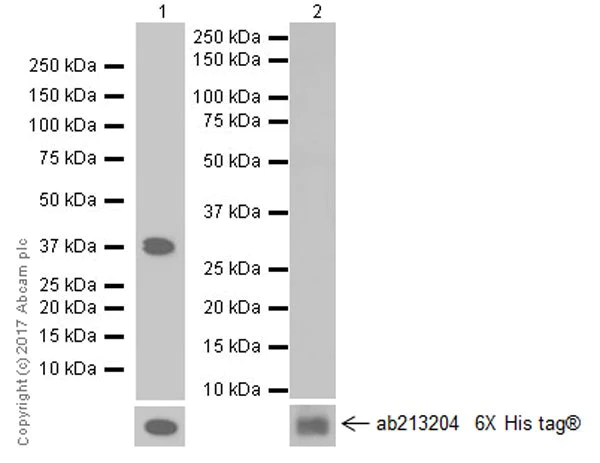

Western blot - Anti-PAK1 antibody [EPR20048] (AB223849)

Exposure time : Lane 1 : 1 minute; Lane 2 : 3 minutes.

Blocking/Dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-PAK1 antibody [EPR20048] (ab223849) at 1/1000 dilution

Lane 1:

His-tagged human PAK1 (aa1-250) recombinant protein at 0.01 µg

Lane 2:

His-tagged human PAK2 (aa1-250) recombinant protein at 0.01 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 61 kDa

Observed band size: 37 kDa

true
