Anti-pan Cytokeratin antibody [C-11] - BSA and Azide free

18 product images

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-pan Cytokeratin antibody [C-11] - BSA and Azide free (ab264485)

  This data was developed using the same antibody clone in a different buffer formulation containing PBS and sodium azide (Anti-pan Cytokeratin antibody [C-11] ab7753)


  IHC image of pan cytokeratin staining in a section of formalin-fixed paraffin-embedded normal human skin* performed on a Leica BONDTM system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6,epitope retrieval solution 1) for 20mins. The section was then incubated with Anti-pan Cytokeratin antibody [C-11] ab7753, 1μg/ml, for 15 mins at room temperature and detected using an HRP conjμgated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset secondary-only control image is taken from an identical assay without primary antibody.
  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions,primary antibody concentration and antibody incubation times.
  *Tissue obtained from the Human Research Tissue Bank,supported by the NIHR Cambridge Biomedical Research Centre

•

  Immunocytochemistry/ Immunofluorescence - Anti-pan Cytokeratin antibody [C-11] - BSA and Azide free (ab264485)

  Anti-pan Cytokeratin antibody [C-11] ab7753 staining pan Cytokeratin in HeLa cells. The cells were fixed with 4% paraformaldehyde (10 min),permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-pan Cytokeratin antibody [C-11] ab7753 at 1μg/ml and Anti-beta Tubulin antibody - Loading Control ab6046,Rabbit polyclonal to beta Tubulin - Loading Control. Cells were then incubated with Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117,Goat polyclonal Secondary Antibody to Mouse IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green) and Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) ab150080,Goat polyclonal Secondary Antibody to Rabbit IgG - H&L (Alexa Fluor® 594) at 1/1000 dilution (shown in pseudocolour red). Nuclear DNA was labelled with DAPI (shown in blue). Also suitable in cells fixed with 100% methanol (5 min).


  Image was acquired with a high-content analyser (Operetta CLS,Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Immunohistochemistry (Frozen sections) - Anti-pan Cytokeratin antibody [C-11] - BSA and Azide free (ab264485)

  This data was developed using the same antibody clone in a different buffer formulation containing PBS and sodium azide (Anti-pan Cytokeratin antibody [C-11] ab7753)


  IHC image of pan cytokeratin staining in a section of frozen normal mouse large intestine performed on a Leica BONDTM system using the standard protocol. The section was fixed in 10% paraformaldehyde (10 min) prior to staining. The section was incubated with Anti-pan Cytokeratin antibody [C-11] ab7753, 1μg/ml, for 15 mins at room temperature. A goat anti-mouse IgG1 bridging antibody,Rabbit monoclonal [M1gG51-4] Anti-Mouse IgG1 H&L ab125913,was added for 8 mins at room temperature and detected using an HRP conjμgated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset secondary-only control image is taken from an identical assay without primary antibody.

•

  Immunohistochemistry (Frozen sections) - Anti-pan Cytokeratin antibody [C-11] - BSA and Azide free (ab264485)

  This data was developed using the same antibody clone in a different buffer formulation containing PBS and sodium azide (Anti-pan Cytokeratin antibody [C-11] ab7753)


  IHC image of pan cytokeratin staining in a section of frozen normal rat kidney performed on a Leica BONDTM system using the standard protocol. The section was fixed in 10% paraformaldehyde (10 min) prior to staining. The section was incubated with Anti-pan Cytokeratin antibody [C-11] ab7753, 1μg/ml, for 15 mins at room temperature and detected using an HRP conjμgated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset secondary-only control image is taken from an identical assay without primary antibody.

•

  Immunohistochemistry (Frozen sections) - Anti-pan Cytokeratin antibody [C-11] - BSA and Azide free (ab264485)

  This data was developed using the same antibody clone in a different buffer formulation containing PBS and sodium azide (Anti-pan Cytokeratin antibody [C-11] ab7753)


  IHC image of pan cytokeratin staining in a section of frozen normal human skin performed on a Leica BONDTM system using the standard protocol. The section was fixed in 10% paraformaldehyde (10 min) prior to staining. The section was incubated with Anti-pan Cytokeratin antibody [C-11] ab7753, 1μg/ml, for 15 mins at room temperature and detected using an HRP conjμgated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset secondary-only control image is taken from an identical assay without primary antibody.
  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions,primary antibody concentration and antibody incubation times.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-pan Cytokeratin antibody [C-11] - BSA and Azide free (ab264485)

  This data was developed using the same antibody clone in a different buffer formulation containing PBS and sodium azide (Anti-pan Cytokeratin antibody [C-11] ab7753)


  IHC image of pan cytokeratin staining in a section of formalin-fixed paraffin-embedded normal rat skin performed on a Leica BONDTM system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6,epitope retrieval solution 1) for 20mins. The section was then incubated with Anti-pan Cytokeratin antibody [C-11] ab7753, 1μg/ml, for 15 mins at room temperature and detected using an HRP conjμgated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset secondary-only control image is taken from an identical assay without primary antibody.
  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions,primary antibody concentration and antibody incubation times.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-pan Cytokeratin antibody [C-11] - BSA and Azide free (ab264485)

  This data was developed using the same antibody clone in a different buffer formulation containing PBS and sodium azide (Anti-pan Cytokeratin antibody [C-11] ab7753)


  IHC image of pan cytokeratin staining in a section of formalin-fixed paraffin-embedded normal mouse skin performed on a Leica BONDTM system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6,epitope retrieval solution 1) for 20mins. The section was then incubated with Anti-pan Cytokeratin antibody [C-11] ab7753, 1μg/ml, for 15 mins at room temperature. A goat anti-mouse IgG1 bridging antibody,Rabbit monoclonal [M1gG51-4] Anti-Mouse IgG1 H&L ab125913,was added for 8 mins at room temperature and detected using an HRP conjμgated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset secondary-only control image is taken from an identical assay without primary antibody.
  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions,primary antibody concentration and antibody incubation times.

•

  Immunocytochemistry/ Immunofluorescence - Anti-pan Cytokeratin antibody [C-11] - BSA and Azide free (ab264485)

  This data was developed using the same antibody clone in a different buffer formulation containing PBS and sodium azide (Anti-pan Cytokeratin antibody [C-11] ab7753)


  Anti-pan Cytokeratin antibody [C-11] ab7753 staining pan Cytokeratin in A431 cells. The cells were fixed with 4% paraformaldehyde (10 min),permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-pan Cytokeratin antibody [C-11] ab7753 at 1μg/ml and Anti-beta Tubulin antibody - Loading Control ab6046,Rabbit polyclonal to beta Tubulin - Loading Control. Cells were then incubated with Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117,Goat polyclonal Secondary Antibody to Mouse IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green) and Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) ab150080,Goat polyclonal Secondary Antibody to Rabbit IgG - H&L (Alexa Fluor® 594) at 1/1000 dilution (shown in pseudocolour red). Nuclear DNA was labelled with DAPI (shown in blue). Also suitable in cells fixed with 100% methanol (5 min).

  Image was acquired with a high-content analyser (Operetta CLS,Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Multiplex immunohistochemistry - Anti-pan Cytokeratin antibody [C-11] - BSA and Azide free (ab264485)

  This image was generated from the hybridoma version of the product.


  Fluorescence multiplex immunohistochemical analysis of normal human tonsil tissue (formalin-fixed paraffin-embedded section).

  Merged staining of anti-PD1 (Anti-PD1 antibody [CAL20] ab237728; orange; Opal™520), anti-PDL1 (Anti-PD-L1 antibody [CAL10] ab237726; green; Opal™540), anti-CD68 (Anti-CD68 antibody [SP251] ab192847; yellow; Opal™570), anti-CD3 (Anti-CD3 epsilon antibody [SP7] ab16669; red; Opal™620), anti-Ki67 (Anti-Ki67 antibody [SP6] ab16667; light blue; Opal™650) and anti-PanCK (Anti-pan Cytokeratin antibody [C-11] ab7753; grey; Opal™690).

  The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 7-color automation IHC kit (NEL821001KT, Akoya Biosciences®).

  The section was incubated in six rounds of staining; in the order of Anti-PD1 antibody [CAL20] ab237728 (1/500 dilution), Anti-PD-L1 antibody [CAL10] ab237726 (1/500 dilution), Anti-CD68 antibody [SP251] ab192847 (1/300 dilution), Anti-CD3 epsilon antibody [SP7] ab16669 (1/300 dilution), Anti-Ki67 antibody [SP6] ab16667 (1/200 dilution) and Anti-pan Cytokeratin antibody [C-11] ab7753 (1/200 dilution); each using a separate fluorescent tyramide signal amplification system.

  Sodium citrate antigen retrieval (Leica ER1, pH6.0, 30 minutes) was used in between rounds of tyramide signal amplification to remove the antibody from the previous round, to avoid any cross-reactivity.

  DAPI (dark blue) was used as a nuclear counter stain.

  Microscopy and pseudocoloring of individual Opal™ dyes was performed using a Vectra Polaris.

•

  This image is courtesy of a customer review submitted by Carl Hobbs

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-pan Cytokeratin antibody [C-11] - BSA and Azide free (ab264485)

  This image was generated from the hybridoma version of the product.


  Anti-pan Cytokeratin antibody [C-11] ab7753 staining human skin sections by IHC-P. The tissue was fixed with formaldehyde and a heat mediated antigen retrival step was performed with citric acid pH 6. Blocking of the sample was done with 1% BSA for 10 minutes at 21°C, followed by staining with Anti-pan Cytokeratin antibody [C-11] ab7753 at 1/250 in TBS/BSA/azide for 2h at 21°C. A biotinylated goat anti-rabbit polyclonal antibody at 1/200 was used as the secondary antibody.

•

  This image is courtesy of a customer review submitted by Carl Hobbs

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-pan Cytokeratin antibody [C-11] - BSA and Azide free (ab264485)

  This image was generated from the hybridoma version of the product.


  Anti-pan Cytokeratin antibody [C-11] ab7753 staining rat embryonic skin/organ sections by IHC-P. The tissue was fixed with formaldehyde and a heat mediated antigen retrival step was performed with citric acid pH 6. Blocking of the sample was done with 1% BSA for 10 minutes at 21°C, followed by staining with ab77539 at 1/250 in TBS/BSA/azide for 2h at 21°C. A biotinylated goat anti-mouse polyclonal antibody at 1/200 was used as the secondary antibody.

•

  Flow Cytometry (Intracellular) - Anti-pan Cytokeratin antibody [C-11] - BSA and Azide free (ab264485)

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-pan Cytokeratin antibody [C-11] ab7753).

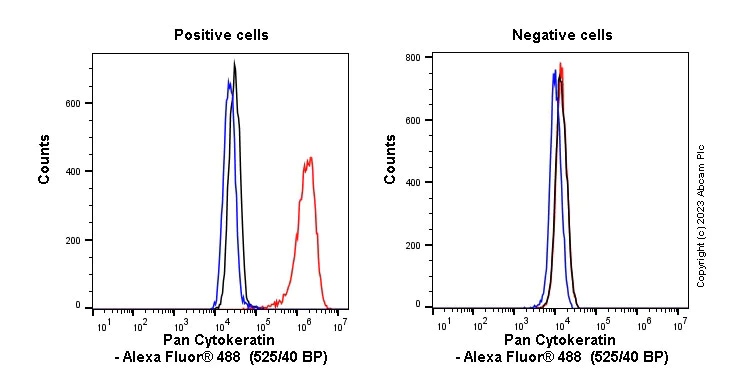

  Flow cytometry overlay histogram showing left HeLa positive cells and right negative Jurkat stained with Anti-pan Cytokeratin antibody [C-11] ab7753 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilised with 0.1% PBS-Triton X-100 for 15 min. The cells were then incubated in 1x PBS containing 10% normal goat serum to block non-specific protein-protein interaction followed by the antibody (Anti-pan Cytokeratin antibody [C-11] ab7753) (1x 106 in 100μl at 0.2μg/ml (1/13150)) for 30min at 22°C.

  The secondary antibody Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed was incubated at 1/4000 for 30min at 22°C

  Isotype control antibody (black line) was Mouse IgG1, kappa monoclonal [15-6E10A7] - Isotype Control used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control.

  Acquisition of >5000 events were collected using a 50 mW Blue laser (488nm) and 525/40 bandpass filter.

  This antibody gave a positive signal in HeLa Fixed with 4% formaldehyde (10 min) / permeabilised with 0.1% PBS-Triton X-100 for 15 min under the same conditions.

•

  This image is courtesy of ImmunoAtlas.

  Multiplex immunohistochemistry - Anti-pan Cytokeratin antibody [C-11] - BSA and Azide free (ab264485)

  Fluorescence multiplex immunohistochemical analysis of Human breast cancer tissue (formalin-fixed paraffin-embedded section).


  Merged staining of Anti-PD-L1 (Anti-PD-L1 antibody [CAL10] - BSA and Azide free ab251611; cyan; Opal™ 520), Anti-Granzyme B (Anti-Granzyme B antibody [EPR20129-217] - BSA and Azide free ab219803; yellow; Opal™ 540), Anti-PD1 (Anti-PD1 antibody [CAL20] - BSA and Azide free ab251613; magenta; Opal™ 570), Anti-pan Cytokeratin (ab264485; red; Opal™ 620), Anti-EpCAM (Anti-EpCAM antibody [EPR20532-225] - BSA and Azide free ab225894; red; Opal™ 620), Anti-CD8 alpha (Anti-CD8 alpha antibody [CAL66] - BSA and Azide free ab251596; green; Opal™ 650) and Anti-FOXP3 (Anti-FOXP3 antibody [236A/E7] - BSA and Azide free ab96048; orange; Opal™ 690). EpCAM and pan-cytokeratin share the same dye and color. Dyes are pseudo-colored for better contrast of the markers.

  The immunostaining was performed on a Leica Biosystems BOND^® MAX instrument with an Opal™ 6-Plex Detection Kit (NEL821001KT, Akoya Biosciences^®).

  The section was incubated in six rounds of staining; sequentially for Anti-PD-L1 antibody [CAL10] - BSA and Azide free ab251611 (1/750 dilution), Anti-Granzyme B antibody [EPR20129-217] - BSA and Azide free ab219803 (1/250 dilution), Anti-PD1 antibody [CAL20] - BSA and Azide free ab251613 (1/750 dilution), ab264485 (0.5 μg/ml), Anti-EpCAM antibody [EPR20532-225] - BSA and Azide free ab225894 (1/1250 dilution), Anti-CD8 alpha antibody [CAL66] - BSA and Azide free ab251596 (1/1500 dilution) and Anti-FOXP3 antibody [236A/E7] - BSA and Azide free ab96048 (10 μg/ml); each using a separate fluorescent tyramide signal amplification system. EDTA based antigen retrieval (Leica Biosystems BOND^® Epitope Retrieval Solution 2, pH 9.0, 20 minutes) was used in between rounds of tyramide signal amplification to remove the antibody from the previous round, to avoid any cross-reactivity. DAPI (dark blue) was used as a nuclear counter stain.
  Microscopy and pseudocoloring of individual Opal™ dyes was performed using a Vectra 3 Imaging System (Akoya Biosciences^®).

  This data was developed using the same antibody clone in a different buffer formulation containing PBS and sodium azide (Anti-pan Cytokeratin antibody [C-11] ab7753).

  This data is courtesy of ImmunoAtlas and it can be found here.

•

  This image is courtesy of ImmunoAtlas.

  Multiplex immunohistochemistry - Anti-pan Cytokeratin antibody [C-11] - BSA and Azide free (ab264485)

  Fluorescence multiplex immunohistochemical analysis of Human breast cancer tissue (formalin-fixed paraffin-embedded section).


  Merged staining of Anti-PD-L1 (Anti-PD-L1 antibody [CAL10] - BSA and Azide free ab251611; cyan; Opal™ 520), Anti-Granzyme B (Anti-Granzyme B antibody [EPR20129-217] - BSA and Azide free ab219803; yellow; Opal™ 540), Anti-PD1 (Anti-PD1 antibody [CAL20] - BSA and Azide free ab251613; magenta; Opal™ 570), Anti-pan Cytokeratin (ab264485; red; Opal™ 620), Anti-EpCAM (Anti-EpCAM antibody [EPR20532-225] - BSA and Azide free ab225894; red; Opal™ 620), Anti-CD8 alpha (Anti-CD8 alpha antibody [CAL66] - BSA and Azide free ab251596; green; Opal™ 650) and Anti-FOXP3 (Anti-FOXP3 antibody [236A/E7] - BSA and Azide free ab96048; orange; Opal™ 690). EpCAM and pan-cytokeratin share the same dye and color. Dyes are pseudo-colored for better contrast of the markers.

  The immunostaining was performed on a Leica Biosystems BOND^® MAX instrument with an Opal™ 6-Plex Detection Kit (NEL821001KT, Akoya Biosciences^®).

  The section was incubated in six rounds of staining; sequentially for Anti-PD-L1 antibody [CAL10] - BSA and Azide free ab251611 (1/750 dilution), Anti-Granzyme B antibody [EPR20129-217] - BSA and Azide free ab219803 (1/250 dilution), Anti-PD1 antibody [CAL20] - BSA and Azide free ab251613 (1/750 dilution), ab264485 (0.5 μg/ml), Anti-EpCAM antibody [EPR20532-225] - BSA and Azide free ab225894 (1/1250 dilution), Anti-CD8 alpha antibody [CAL66] - BSA and Azide free ab251596 (1/1500 dilution) and Anti-FOXP3 antibody [236A/E7] - BSA and Azide free ab96048 (10 μg/ml); each using a separate fluorescent tyramide signal amplification system. EDTA based antigen retrieval (Leica Biosystems BOND^® Epitope Retrieval Solution 2, pH 9.0, 20 minutes) was used in between rounds of tyramide signal amplification to remove the antibody from the previous round, to avoid any cross-reactivity. DAPI (dark blue) was used as a nuclear counter stain.
  Microscopy and pseudocoloring of individual Opal™ dyes was performed using a Vectra 3 Imaging System (Akoya Biosciences^®).

  This data is courtesy of ImmunoAtlas and it can be found here.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS and sodium azide (Anti-pan Cytokeratin antibody [C-11] ab7753).

•

  This image is courtesy of ImmunoAtlas.

  Multiplex immunohistochemistry - Anti-pan Cytokeratin antibody [C-11] - BSA and Azide free (ab264485)

  Fluorescence multiplex immunohistochemical analysis of Human breast cancer tissue (formalin-fixed paraffin-embedded section).


  Merged staining of Anti-PD-L1 (Anti-PD-L1 antibody [CAL10] - BSA and Azide free ab251611; cyan; Opal™ 520), Anti-Granzyme B (Anti-Granzyme B antibody [EPR20129-217] - BSA and Azide free ab219803; yellow; Opal™ 540), Anti-PD1 (Anti-PD1 antibody [CAL20] - BSA and Azide free ab251613; magenta; Opal™ 570), Anti-pan Cytokeratin (ab264485; red; Opal™ 620), Anti-EpCAM (Anti-EpCAM antibody [EPR20532-225] - BSA and Azide free ab225894; red; Opal™ 620), Anti-CD8 alpha (Anti-CD8 alpha antibody [CAL66] - BSA and Azide free ab251596; green; Opal™ 650) and Anti-FOXP3 (Anti-FOXP3 antibody [236A/E7] - BSA and Azide free ab96048; orange; Opal™ 690). EpCAM and pan-cytokeratin share the same dye and color. Dyes are pseudo-colored for better contrast of the markers.

  The immunostaining was performed on a Leica Biosystems BOND® MAX instrument with an Opal™ 6-Plex Detection Kit (NEL821001KT, Akoya Biosciences^®).

  The section was incubated in six rounds of staining; sequentially for Anti-PD-L1 antibody [CAL10] - BSA and Azide free ab251611 (1/750 dilution), Anti-Granzyme B antibody [EPR20129-217] - BSA and Azide free ab219803 (1/250 dilution), Anti-PD1 antibody [CAL20] - BSA and Azide free ab251613 (1/750 dilution), ab264485 (0.5 μg/ml), Anti-EpCAM antibody [EPR20532-225] - BSA and Azide free ab225894 (1/1250 dilution), Anti-CD8 alpha antibody [CAL66] - BSA and Azide free ab251596 (1/1500 dilution) and Anti-FOXP3 antibody [236A/E7] - BSA and Azide free ab96048 (10 μg/ml); each using a separate fluorescent tyramide signal amplification system. EDTA based antigen retrieval (Leica Biosystems BOND^® Epitope Retrieval Solution 2, pH 9.0, 20 minutes) was used in between rounds of tyramide signal amplification to remove the antibody from the previous round, to avoid any cross-reactivity. DAPI (dark blue) was used as a nuclear counter stain.
  Microscopy and pseudocoloring of individual Opal™ dyes was performed using a Vectra 3 Imaging System (Akoya Biosciences^®).

  This data is courtesy of ImmunoAtlas and it can be found here.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS and sodium azide (Anti-pan Cytokeratin antibody [C-11] ab7753).

•

  This image is courtesy of ImmunoAtlas.

  Multiplex immunohistochemistry - Anti-pan Cytokeratin antibody [C-11] - BSA and Azide free (ab264485)

  Fluorescence multiplex immunohistochemical analysis of Human breast cancer tissue (formalin-fixed paraffin-embedded section).


  Merged staining of Anti-PD-L1 (Anti-PD-L1 antibody [CAL10] - BSA and Azide free ab251611; cyan; Opal™ 520), Anti-Granzyme B (Anti-Granzyme B antibody [EPR20129-217] - BSA and Azide free ab219803; yellow; Opal™ 540), Anti-PD1 (Anti-PD1 antibody [CAL20] - BSA and Azide free ab251613; magenta; Opal™ 570), Anti-pan Cytokeratin (ab264485; red; Opal™ 620), Anti-EpCAM (Anti-EpCAM antibody [EPR20532-225] - BSA and Azide free ab225894; red; Opal™ 620), Anti-CD8 alpha (Anti-CD8 alpha antibody [CAL66] - BSA and Azide free ab251596; green; Opal™ 650) and Anti-FOXP3 (Anti-FOXP3 antibody [236A/E7] - BSA and Azide free ab96048; orange; Opal™ 690). EpCAM and pan-cytokeratin share the same dye and color. Dyes are pseudo-colored for better contrast of the markers.

  The immunostaining was performed on a Leica Biosystems BOND^® MAX instrument with an Opal™ 6-Plex Detection Kit (NEL821001KT, Akoya Biosciences^®).

  The section was incubated in six rounds of staining; sequentially for Anti-PD-L1 antibody [CAL10] - BSA and Azide free ab251611 (1/750 dilution), Anti-Granzyme B antibody [EPR20129-217] - BSA and Azide free ab219803 (1/250 dilution), Anti-PD1 antibody [CAL20] - BSA and Azide free ab251613 (1/750 dilution), ab264485 (0.5 μg/ml), Anti-EpCAM antibody [EPR20532-225] - BSA and Azide free ab225894 (1/1250 dilution), Anti-CD8 alpha antibody [CAL66] - BSA and Azide free ab251596 (1/1500 dilution) and Anti-FOXP3 antibody [236A/E7] - BSA and Azide free ab96048 (10 μg/ml); each using a separate fluorescent tyramide signal amplification system. EDTA based antigen retrieval (Leica Biosystems BOND^® Epitope Retrieval Solution 2, pH 9.0, 20 minutes) was used in between rounds of tyramide signal amplification to remove the antibody from the previous round, to avoid any cross-reactivity. DAPI (dark blue) was used as a nuclear counter stain.
  Microscopy and pseudocoloring of individual Opal™ dyes was performed using a Vectra 3 Imaging System (Akoya Biosciences^®).

  This data was developed using the same antibody clone in a different buffer formulation containing PBS and sodium azide (Anti-pan Cytokeratin antibody [C-11] ab7753).

  This data is courtesy of ImmunoAtlas and it can be found here.

•

  This image is courtesy of ImmunoAtlas.

  Multiplex immunohistochemistry - Anti-pan Cytokeratin antibody [C-11] - BSA and Azide free (ab264485)

  Fluorescence multiplex immunohistochemical analysis of Human breast cancer tissue (formalin-fixed paraffin-embedded section).
  Merged staining of Anti-PD-L1 (Anti-PD-L1 antibody [CAL10] - BSA and Azide free ab251611), Anti-Granzyme B (Anti-Granzyme B antibody [EPR20129-217] - BSA and Azide free ab219803), Anti-PD1 (Anti-PD1 antibody [CAL20] - BSA and Azide free ab251613), Anti-pan Cytokeratin (ab264485), Anti-EpCAM (Anti-EpCAM antibody [EPR20532-225] - BSA and Azide free ab225894), Anti-CD8 alpha (Anti-CD8 alpha antibody [CAL66] - BSA and Azide free ab251596) and Anti-FOXP3 (Anti-FOXP3 antibody [236A/E7] - BSA and Azide free ab96048).
  The immunostaining was performed on a Leica Biosystems BOND® MAX instrument with an Opal™ 6-Plex Detection Kit (NEL821001KT, Akoya Biosciences®).
  The section was incubated in six rounds of staining; sequentially for Anti-PD-L1 antibody [CAL10] - BSA and Azide free ab251611 (1/750 dilution), Anti-Granzyme B antibody [EPR20129-217] - BSA and Azide free ab219803 (1/250 dilution), Anti-PD1 antibody [CAL20] - BSA and Azide free ab251613 (1/750 dilution), ab264485 (0.5 µg/ml), Anti-EpCAM antibody [EPR20532-225] - BSA and Azide free ab225894 (1/1250 dilution), Anti-CD8 alpha antibody [CAL66] - BSA and Azide free ab251596 (1/1500 dilution) and Anti-FOXP3 antibody [236A/E7] - BSA and Azide free ab96048 (10 µg/ml); each using a separate fluorescent tyramide signal amplification system. EDTA based antigen retrieval (Leica Biosystems BOND® Epitope Retrieval Solution 2, pH 9.0, 20 minutes) was used in between rounds of tyramide signal amplification to remove the antibody from the previous round, to avoid any cross-reactivity. DAPI (dark blue) was used as a nuclear counter stain. Microscopy and pseudocoloring of individual Opal™ dyes was performed using a Vectra 3 Imaging System (Akoya Biosciences®).
  This data was developed using the same antibody clone in a different buffer formulation containing PBS and sodium azide (Anti-pan Cytokeratin antibody [C-11] ab7753).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-pan Cytokeratin antibody [C-11] - BSA and Azide free (ab264485)

  This data was developed using Anti-pan Cytokeratin antibody [C-11] ab7753, the same antibody clone in a different buffer formulation.

  Immunohistochemical analysis of formalin fixed paraffin embedded human skin labelling pan Cytokeratin with Anti-pan Cytokeratin antibody [C-11] ab7753 at a concentration of 0.1µg/ml. The immunostaining was performed on a Ventana DISCOVERY ULTRA (Roche Tissue Diagnostics) instrument with a OptiView DAB IHC Detection Kit. Heat mediated antigen retrieval was performed with DISCOVERY cell conditioning solution (CC1) 100°C, pH8.5 for 32mins.

  Anti-pan Cytokeratin antibody [C-11] ab7753 Anti-pan Cytokeratin antibody [C-11] was incubated for 16mins at 37°C. Sections were counterstained with Hematoxylin II. Image inset shows absence of staining in secondary antibody only control.

  Customers are encouraged to optimise antigen retrieval conditions, antibody concentration, incubation times and temperature for best results in their own IHC assay workflow (automated and manual).
