AB315377

Anti-Parkin (phospho S65) antibody [MJF-R17-42-4] - BSA and Azide free

Be the first to review this product! Submit a review

|

(0 Publication)

Rabbit Recombinant Monoclonal Parkin phospho S65 antibody. Carrier free. Suitable for WB, ICC/IF and reacts with Transfected cell lysate - Human, Transfected cell line - Human samples.

View Alternative Names

PARK2, PRKN, E3 ubiquitin-protein ligase parkin, Parkin, Parkin RBR E3 ubiquitin-protein ligase, Parkinson juvenile disease protein 2, Parkinson disease protein 2

3 Images
Immunocytochemistry/ Immunofluorescence - Anti-Parkin (phospho S65) antibody [MJF-R17-42-4] - BSA and Azide free (AB315377)
  • ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Parkin (phospho S65) antibody [MJF-R17-42-4] - BSA and Azide free (AB315377)

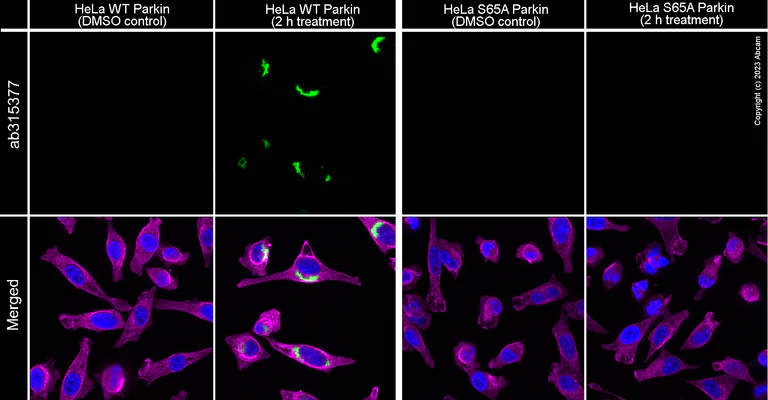

ab315377 staining phosphorylated Parkin (S65). HeLa cell lines with WT Parkin or S65A mutant overexpression (kindly provided by the Muqit lab, for details see PMID 26116755) were treated with 10 µM antimycin A and 1 µM oligomycin for 2 h. DMSO was used as control. The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with ab315377 at 0.016 µg/ml and ab7291, Mouse monoclonal [DM1A] to alpha Tubulin - Loading Control. Cells were then incubated with ab150083, Goat polyclonal Secondary Antibody to Rabbit IgG - H&L (Alexa Fluor® 647), pre-adsorbed at 1/1000 dilution (shown in green) and ab150120, Goat polyclonal Secondary Antibody to Mouse IgG - H&L (Alexa Fluor® 594), pre-adsorbed at 1/1000 dilution (shown in magenta). Nuclear DNA was labelled with DAPI (shown in blue). Staining is seen in A+O treated HeLa WT Parkin cells, but not in the other conditions. Absence of staining in the HeLa S65A Parkin cells indicates phospho-specificity towards residue S65.

Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

Immunocytochemistry/ Immunofluorescence - Anti-Parkin (phospho S65) antibody [MJF-R17-42-4] - BSA and Azide free (AB315377)
  • ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Parkin (phospho S65) antibody [MJF-R17-42-4] - BSA and Azide free (AB315377)

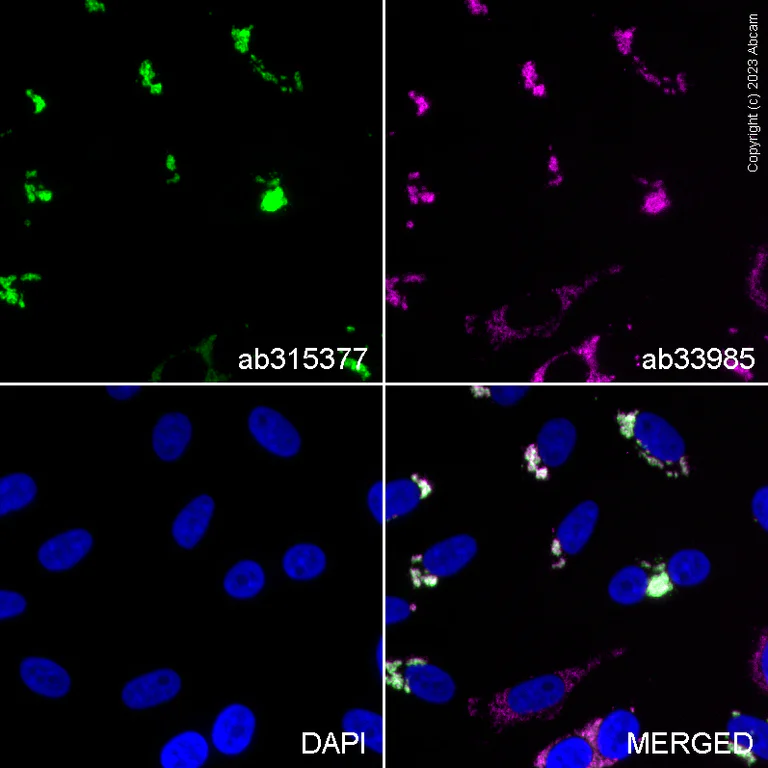

ab315377 staining phosphorylated Parkin (S65) and the staining co-localises with mitochondrial marker (Anti-COX IV antibody, ab33985). HeLa cell line with WT Parkin overexpression (kindly provided by the Muqit lab, for details see PMID 26116755) were treated with 10 µM antimycin A and 1 µM oligomycin for 2 h. DMSO was used as control. The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with ab315377 at 0.08 µg/ml and ab33985, Mouse monoclonal Anti-COX IV antibody [mAbcam33985]. Cells were then incubated with ab150083, Goat polyclonal Secondary Antibody to Rabbit IgG - H&L (Alexa Fluor® 647), pre-adsorbed at 1/1000 dilution (shown in green) and ab150120, Goat polyclonal Secondary Antibody to Mouse IgG - H&L (Alexa Fluor® 594), pre-adsorbed at 1/1000 dilution (shown in magenta). Nuclear DNA was labelled with DAPI (shown in blue).

Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

Western blot - Anti-Parkin (phospho S65) antibody [MJF-R17-42-4] - BSA and Azide free (AB315377)
  • WB

Supplier Data

Western blot - Anti-Parkin (phospho S65) antibody [MJF-R17-42-4] - BSA and Azide free (AB315377)

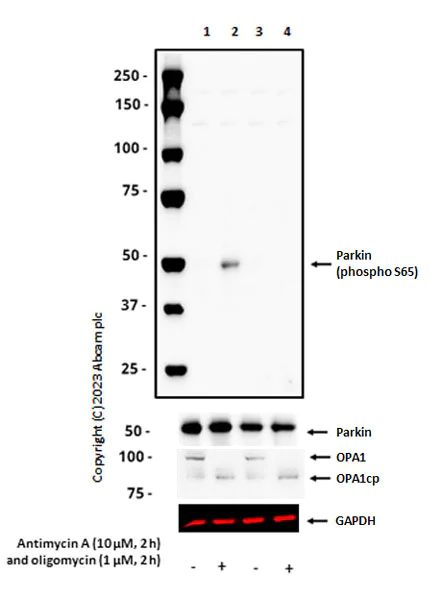

Blocking and diluting buffer and concentration : 5% BSA/TBST.

All lanes:

Western blot - Anti-Parkin (phospho S65) antibody [MJF-R17-42-4] - BSA and Azide free (ab315377) at 0.2 µg/mL

Lane 1:

Untreated HeLa (human cervix adenocarcinoma epithelial cell) stable expression wild-type parkin whole cell lysate at 10 µg

Lane 2:

HeLa stable expression wild-type parkin treated with Antimycin A (10 µM) and oligomycin(1 µM) for 2 hours, whole cell lysate at 10 µg

Lane 3:

Untreated HeLa stable expression parkin(S65A mutant) whole cell lysate at 10 µg

Lane 4:

HeLa stable expression parkin(S65A mutant) treated with Antimycin A (10 µM) and oligomycin(1 µM) for 2 hours, whole cell lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 52 kDa,36 kDa

false

Exposure time: 2.5min

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

MJF-R17-42-4

Isotype

IgG

Carrier free

Yes

Reacts with

Human

Applications

WB, ICC/IF

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "", "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" }, "Transfected cell line - Human": { "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>" }, "Transfected cell lysate - Human": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" } } }

Product details

ab315377 is the carrier-free version of ab315376.

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

Collaborations
This antibody was developed with support from The Michael J. Fox Foundation.

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

The Parkin protein also known as PRK8 or Park2 is an E3 ubiquitin ligase with a molecular weight of approximately 52 kDa. This protein plays a critical role in tagging damaged proteins for degradation maintaining cellular health. Parkin is expressed in various tissues with significant levels in dopaminergic neurons in the brain. It is encoded by the PARK2 gene and has been linked to the regulation of mitochondrial quality and autophagy processes contributing to cellular homeostasis.
Biological function summary

Parkin is essential for the regulation of mitochondria through its involvement in the mitochondrial quality control system. It functions as part of a complex with other proteins that respond to mitochondrial damage by tagging them with ubiquitin molecules. This mechanism allows for the removal of defective mitochondria via mitophagy critical for preventing the accumulation of damaged cellular components.

Pathways

Parkin interacts with pathways involved in the cellular stress response particularly the PINK1 (PTEN Induced Kinase

  1. pathway. PINK1 phosphorylates Parkin activating it to label damaged mitochondria. Another critical pathway involves proteasomal degradation where Parkin collaborates with Ubiquitin to manage protein turnover. These pathways highlight its relationships with other cellular stress-regulating proteins enhancing our understanding of its roles in maintaining cellular integrity.
Mutations in the gene coding for Parkin are linked to Parkinson's disease (PD) and some forms of juvenile autosomal recessive parkinsonism. The Parkin protein's dysfunctional activity leads to impaired mitochondrial management and protein aggregation in neurons contributing significantly to neurodegenerative disease. In conditions such as PD Parkin interacts with other proteins such as PINK1 reinforcing its role in mitochondrial protection and indicating the protein's importance in disease progression and potential therapeutic targeting.

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Target data

Functions within a multiprotein E3 ubiquitin ligase complex, catalyzing the covalent attachment of ubiquitin moieties onto substrate proteins (PubMed : 10888878, PubMed : 10973942, PubMed : 11431533, PubMed : 12150907, PubMed : 12628165, PubMed : 15105460, PubMed : 16135753, PubMed : 21376232, PubMed : 21532592, PubMed : 22396657, PubMed : 23620051, PubMed : 23754282, PubMed : 24660806, PubMed : 24751536, PubMed : 29311685, PubMed : 32047033). Substrates include SYT11 and VDAC1 (PubMed : 29311685, PubMed : 32047033). Other substrates are BCL2, CCNE1, GPR37, RHOT1/MIRO1, MFN1, MFN2, STUB1, SNCAIP, SEPTIN5, TOMM20, USP30, ZNF746, MIRO1 and AIMP2 (PubMed : 10888878, PubMed : 10973942, PubMed : 11431533, PubMed : 12150907, PubMed : 12628165, PubMed : 15105460, PubMed : 16135753, PubMed : 21376232, PubMed : 21532592, PubMed : 22396657, PubMed : 23620051, PubMed : 23754282, PubMed : 24660806, PubMed : 24751536). Mediates monoubiquitination as well as 'Lys-6', 'Lys-11', 'Lys-48'-linked and 'Lys-63'-linked polyubiquitination of substrates depending on the context (PubMed : 19229105, PubMed : 20889974, PubMed : 25474007, PubMed : 25621951, PubMed : 32047033). Participates in the removal and/or detoxification of abnormally folded or damaged protein by mediating 'Lys-63'-linked polyubiquitination of misfolded proteins such as PARK7 : 'Lys-63'-linked polyubiquitinated misfolded proteins are then recognized by HDAC6, leading to their recruitment to aggresomes, followed by degradation (PubMed : 17846173, PubMed : 19229105). Mediates 'Lys-63'-linked polyubiquitination of a 22 kDa O-linked glycosylated isoform of SNCAIP, possibly playing a role in Lewy-body formation (PubMed : 11431533, PubMed : 11590439, PubMed : 15105460, PubMed : 15728840, PubMed : 19229105). Mediates monoubiquitination of BCL2, thereby acting as a positive regulator of autophagy (PubMed : 20889974). Protects against mitochondrial dysfunction during cellular stress, by acting downstream of PINK1 to coordinate mitochondrial quality control mechanisms that remove and replace dysfunctional mitochondrial components (PubMed : 11439185, PubMed : 18957282, PubMed : 19029340, PubMed : 19966284, PubMed : 21376232, PubMed : 22082830, PubMed : 22396657, PubMed : 23620051, PubMed : 23933751, PubMed : 24660806, PubMed : 24784582, PubMed : 24896179, PubMed : 25474007, PubMed : 25527291, PubMed : 32047033). Depending on the severity of mitochondrial damage and/or dysfunction, activity ranges from preventing apoptosis and stimulating mitochondrial biogenesis to regulating mitochondrial dynamics and eliminating severely damaged mitochondria via mitophagy (PubMed : 11439185, PubMed : 19029340, PubMed : 19801972, PubMed : 19966284, PubMed : 21376232, PubMed : 22082830, PubMed : 22396657, PubMed : 23620051, PubMed : 23685073, PubMed : 23933751, PubMed : 24896179, PubMed : 25527291, PubMed : 32047033, PubMed : 33499712). Activation and recruitment onto the outer membrane of damaged/dysfunctional mitochondria (OMM) requires PINK1-mediated phosphorylation of both PRKN and ubiquitin (PubMed : 24660806, PubMed : 24784582, PubMed : 25474007, PubMed : 25527291). After mitochondrial damage, functions with PINK1 to mediate the decision between mitophagy or preventing apoptosis by inducing either the poly- or monoubiquitination of VDAC1, respectively; polyubiquitination of VDAC1 promotes mitophagy, while monoubiquitination of VDAC1 decreases mitochondrial calcium influx which ultimately inhibits apoptosis (PubMed : 27534820, PubMed : 32047033). When cellular stress results in irreversible mitochondrial damage, promotes the autophagic degradation of dysfunctional depolarized mitochondria (mitophagy) by promoting the ubiquitination of mitochondrial proteins such as TOMM20, RHOT1/MIRO1, MFN1 and USP30 (PubMed : 19029340, PubMed : 19966284, PubMed : 21753002, PubMed : 22396657, PubMed : 23620051, PubMed : 23685073, PubMed : 23933751, PubMed : 24896179, PubMed : 25527291). Preferentially assembles 'Lys-6'-, 'Lys-11'- and 'Lys-63'-linked polyubiquitin chains, leading to mitophagy (PubMed : 25621951, PubMed : 32047033). The PINK1-PRKN pathway also promotes fission of damaged mitochondria by PINK1-mediated phosphorylation which promotes the PRKN-dependent degradation of mitochondrial proteins involved in fission such as MFN2 (PubMed : 23620051). This prevents the refusion of unhealthy mitochondria with the mitochondrial network or initiates mitochondrial fragmentation facilitating their later engulfment by autophagosomes (PubMed : 23620051). Regulates motility of damaged mitochondria via the ubiquitination and subsequent degradation of MIRO1 and MIRO2; in motor neurons, this likely inhibits mitochondrial intracellular anterograde transport along the axons which probably increases the chance of the mitochondria undergoing mitophagy in the soma (PubMed : 22396657). Involved in mitochondrial biogenesis via the 'Lys-48'-linked polyubiquitination of transcriptional repressor ZNF746/PARIS which leads to its subsequent proteasomal degradation and allows activation of the transcription factor PPARGC1A (PubMed : 21376232). Limits the production of reactive oxygen species (ROS) (PubMed : 18541373). Regulates cyclin-E during neuronal apoptosis (PubMed : 12628165). In collaboration with CHPF isoform 2, may enhance cell viability and protect cells from oxidative stress (PubMed : 22082830). Independently of its ubiquitin ligase activity, protects from apoptosis by the transcriptional repression of p53/TP53 (PubMed : 19801972). May protect neurons against alpha synuclein toxicity, proteasomal dysfunction, GPR37 accumulation, and kainate-induced excitotoxicity (PubMed : 11439185). May play a role in controlling neurotransmitter trafficking at the presynaptic terminal and in calcium-dependent exocytosis. May represent a tumor suppressor gene (PubMed : 12719539).
See full target information PRKN phospho S65

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
