AB220363

Anti-PC1/3 antibody [EPR21908]

Be the first to review this product! Submit a review

|

(10 Publications)

Rabbit Recombinant Monoclonal PC1/3 antibody. Suitable for IHC-P, IP, WB, ICC/IF, IHC-Fr, Flow Cyt (Intra) and reacts with Mouse, Rat, Human samples. Cited in 10 publications.

View Alternative Names

NEC1, PCSK1, Neuroendocrine convertase 1, NEC 1, Prohormone convertase 1, Proprotein convertase 1, PC1

12 Images
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PC1/3 antibody [EPR21908] (AB220363)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PC1/3 antibody [EPR21908] (AB220363)

Immunohistochemical analysis of paraffin-embedded human colon tissue labeling PC1/3 with ab220363 at 1/500 dilution, followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP). Sporadic cytoplasmic staining (arrows) in human colon (PMID : 18706454) is observed. Counter stained with Hematoxylin.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP).

Perform heat-mediated antigen retrieval using ab93678 (citrate buffer, pH 6.0).

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PC1/3 antibody [EPR21908] (AB220363)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PC1/3 antibody [EPR21908] (AB220363)

Immunohistochemical analysis of paraffin-embedded human pancreas tissue labeling PC1/3 with ab220363 at 1/500 dilution, followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP). Cytoplasmic staining in human pancreatic islets (PMID : 7925129; PMID : 21190012) is observed. Counter stained with Hematoxylin.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP).

Perform heat-mediated antigen retrieval using ab93678 (citrate buffer, pH 6.0).

Immunocytochemistry/ Immunofluorescence - Anti-PC1/3 antibody [EPR21908] (AB220363)
  • ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-PC1/3 antibody [EPR21908] (AB220363)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized Beta-TC-6 (mouse pancreas insulinoma beta cell) cells labeling PC1/3 with ab220363 at 1/100 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution (green).

Confocal image showing cytoplasmic staining in Beta-TC-6 cell line.

Negative cell control : NIH/3T3 (PMID : 9405066; PMID : 15143067).

Counterstained with ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) at a 1/200 dilution (red). The nuclear counter stain is DAPI (blue). The negative control is the secondary antibody only.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PC1/3 antibody [EPR21908] (AB220363)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PC1/3 antibody [EPR21908] (AB220363)

Immunohistochemical analysis of paraffin-embedded rat pancreas tissue labeling PC1/3 with ab220363 at 1/500 dilution, followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP). Cytoplasmic staining in rat pancreatic islets (PMID : 7925129; PMID : 21190012) is observed. Counter stained with Hematoxylin.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP).

Perform heat-mediated antigen retrieval using ab93678 (citrate buffer, pH 6.0).

Immunohistochemistry (Frozen sections) - Anti-PC1/3 antibody [EPR21908] (AB220363)
  • IHC-Fr

Supplier Data

Immunohistochemistry (Frozen sections) - Anti-PC1/3 antibody [EPR21908] (AB220363)

Immunohistochemical analysis of frozen mouse pancreas tissue labeling PC1/3 with ab220363 at 1/500 dilution (green), followed by ab150077 AlexaFluor®488 Goat anti-Rabbit secondary at a 1/1000 dilution. Positive cytoplasmic staining in mouse pancreatic islet (PMID : 25976560) is observed. Counter stained with DAPI (blue).
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is ab150077 AlexaFluor®488 Goat anti-Rabbit used at a 1/1000 dilution.

Perform heat-mediated antigen retrieval by using Tris-EDTA buffer (10mM Tris base pH 9.0, 1mM EDTA, 0.05% Tween 20).

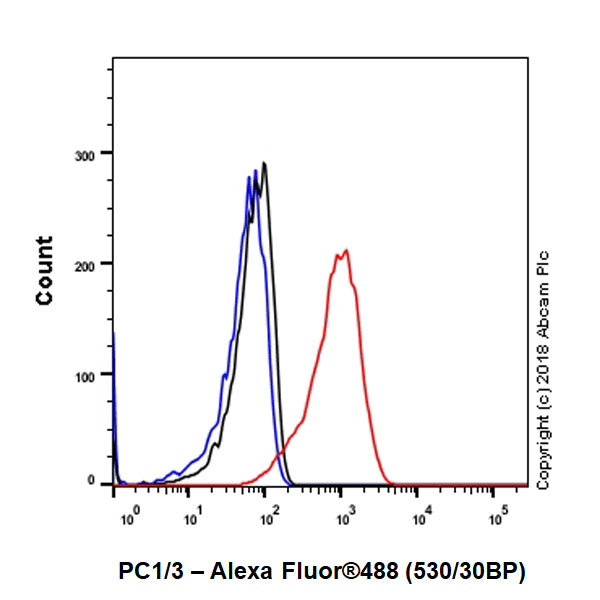

Flow Cytometry (Intracellular) - Anti-PC1/3 antibody [EPR21908] (AB220363)
  • Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Anti-PC1/3 antibody [EPR21908] (AB220363)

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed, 90% methanol permeabilized Beta-TC-6 (mouse pancreas insulinoma beta cell) cell line labeling PC1/3 with ab220363 at 1/50 (red) compared with a Rabbit monoclonal IgG (ab172730) (black) and an unlabeled control (cells without incubation with primary antibody and secondary antibody) (blue). Goat anti rabbit IgG (Alexa Fluor® 488, ab150077), at 1/2000 dilution was used as the secondary antibody.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PC1/3 antibody [EPR21908] (AB220363)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PC1/3 antibody [EPR21908] (AB220363)

Immunohistochemical analysis of paraffin-embedded mouse pancreas tissue labeling PC1/3 with ab220363 at 1/500 dilution, followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP). Cytoplasmic staining in mouse pancreatic islets (PMID : 7925129; PMID : 21190012) is observed. Counter stained with Hematoxylin.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP).

Perform heat-mediated antigen retrieval using ab93678 (citrate buffer, pH 6.0).

Immunohistochemistry (Frozen sections) - Anti-PC1/3 antibody [EPR21908] (AB220363)
  • IHC-Fr

Supplier Data

Immunohistochemistry (Frozen sections) - Anti-PC1/3 antibody [EPR21908] (AB220363)

Immunohistochemical analysis of frozen rat pancreas tissue labeling PC1/3 with ab220363 at 1/500 dilution (green), followed by ab150077 AlexaFluor®488 Goat anti-Rabbit secondary at a 1/1000 dilution. Positive cytoplasmic staining in rat pancreatic islet (PMID : 25976560) is observed. Counter stained with DAPI (blue).
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is ab150077 AlexaFluor®488 Goat anti-Rabbit used at a 1/1000 dilution.

Perform heat-mediated antigen retrieval by using Tris-EDTA buffer (10mM Tris base pH 9.0, 1mM EDTA, 0.05% Tween 20).

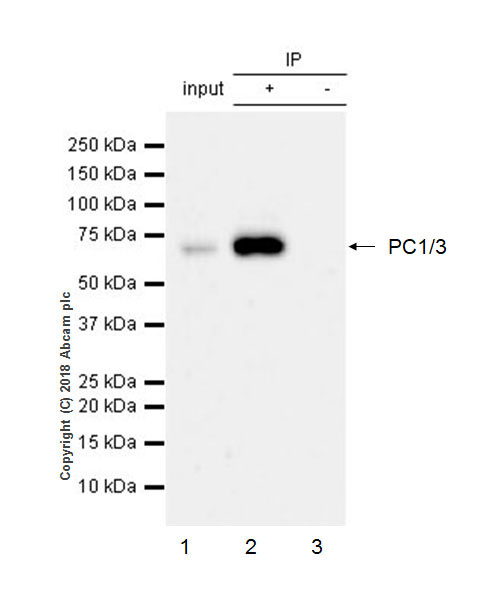

Immunoprecipitation - Anti-PC1/3 antibody [EPR21908] (AB220363)
  • IP

Supplier Data

Immunoprecipitation - Anti-PC1/3 antibody [EPR21908] (AB220363)

PC1/3 was immunoprecipitated from 0.35 mg Beta-TC-6 (mouse pancreas insulinoma beta cell) whole cell lysate with ab220363 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab220363 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/1000 dilution.
Lane 1 : Beta-TC-6 (mouse pancreas insulinoma beta cell) whole cell lysate 10 μg (Input).
Lane 2 : ab220363 IP in Beta-TC-6 whole cell lysate (+).
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab220363 in Beta-TC-6 whole cell lysate (-).

Blocking/Dilution buffer and concentration : 5% NFDM/TBST.
Exposure time : 3 minutes.

The PC1/3 protein undergoes multiple intracellular cleavage steps to its 66 kDa mature form (PMID : 26778167).

All lanes:

Immunoprecipitation - Anti-PC1/3 antibody [EPR21908] (ab220363)

Predicted band size: 84 kDa

false

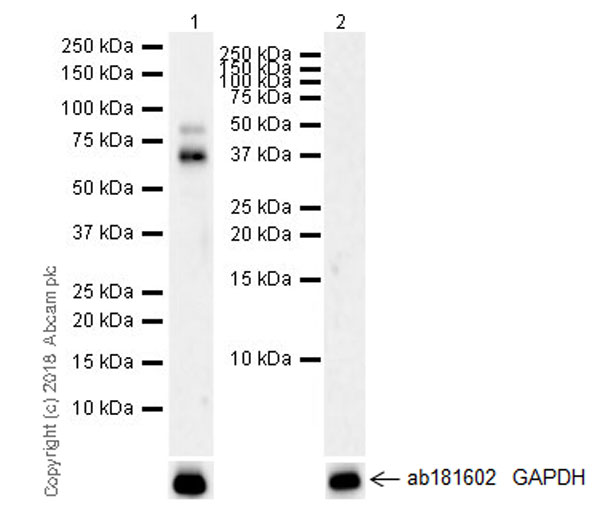

Western blot - Anti-PC1/3 antibody [EPR21908] (AB220363)
  • WB

Supplier Data

Western blot - Anti-PC1/3 antibody [EPR21908] (AB220363)

Blocking/Dilution buffer and concentration : 5% NFDM/TBST.

The PC1/3 protein undergoes multiple intracellular cleavage steps to its 66 kDa mature form; the 87 kDa represents the ProPC1/3 intermediate (PMID : 26778167).

This blot was developed using a higher sensitivity ECL substrate.

Negative control : NIH/3T3 (PMID : 9405066; PMID : 15143067).

All lanes:

Western blot - Anti-PC1/3 antibody [EPR21908] (ab220363) at 1/1000 dilution

Lane 1:

Beta-TC-6 (mouse pancreas insulinoma beta cell) whole cell lysate at 10 µg

Lane 2:

NIH/3T3 (mouse embryonic fibroblast) whole cell lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 84 kDa

true

Exposure time: 125s

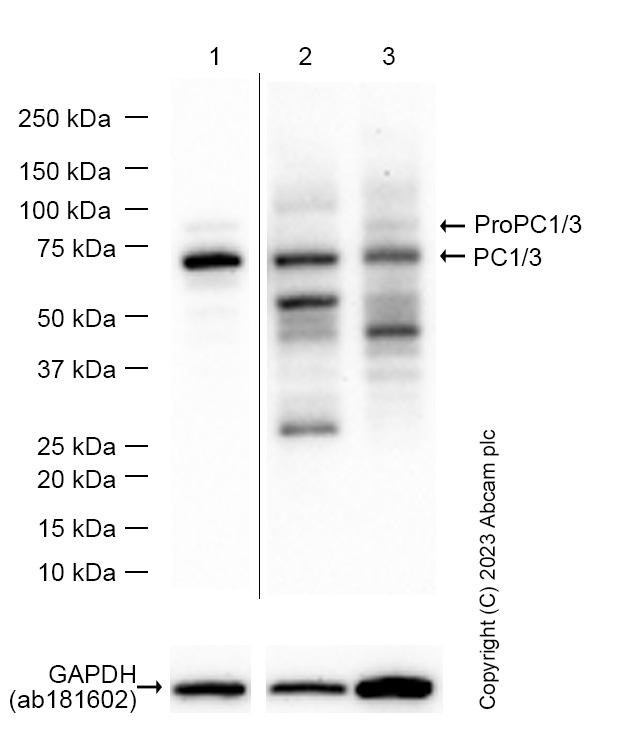

Western blot - Anti-PC1/3 antibody [EPR21908] (AB220363)
  • WB

Supplier Data

Western blot - Anti-PC1/3 antibody [EPR21908] (AB220363)

Blocking and Diluting Buffer : 5% NFDM /TBST 87 kDa ProPC1/3; 66 kDa mature form (PMID : 26778167) Lane1 Expsoure Time : 20 seconds Lane2 and Lane3 were developed using a high sensitivity ECL substrate.

All lanes:

Western blot - Anti-PC1/3 antibody [EPR21908] (ab220363) at 1/1000 dilution

Lane 1:

Beta-TC-6 (mouse pancreas insulinoma beta cell) whole cell lysate at 20 µg

Lane 2:

Mouse pancreas lysate at 20 µg

Lane 3:

Mouse brain lysate at 20 µg

Secondary

All lanes:

Western blot - PE Anti-ENPP3/B10 antibody [NP4D6] (<a href='/en-us/products/primary-antibodies/pe-enpp3-b10-antibody-np4d6-ab90751'>ab90751</a>) at 1/20000 dilution

Predicted band size: 87 kDa

Observed band size: 66 kDa

false

Exposure time: 80s

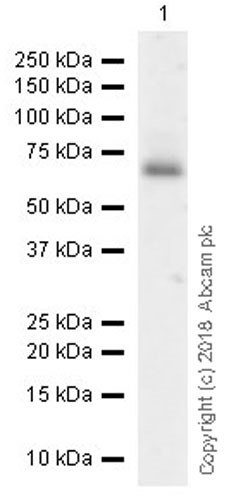

Western blot - Anti-PC1/3 antibody [EPR21908] (AB220363)
  • WB

Supplier Data

Western blot - Anti-PC1/3 antibody [EPR21908] (AB220363)

Blocking/Dilution buffer and concentration : 5% NFDM/TBST.

The 66 kDa band is the mature form of PC1/3 (PMID : 26778167).

This blot was developed using a higher sensitivity ECL substrate.

All lanes:

Western blot - Anti-PC1/3 antibody [EPR21908] (ab220363) at 1/1000 dilution

All lanes:

Mouse hypothalamus lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 84 kDa

true

Exposure time: 3min

  • Carrier free

    Anti-PC1/3 antibody [EPR21908] - BSA and Azide free

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR21908

Isotype

IgG

Carrier free

No

Reacts with

Rat, Human, Mouse

Applications

WB, IHC-P, IP, ICC/IF, IHC-Fr, Flow Cyt (Intra)

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "IHCFr" : {"fullname" : "Immunohistochemistry (Frozen sections)", "shortname":"IHC-Fr"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "1/500", "IHCP-species-notes": "<p></p>", "IP-species-checked": "guaranteed", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "guaranteed", "WB-species-dilution-info": "", "WB-species-notes": "", "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IHCFr-species-checked": "guaranteed", "IHCFr-species-dilution-info": "", "IHCFr-species-notes": "", "FlowCytIntra-species-checked": "guaranteed", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "" }, "Mouse": { "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "1/500", "IHCP-species-notes": "<p></p>", "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "1/30", "IP-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "<p></p>", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/100", "ICCIF-species-notes": "<p></p>", "IHCFr-species-checked": "testedAndGuaranteed", "IHCFr-species-dilution-info": "1/500", "IHCFr-species-notes": "<p></p>", "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "1/50", "FlowCytIntra-species-notes": "<p></p>" }, "Rat": { "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "1/500", "IHCP-species-notes": "<p></p>", "IP-species-checked": "guaranteed", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "guaranteed", "WB-species-dilution-info": "", "WB-species-notes": "", "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IHCFr-species-checked": "testedAndGuaranteed", "IHCFr-species-dilution-info": "1/500", "IHCFr-species-notes": "<p></p>", "FlowCytIntra-species-checked": "guaranteed", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "" } } }

Product details

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Preservative: 0.01% Sodium azide Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

PC1/3 also known as Proprotein Convertase 1 or PCSK1 is a member of the proprotein convertase family which is responsible for processing precursor proteins into their active forms. This protein with a mass of approximately 84 kDa is expressed in neuroendocrine and endocrine tissues. PC1/3 operates primarily in the secretory pathways of these tissues cleaving prohormones and other precursor proteins at specific sites to generate active peptides and proteins essential for various physiological processes.
Biological function summary

The proprotein convertase enzyme PC1/3 plays a critical role in activating hormone precursors. It is involved in the conversion of proinsulin to insulin as well as the processing of proopiomelanocortin (POMC) to generate peptides like ACTH and beta-endorphin. PC1/3 does not generally form part of a complex but interacts closely with other convertases for complete prohormone processing. This enzyme is essential for maintaining homeostasis in hormone regulation and is an important player in metabolic control.

Pathways

Specific functions of PC1/3 are closely tied to metabolic and neuroendocrine pathways. It is significant in the insulin signaling pathway where its role in converting proinsulin to insulin directly impacts glucose metabolism. Additionally PC1/3 contributes to neuropeptide signaling pathways by processing neuroendocrine peptides which influence appetite and energy homeostasis. PC1/3 works alongside proteins like PC2 another proprotein convertase to ensure comprehensive processing of peptide hormones.

Malfunction or deficiency in PC1/3 activity is associated with disorders such as obesity and hypogonadotropic hypogonadism. Obesity can result from improper proinsulin processing affecting insulin regulation. Hypogonadotropic hypogonadism may occur due to faulty prohormone processing impacting gonadotropin-releasing hormone production. PC1/3 interactions with other convertases like PC2 highlight its involvement in regulatory networks that maintain metabolic and reproductive health.

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Target data

Involved in the processing of hormone and other protein precursors at sites comprised of pairs of basic amino acid residues. Substrates include POMC, renin, enkephalin, dynorphin, somatostatin, insulin and AGRP.
See full target information PCSK1
