AB210931

Anti-PD-L1 antibody [ABM4E54]

5

(1 Review)

|

(39 Publications)

Mouse Monoclonal PD-L1 antibody. Suitable for IHC-P, Flow Cyt, WB and reacts with Human samples. Cited in 39 publications. Immunogen corresponding to Recombinant Fragment Protein within Human CD274 aa 1-250.

View Alternative Names

CD274, B7H1, PDCD1L1, PDCD1LG1, PDL1, Programmed cell death 1 ligand 1, PD-L1, PDCD1 ligand 1, Programmed death ligand 1, hPD-L1, B7 homolog 1, B7-H1

4 Images
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [ABM4E54] (AB210931)
  • IHC-P

Supplier Data

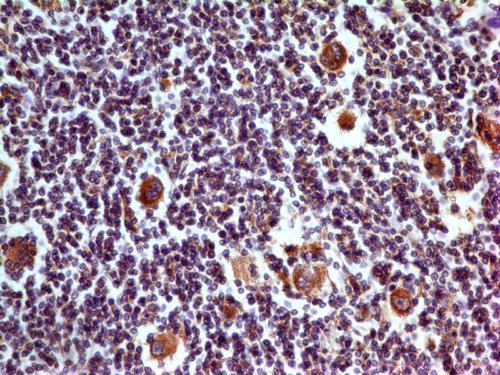

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [ABM4E54] (AB210931)

Immunohistochemical analysis of formalin-fixed paraffin-embedded human Hodgkin's lymphoma tissue, labeling PD-L1 with ab210931 at 5 μg/mL.

Flow Cytometry - Anti-PD-L1 antibody [ABM4E54] (AB210931)
  • Flow Cyt

Supplier Data

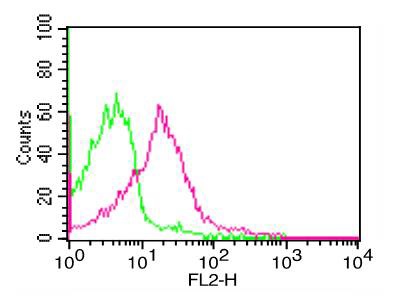

Flow Cytometry - Anti-PD-L1 antibody [ABM4E54] (AB210931)

Cell Surface flow cytometry analysis of PD-L1 in PHA treated human PBMC using 1 μg of ab210931. Green represents isotype control; pink represents ab210931 antibody. Goat anti-mouse PE conjugate was used as secondary antibody.

Western blot - Anti-PD-L1 antibody [ABM4E54] (AB210931)
  • WB

Supplier Data

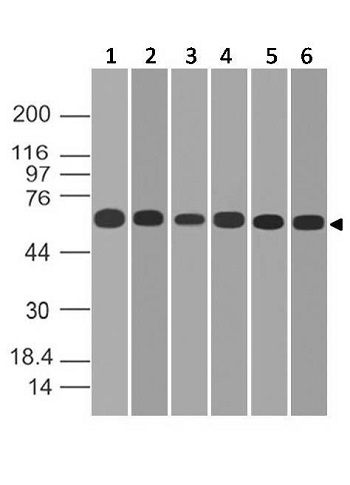

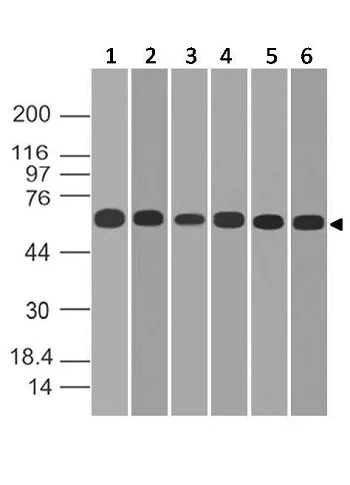

Western blot - Anti-PD-L1 antibody [ABM4E54] (AB210931)

Exposure time : 1 minute in film and 30 seconds in imager.

All lanes:

Western blot - Anti-PD-L1 antibody [ABM4E54] (ab210931) at 2 µg/mL

Lane 1:

A549 lysate at 30 µg

Lane 2:

MCF-7 lysate at 30 µg

Lane 3:

293 lysate at 30 µg

Lane 4:

HCT-116 lysate at 30 µg

Lane 5:

Saos2 lysate at 30 µg

Lane 6:

HeLa lysate at 30 µg

Predicted band size: 33 kDa

false

Western blot - Anti-PD-L1 antibody [ABM4E54] (AB210931)
  • WB

Supplier Data

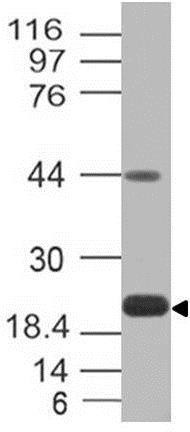

Western blot - Anti-PD-L1 antibody [ABM4E54] (AB210931)

All lanes:

Western blot - Anti-PD-L1 antibody [ABM4E54] (ab210931) at 0.5 µg/mL

All lanes:

Recombinant protein fragment of Human PD-L1

Predicted band size: 33 kDa

false

Key facts

Host species

Mouse

Clonality

Monoclonal

Clone number

ABM4E54

Isotype

IgG2a

Light chain type

kappa

Carrier free

No

Reacts with

Human

Applications

Flow Cyt, IHC-P, WB

applications

Immunogen

Recombinant Fragment Protein within Human CD274 aa 1-250. The exact immunogen used to generate this antibody is proprietary information.

Q9NZQ7

style
left-column

Alternative Products

Primary Antibodies

AB209960

Alexa Fluor® 647 Anti-PD-L1 antibody [28-8] - Extracellular domain

RabMAb|Recombinant

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-PD-L1 antibody [28-8] - Extracellular domain (AB209960)

  • 0
  • 0
Primary Antibodies

AB209959

Alexa Fluor® 488 Anti-PD-L1 antibody [28-8]

RabMAb|Recombinant

Flow Cytometry - Alexa Fluor® 488 Anti-PD-L1 antibody [28-8] (AB209959)

  • 5
  • 1
Primary Antibodies

AB213480

Anti-PD-L1 antibody [EPR20529]

RabMAb|Recombinant|KO Validated|20ul selling size

Immunocytochemistry/ Immunofluorescence - Anti-PD-L1 antibody [EPR20529] (AB213480)

  • 5
  • 5
Primary Antibodies

AB213524

Anti-PD-L1 antibody [EPR19759]

BOND RX™ Validated|RabMAb|Recombinant|KO Validated|20ul selling size

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [EPR19759] (AB213524)

  • 5
  • 1
Primary Antibodies

AB205921

Anti-PD-L1 antibody [28-8]

BOND RX™ Validated|20ul selling size|Recombinant|KO Validated|Advanced Validation|RabMAb

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [28-8] (AB205921)

  • 4
  • 15
Primary Antibodies

AB228415

Anti-PD-L1 antibody [73-10]

BOND RX™ Validated|KO Validated|RabMAb|Recombinant

Immunohistochemistry (Frozen sections) - Anti-PD-L1 antibody [73-10] (AB228415)

  • 5
  • 1
Primary Antibodies

AB274896

Alexa Fluor® 555 Anti-PD-L1 antibody [73-10]

BOND RX™ Validated|RabMAb|Recombinant|Trial Size

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 555 Anti-PD-L1 antibody [73-10] (AB274896)

  • 4
  • 1
Primary Antibodies

AB228462

Anti-PD-L1 antibody [SP142] - C-terminal

BOND RX™ Validated|20ul selling size|RabMAb|Advanced Validation|Recombinant

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [SP142] - C-terminal (AB228462)

  • 5
  • 2

Complementary Products

Assay Kits

AB277712

Human PD-L1 ELISA Kit [28-8]

Recombinant|SimpleStep

ELISA - Human PD-L1 ELISA Kit [28-8] (AB277712)

  • 0
  • 0
Primary Antibodies

AB52587

Anti-PD1 antibody [NAT105]

BOND RX™ Validated|Recombinant

Immunohistochemistry (Frozen sections) - Anti-PD1 antibody [NAT105] (AB52587)

  • 5
  • 9
Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
Primary Antibodies

AB9485

Anti-GAPDH antibody - Loading Control

BOND RX™ Validated|Lab Essentials

Immunocytochemistry/ Immunofluorescence - Anti-GAPDH antibody - Loading Control (AB9485)

  • 5
  • 88
Primary Antibodies

AB15580

Anti-Ki67 antibody

BOND RX™ Validated|KO Validated

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Ki67 antibody (AB15580)

  • 5
  • 230
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "5 µg/mL", "IHCP-species-notes": "<p></p> Perform heat-mediated antigen retrieval before commencing with IHC staining protocol.", "FlowCyt-species-checked": "testedAndGuaranteed", "FlowCyt-species-dilution-info": "1-2 µg/mL", "FlowCyt-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "0.5 µg/mL", "WB-species-notes": "<p></p>" } } }
style
left-column
style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein G
Storage buffer
Preservative: 0.05% Sodium azide Constituents: PBS, 0.05% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

PD-L1 also known as Programmed Death-Ligand 1 or CD274 is a protein involved in immune modulation. Mechanically PD-L1 interacts with its receptors particularly PD-1 to regulate cellular immune responses. This transmembrane protein has a calculated molecular weight of approximately 33 kDa. PD-L1 is expressed on various cell types including tumor cells and immune cells such as dendritic cells macrophages and B cells. Its expression is often upregulated in response to inflammatory cytokines.
Biological function summary

PD-L1 plays a central role in immune evasion mechanisms utilized by tumors. It is not part of a larger protein complex but directly interacts with PD-1 and CD80. When PD-L1 binds to PD-1 it sends inhibitory signals leading to decreased T cell activation and proliferation allowing cancer cells to avoid immune destruction. PD-L1 expression provides a mechanism for tumors to suppress immune surveillance facilitating tumor progression.

Pathways

PD-L1 is integral to the immune checkpoint pathway which is an important regulator of immune response. The interaction between PD-L1 and PD-1 provides a mechanism for immune tolerance which is part of the broader adaptive immune system pathway. PD-L1 is related to other immune checkpoint proteins such as CTLA-4 in its function to limit autoreactivity and promote immune homeostasis.

PD-L1 is most associated with cancer particularly in tumors such as melanoma and non-small cell lung cancer. PD-L1 expression on tumor cells often correlates with poor prognosis. PD-L1 directly interacts with PD-1 in these cancers a target for immunotherapies such as checkpoint inhibitors which aim to block this interaction and restore immune activity against tumors. PD-L1 involvement extends to autoimmune disorders where altered expression can impact tolerance and lead to immune-related tissue damage.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Plays a critical role in induction and maintenance of immune tolerance to self (PubMed : 11015443, PubMed : 28813410, PubMed : 28813417, PubMed : 31399419). As a ligand for the inhibitory receptor PDCD1/PD-1, modulates the activation threshold of T-cells and limits T-cell effector response (PubMed : 11015443, PubMed : 28813410, PubMed : 28813417, PubMed : 36727298). Through a yet unknown activating receptor, may costimulate T-cell subsets that predominantly produce interleukin-10 (IL10) (PubMed : 10581077). Can also act as a transcription coactivator : in response to hypoxia, translocates into the nucleus via its interaction with phosphorylated STAT3 and promotes transcription of GSDMC, leading to pyroptosis (PubMed : 32929201).. The PDCD1-mediated inhibitory pathway is exploited by tumors to attenuate anti-tumor immunity and escape destruction by the immune system, thereby facilitating tumor survival (PubMed : 28813410, PubMed : 28813417). The interaction with PDCD1/PD-1 inhibits cytotoxic T lymphocytes (CTLs) effector function (By similarity). The blockage of the PDCD1-mediated pathway results in the reversal of the exhausted T-cell phenotype and the normalization of the anti-tumor response, providing a rationale for cancer immunotherapy (By similarity).
