AB223141

Anti-PD-L1 antibody [EPR20529] - BSA and Azide free

Be the first to review this product! Submit a review

|

(1 Publication)

Rabbit Recombinant Monoclonal PD-L1 antibody. Carrier free. Suitable for IP, WB, ICC/IF and reacts with Mouse samples. Cited in 1 publication.

View Alternative Names

CD274, B7h1, Pdcd1l1, Pdcd1lg1, Pdl1, Cd274, Programmed cell death 1 ligand 1, PD-L1, PDCD1 ligand 1, Programmed death ligand 1, B7 homolog 1, B7-H1

2 Images
Immunocytochemistry/ Immunofluorescence - Anti-PD-L1 antibody [EPR20529] - BSA and Azide free (AB223141)
  • ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-PD-L1 antibody [EPR20529] - BSA and Azide free (AB223141)

ab213480 staining PD-L1 in RAW264.7 from Mouse macrophage cell line transformed with Abelson murine leukemia virus by ICC/IF (Immunocytochemistry/immunofluorescence). Cells were fixed with 100% Methanol. Samples were incubated with ab213480 at 0.4 μg/ml. AlexaFluor®488 Goat anti-Rabbit (ab150077) was used as the secondary antibody at 2 μg/ml. Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594)(ab196889) was used as counterstain at 2.5 μg/ml. DAPI used as nuclear counterstain. Confocal image showing membranous staining on RAW 264.7 cells treated with IFN-γ (100 ng/ml) for 24 hours.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab213480).

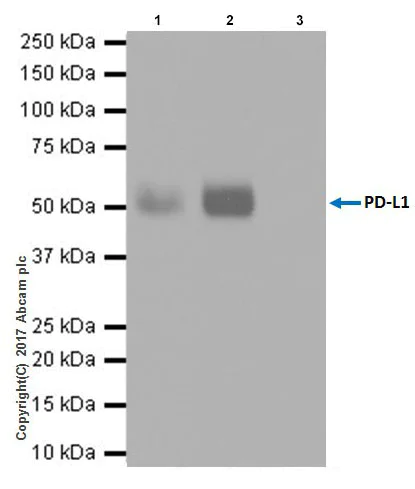

Immunoprecipitation - Anti-PD-L1 antibody [EPR20529] - BSA and Azide free (AB223141)
  • IP

Supplier Data

Immunoprecipitation - Anti-PD-L1 antibody [EPR20529] - BSA and Azide free (AB223141)

PD-L1 was immunoprecipitated from 0.35 mg of Mouse placenta lysate with ab213480 at 1/30 dilution.

Western blot was performed from the immunoprecipitate using ab213480 at 1/500 dilution.

VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/1000 dilution.

Lane 1 : Mouse placenta lysate, 10 μg (Input).

Lane 2 : ab213480 IP in mouse placenta lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab213480 in mouse placenta lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 3 seconds.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab213480).

All lanes:

Immunoprecipitation - Anti-PD-L1 antibody [EPR20529] (<a href='/en-us/products/primary-antibodies/pd-l1-antibody-epr20529-ab213480'>ab213480</a>)

Predicted band size: 33 kDa

Observed band size: 55-60 kDa

false

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR20529

Isotype

IgG

Carrier free

Yes

Reacts with

Mouse

Applications

ICC/IF, WB, IP

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Specificity

This antibody is not suitable in IHC-FR for mouse samples

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Mouse": { "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>" } } }
style
left-column

Product details

ab223141 is the carrier-free version of ab213480.

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Do Not Freeze
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

PD-L1 also known as Programmed Death-Ligand 1 or CD274 is a protein involved in immune modulation. Mechanically PD-L1 interacts with its receptors particularly PD-1 to regulate cellular immune responses. This transmembrane protein has a calculated molecular weight of approximately 33 kDa. PD-L1 is expressed on various cell types including tumor cells and immune cells such as dendritic cells macrophages and B cells. Its expression is often upregulated in response to inflammatory cytokines.
Biological function summary

PD-L1 plays a central role in immune evasion mechanisms utilized by tumors. It is not part of a larger protein complex but directly interacts with PD-1 and CD80. When PD-L1 binds to PD-1 it sends inhibitory signals leading to decreased T cell activation and proliferation allowing cancer cells to avoid immune destruction. PD-L1 expression provides a mechanism for tumors to suppress immune surveillance facilitating tumor progression.

Pathways

PD-L1 is integral to the immune checkpoint pathway which is an important regulator of immune response. The interaction between PD-L1 and PD-1 provides a mechanism for immune tolerance which is part of the broader adaptive immune system pathway. PD-L1 is related to other immune checkpoint proteins such as CTLA-4 in its function to limit autoreactivity and promote immune homeostasis.

PD-L1 is most associated with cancer particularly in tumors such as melanoma and non-small cell lung cancer. PD-L1 expression on tumor cells often correlates with poor prognosis. PD-L1 directly interacts with PD-1 in these cancers a target for immunotherapies such as checkpoint inhibitors which aim to block this interaction and restore immune activity against tumors. PD-L1 involvement extends to autoimmune disorders where altered expression can impact tolerance and lead to immune-related tissue damage.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Plays a critical role in induction and maintenance of immune tolerance to self (PubMed : 11238124). As a ligand for the inhibitory receptor PDCD1/PD-1, modulates the activation threshold of T-cells and limits T-cell effector response (PubMed : 11238124). Through a yet unknown activating receptor, may costimulate T-cell subsets that predominantly produce interleukin-10 (IL10) (PubMed : 11015443, PubMed : 12719480).. The PDCD1-mediated inhibitory pathway is exploited by tumors to attenuate anti-tumor immunity and escape destruction by the immune system, thereby facilitating tumor survival (PubMed : 12218188, PubMed : 27281199). The interaction with PDCD1/PD-1 inhibits cytotoxic T lymphocytes (CTLs) effector function (PubMed : 12218188). The blockage of the PDCD1-mediated pathway results in the reversal of the exhausted T-cell phenotype and the normalization of the anti-tumor response, providing a rationale for cancer immunotherapy (PubMed : 12218188).
See full target information Cd274
style
left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Molecular medicine reports 18:789-798 PubMed29845235

2018

Rosuvastatin relieves myocardial ischemia/reperfusion injury by upregulating PPAR‑γ and UCP2.

Applications

Unspecified application

Species

Unspecified reactive species

Ling Wang,Rong Lin,Langtao Guo,Meiman Hong
View all publications
