Rabbit Recombinant Monoclonal PD-L1 antibody. Suitable for Flow Cyt, ICC/IF and reacts with Mouse samples. Cited in 1 publication.


Images

Flow Cytometry - Anti-PD-L1 antibody [EPR23546-160] (AB252436), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - Anti-PD-L1 antibody [EPR23546-160] (AB252436), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - Anti-PD-L1 antibody [EPR23546-160] (AB252436), expandable thumbnail
  • Flow Cytometry - Anti-PD-L1 antibody [EPR23546-160] (AB252436), expandable thumbnail
  • Flow Cytometry - Anti-PD-L1 antibody [EPR23546-160] (AB252436), expandable thumbnail

Publications

Key facts

Isotype
IgG
Host species
Rabbit
Storage buffer

Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IPFlow CytWBIHC-PICC/IF
Human
Not recommended
Not recommended
Not recommended
Not recommended
Not recommended
Mouse
Not recommended
Tested
Not recommended
Not recommended
Tested
Rat
Not recommended
Not recommended
Not recommended
Not recommended
Not recommended

Not recommended
Not recommended

Species
Mouse, Human, Rat
Dilution info
-
Notes

-

Tested
Tested

Species
Mouse
Dilution info
1/500
Notes

-

Not recommended
Not recommended

Species
Human, Rat
Dilution info
-
Notes

-

Not recommended
Not recommended

Species
Mouse, Human, Rat
Dilution info
-
Notes

-

Not recommended
Not recommended

Species
Mouse, Human, Rat
Dilution info
-
Notes

-

Tested
Tested

Species
Mouse
Dilution info
1/50
Notes

-

Not recommended
Not recommended

Species
Human, Rat
Dilution info
-
Notes

-

Target data

Function

Plays a critical role in induction and maintenance of immune tolerance to self (PubMed:11238124). As a ligand for the inhibitory receptor PDCD1/PD-1, modulates the activation threshold of T-cells and limits T-cell effector response (PubMed:11238124). Through a yet unknown activating receptor, may costimulate T-cell subsets that predominantly produce interleukin-10 (IL10) (PubMed:11015443, PubMed:12719480). The PDCD1-mediated inhibitory pathway is exploited by tumors to attenuate anti-tumor immunity and escape destruction by the immune system, thereby facilitating tumor survival (PubMed:12218188, PubMed:27281199). The interaction with PDCD1/PD-1 inhibits cytotoxic T lymphocytes (CTLs) effector function (PubMed:12218188). The blockage of the PDCD1-mediated pathway results in the reversal of the exhausted T-cell phenotype and the normalization of the anti-tumor response, providing a rationale for cancer immunotherapy (PubMed:12218188).

Alternative names

CD274, B7h1, Pdcd1l1, Pdcd1lg1, Pdl1, Cd274, Programmed cell death 1 ligand 1, PD-L1, PDCD1 ligand 1, Programmed death ligand 1, B7 homolog 1, B7-H1

Recommended products

Rabbit Recombinant Monoclonal PD-L1 antibody. Suitable for Flow Cyt, ICC/IF and reacts with Mouse samples. Cited in 1 publication.

Key facts

Isotype
IgG
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number
EPR23546-160
Purification technique
Affinity purification Protein A
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

PD-L1 also known as Programmed Death-Ligand 1 or CD274 is a protein involved in immune modulation. Mechanically PD-L1 interacts with its receptors particularly PD-1 to regulate cellular immune responses. This transmembrane protein has a calculated molecular weight of approximately 33 kDa. PD-L1 is expressed on various cell types including tumor cells and immune cells such as dendritic cells macrophages and B cells. Its expression is often upregulated in response to inflammatory cytokines.

Biological function summary

PD-L1 plays a central role in immune evasion mechanisms utilized by tumors. It is not part of a larger protein complex but directly interacts with PD-1 and CD80. When PD-L1 binds to PD-1 it sends inhibitory signals leading to decreased T cell activation and proliferation allowing cancer cells to avoid immune destruction. PD-L1 expression provides a mechanism for tumors to suppress immune surveillance facilitating tumor progression.

Pathways

PD-L1 is integral to the immune checkpoint pathway which is an important regulator of immune response. The interaction between PD-L1 and PD-1 provides a mechanism for immune tolerance which is part of the broader adaptive immune system pathway. PD-L1 is related to other immune checkpoint proteins such as CTLA-4 in its function to limit autoreactivity and promote immune homeostasis.

Associated diseases and disorders

PD-L1 is most associated with cancer particularly in tumors such as melanoma and non-small cell lung cancer. PD-L1 expression on tumor cells often correlates with poor prognosis. PD-L1 directly interacts with PD-1 in these cancers a target for immunotherapies such as checkpoint inhibitors which aim to block this interaction and restore immune activity against tumors. PD-L1 involvement extends to autoimmune disorders where altered expression can impact tolerance and lead to immune-related tissue damage.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

5 product images

  • Flow Cytometry - Anti-PD-L1 antibody [EPR23546-160] (ab252436), expandable thumbnail

    Flow Cytometry - Anti-PD-L1 antibody [EPR23546-160] (ab252436)

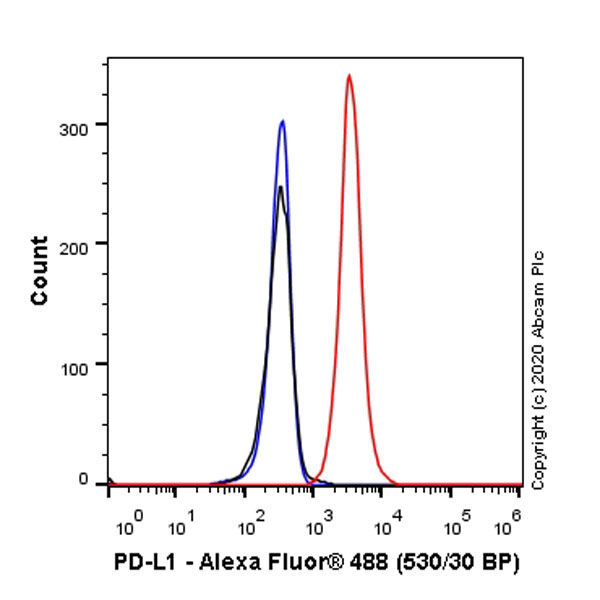

    Flow cytometric analysis of A20 (Mouse reticulum sarcoma B lymphocyte) cells labelling PD-L1 with ab252436 at 1/500 dilution (0.1ug) (Red), compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) isotype contro l(Black), and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).

    A Goat anti rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/2000 dilution was used as the secondary antibody.

    Gated on viable cells.

  • Immunocytochemistry/ Immunofluorescence - Anti-PD-L1 antibody [EPR23546-160] (ab252436), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-PD-L1 antibody [EPR23546-160] (ab252436)

    Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized A20 cells labelling PD-L1 with ab252436 at 1/50 (10.42 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) antibody at 1/1000 dilution (Green). Confocal image showing membranous staining in A20 cell line. Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 dilution (Red). The Nuclear counterstain was DAPI (Blue).

    Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) at 1/1000 dilution.

  • Immunocytochemistry/ Immunofluorescence - Anti-PD-L1 antibody [EPR23546-160] (ab252436), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-PD-L1 antibody [EPR23546-160] (ab252436)

    Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized RAW 264.7 cells labelling PD-L1 with ab252436 at 1/50 (10.42 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) antibody at 1/1000 dilution (Green). Confocal image showing membranous staining in RAW 264.7 cell line after treatment with IFN-γ (100 ng/ml) for 24h. Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 dilution (Red). The Nuclear counterstain was DAPI (Blue).

    Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) at 1/1000 dilution.

  • Flow Cytometry - Anti-PD-L1 antibody [EPR23546-160] (ab252436), expandable thumbnail

    Flow Cytometry - Anti-PD-L1 antibody [EPR23546-160] (ab252436)

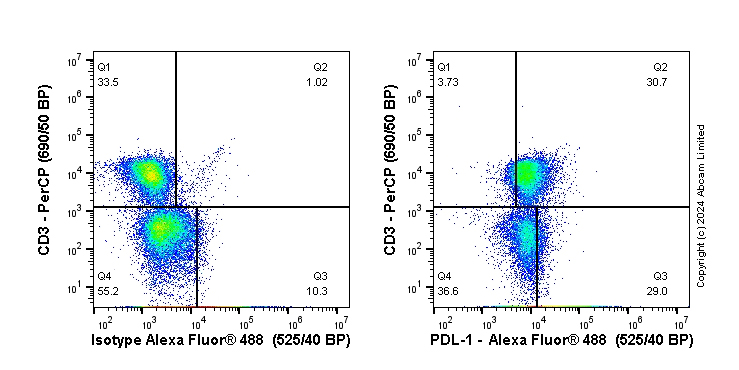

    Flow cytometry staining of C57BL/6 mouse splenocytes with ab252436 (right) or Recombinant Rabbit IgG, monoclonal [EPR25A] - Isotype Control (left). Cells were incubated for 30 min on ice in 1x PBS containing 10µg/ml anti CD16/CD32 and 10% normal goat serum to block FC receptors and non-specific protein-protein interaction followed by the antibody ab252436 or Recombinant Rabbit IgG, monoclonal [EPR25A] - Isotype Control (1x 106in 100 µl at 10.0 µg/ml (1/209)) for 30min on ice. The cells were simultaneously stained with CD3.

    The secondary antibody Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed was incubated at 1/4000 for 30min on ice

    Acquisition of >30000 events were collected using a 50 mW Blue laser (488nm) and 525/40 bandpass filter. Events were gated on live cells.

  • Flow Cytometry - Anti-PD-L1 antibody [EPR23546-160] (ab252436), expandable thumbnail

    Flow Cytometry - Anti-PD-L1 antibody [EPR23546-160] (ab252436)

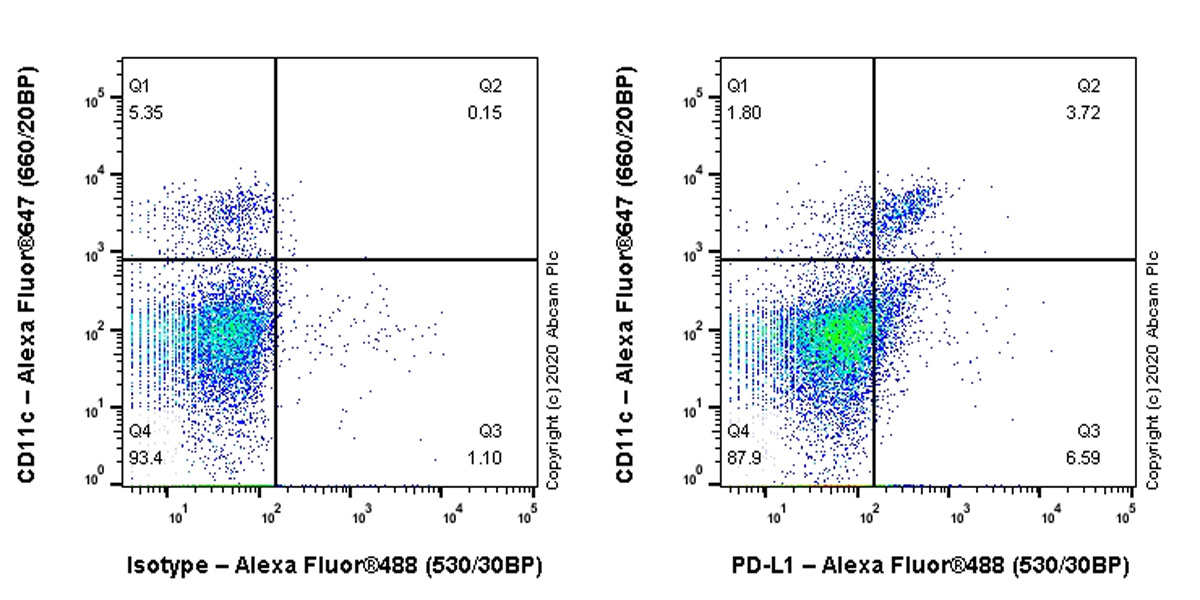

    Flow cytometric analysis of Mouse splenocyte cells labelling PD-L1 with ab252436 at 1/500 dilution (0.1ug) (Right) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) isotype control (Left).

    A Goat anti rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/2000 dilution was used as the secondary antibody.

    Gated on viable MHC II (I-A/I-E) positive cells.PD-L1 is highly expressed on DC cells as described in literature (PMID: 22902234).

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
