AB309360

Anti-PD1 antibody [29F.1A12]

Recombinant
What is this?

Be the first to review this product! Submit a review

(0 Publication)

Anti-PD1 antibody [29F.1A12] is a Rat Monoclonal antibody that is used in PD1 Flow Cytometry, ICC/IF, Western Blot. Suitable for Mouse samples.

PD1, or programmed cell death protein 1 or CD279 is a 50-55 kD glycoprotein belonging to the CD28 family of the Ig superfamily. PD-1 is expressed on activated splenic T and B cells and thymocytes. It is induced on activated myeloid cells as well. PD-1 is involved in lymphocyte clonal selection and peripheral tolerance through binding PD-L1 and PD-L2. It is an immune checkpoint receptor that plays a critical role in down-regulating the immune system and promoting self-tolerance by inhibiting T cell inflammatory activity. In cancer, PD1 is often exploited by tumor cells to evade immune detection and destruction, leading to tumor growth and progression. Blocking PD1 with specific inhibitors can restore T cell activity and enhance anti-tumor immunity, making it a significant target in cancer immunotherapy.

View Alternative Names

CD279, Pd1, Pdcd1, Programmed cell death protein 1, Protein PD-1, mPD-1

4 Images

Immunocytochemistry/ Immunofluorescence - Anti-PD1 antibody [29F.1A12] (AB309360)

ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-PD1 antibody [29F.1A12] (AB309360)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% Tween-20 permeabilized EL4 (mouse lymphoma T lymphocyte cell) cells labelling PD1 with ab309360 at 1/100 (9.8 ug/ml) dilution, followed by ab150157 Goat Anti-Rat IgG H&L (Alexa Fluor® 488) antibody at 1/1000 dilution (Green). Confocal image showing membranous staining in EL4 cell line.Negative control : L-929 (mouse connective tissue fibroblast cell)Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8). ab206369 Anti-beta Tubulin rabbit monoclonal antibody (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 dilution (Red). The Nuclear counterstain was DAPI (Blue). antibody only control : Secondary antibody is ab150157 Goat Anti-Rat IgG H&L (Alexa Fluor® 488) at 1/1000 dilution.

Flow Cytometry - Anti-PD1 antibody [29F.1A12] (AB309360)

Flow Cyt

Supplier Data

Flow Cytometry - Anti-PD1 antibody [29F.1A12] (AB309360)

Flow cytometric analysis of L-929 (mouse connective tissue fibroblast, Left) / EL4 (mouse lymphoma T lymphocyte, Right) cells labelling PD1 with ab309360 at 1/1000 dilution (0.1 ug)/Right compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). Goat F(ab)2 Anti-Rat IgG Fc (Alexa Fluor® 488, ab150161) at 1/5000 dilution was used as the secondary antibody. Negative control : L-929 (PMID : 1396582). Gated on viable cells.

Supplier Data

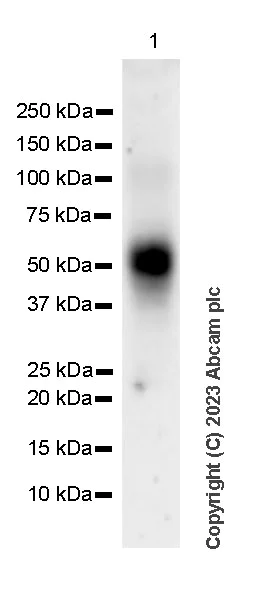

Western blot - Anti-PD1 antibody [29F.1A12] (AB309360)

Blocking and diluting buffer and concentration : 5% NFDM/TBST

The molecular weight observed is consistent with what has been described in the literature (PMID : 34635486).

This blot was developed using a high sensitivity ECL substrate.

All lanes:

Western blot - Anti-PD1 antibody [29F.1A12] (ab309360) at 1/1000 dilution

All lanes:

EL4.IL-2 (mouse lymphoma T lymphocyte) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rat IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rat-igg-h-l-hrp-ab205720'>ab205720</a>) at 1/100000 dilution

Observed band size: 50-55 kDa

false

Exposure time: 59s

Supplier Data

Western blot - Anti-PD1 antibody [29F.1A12] (AB309360)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Negative control : L-929 (PMID : 1396582)

The molecular weight observed is consistent with what has been described in the literature (PMID : 34635486).

In Western blot, anti-GAPDH antibody (ab181602) loading control staining at 1/200000 dilution.

This blot was developed using a high sensitivity ECL substrate. The high-sensitivity ECL substrate used allows for the detection of proteins in the mid-femtogram range.

All lanes:

Western blot - Anti-PD1 antibody [29F.1A12] (ab309360) at 1/1000 dilution

Lane 1:

EL4 (mouse lymphoma T lymphocyte) whole cell lysate at 20 µg

Lane 2:

L-929 (mouse connective tissue fibroblast) whole cell lysate at 40 µg

Secondary

All lanes:

Western blot - Goat Anti-Rat IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rat-igg-h-l-hrp-ab205720'>ab205720</a>) at 1/100000 dilution

Observed band size: 50-55 kDa

true

Exposure time: 37s

Key facts

Host species

Rat

Clonality

Monoclonal

Clone number

29F.1A12

Isotype

IgG2a

Carrier free

Reacts with

Mouse

Applications

Flow Cyt, WB, ICC/IF

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "IHCFr" : {"fullname" : "Immunohistochemistry (Frozen sections)", "shortname":"IHC-Fr"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "IHCFr-species-checked": "notRecommended", "IHCFr-species-dilution-info": "", "IHCFr-species-notes": "" }, "Mouse": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/100", "ICCIF-species-notes": "", "FlowCyt-species-checked": "testedAndGuaranteed", "FlowCyt-species-dilution-info": "1/1000", "FlowCyt-species-notes": "", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "IHCFr-species-checked": "notRecommended", "IHCFr-species-dilution-info": "", "IHCFr-species-notes": "" }, "Rat": { "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "IHCFr-species-checked": "notRecommended", "IHCFr-species-dilution-info": "", "IHCFr-species-notes": "" } } }

style

left-column

Product details

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Want a custom formulation?
This antibody clone is manufactured by Abcam. If you require a custom buffer formulation or conjugation for your experiments, please contact orders@abcam.com

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification Protein A

Storage buffer

pH: 7.2 - 7.4 Preservative: 0.01% Sodium azide Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

PD1 also known as Programmed Cell Death Protein 1 or PDCD1 is a transmembrane protein that plays a critical role in regulating immune responses. It has a mass of approximately 55 kDa. PD1 is expressed on the surface of T cells B cells and some myeloid cells. PD1’s expression increases upon activation of these immune cells assisting in maintaining peripheral tolerance. Researchers often use PD1 mouse models and chimeric antibodies to explore the function of PD1 for experimental purposes. Antibodies such as anti-PD1 such as EH12.2H7 help in blocking PD1 interaction to study its role further.

Biological function summary

PD1 serves as an inhibitory receptor acting as a checkpoint in the immune system. It becomes part of an immune-suppressive complex when it binds with its ligands PD-L1 or PD-L2 which are expressed on various cell types including some tumor cells. This interaction suppresses the proliferation of T cells and cytokine production contributing to immune homeostasis. By controlling T cell activity PD1 limits autoimmunity but can also reduce the immune system's capability to attack cancer cells.

Pathways

PD1 functions in the immune checkpoint pathway a critical regulatory circuit in immune regulation. The engagement of PD1 with its ligands initiates a cascade that inhibits the function and proliferation of T cells through downstream SHP-2 phosphatase activity. This pathway frequently involves other regulatory proteins like CTLA-4 and is an important mechanism by which the body modulates immune responses. Related pathways often intersect with those involving T cell receptor signaling and contribute to the overall modulation of immune activity.

PD1 has a significant role in cancer and autoimmune disorders. PD1 expression can allow tumors to evade immune surveillance making PD1 a target for cancer therapies such as anti-PD1 antibodies which aim to block PD1 and restore T cell activity. The interaction of PD1 with cancer-related proteins like PD-L1 facilitates tumor immune evasion. In autoimmune disorders PD1’s regulation of immune balance can become dysregulated leading to persistent immune activation and tissue damage. Understanding PD1 and its interaction with proteins such as PD-L1 helps in developing therapeutic strategies for both cancer and autoimmune conditions.

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

Inhibitory receptor on antigen activated T-cells that plays a critical role in induction and maintenance of immune tolerance to self (PubMed : 10485649, PubMed : 11209085, PubMed : 11698646, PubMed : 21300912). Delivers inhibitory signals upon binding to ligands, such as CD274/PDCD1L1 and CD273/PDCD1LG2 (PubMed : 11015443, PubMed : 11224527, PubMed : 18287011, PubMed : 18641123, PubMed : 22641383). Following T-cell receptor (TCR) engagement, PDCD1 associates with CD3-TCR in the immunological synapse and directly inhibits T-cell activation (PubMed : 22641383). Suppresses T-cell activation through the recruitment of PTPN11/SHP-2 : following ligand-binding, PDCD1 is phosphorylated within the ITSM motif, leading to the recruitment of the protein tyrosine phosphatase PTPN11/SHP-2 that mediates dephosphorylation of key TCR proximal signaling molecules, such as ZAP70, PRKCQ/PKCtheta and CD247/CD3zeta (PubMed : 11698646, PubMed : 22641383). The PDCD1-mediated inhibitory pathway is exploited by tumors to attenuate anti-tumor immunity and facilitate tumor survival (By similarity).

See full target information Pdcd1

style

left-column

style

left-column

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
