Anti-PDE10A antibody [EPR22383] - BSA and Azide free

• IHC-Fr

Supplier Data

Immunohistochemistry (Frozen sections) - Anti-PDE10A antibody [EPR22383] - BSA and Azide free (AB245198)

Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen mouse brain tissue labeling PDE10A with ab227829 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Cytoplasmic staining on corpus striatum in mouse brain (PMID : 16864896) is observed. Counterstained with DAPI (blue).

Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab227829).

• IHC-Fr

Unknown

Immunohistochemistry (Frozen sections) - Anti-PDE10A antibody [EPR22383] - BSA and Azide free (AB245198)

Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen mouse kidney tissue labeling PDE10A with ab227829 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green).

Negative control : No staining on mouse kidney (PMID : 16864896). Counterstained with DAPI (blue).

Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab227829).

• IHC-Fr

Supplier Data

Immunohistochemistry (Frozen sections) - Anti-PDE10A antibody [EPR22383] - BSA and Azide free (AB245198)

Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen rat kidney tissue labeling PDE10A with ab227829 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green).

Negative control : No staining on rat kidney (PMID : 16864896). Counterstained with DAPI (blue).

Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab227829).

• IHC-Fr

Unknown

Immunohistochemistry (Frozen sections) - Anti-PDE10A antibody [EPR22383] - BSA and Azide free (AB245198)

Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen mouse brain tissue labeling PDE10A with ab227829 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Cytoplasmic staining on mouse caudate-putamen and globus pallidus in mouse brain (PMID : 16864896; PMID : 28115486) is observed. Counterstained with DAPI (blue).

Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab227829).

• IHC-Fr

Supplier Data

Immunohistochemistry (Frozen sections) - Anti-PDE10A antibody [EPR22383] - BSA and Azide free (AB245198)

Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen rat brain tissue labeling PDE10A with ab227829 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Cytoplasmic staining on corpus striatum in rat brain (PMID : 16864896) is observed. Counterstained with DAPI (blue).

Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab227829).

• WB

Unknown

Western blot - Anti-PDE10A antibody [EPR22383] - BSA and Azide free (AB245198)

Blocking/Dilution buffer : 5% NFDM/TBST.

ab227829 was shown to specifically react with PDE10A in wild-type HAP1 cells as signal was lost in PDE10A knockout cells. Wild-type and PDE10A knockout samples were subjected to SDS-PAGE. ab227829 and ab181602 (Rabbit anti-GAPDH loading control) were incubated 1 hour at room temperature at 1/1000 dilution and 1/200,000 dilution respectively. Blots were developed with Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (ab97051) secondary antibody at 1/100,000 dilution for 1 hour at room temperature before imaging.

The blot was developed on a BIO-RAD^® ChemiDoc™ MP instrument using the ECL technique.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab227829).

All lanes:

Western blot - Anti-PDE10A antibody [EPR22383] (<a href='/en-us/products/primary-antibodies/pde10a-antibody-epr22383-ab227829'>ab227829</a>) at 1/1000 dilution

Lane 1:

Wild-type HAP1 whole cell lysate at 20 µg

Lane 2:

PDE10A knockout HAP1 whole cell lysate at 20 µg

Lane 3:

HeLa (human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 88 kDa

Observed band size: 88 kDa

false

Exposure time: 3min

• IP

Unknown

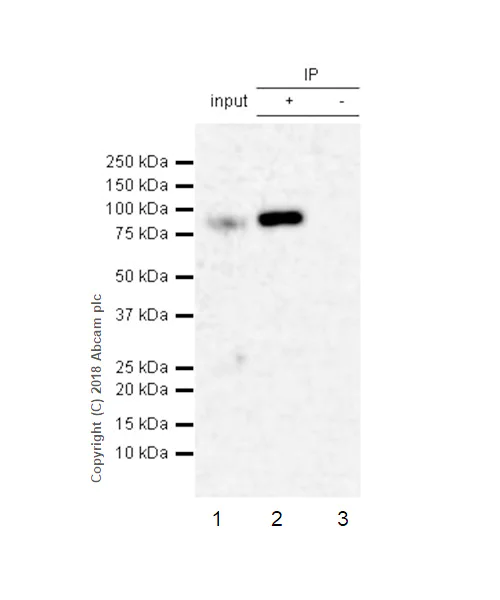

Immunoprecipitation - Anti-PDE10A antibody [EPR22383] - BSA and Azide free (AB245198)

PDE10A was immunoprecipitated from 0.35 mg HeLa (human epithelial cell line from cervix adenocarcinoma) whole cell lysate with ab227829 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab227829 at 1/500 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/1000 dilution.
Lane 1 : HeLa whole cell lysate 10 μg (Input).
Lane 2 : ab227829 IP in HeLa whole cell lysate.
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab227829 in HeLa whole cell lysate.
Blocking/Dilution buffer : 5% NFDM/TBST.
Exposure time : 3 minutes.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab227829).

All lanes:

Immunoprecipitation - Anti-PDE10A antibody [EPR22383] (<a href='/en-us/products/primary-antibodies/pde10a-antibody-epr22383-ab227829'>ab227829</a>)

Predicted band size: 88 kDa

false
