Anti-PDE5A/PDE5 antibody [EPR24129-95] (ab259945)

Rabbit Recombinant Monoclonal PDE5A/PDE5 antibody. Suitable for IP, WB, IHC-Fr, IHC-P and reacts with Human, Mouse, Rat samples. Cited in 2 publications.

Be the first to review this product! Submit a review

Images

Western blot - Anti-PDE5A/PDE5 antibody [EPR24129-95] (AB259945), expandable thumbnail

Publications

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: Preservative: 0.01% Sodium azide
Constituents: 59.94% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Monoclonal

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application

Product promiseTestedExpectedPredictedNot recommended

	ICC/IF	IP	WB	IHC-Fr	Flow Cyt (Intra)	IHC-P
Human	Not recommended	Tested	Tested	Expected	Not recommended	Tested
Mouse	Not recommended	Expected	Tested	Tested	Not recommended	Tested
Rat	Not recommended	Expected	Tested	Tested	Not recommended	Tested

Not recommended
Not recommended

Species	Dilution info	Notes
Species Mouse	Dilution info -	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Rat	Dilution info -	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Human	Dilution info -	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/30	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Mouse, Rat	Dilution info Use at an assay dependent concentration.	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info 1/1000	Notes -
Species Rat	Dilution info 1/1000	Notes -
Species Human	Dilution info 1/1000	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info 1/100	Notes -
Species Rat	Dilution info 1/100	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Human	Dilution info Use at an assay dependent concentration.	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Mouse, Rat, Human	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info 1/500	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Rat	Dilution info 1/500	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Human	Dilution info 1/500	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Target data

See full target information PDE5A

Function

Plays a role in signal transduction by regulating the intracellular concentration of cyclic nucleotides. This phosphodiesterase catalyzes the specific hydrolysis of cGMP to 5'-GMP (PubMed:15489334, PubMed:9714779). Specifically regulates nitric-oxide-generated cGMP (PubMed:15489334).

Alternative names

PDE5, PDE5A, cGMP-binding cGMP-specific phosphodiesterase, CGB-PDE

Recommended products

Rabbit Recombinant Monoclonal PDE5A/PDE5 antibody. Suitable for IP, WB, IHC-Fr, IHC-P and reacts with Human, Mouse, Rat samples. Cited in 2 publications.

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: Preservative: 0.01% Sodium azide
Constituents: 59.94% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Monoclonal
Immunogen: The exact immunogen used to generate this antibody is proprietary information.
Clone number: EPR24129-95
Purification technique: Affinity purification Protein A
Concentration

Storage

Shipped at conditions: Blue Ice
Appropriate short-term storage duration: 1-2 weeks
Appropriate short-term storage conditions: +4°C
Appropriate long-term storage conditions: -20°C
Aliquoting information: Upon delivery aliquot
Storage information: Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

PDE5A also known as PDE5 or phosphodiesterase type 5 plays a critical role in hydrolyzing cyclic guanosine monophosphate (cGMP) to its inactive form. This enzyme is part of the phosphodiesterase family and has a molecular mass of approximately 100 kDa. PDE5A is expressed mainly in the smooth muscle cells of blood vessels and in the corpus cavernosum of the penis. Other expression sites include the lung heart and skeletal muscle.

Biological function summary

PDE5A regulates intracellular levels of cGMP an important secondary messenger in various signaling pathways. It is not part of a large protein complex but directly influences the contractility of smooth muscle tissues. By controlling cGMP levels PDE5A modulates vascular tone and influences processes such as vasodilation. This regulation is essential for maintaining a balance in the contractile state of muscles impacting blood flow and other vital functions.

Pathways

PDE5A contributes significantly to the nitric oxide (NO)-cGMP signaling pathway which is important for vascular relaxation. In this pathway nitric oxide stimulates guanylate cyclase to produce cGMP which then activates specific kinases and ion channels. Related proteins such as guanylate cyclase and cGMP-dependent protein kinases work alongside PDE5A to mediate smooth muscle relaxation and vasodilation particularly in penile erectile tissue.

Associated diseases and disorders

PDE5A shows strong connections to erectile dysfunction and pulmonary hypertension. In the case of erectile dysfunction impaired regulation of cGMP by PDE5A affects the relaxation of smooth muscle leading to inadequate blood flow. Pulmonary hypertension involves elevated blood pressure in the lung arteries which PDE5A influences through its role in controlling vascular tone. The enzyme guanylate cyclase associates closely with PDE5A in these contexts as both influence cGMP pathways involved in these conditions.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

11 product images

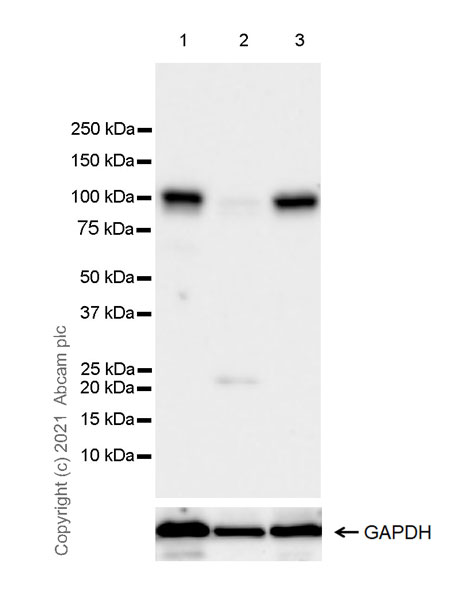

Western blot - Anti-PDE5A/PDE5 antibody [EPR24129-95] (ab259945)
Blocking and diluting buffer and concentration: 5% NFDM/TBST
Negative control: liver (PMID: 11389965).
Exposure time: 37 seconds
All lanes: Western blot - Anti-PDE5A/PDE5 antibody [EPR24129-95] (ab259945) at 1/1000 dilution
Lane 1: Human cerebellum tissue lysate at 40 µg
Lane 2: Human liver tissue lysate at 40 µg
Lane 3: MCF7 (human breast adenocarcinoma epithelial cell) whole cell lysate at 40 µg
Secondary
All lanes: Western blot - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/1000 dilution
Predicted band size: 100 kDa

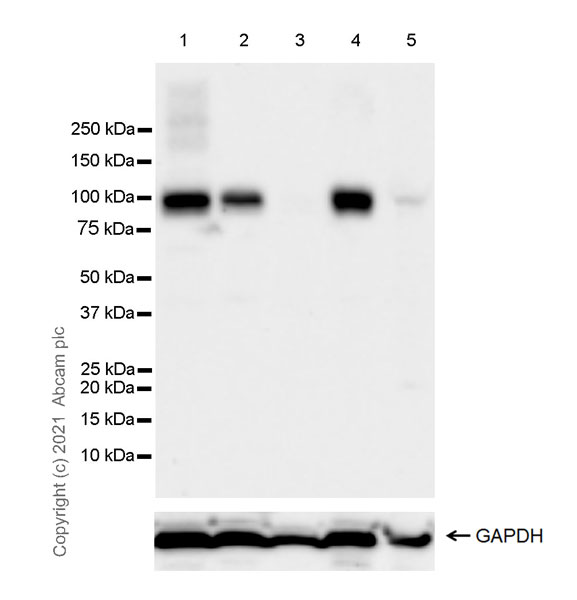

Western blot - Anti-PDE5A/PDE5 antibody [EPR24129-95] (ab259945)
Blocking and diluting buffer and concentration: 5% NFDM/TBST
Negative control: liver (PMID: 11389965).
Exposure time: 37 seconds
All lanes: Western blot - Anti-PDE5A/PDE5 antibody [EPR24129-95] (ab259945) at 1/1000 dilution
Lane 1: Mouse esophagus tissue lysate at 40 µg
Lane 2: Mouse cerebellum tissue lysate at 40 µg
Lane 3: Mouse liver tissue lysate at 40 µg
Lane 4: Rat cerebellum tissue lysate at 40 µg
Lane 5: Rat liver tissue lysate at 40 µg
Secondary
Lanes 1 - 5: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution
Lanes 1 - 5: Western blot - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/100000 dilution
Predicted band size: 100 kDa
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PDE5A/PDE5 antibody [EPR24129-95] (ab259945)
Immunohistochemical analysis of paraffin-embedded Human cerebellum tissue labelling PDE5A/PDE5 with ab259945 at 1/500 (0.928 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used. Cytoplasmic staining on purkinje cells of human cerebellum.The section was incubated with ab259945 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used.
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PDE5A/PDE5 antibody [EPR24129-95] (ab259945)
Immunohistochemical analysis of paraffin-embedded Human brain tissue labelling PDE5A/PDE5 with ab259945 at 1/500 (0.928 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used. Cytoplasmic staining on artery smooth muscle of human brain.The section was incubated with ab259945 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used.
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PDE5A/PDE5 antibody [EPR24129-95] (ab259945)
Immunohistochemical analysis of paraffin-embedded Mouse cerebellum tissue labelling PDE5A/PDE5 with ab259945 at 1/500 (0.928 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used. Cytoplasmic staining on mouse cerebellum.The section was incubated with ab259945 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used.
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PDE5A/PDE5 antibody [EPR24129-95] (ab259945)
Immunohistochemical analysis of paraffin-embedded Rat cerebellum tissue labelling PDE5A/PDE5 with ab259945 at 1/500 (0.928 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used. Cytoplasmic staining on rat cerebellum.The section was incubated with ab259945 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used.
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins

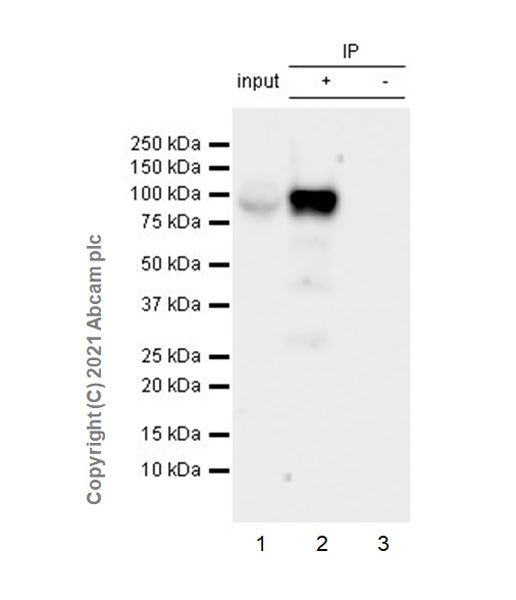

Immunoprecipitation - Anti-PDE5A/PDE5 antibody [EPR24129-95] (ab259945)
PDE5A/PDE5 was immunoprecipitated from 0.35 mg MCF7 (human breast adenocarcinoma epithelial cell) whole cell lysate 10 ug with ab259945 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab259945 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.
Lane 1: MCF7 (human breast adenocarcinoma epithelial cell) whole cell lysate 10 ug
Lane 2: ab259945 IP in MCF7 whole cell lysate
Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab259945 in MCF7 whole cell lysate
Blocking and dilution buffer and concentration: 5% NFDM/TBST.
Exposure time: 15 seconds
All lanes: Immunoprecipitation - Anti-PDE5A/PDE5 antibody [EPR24129-95] (ab259945)
Predicted band size: 100 kDa
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PDE5A/PDE5 antibody [EPR24129-95] (ab259945)
Immunohistochemical analysis of paraffin-embedded Human liver tissue labelling PDE5A/PDE5 with ab259945 at 1/500 (0.928 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used. Negative control: no staining on human liver.The section was incubated with ab259945 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used.
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins
Immunohistochemistry (Frozen sections) - Anti-PDE5A/PDE5 antibody [EPR24129-95] (ab259945)
Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Mouse cerebellum tissue labeling PDE5A/PDE5 with ab259945 at 1/100 (4.64 ug/ml) dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) at 1/1000 2 ug/ml dilution (Green). Positive staining on mouse cerebellum is observed. The nuclear counterstain was DAPI (Blue).
Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)at 1/1000 dilution.
Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20).
Immunohistochemistry (Frozen sections) - Anti-PDE5A/PDE5 antibody [EPR24129-95] (ab259945)
Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Rat cerebellum tissue labeling PDE5A/PDE5 with ab259945 at 1/100 (4.64 ug/ml) dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) at 1/1000 2 ug/ml dilution (Green). Positive staining on rat cerebellum is observed. The nuclear counterstain was DAPI (Blue).
Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)at 1/1000 dilution.
Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20).

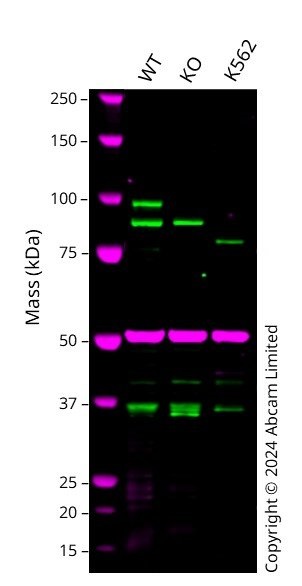

Western blot - Anti-PDE5A/PDE5 antibody [EPR24129-95] (ab259945)
PDE5A/PDE5 Western blot staining using rabbit Anti-PDE5A/PDE5 antibody
Western blot: Anti-PDE5A antibody [EPR24129-95] (ab259945) staining at 1/1000 dilution, shown in green; Mouse anti-Alpha Tubulin [DM1A] (Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291) loading control staining at 1/20000 dilution, shown in magenta. In Western blot, ab259945 was shown to bind specifically to PDE5A. A band was observed at 95 kDa in wild-type A549 cell lysates with no signal observed at this size in PDE5A knockout cell line. To generate this image, wild-type and PDE5A knockout A549 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween^® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution.
All lanes: Western blot - Anti-PDE5A/PDE5 antibody [EPR24129-95] (ab259945) at 1/1000 dilution
Lane 1: Wild-type A549 cell lysate at 20 µg
Lane 2: Western blot - Human PDE5A knockout A549 cell line (Human PDE5A knockout A549 cell line ab301140)
Lane 2: PDE5A knockout A549 cell lysate at 20 µg
Lane 3: K562 cell lysate at 20 µg
Secondary
Lanes 1 - 3: Goat anti-Rabbit IgG H&L 800CW at 1/20000 dilution
Lanes 1 - 3: Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution
Performed under reducing conditions.
Predicted band size: 100 kDa
Observed band size: 95 kDa
