Anti-PDGFR alpha + PDGFR beta antibody [Y92] - BSA and Azide free

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PDGFR alpha + PDGFR beta antibody [Y92] - BSA and Azide free (AB271835)

ab32570 staining PDGFR alpha + beta in human breast tissue sections by Immunohistochemistry (IHC-P - paraformaldehyde-fixed, paraffin-embedded sections). Shows positive staining on stromal cells. Heat mediated antigen retrieval was performed using ab93684 (Tris/EDTA buffer, pH 9.0). Samples were incubated with primary antibody (1/500). An HRP-conjugated Goat anti-rabbit IgG (ready to use) was used as the secondary antibody. Counter stained with Hematoxylin.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32570).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PDGFR alpha + PDGFR beta antibody [Y92] - BSA and Azide free (AB271835)

ab32570 staining PDGFR alpha + beta in human lung cancer tissue sections by Immunohistochemistry (IHC-P - paraformaldehyde-fixed, paraffin-embedded sections). Shows positive staining on stromal cells. Heat mediated antigen retrieval was performed using ab93684 (Tris/EDTA buffer, pH 9.0). Samples were incubated with primary antibody (1/500). An HRP-conjugated Goat anti-rabbit IgG (ready to use) was used as the secondary antibody. Counter stained with Hematoxylin.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32570).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PDGFR alpha + PDGFR beta antibody [Y92] - BSA and Azide free (AB271835)

Immunohistochemical staining of paraffin embedded human spleen with purified ab32570 at a working dilution of 1/50. The secondary antibody used is ab97051, a HRP-conjugated goat anti-rabbit IgG (H+L), at a dilution of 1/500. The sample is counter-stained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0. PBS was used instead of the primary antibody as the negative control, and is shown in the inset.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32570).

• ELISA

Supplier Data

ELISA - Anti-PDGFR alpha + PDGFR beta antibody [Y92] - BSA and Azide free (AB271835)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32570).

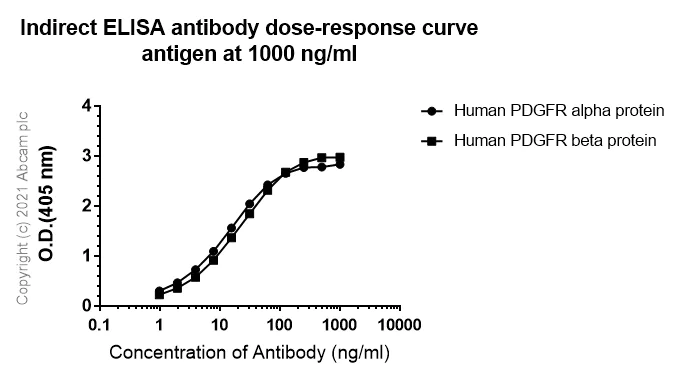

ELISA showing primary antibody ab32570 binding to the antigen Human PDGFR alpha protein and Human PDGFR beta protein.

Primary antibody concentration ranges from 0 - 1000 ng/mL.

Alkaline Phosphatase-conjugated AffiniPure Goat Anti-Rabbit IgG (H+L) was used as a secondary antibody at 1/2500 dilution.

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-PDGFR alpha + PDGFR beta antibody [Y92] - BSA and Azide free (AB271835)

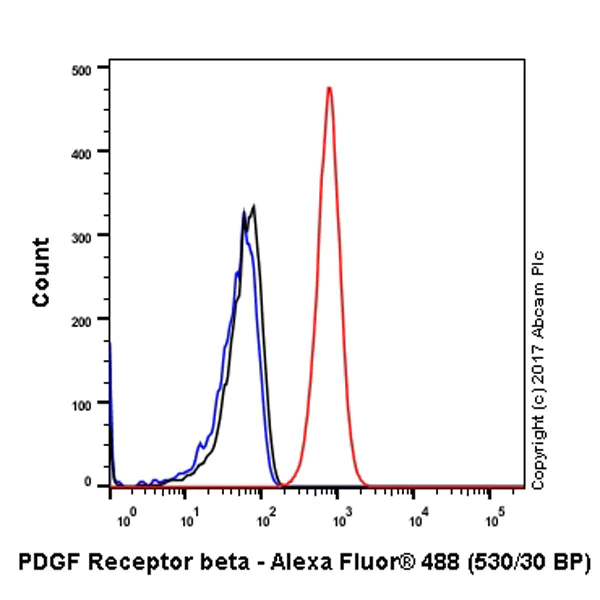

Intracellular Flow Cytometry analysis of NIH/3T3 (Mouse embryo fibroblast cell line) cells labeling PDGFR alpha + beta (red) with ab32570 at a 1/20 dilution. Cells were fixed with 4% paraformaldehyde and permeabilized with 90% methanol. A goat anti-rabbit IgG (Alexa Fluor^® 488) (ab150077) was used as the secondary antibody at a 1/2000 dilution. Black - Rabbit monoclonal IgG (ab172730). Blue (unlabeled control) - Cells without incubation with primary and secondary antibodies.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32570).

• IP

Unknown

Immunoprecipitation - Anti-PDGFR alpha + PDGFR beta antibody [Y92] - BSA and Azide free (AB271835)

ab32570 (purified) at 1/20 immunoprecipitating PDGFR alpha + beta in NIH/3T3 (Mouse embryo fibroblast cell line) (Lane 1 and 2). Lane 3 - PBS.

For western blotting a HRP-conjugated anti-rabbit IgG specific to the non-reduced form of IgG was used as the secondary antibody (1/1500).

Blocking buffer and concentration : 5% NFDM/TBST.

Diluting buffer and concentration : 5% NFDM /TBST.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32570).

All lanes:

Immunoprecipitation - Anti-PDGFR alpha + PDGFR beta antibody [Y92] - C-terminal (<a href='/en-us/products/primary-antibodies/pdgfr-alpha-pdgfr-beta-antibody-y92-c-terminal-ab32570'>ab32570</a>)

Observed band size: 175 kDa

false

• WB

Lab

Western blot - Anti-PDGFR alpha + PDGFR beta antibody [Y92] - BSA and Azide free (AB271835)

This data was developed using the same antibody clone in a different buffer formulation (ab32570).

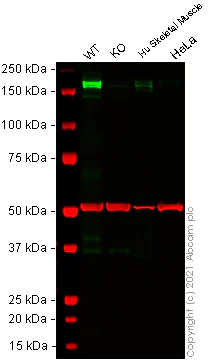

Lanes 1 - 4 : Merged signal (red and green). Green - ab32570 observed at 170 kDa. Red - loading control ab7291 (Mouse anti-Alpha Tubulin [DM1A]) observed at 55 kDa.

ab32570 was shown to react with PDGFRB in wild-type SH-SY5Y cells in Western blot with loss of signal observed in PDGFRB knockout cell line ab273749 (knockout cell lysate ab275523). Wild-type SH-SY5Y and PDGFRB knockout cell lysates were subjected to SDS-PAGE. Membranes were blocked in fluorescent western blot (TBS-based) blocking solution before incubation with ab32570 and ab7291 (Mouse anti-Alpha Tubulin [DM1A]) overnight at 4 °C at a 1 in 5000 dilution and a 1 in 20000 dilution respectively. Blots were incubated with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 h at room temperature before imaging.

All lanes:

Western blot - Anti-PDGFR alpha + PDGFR beta antibody [Y92] - C-terminal (<a href='/en-us/products/primary-antibodies/pdgfr-alpha-pdgfr-beta-antibody-y92-c-terminal-ab32570'>ab32570</a>) at 1/5000 dilution

Lane 1:

Wild-type SH-SY5Y cell lysate at 30 µg

Lane 2:

PDGFR beta knockout SH-SY5Y cell lysate at 30 µg

Lane 2:

Western blot - Human PDGFRB knockout SH-SY5Y cell line (<a href='/en-us/products/cell-lines/human-pdgfrb-knockout-sh-sy5y-cell-line-ab273749'>ab273749</a>)

Lane 3:

Human Skeletal Muscle tissue lysate at 30 µg

Lane 4:

HeLa cell lysate at 30 µg

Predicted band size: 123 kDa

Observed band size: 170 kDa

false

• WB

Lab

Western blot - Anti-PDGFR alpha + PDGFR beta antibody [Y92] - BSA and Azide free (AB271835)

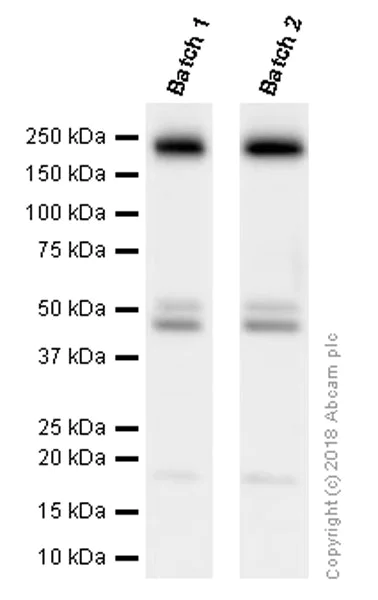

This data was developed using ab32570, the same antibody clone in a different buffer formulation. Different batches of ab32570 were tested on Rat brain lysate at 1.0 µg/ml. 15 µg of lysate was loaded in each lane. Bands observed at 175 kDa.

All lanes:

Western blot - Anti-PDGFR alpha + PDGFR beta antibody [Y92] - C-terminal (<a href='/en-us/products/primary-antibodies/pdgfr-alpha-pdgfr-beta-antibody-y92-c-terminal-ab32570'>ab32570</a>)

false

• WB

Lab

Western blot - Anti-PDGFR alpha + PDGFR beta antibody [Y92] - BSA and Azide free (AB271835)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32570).

Blocking/Diluting buffer and concentration : 5% NFDM/TBST

All lanes:

Western blot - Anti-PDGFR alpha + PDGFR beta antibody [Y92] - C-terminal (<a href='/en-us/products/primary-antibodies/pdgfr-alpha-pdgfr-beta-antibody-y92-c-terminal-ab32570'>ab32570</a>) at 1/1000 dilution

Lane 1:

Western blot - Recombinant human PDGFR beta protein (<a href='/en-us/products/proteins-peptides/recombinant-human-pdgfr-beta-protein-ab60833'>ab60833</a>) at 0.1 µg

Lane 2:

Western blot - Recombinant human PDGFR alpha protein (<a href='/en-us/products/proteins-peptides/recombinant-human-pdgfr-alpha-protein-ab84797'>ab84797</a>) at 0.1 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

false

Exposure time: 3s
