Anti-PDHA1 (phospho S293) antibody [EPR12200]

• IHC-P

Supplier Data

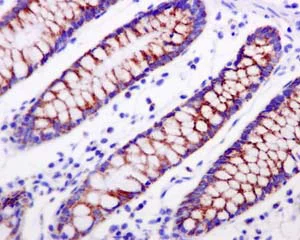

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PDHA1 (phospho S293) antibody [EPR12200] (AB177461)

Immunohistochemical analysis of paraffin-embedded human colon tissue labeling PDHA1 with unpurified ab177461 at 1/50 dilution. Heat mediated antigen retrieval was performed using citrate buffer pH 6 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PDHA1 (phospho S293) antibody [EPR12200] (AB177461)

Immunohistochemical analysis of paraffin-embedded human breast tissue labeling PDHA1 with unpurified ab177461 at 1/50 dilution. Heat mediated antigen retrieval was performed using citrate buffer pH 6 before commencing with IHC staining protocol.

• IHC-P

Unknown

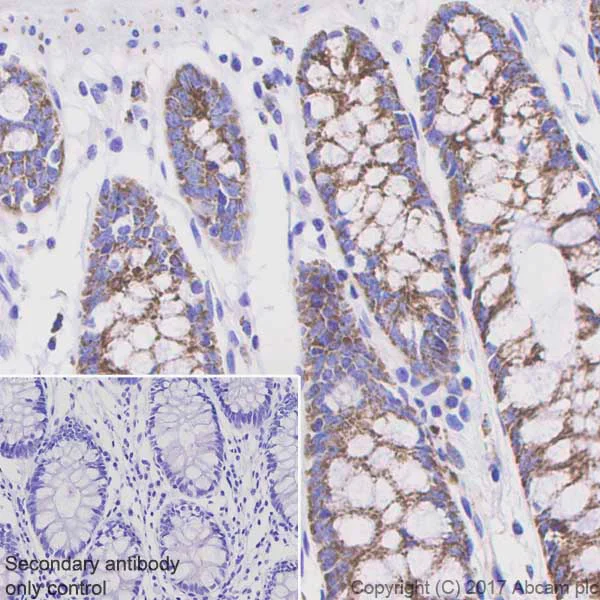

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PDHA1 (phospho S293) antibody [EPR12200] (AB177461)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human colon tissue sections labeling PDHA1 with Purified ab177461 at 1 : 250 dilution (0.52 μg/ml). Heat mediated antigen retrieval was performed using ab93684 (Tris/EDTA buffer, pH 9.0). Tissue was counterstained with Hematoxylin. ImmunoHistoProbe one step HRP Polymer (ready to use) secondary antibody was used at 1 : 0 dilution. PBS instead of the primary antibody was used as the negative control.

• ELISA

Lab

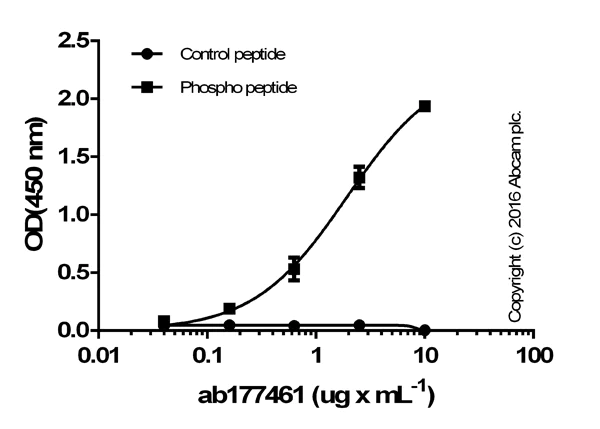

ELISA - Anti-PDHA1 (phospho S293) antibody [EPR12200] (AB177461)

Serially diluted unpurified ab177461 was bound to immobilised human phospho peptide (S293) - or Control peptide (1 microgram x mL-1). The antibody was detected by HRP-labelled goat anti-rabbit IgG (ab97080; diluted 50000 times) and signal was developed with TMB substrate.

• IP

Unknown

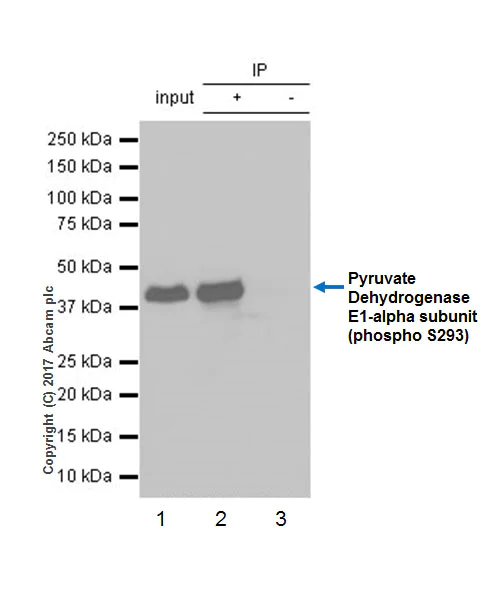

Immunoprecipitation - Anti-PDHA1 (phospho S293) antibody [EPR12200] (AB177461)

ab177461 (purified) at 1 : 20 dilution (2μg) immunoprecipitating PDHA1 in HEK-293T (Human epithelial cell line from embryonic kidney transformed with large T antigen) whole cell lysate.
Lane 1 (input) : HEK-293T whole cell lysate 10μg
Lane 2 (+) : ab177461 & HEK-293T whole cell lysate
Lane 3 (-) : Rabbit monoclonal IgG (ab172730) instead of ab177461 in HEK-293T whole cell lysate
For western blotting, VeriBlot for IP Detection Reagent(HRP) (ab131366) was used for detection at 1 : 1000 dilution.
Blocking and diluting buffer : 5% NFDM/TBST.

All lanes:

Immunoprecipitation - Anti-PDHA1 (phospho S293) antibody [EPR12200] (ab177461)

Predicted band size: 43 kDa

false

• IHC-P

Unknown

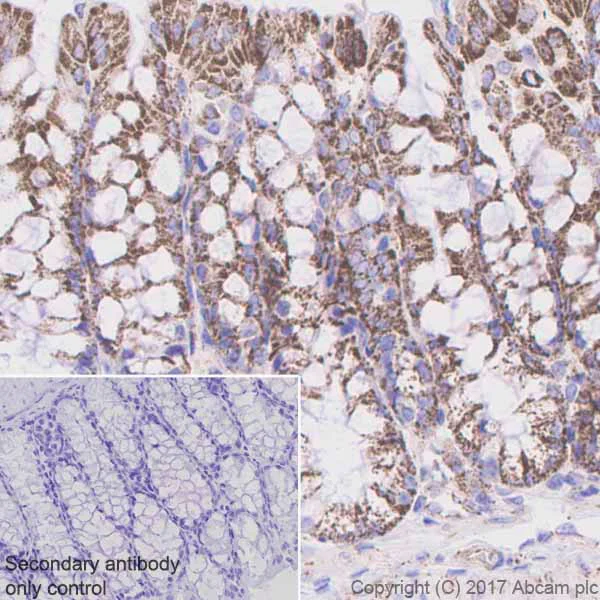

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PDHA1 (phospho S293) antibody [EPR12200] (AB177461)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of mouse colon tissue sections labeling PDHA1 with Purified ab177461 at 1 : 250 dilution (0.52 μg/ml). Heat mediated antigen retrieval was performed using ab93684 (Tris/EDTA buffer, pH 9.0). Tissue was counterstained with Hematoxylin. ImmunoHistoProbe one step HRP Polymer (ready to use) secondary antibody was used at 1 : 0 dilution. PBS instead of the primary antibody was used as the negative control.

• IHC-P

Unknown

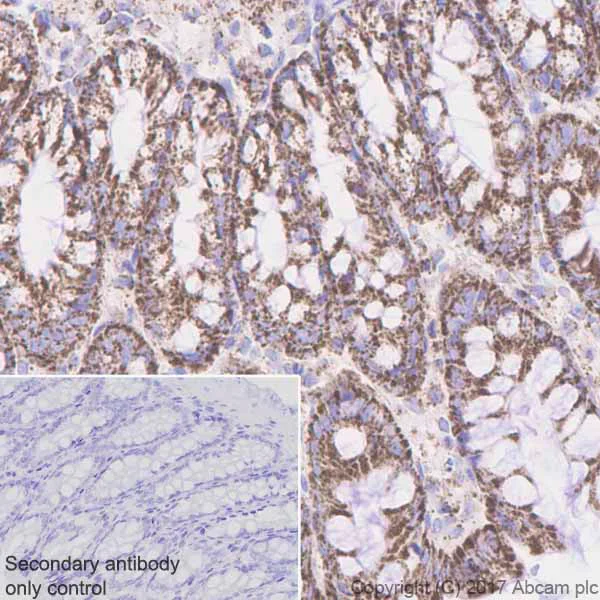

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PDHA1 (phospho S293) antibody [EPR12200] (AB177461)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of rat colon tissue sections labeling PDHA1 with Purified ab177461 at 1 : 250 dilution (0.52 μg/ml). Heat mediated antigen retrieval was performed using ab93684 (Tris/EDTA buffer, pH 9.0). Tissue was counterstained with Hematoxylin. ImmunoHistoProbe one step HRP Polymer (ready to use) secondary antibody was used at 1 : 0 dilution. PBS instead of the primary antibody was used as the negative control.

• WB

Lab

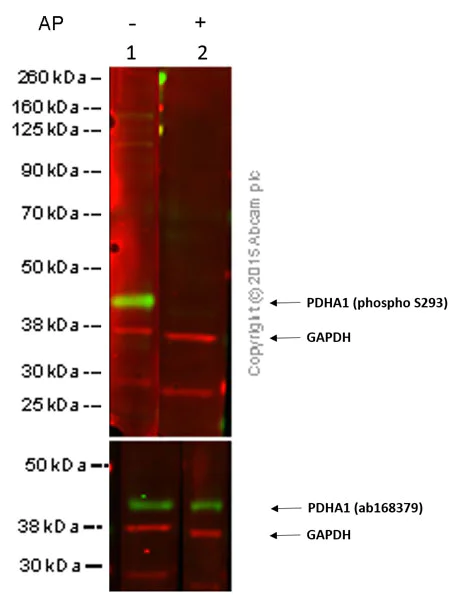

Western blot - Anti-PDHA1 (phospho S293) antibody [EPR12200] (AB177461)

This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour and then treated with either buffer (lane 1) or alkaline phosphatase (lane 2), before being incubated with ab177461 overnight at 4°C. Antibody binding was detected using IR-labelled goat anti-rabbit (green) and goat anti-mouse (Red) at 1 : 10,000 dilution for one hour at room temperature before imaging.

All lanes:

Western blot - Anti-PDHA1 (phospho S293) antibody [EPR12200] (ab177461) at 1/1000 dilution

All lanes:

HeLa Whole Cell Lysate + Calyculin A (30nM for 20min) at 20 µg

Secondary

All lanes:

goat anti-rabbit (green) and goat anti-mouse at 1/10000 dilution

Predicted band size: 43 kDa

false

• WB

Supplier Data

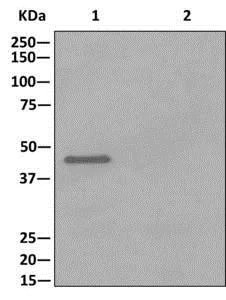

Western blot - Anti-PDHA1 (phospho S293) antibody [EPR12200] (AB177461)

All lanes:

Western blot - Anti-PDHA1 (phospho S293) antibody [EPR12200] (ab177461) at 1/1000 dilution

Lane 1:

HEK-293T cell lysates untreated at 10 µg

Lane 2:

HEK-293T cell lysates, membrane treated with Lambda Phosphatase at 10 µg

Secondary

All lanes:

Goat-anti-rabbit HRP at 1/2000 dilution

Predicted band size: 43 kDa

true

• WB

Unknown

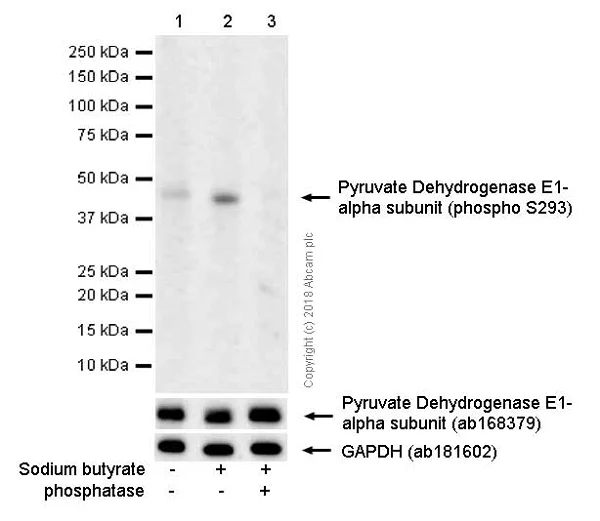

Western blot - Anti-PDHA1 (phospho S293) antibody [EPR12200] (AB177461)

Blocking and diluting buffer : 5% NFDM/TBST

All lanes:

Western blot - Anti-PDHA1 (phospho S293) antibody [EPR12200] (ab177461) at 1/2000 dilution

Lane 1:

HT-29 (Human colorectal adenocarcinoma epithelial cell) whole cell lysates at 15 µg

Lane 2:

HT-29 (Human colorectal adenocarcinoma epithelial cell) treated with 8 mM Sodium butyrate for 24 hours whole cell lysates at 15 µg

Lane 3:

HT-29 (Human colorectal adenocarcinoma epithelial cell) treated with 8 mM Sodium butyrate for 24 hours whole cell lysates.Then the membrane was incubated with phosphatase at 15 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 43 kDa

false

• WB

Unknown

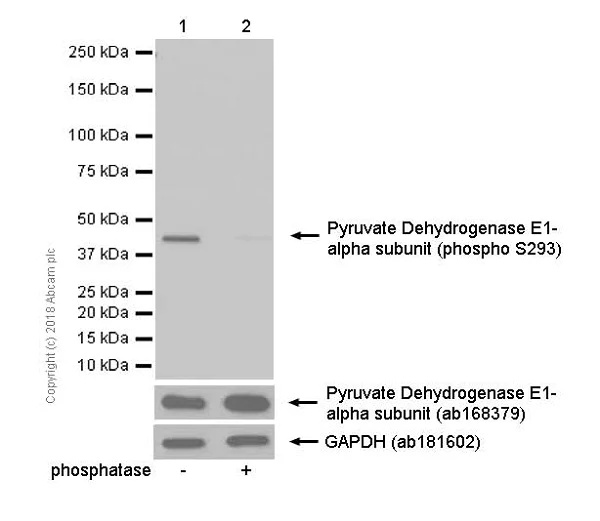

Western blot - Anti-PDHA1 (phospho S293) antibody [EPR12200] (AB177461)

Blocking and diluting buffer : 5% NFDM/TBST

All lanes:

Western blot - Anti-PDHA1 (phospho S293) antibody [EPR12200] (ab177461) at 1/2000 dilution

Lane 1:

Rat kidney lysates at 15 µg

Lane 2:

Rat kidney lysates.Then the membrane was incubated with phosphatase. at 15 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 43 kDa

false

• WB

Supplier Data

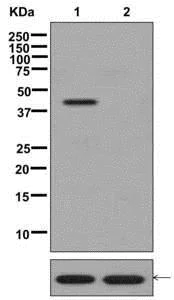

Western blot - Anti-PDHA1 (phospho S293) antibody [EPR12200] (AB177461)

All lanes:

Western blot - Anti-PDHA1 (phospho S293) antibody [EPR12200] (ab177461) at 1/1000 dilution

Lane 1:

Immunoprecipitation pellet from HEK-293T cell lysate at 10 µg

Lane 2:

1X PBS (negative control)

Secondary

All lanes:

Goat-anti-rabbit HRP at 1/2000 dilution

Predicted band size: 43 kDa

true

• WB

Unknown

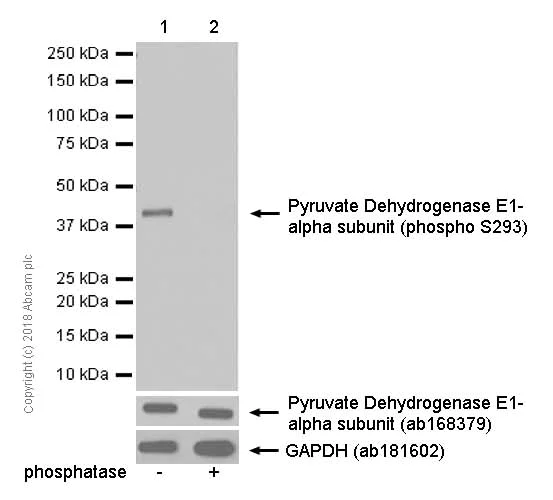

Western blot - Anti-PDHA1 (phospho S293) antibody [EPR12200] (AB177461)

All lanes:

Western blot - Anti-PDHA1 (phospho S293) antibody [EPR12200] (ab177461) at 1/2000 dilution

Lane 1:

Mouse kidney lysates at 15 µg

Lane 2:

Mouse kidney lysates.Then the membrane was incubated with phosphatase at 15 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 43 kDa

false
