Anti-PDX1 antibody [EPR3358(2)] - BSA and Azide free (ab240084)

Rabbit Recombinant Monoclonal PDX1 antibody. Carrier free. Suitable for IHC-P, WB, ICC/IF and reacts with Human, Mouse samples. Cited in 2 publications.

Be the first to review this product! Submit a review

Images

Western blot - Anti-PDX1 antibody [EPR3358(2)] - BSA and Azide free (AB240084), expandable thumbnail

Publications

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Constituents: PBS
Form: Liquid
Clonality: Monoclonal

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application

Product promiseTestedExpectedPredictedNot recommended

	IHC-P	WB	ICC/IF
Human	Tested	Tested	Tested
Mouse	Not recommended	Tested	Expected

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info -	Notes Perform heat-mediated antigen retrieval before commencing with IHC staining protocol.

Not recommended
Not recommended

Species	Dilution info	Notes
Species Mouse	Dilution info -	Notes Perform heat-mediated antigen retrieval before commencing with IHC staining protocol.

Tested
Tested

Species	Dilution info	Notes
Species Human, Mouse	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info -	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Mouse	Dilution info Use at an assay dependent concentration.	Notes -

Associated Products

Select an associated product type

7 products for Alternative Product

2 products for Alternative Version

Target data

See full target information PDX1

Function

Activates insulin, somatostatin, glucokinase, islet amyloid polypeptide and glucose transporter type 2 gene transcription. Particularly involved in glucose-dependent regulation of insulin gene transcription. As part of a PDX1:PBX1b:MEIS2b complex in pancreatic acinar cells is involved in the transcriptional activation of the ELA1 enhancer; the complex binds to the enhancer B element and cooperates with the transcription factor 1 complex (PTF1) bound to the enhancer A element. Binds preferentially the DNA motif 5'-[CT]TAAT[TG]-3'. During development, specifies the early pancreatic epithelium, permitting its proliferation, branching and subsequent differentiation. At adult stage, required for maintaining the hormone-producing phenotype of the beta-cell.

Alternative names

IPF1, STF1, PDX1, Pancreas/duodenum homeobox protein 1, PDX-1, Glucose-sensitive factor, Insulin promoter factor 1, Insulin upstream factor 1, Islet/duodenum homeobox-1, Somatostatin-transactivating factor 1, GSF, IPF-1, IUF-1, IDX-1, STF-1

Recommended products

Rabbit Recombinant Monoclonal PDX1 antibody. Carrier free. Suitable for IHC-P, WB, ICC/IF and reacts with Human, Mouse samples. Cited in 2 publications.

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Constituents: PBS
Form: Liquid
Clonality: Monoclonal
Immunogen: The exact immunogen used to generate this antibody is proprietary information.
Carrier free: Yes
Clone number: EPR3358(2)
Purification technique: Affinity purification Protein A
Specificity: The mouse recommendation is based on the WB results. We do not guarantee IHC-P for mouse.
Dissociation constant: 4.6 x 10^-11 M
Concentration

Storage

Shipped at conditions: Blue Ice
Appropriate short-term storage conditions: +4°C
Appropriate long-term storage conditions: +4°C
Storage information: Do Not Freeze

Notes

ab240084 is the carrier-free version of Anti-PDX1 antibody [EPR3358(2)] ab134150.

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar^® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar^® is a trademark of Fluidigm Canada Inc.

Species reactivity
Rat: We have preliminary internal testing data to indicate this antibody may not react with this species.
Please contact us for more information.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

Pancreatic duodenal homeobox 1 (PDX1) also known as insulin promoter factor 1 (IPF1) is an important transcription factor with a molecular weight of approximately 31 kDa. PDX1 plays an essential role in the development and function of the pancreas. This protein is mainly expressed in the pancreatic beta cells where it regulates gene expression linked to insulin production. Its expression also extends to the duodenum where it influences other developmental processes.

Biological function summary

PDX1 plays a critical role in pancreatic development beta-cell differentiation and insulin gene transcription. It functions as part of a protein complex that controls key aspects of beta-cell identity and function. The interactions within this complex allow PDX1 to effectively modulate pancreatic gene expression and maintain glucose homeostasis.

Pathways

PDX1 is deeply involved in the insulin secretion pathway and the regulation of glucose metabolism. It interacts with other transcription factors such as MAFA and NEUROD1 to carry out its role in these pathways. The presence of PDX1 in these pathways ensures the proper regulation of genes essential for insulin production and release connecting it to various metabolic processes.

Associated diseases and disorders

PDX1 associates mainly with diabetes mellitus and pancreatic agenesis. Mutations or functional impairments in PDX1 affect insulin production leading to diabetes. Furthermore in pancreatic agenesis where the pancreas fails to develop PDX1 malfunctions are often implicated. PDX1 interactions with proteins like MAFA and NEUROD1 during this process are critical; alterations in these relationships can exacerbate disease states linking PDX1 to both genetic and acquired forms of pancreatic dysfunction.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

10 product images

Western blot - Anti-PDX1 antibody [EPR3358(2)] - BSA and Azide free (ab240084)
The expression profile observed in BxPC-3 is consistent with the literature (PMID: 12947327). Negative control: BxPC-3 (PMID: 12947327)
All lanes: Western blot - Anti-PDX1 antibody [EPR3358(2)] (Anti-PDX1 antibody [EPR3358(2)] ab134150) at 1/1000 dilution
Lane 1: Caco-2 (Human colorectal adenocarcinoma epithelial cell) whole cell lysate at 20 µg
Lane 2: BxPC-3 (Human pancreas adenocarcinoma epithelial cell) whole cell lysate at 20 µg
Lane 3: Beta-TC-6 (Mouse pancreas insulinoma beta cell) whole cell lysate at 20 µg
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution
Predicted band size: 30 kDa
Observed band size: 40 kDa
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PDX1 antibody [EPR3358(2)] - BSA and Azide free (ab240084)
Anti-PDX1 antibody [EPR3358(2)] ab134150 staining PDX1 in Human pancreas tissue sections by Immunohistochemistry (IHC-P - paraformaldehyde-fixed, paraffin-embedded sections). Tissue was fixed and paraffin-embedded, antigen retrieval was by heat mediation in Tris/EDTA buffer pH9. Samples were incubated with primary antibody (1/500). An undiluted HRP-conjugated anti-rabbit IgG was used as the secondary antibody. Tissue counterstained with Hematoxylin. PBS was used in the negative control rather than the Primary antibody.
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-PDX1 antibody [EPR3358(2)] ab134150).
Immunocytochemistry/ Immunofluorescence - Anti-PDX1 antibody [EPR3358(2)] - BSA and Azide free (ab240084)
Anti-PDX1 antibody [EPR3358(2)] ab134150 staining PDX1 in the BXPC-3 cell line by ICC/IF (Immunocytochemistry/immunofluorescence). Cells were fixed with 4% Paraformaldehyde. Samples were incubated with primary antibody (1/150). An Alexa Fluor^®555-conjugated Goat anti-rabbit IgG (1/500) was used as the secondary antibody. Nuclei were counterstained with DAPI.
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-PDX1 antibody [EPR3358(2)] ab134150).
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PDX1 antibody [EPR3358(2)] - BSA and Azide free (ab240084)
Immunohistochemical analysis of paraffin embedded Human pancreas tissue labelled with Anti-PDX1 antibody [EPR3358(2)] ab134150, unpurified, at 1/1000 dilution.
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-PDX1 antibody [EPR3358(2)] ab134150).
Perform heat mediated antigen retrieval before commencing with IHC staining protocol.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PDX1 antibody [EPR3358(2)] - BSA and Azide free (ab240084)
Immunohistochemical analysis of paraffin embedded Human duodenum tissue labelled with Anti-PDX1 antibody [EPR3358(2)] ab134150, unpurified, at 1/1000 dilution.
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-PDX1 antibody [EPR3358(2)] ab134150).
Perform heat mediated antigen retrieval before commencing with IHC staining protocol.
This image is courtesy of an anonymous customer review
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PDX1 antibody [EPR3358(2)] - BSA and Azide free (ab240084)
Anti-PDX1 antibody [EPR3358(2)] ab134150, unpurified, staining PDX1 in Human pancreas tissue sections by Immunohistochemistry (IHC-P - paraformaldehyde-fixed, paraffin-embedded sections). Tissue was fixed with formaldehyde and blocked with 5% serum for 1 hour at 24°C; antigen retrieval was by heat mediation in 10mM sodium citrate, pH 6.0. Samples were incubated with primary antibody (1/1000 in 2% BSA) for 16 hours at 4°C. An Alexa Fluor® 488-conjugated Donkey anti-rabbit IgG polyclonal (1/400) was used as the secondary antibody.
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-PDX1 antibody [EPR3358(2)] ab134150).
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PDX1 antibody [EPR3358(2)] - BSA and Azide free (ab240084)
Immunohistochemical analysis of paraffin embedded Human Colonic adenocarcinoma tissue using Anti-PDX1 antibody [EPR3358(2)] ab134150, unpurified, showing +ve staining.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-PDX1 antibody [EPR3358(2)] ab134150).
Perform heat mediated antigen retrieval before commencing with IHC staining protocol.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PDX1 antibody [EPR3358(2)] - BSA and Azide free (ab240084)
Immunohistochemical analysis of paraffin embedded normal Human Normal brain tissue using Anti-PDX1 antibody [EPR3358(2)] ab134150, unpurified, showing -ve staining.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-PDX1 antibody [EPR3358(2)] ab134150).
Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

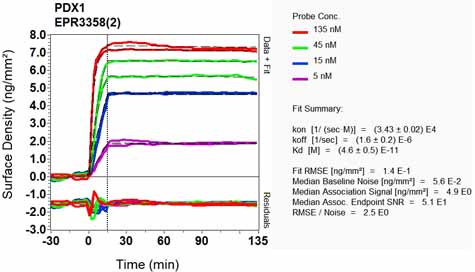

OI-RD Scanning - Anti-PDX1 antibody [EPR3358(2)] - BSA and Azide free (ab240084)
We have systematically measured KD (the equilibrium dissociation constant between the antibody and its antigen), of more than 840 recombinant antibodies to assess not only their individual KD values but also to see the average affinity of antibody.
Based on the comparison with published literature values for mouse monoclonal antibodies, Recombinant antibodies appear to be on average 1-2 order of magnitude higher affinity.
Immunocytochemistry/ Immunofluorescence - Anti-PDX1 antibody [EPR3358(2)] - BSA and Azide free (ab240084)
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-PDX1 antibody [EPR3358(2)] ab134150).
Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized DLD-1(human colorectal adenocarcinoma epithelial cell) cells labelling PDX1 with Anti-PDX1 antibody [EPR3358(2)] ab134150 at 1/500 (2.05 µg/ml) dilution followed by a Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed at a 1/1000 (2 µg) dilution (Green).
Confocal image showing nuclear staining in DLD-1 cells (shown in green), which is non-specific. The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).
Negative control: HepG2.
Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor^® 594) was used to counterstain tubulin at 1/200 (2.5µg/ml) dilution (Magenta). The Nuclear counterstain was DAPI (Blue).
Secondary antibody only control: Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed at a 1/1000 (2 µg) dilution.
