PE Anti-Calreticulin antibody [EPR3924] - ER Marker

2 product images

•

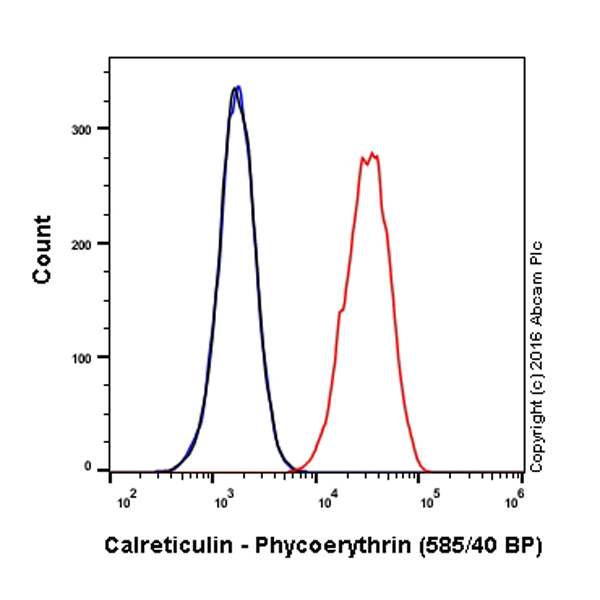

  Flow Cytometry (Intracellular) - PE Anti-Calreticulin antibody [EPR3924] - ER Marker (ab209577)

  Overlay histogram showing HeLa cells stained with ab209577 (red line). The cells were fixed with 4% formaldehyde (10 min) and then permeabilized with 90% methanol (-20°C) for 30 min. The cells were then incubated in 1x PBS / 10% normal goat serum to block non-specific protein-protein interactions followed by the antibody (ab209577, 1/5000 dilution) for 30 min at 22°C.

  Isotype control antibody (black line) was rabbit IgG (monoclonal) Phycoerythrin (PE Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab209478) used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control.

  Acquisition of >5,000 events were collected using a 20 mW Solid State Blue Laser (488nm) and 585/40 bandpass filter.

•

  Immunocytochemistry/ Immunofluorescence - PE Anti-Calreticulin antibody [EPR3924] - ER Marker (ab209577)

  ab209577 staining Calreticulin in HeLa cells. The cells were fixed with 100% methanol (5min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab209577 at 1/1000 dilution (pseudocolored in green) and Alexa Fluor® 647 Anti-Tubulin antibody [YOL1/34] - Microtubule Marker ab195884, Rat monoclonal to Tubulin (Alexa Fluor^® 647), at 1/250 dilution (shown in red). Nuclear DNA was labelled with DAPI (shown in blue).


  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
