AB326506

PE Anti-CD38 antibody [HIT2]

Be the first to review this product! Submit a review

|

(0 Publication)

Mouse Monoclonal CD38 antibody - conjugated to PE. Suitable for Flow Cyt and reacts with Human samples.

View Alternative Names

CD38, ADP-ribosyl cyclase/cyclic ADP-ribose hydrolase 1, 2'-phospho-ADP-ribosyl cyclase, 2'-phospho-ADP-ribosyl cyclase/2'-phospho-cyclic-ADP-ribose transferase, 2'-phospho-cyclic-ADP-ribose transferase, ADP-ribosyl cyclase 1, Cyclic ADP-ribose hydrolase 1, T10, ADPRC 1, cADPR hydrolase 1

4 Images
Flow Cytometry - PE Anti-CD38 antibody [HIT2] (AB326506)
  • Flow Cyt

Supplier Data

Flow Cytometry - PE Anti-CD38 antibody [HIT2] (AB326506)

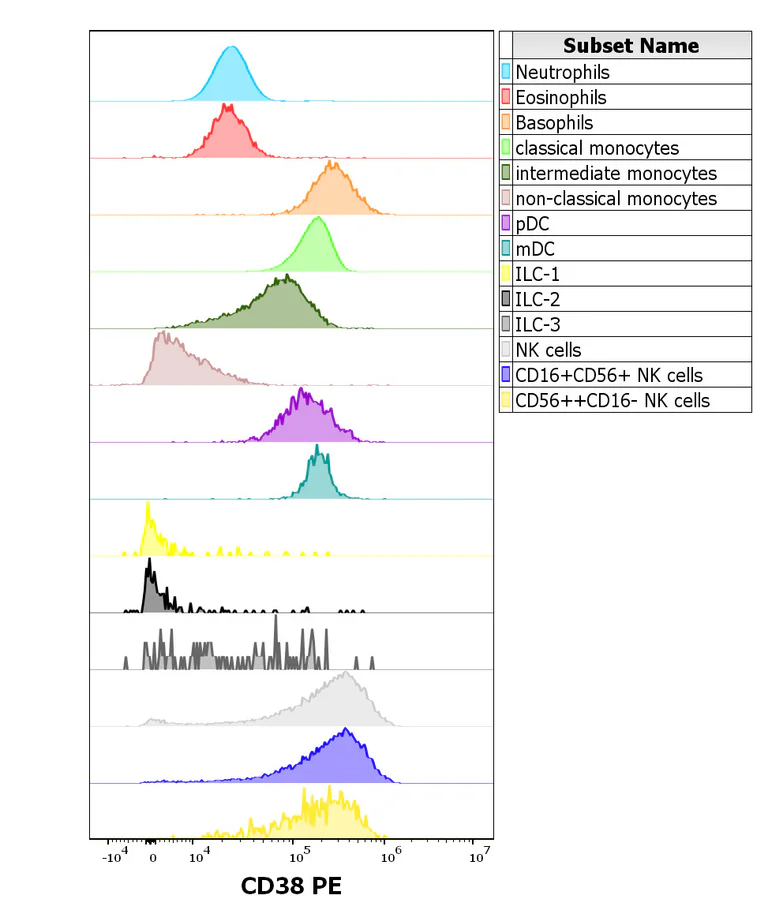

Expression profiling on peripheral blood subsets using ab326506. Innate panel

HCDM CDMaps standardized procedures (Kuzilkova D et al. Front Immunol. 2022;13 : 827898) were used for cell isolation and surface staining of blood leukocytes, with the modification of staining protocol using cytometry test tubes.
Suspension of blood leukocytes isolated from buffy coats (2 x 10^6 cells) was added to the mixture of ab326506 (2 µg/ml in stained blood sample) and Monocyte Blocking Buffer, vortexed and incubated for 20 min. Next, optimized backbone antibody panel (HLDA Innate) was added to test tubes, vortexed and incubated for 20 min. The residual erythrocytes were lysed with 2 ml of 10Ч diluted EXCELLYSE Easy solution and incubated for 10 min. Finally, samples were centrifuged (670 g, 5 min.), supernatant removed and the cell pellet was resuspended in 200 µl of PBS for acquisition.

Flow Cytometry - PE Anti-CD38 antibody [HIT2] (AB326506)
  • Flow Cyt

Supplier Data

Flow Cytometry - PE Anti-CD38 antibody [HIT2] (AB326506)

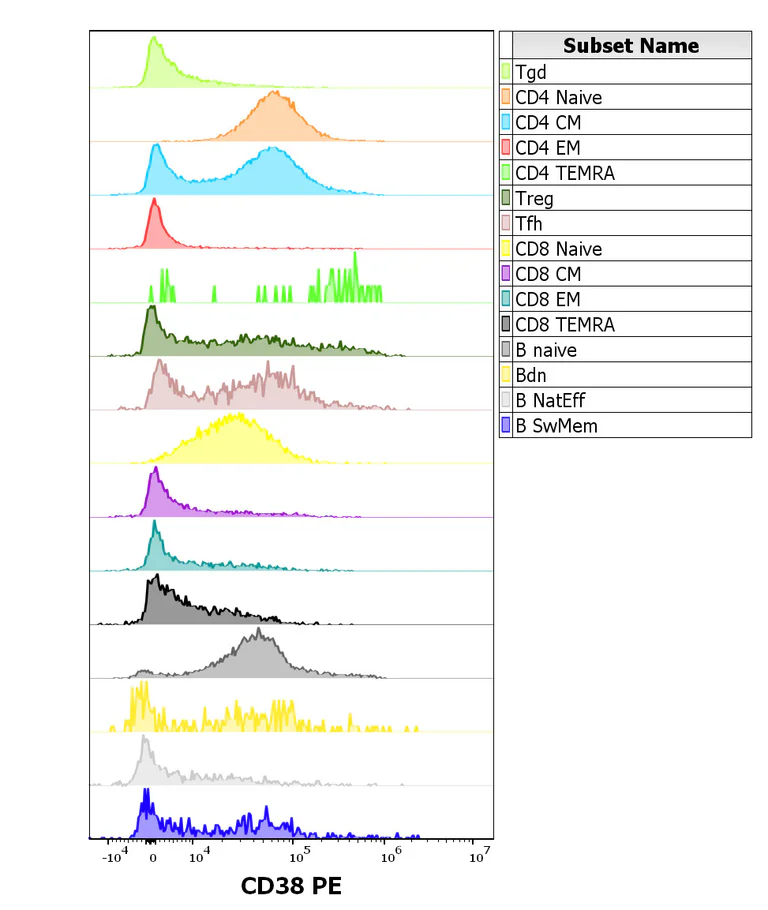

Expression profiling on peripheral blood subsets using ab326506. Adaptive panel

HCDM CDMaps standardized procedures (Kuzilkova D et al. Front Immunol. 2022;13 : 827898) were used for cell isolation and surface staining of blood leukocytes, with the modification of staining protocol using cytometry test tubes.
Suspension of blood leukocytes isolated from buffy coats (2 x 10^6 cells) was added to the mixture of ab326506 (2 µg/ml in stained blood sample) and Monocyte Blocking Buffer, vortexed and incubated for 20 min. Next, optimized backbone antibody panel (HLDA Adaptive) was added to test tubes, vortexed and incubated for 20 min. The residual erythrocytes were lysed with 2 ml of 10Ч diluted EXCELLYSE Easy solution and incubated for 10 min. Finally, samples were centrifuged (670 g, 5 min.), supernatant removed and the cell pellet was resuspended in 200 µl of PBS for acquisition.

Flow Cytometry - PE Anti-CD38 antibody [HIT2] (AB326506)
  • Flow Cyt

Supplier Data

Flow Cytometry - PE Anti-CD38 antibody [HIT2] (AB326506)

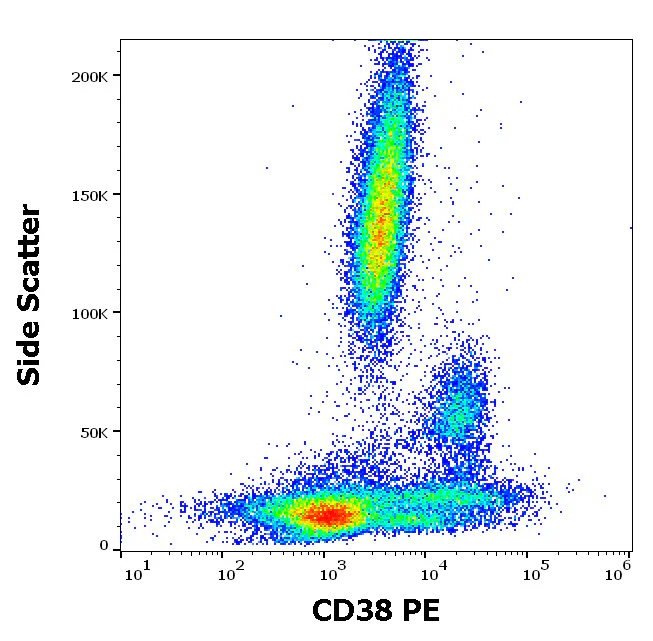

Flow cytometry surface staining pattern of human peripheral whole blood stained using ab326506 (20 μl reagent / 100 μl of peripheral whole blood).

Flow Cytometry - PE Anti-CD38 antibody [HIT2] (AB326506)
  • Flow Cyt

Supplier Data

Flow Cytometry - PE Anti-CD38 antibody [HIT2] (AB326506)

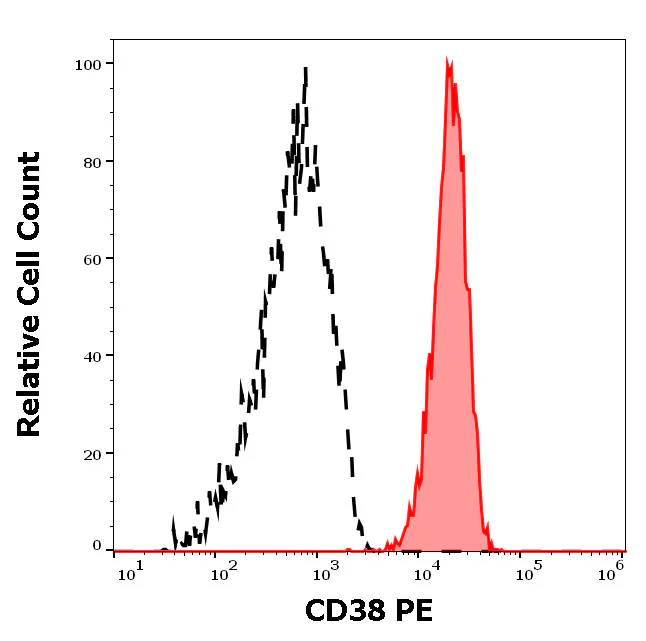

Separation of human monocytes (red-filled) from CD38 negative lymphocytes (black-dashed) in flow cytometry analysis (surface staining) of human peripheral whole blood stained using ab326506 (20 μl reagent / 100 μl of peripheral whole blood).

  • 660 APC

    APC Anti-CD38 antibody [HIT2]

  • 785 APC/Cy7®

    APC/Cy7® Anti-CD38 antibody [HIT2]

  • 723 Alexa Fluor® 700

    Alexa Fluor® 700 Anti-CD38 antibody [HIT2]

  • 519 FITC

    FITC Anti-CD38 antibody [HIT2]

  • 578 PE

    PE Anti-CD38 antibody [HIT2]

  • 778 PE/Cy7®

    PE/Cy7® Anti-CD38 antibody [HIT2]

  • 675 PerCP

    PerCP Anti-CD38 antibody [HIT2]

  • 695 PerCP/Cy5.5®

    PerCP/Cy5.5® Anti-CD38 antibody [HIT2]

  • 387 mFluor™ UV375

    mFluor™ UV375 Anti-CD38 antibody [HIT2]

  • 454 mFluor™ Violet 450

    mFluor™ Violet 450 Anti-CD38 antibody [HIT2]

Key facts

Host species

Mouse

Clonality

Monoclonal

Clone number

HIT2

Isotype

IgG1

Conjugation

PE

Excitation/Emission

Ex: 480;565nm, Em: 578nm

Carrier free

No

Reacts with

Human

Applications

Flow Cyt

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Specificity

The mouse monoclonal antibody HIT2 reacts with an extracellular epitope of CD38, a 45 kDa type II transmembrane glycoprotein strongly expressed mainly on plasma cells and activated T and B lymphocytes; it is an antigenic marker of lymphoid cells. Its binding is blocked by daratumumab.

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "FlowCyt-species-checked": "testedAndGuaranteed", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "<p>Flow cytometry: The reagent is designed for analysis of human blood cells using 20 μl reagent / 100 μl of whole blood or 10^6 cells in a suspension. The content of a vial (2 ml) is sufficient for 100 tests.</p>" } } }

Properties and storage information

Form
Liquid
Purification technique
Size-exclusion chromatography
Purification notes
Purified antibody is conjugated with R-phycoerythrin (PE) under optimum conditions. Unconjugated antibody and free fluorochrome are removed by size-exclusion chromatography.
Storage buffer
pH: 7.4 Preservative: 0.098% Sodium azide Constituents: PBS, 0.2% BSA
Shipped at conditions
Ambient - Can Ship with Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Do Not Freeze|Store in the dark

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Target data

Multifunctional transmembrane glycoprotein able to exert enzymatic activities and also to mobilize calcium, to transduce signals, to adhere to hyaluronan and to other ligands. Synthesizes cyclic ADP-ribose (cADPR), a second messenger for glucose-induced insulin secretion (PubMed : 7961800, PubMed : 8253715). Synthesizes the Ca(2+) mobilizer nicotinate-adenine dinucleotide phosphate, NAADP(+), from 2'-phospho-cADPR and nicotinic acid, as well as from NADP(+) and nicotinic acid. At both pH 5.0 and pH 7.4 preferentially transforms 2'-phospho-cADPR into NAADP(+), while preferentially cleaving NADP(+) to cADPR and ADPRP rather than into NADDP(+) (PubMed : 16690024). Has cADPR hydrolase activity (PubMed : 7961800, PubMed : 8253715). Functions also as a receptor that binds the ligand CD31 on endothelial cells, promoting lymphocyte activation, proliferation, and migration across the endothelial barrier (PubMed : 9551996). Involved in the regulation of crucial dendritic cell functions acquired at the mature stage, such as CCL21-driven migration, survival, and Th1-polarizing activity (PubMed : 16293598). In lamina propria T lymphocytes, CD38/CD31 cognate interactions initiate a multistep signaling pathway resulting in activation of LCK anf LAT, followed by cytokine release (PubMed : 11259373).
