AB239320

PE/DyLight™ 594 Anti-HLA-DR antibody [L243]

Be the first to review this product! Submit a review

|

(1 Publication)

Mouse Monoclonal HLA-DRA antibody - conjugated to PE/DyLight™ 594. Suitable for Flow Cyt and reacts with Human samples. Cited in 1 publication. Immunogen corresponding to Cell preparation containing HLA-DRA protein.

View Alternative Names

HLA-DRA1, HLA-DRA, MHC class II antigen DRA

1 Images
Flow Cytometry - PE/DyLight™ 594 Anti-HLA-DR antibody [L243] (AB239320)
  • Flow Cyt

Supplier Data

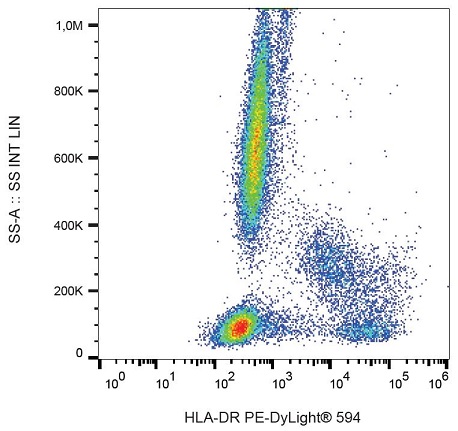

Flow Cytometry - PE/DyLight™ 594 Anti-HLA-DR antibody [L243] (AB239320)

Flow cytometric analysis of human peripheral blood labeling HLA-DR using ab239320. Surface staining. Gated on leukocytes.

Key facts

Host species

Mouse

Clonality

Monoclonal

Clone number

L243

Isotype

IgG2a

Conjugation

PE/DyLight™ 594

Excitation/Emission

Ex: 565nm, Em: 618nm

Carrier free

No

Reacts with

Human

Applications

Flow Cyt

applications

Immunogen

Cell preparation containing HLA-DRA protein. The exact immunogen used to generate this antibody is proprietary information.

P01903

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "FlowCyt-species-checked": "testedAndGuaranteed", "FlowCyt-species-dilution-info": "4 µL for 10^6 Cells", "FlowCyt-species-notes": "<p>(or 100 μl of whole blood)</p>" }, "Dog": { "FlowCyt-species-checked": "predicted", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "" }, "Primates": { "FlowCyt-species-checked": "predicted", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "" } } }

Properties and storage information

Form
Liquid
Purification technique
Size-exclusion chromatography
Purification notes
The purified antibody is conjugated with tandem dye PE-DyLight™ 594 (PE-DL594) under optimum conditions. The conjugate is purified by size-exclusion chromatography and adjusted for direct use. No reconstitution is necessary.
Storage buffer
pH: 7.4 Preservative: 0.0975% Sodium azide Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Store in the dark

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Target data

An alpha chain of antigen-presenting major histocompatibility complex class II (MHCII) molecule. In complex with the beta chain HLA-DRB, displays antigenic peptides on professional antigen presenting cells (APCs) for recognition by alpha-beta T cell receptor (TCR) on HLA-DR-restricted CD4-positive T cells. This guides antigen-specific T-helper effector functions, both antibody-mediated immune response and macrophage activation, to ultimately eliminate the infectious agents and transformed cells (PubMed : 15265931, PubMed : 15322540, PubMed : 17334368, PubMed : 22327072, PubMed : 24190431, PubMed : 27591323, PubMed : 29884618, PubMed : 31495665, PubMed : 8145819, PubMed : 9075930). Typically presents extracellular peptide antigens of 10 to 30 amino acids that arise from proteolysis of endocytosed antigens in lysosomes (PubMed : 8145819). In the tumor microenvironment, presents antigenic peptides that are primarily generated in tumor-resident APCs likely via phagocytosis of apoptotic tumor cells or macropinocytosis of secreted tumor proteins (PubMed : 31495665). Presents peptides derived from intracellular proteins that are trapped in autolysosomes after macroautophagy, a mechanism especially relevant for T cell selection in the thymus and central immune tolerance (PubMed : 17182262, PubMed : 23783831). The selection of the immunodominant epitopes follows two processing modes : 'bind first, cut/trim later' for pathogen-derived antigenic peptides and 'cut first, bind later' for autoantigens/self-peptides (PubMed : 25413013). The anchor residue at position 1 of the peptide N-terminus, usually a large hydrophobic residue, is essential for high affinity interaction with MHCII molecules (PubMed : 8145819).
See full target information HLA-DRA

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Cells 14: PubMed40643462

2025

Insulin Modulates NK Cell Activity in Liver Fibrosis MASH Patients via the STING Pathway.

Applications

Unspecified application

Species

Unspecified reactive species

Johnny Amer,Ahmad Salhab,Amiram Ariel,Rifaat Safadi
View all publications
