AB77134

PE Anti-HLA DR + HLA DP antibody [MEM-136]

Be the first to review this product! Submit a review

|

(1 Publication)

Mouse Monoclonal HLA-DPB1 antibody - conjugated to PE. Suitable for Flow Cyt and reacts with Human samples. Cited in 1 publication. Immunogen corresponding to Cell preparation containing HLA-DRB1 protein.

View Alternative Names

HLA-DP1B, HLA-DPB1, MHC class II antigen DPB1, MHC class II antigen DRB4, HLA-DRB4

2 Images
Flow Cytometry - PE Anti-HLA DR + HLA DP antibody [MEM-136] (AB77134)
  • Flow Cyt

Supplier Data

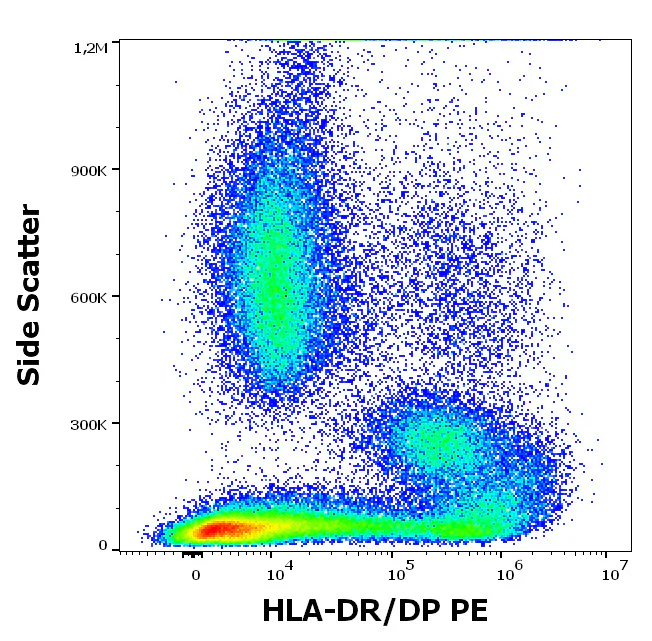

Flow Cytometry - PE Anti-HLA DR + HLA DP antibody [MEM-136] (AB77134)

Expression profiling on peripheral blood subsets using ab77134.
HCDM CDMaps standardized procedures (Kuzilkova D et al. Front Immunol. 2022;13 : 827898) were used for cell isolation and surface staining of blood leukocytes, with the modification of staining protocol using cytometry test tubes.
Suspension of blood leukocytes isolated from buffy coats (2 x 106 cells) was added to the mixture of anti-human HLA-DR/DP PE antibody (clone MEM-136, 20 µl reagent / 100 µl of stained blood sample) and Monocyte Blocking Buffer, vortexed and incubated for 20 min. Next, optimized backbone antibody panels (HLDA Innate and HLDA Adaptive) were added to test tubes, vortexed and incubated for 20 min. The residual erythrocytes were lysed with 2 ml of 10Ч diluted EXCELLYSE Easy solution and incubated for 10 min. Finally, samples were centrifuged (670 g, 5 min.), supernatant removed and the cell pellet was resuspended in 200 µl of PBS for acquisition.

Flow Cytometry - PE Anti-HLA DR + HLA DP antibody [MEM-136] (AB77134)
  • Flow Cyt

Supplier Data

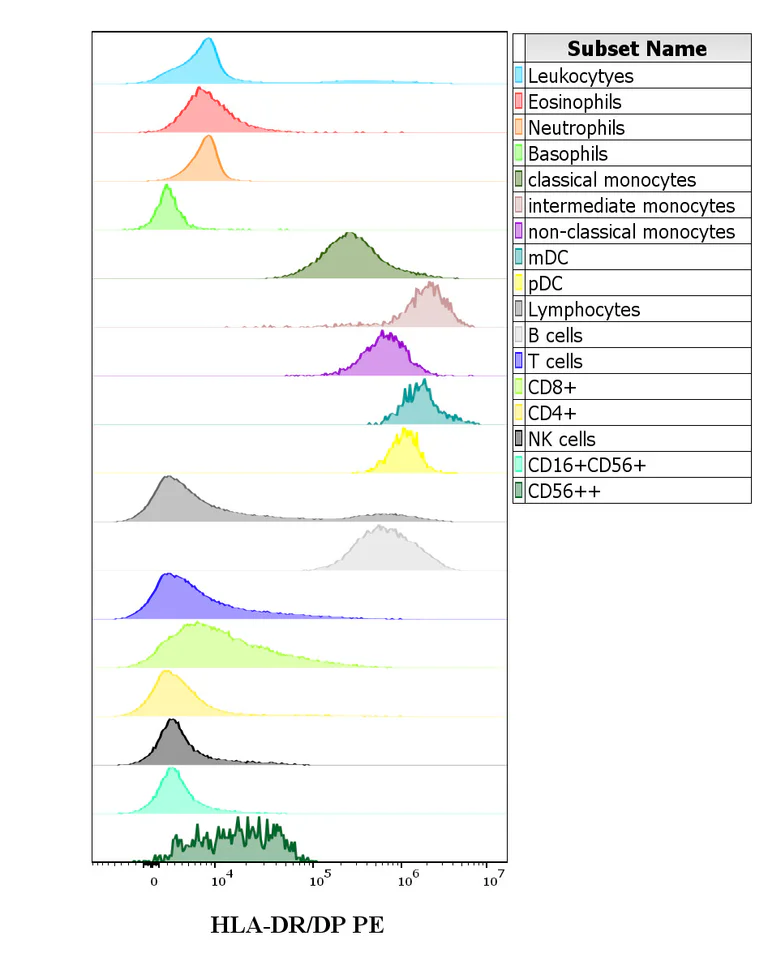

Flow Cytometry - PE Anti-HLA DR + HLA DP antibody [MEM-136] (AB77134)

Analysis of the antibody staining profile was performed on blood leukocytes isolated from buffy coats. HCDM CDMaps standardized procedures (Kuzilkova D et al. Front Immunol. 2022;13 : 827898) were used for cell isolation and surface staining of blood leukocytes, with the modification of staining protocol using cytometry test tubes.
ab77134 was used in amount of 20 µl in 100 µl of blood sample (2 x 106 cells).

Key facts

Host species

Mouse

Clonality

Monoclonal

Clone number

MEM-136

Isotype

IgG1

Conjugation

PE

Excitation/Emission

Ex: 480;565nm, Em: 578nm

Carrier free

No

Reacts with

Human

Applications

Flow Cyt

applications

Immunogen

Cell preparation containing HLA-DRB1 protein. The exact immunogen used to generate this antibody is proprietary information.

P01911

Specificity

ab77134 recognizes a common epitope on the beta chain of human HLA-DR and HLA-DP. It reacts with alpha/beta dimer as well as with dissociated beta subunit.

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "FlowCyt-species-checked": "testedAndGuaranteed", "FlowCyt-species-dilution-info": "20 µL for 10^6 Cells", "FlowCyt-species-notes": "<p></p>" } } }

Product details

Conjugates are made from highly purified antibodies (>95% by SDS-PAGE).

Properties and storage information

Form
Liquid
Purification technique
Size-exclusion chromatography
Purification notes
The protein A/G purified antibody is conjugated with R-Phycoerythrin (PE) under optimum conditions. The conjugate is then purified by size-exclusion chromatography and adjusted for direct use. No reconstitution is necessary.
Storage buffer
pH: 7.4 Preservative: 0.097% Sodium azide Constituents: PBS, 0.2% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Target data

Binds peptides derived from antigens that access the endocytic route of antigen presenting cells (APC) and presents them on the cell surface for recognition by the CD4 T-cells. The peptide binding cleft accommodates peptides of 10-30 residues. The peptides presented by MHC class II molecules are generated mostly by degradation of proteins that access the endocytic route, where they are processed by lysosomal proteases and other hydrolases. Exogenous antigens that have been endocytosed by the APC are thus readily available for presentation via MHC II molecules, and for this reason this antigen presentation pathway is usually referred to as exogenous. As membrane proteins on their way to degradation in lysosomes as part of their normal turn-over are also contained in the endosomal/lysosomal compartments, exogenous antigens must compete with those derived from endogenous components. Autophagy is also a source of endogenous peptides, autophagosomes constitutively fuse with MHC class II loading compartments. In addition to APCs, other cells of the gastrointestinal tract, such as epithelial cells, express MHC class II molecules and CD74 and act as APCs, which is an unusual trait of the GI tract. To produce a MHC class II molecule that presents an antigen, three MHC class II molecules (heterodimers of an alpha and a beta chain) associate with a CD74 trimer in the ER to form a heterononamer. Soon after the entry of this complex into the endosomal/lysosomal system where antigen processing occurs, CD74 undergoes a sequential degradation by various proteases, including CTSS and CTSL, leaving a small fragment termed CLIP (class-II-associated invariant chain peptide). The removal of CLIP is facilitated by HLA-DM via direct binding to the alpha-beta-CLIP complex so that CLIP is released. HLA-DM stabilizes MHC class II molecules until primary high affinity antigenic peptides are bound. The MHC II molecule bound to a peptide is then transported to the cell membrane surface. In B-cells, the interaction between HLA-DM and MHC class II molecules is regulated by HLA-DO. Primary dendritic cells (DCs) also to express HLA-DO. Lysosomal microenvironment has been implicated in the regulation of antigen loading into MHC II molecules, increased acidification produces increased proteolysis and efficient peptide loading.
See full target information HLA-DPB1

Additional targets

HLA-DRB4

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Journal of orthopaedic research : official publication of the Orthopaedic Research Society 40:1563-1576 PubMed34727384

2021

Mg -mediated autophagy-dependent polarization of macrophages mediates the osteogenesis of bone marrow stromal stem cells by interfering with macrophage-derived exosomes containing miR-381.

Applications

Unspecified application

Species

Unspecified reactive species

Yong Zhu,Shushan Zhao,Liang Cheng,Zhangyuan Lin,Min Zeng,Zhe Ruan,Buhua Sun,Zhongwei Luo,Yifu Tang,Haitao Long
View all publications
